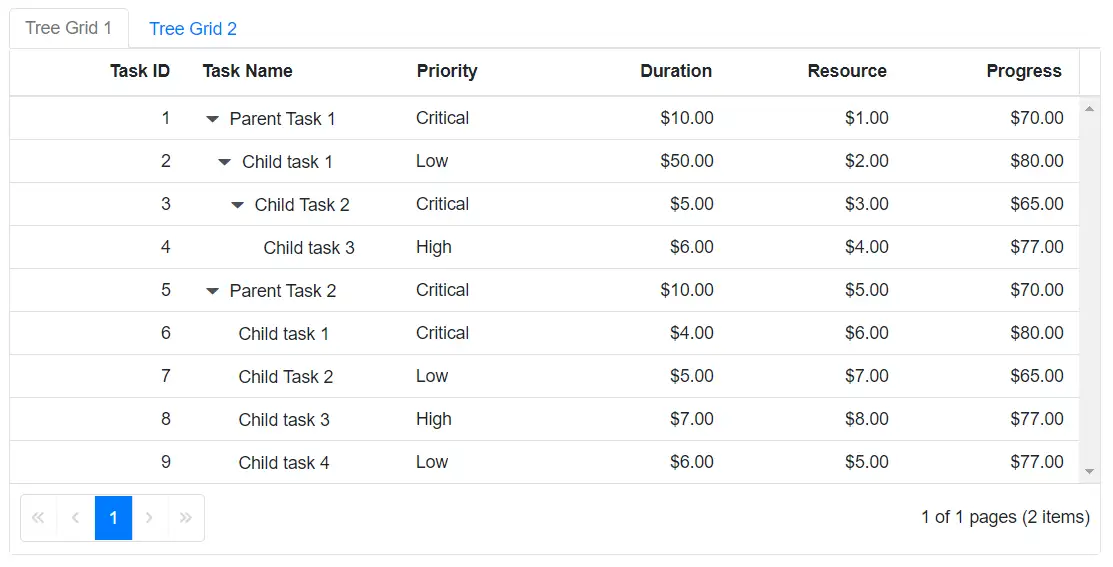

Render TreeGrid inside the Tab with specific height in Blazor Tree Grid component

08 Apr 2021 / 1 minute to read

By default, Tree Grid will occupy the entire space of the parent element when Tree Grid Height and Width property is defined as 100%. But if you render the similar Tree Grid inside the Tab control, it will consider the entire page and render the Tree Grid without horizontal scroller.

index.razor
treegriddata.cs
Copied to clipboard
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.Grids;
@using  Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Navigations

<div style="height:300px">
        <SfTab ID="Ej2Tab" Width="100%">
            <TabItems>
                <TabItem>
                    <ChildContent>
                        <TabHeader Text="Tree Grid 1"></TabHeader>
                    </ChildContent>
                    <ContentTemplate>
                        <SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" AllowPaging="true"
                                    TreeColumnIndex="1" Height="100%" Width="100%">
                            <TreeGridColumns>
                                <TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="70" TextAlign="TextAlign.Right"></TreeGridColumn>
                                <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="85"></TreeGridColumn>
                                <TreeGridColumn Field="Priority" HeaderText="Priority" Width="60"></TreeGridColumn>
                                <TreeGridColumn Field="Duration" HeaderText="Duration" Width="70" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
                                <TreeGridColumn Field="Resources" HeaderText="Resource" Width="70" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
                                <TreeGridColumn Field="Progress" HeaderText="Progress" Width="70" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
                            </TreeGridColumns>
                        </SfTreeGrid>
                    </ContentTemplate>
                </TabItem>
                <TabItem>
                    <ChildContent>
                        <TabHeader Text="Tree Grid 2"></TabHeader>
                    </ChildContent>
                    <ContentTemplate>
                        <SfTreeGrid DataSource="@TreeDataSource" IdMapping="TaskId" ParentIdMapping="ParentId" AllowPaging="true"
                                    TreeColumnIndex="1" Height="100%" Width="100%">
                            <TreeGridColumns>
                                <TreeGridColumn Field="TaskId" HeaderText="Task ID" Visible="false" Width="100" TextAlign="TextAlign.Right"></TreeGridColumn>
                                <TreeGridColumn Field="Duration" HeaderText="Duration" Width="120" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
                                <TreeGridColumn Field="Progress" HeaderText="Progress" Width="120" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
                                <TreeGridColumn Field="Resources" HeaderText="Resources" Width="120" Format="C2" TextAlign="TextAlign.Right"></TreeGridColumn>
                            </TreeGridColumns>
                        </SfTreeGrid>
                    </ContentTemplate>
                </TabItem>
            </TabItems>
        </SfTab>
    </div>


    @code{
        SfTreeGrid<TreeData> TreeGrid;

        public List<TreeData> TreeGridData { get; set; }
        public List<WrapData> TreeDataSource { get; set; }
        protected override void OnInitialized()
        {
            this.TreeGridData = TreeData.GetSelfDataSource().ToList();
            this.TreeDataSource = WrapData.GetWrapData().ToList();
        }
    }
Copied to clipboard
namespace TreeGridComponent.Data {

    public class TreeData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int? Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
            return TreeDataCollection;
        }
    }
    public class WrapData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime? StartDate { get; set; }
        public DateTime? EndDate { get; set; }
        public int? Duration { get; set; }
        public String Progress { get; set; }
        public string Priority { get; set; }
        public bool Approved { get; set; }
        public int Resources { get; set; }
        public int? ParentId { get; set; }
        public static List<WrapData> GetWrapData()
        {
            List<WrapData> BusinessObjectCollection = new List<WrapData>();
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 1,
                TaskName = "Planning",
                StartDate = new DateTime(2017, 03, 02),
                EndDate = new DateTime(2017, 07, 03),
                Progress = "Open",
                Duration = 5,
                Priority = "Normal",
                Resources = 6,
                Approved = false,
                ParentId = null
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 2,
                TaskName = "Plan timeline",
                StartDate = new DateTime(2017, 03, 04),
                EndDate = new DateTime(2017, 07, 05),
                Progress = "Inprogress",
                Duration = 5,
                Resources = 4,
                Priority = "Normal",
                Approved = false,
                ParentId = 1
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 3,
                TaskName = "Plan budget",
                StartDate = new DateTime(2017, 03, 06),
                EndDate = new DateTime(2017, 07, 07),
                Duration = 5,
                Progress = "Started",
                Approved = true,
                Resources = 6,
                Priority = "Low",
                ParentId = 1
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 4,
                TaskName = "Allocate resources",
                StartDate = new DateTime(2017, 03, 08),
                EndDate = new DateTime(2017, 07, 09),
                Duration = 5,
                Progress = "Open",
                Priority = "Critical",
                ParentId = 1,
                Resources = 3,
                Approved = false
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 5,
                TaskName = "Planning complete",
                StartDate = new DateTime(2017, 07, 10),
                EndDate = new DateTime(2017, 07, 11),
                Duration = 1,
                Progress = "Open",
                Priority = "Low",
                Resources = 5,
                ParentId = 1,
                Approved = true
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 6,
                TaskName = "Design",
                StartDate = new DateTime(2017, 10, 12),
                EndDate = new DateTime(2017, 02, 13),
                Progress = "Inprogress",
                Duration = 3,
                Priority = "High",
                Resources = 4,
                Approved = false,
                ParentId = null
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 7,
                TaskName = "Software Specification",
                StartDate = new DateTime(2017, 10, 14),
                EndDate = new DateTime(2017, 02, 15),
                Duration = 3,
                Progress = "Started",
                Resources = 3,
                Priority = "Normal",
                ParentId = 6,
                Approved = false
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 8,
                TaskName = "Develop prototype",
                StartDate = new DateTime(2017, 10, 16),
                EndDate = new DateTime(2017, 02, 17),
                Duration = 3,
                Progress = "Inprogress",
                Resources = 2,
                Priority = "Critical",
                ParentId = 6,
                Approved = false
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 9,
                TaskName = "Get approval from customer",
                StartDate = new DateTime(2017, 02, 18),
                EndDate = new DateTime(2017, 02, 19),
                Duration = 2,
                Progress = "Inprogress",
                Resources = 3,
                Priority = "Low",
                Approved = true,
                ParentId = 6
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 10,
                TaskName = "Design complete",
                StartDate = new DateTime(2017, 02, 20),
                EndDate = new DateTime(2017, 02, 21),
                Duration = 1,
                Progress = "Inprogress",
                Resources = 6,
                Priority = "Normal",
                ParentId = 6,
                Approved = true
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 12,
                TaskName = "Implementation Phase",
                StartDate = new DateTime(2017, 02, 22),
                EndDate = new DateTime(2017, 02, 23),
                Priority = "Normal",
                Approved = false,
                Duration = 11,
                Resources = 5,
                Progress = "Started",
                ParentId = null
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 13,
                TaskName = "Phase 1",
                StartDate = new DateTime(2017, 02, 24),
                EndDate = new DateTime(2017, 02, 25),
                Priority = "High",
                Approved = false,
                Duration = 11,
                Progress = "Open",
                Resources = 4,
                ParentId = 12
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 14,
                TaskName = "Implementation Module 1",
                StartDate = new DateTime(2017, 02, 26),
                EndDate = new DateTime(2017, 02, 27),
                Priority = "Normal",
                Duration = 11,
                Progress = "Started",
                Resources = 3,
                Approved = false,
                ParentId = 13
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 15,
                TaskName = "Development Task 1",
                StartDate = new DateTime(2017, 06, 18),
                EndDate = new DateTime(2017, 06, 19),
                Duration = 3,
                Progress = "Inprogress",
                Priority = "High",
                Resources = 2,
                ParentId = 14,
                Approved = false
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 16,
                TaskName = "Development Task 2",
                StartDate = new DateTime(2017, 02, 13),
                EndDate = new DateTime(2017, 03, 01),
                Duration = 3,
                Progress = "Closed",
                Priority = "Low",
                Resources = 5,
                ParentId = 14,
                Approved = true
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 17,
                TaskName = "Testing",
                StartDate = new DateTime(2017, 03, 02),
                EndDate = new DateTime(2017, 03, 03),
                Duration = 2,
                Progress = "Closed",
                Priority = "Normal",
                ParentId = 14,
                Resources = 1,
                Approved = true
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 18,
                TaskName = "Bug fix",
                StartDate = new DateTime(2017, 03, 04),
                EndDate = new DateTime(2017, 03, 05),
                Duration = 2,
                Progress = "Validated",
                Priority = "Critical",
                ParentId = 14,
                Resources = 6,
                Approved = false
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 19,
                TaskName = "Customer review meeting",
                StartDate = new DateTime(2017, 03, 06),
                EndDate = new DateTime(2017, 03, 07),
                Duration = 2,
                Progress = "Open",
                Priority = "High",
                ParentId = 14,
                Resources = 6,
                Approved = false
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 20,
                TaskName = "Phase 1 complete",
                StartDate = new DateTime(2017, 04, 27),
                EndDate = new DateTime(2017, 07, 27),
                Duration = 2,
                Progress = "Closed",
                Priority = "Low",
                ParentId = 14,
                Resources = 5,
                Approved = true
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 21,
                TaskName = "Phase 2",
                StartDate = new DateTime(2017, 07, 17),
                EndDate = new DateTime(2017, 09, 28),
                Priority = "High",
                Approved = false,
                Progress = "Open",
                ParentId = 12,
                Resources = 3,
                Duration = 12,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 22,
                TaskName = "Implementation Module 2",
                StartDate = new DateTime(2017, 01, 17),
                EndDate = new DateTime(2017, 02, 28),
                Priority = "Critical",
                Approved = false,
                Progress = "Inprogress",
                ParentId = 21,
                Resources = 3,
                Duration = 12
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 23,
                TaskName = "Development Task 1",
                StartDate = new DateTime(2017, 08, 17),
                EndDate = new DateTime(2017, 09, 20),
                Duration = 4,
                Progress = "Closed",
                Priority = "Normal",
                ParentId = 22,
                Resources = 2,
                Approved = true,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 24,
                TaskName = "Development Task 2",
                StartDate = new DateTime(2017, 04, 17),
                EndDate = new DateTime(2017, 03, 20),
                Duration = 4,
                Progress = "Closed",
                Priority = "Critical",
                ParentId = 22,
                Resources = 5,
                Approved = true,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 25,
                TaskName = "Testing",
                StartDate = new DateTime(2017, 01, 21),
                EndDate = new DateTime(2017, 01, 24),
                Duration = 2,
                Progress = "Open",
                Priority = "High",
                ParentId = 22,
                Resources = 3,
                Approved = false,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 26,
                TaskName = "Bug fix",
                StartDate = new DateTime(2017, 03, 25),
                EndDate = new DateTime(2017, 08, 26),
                Duration = 2,
                Progress = "Validated",
                Priority = "Low",
                Approved = false,
                Resources = 6,
                ParentId = 22
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 27,
                TaskName = "Customer review meeting",
                StartDate = new DateTime(2017, 07, 27),
                EndDate = new DateTime(2017, 06, 28),
                Duration = 2,
                Progress = "Inprogress",
                Priority = "Critical",
                ParentId = 22,
                Resources = 4,
                Approved = true,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 28,
                TaskName = "Phase 2 complete",
                StartDate = new DateTime(2017, 07, 19),
                EndDate = new DateTime(2017, 05, 28),
                Duration = 2,
                Priority = "Normal",
                Progress = "Open",
                ParentId = 22,
                Resources = 3,
                Approved = false,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 29,
                TaskName = "Phase 3",
                StartDate = new DateTime(2017, 07, 17),
                EndDate = new DateTime(2017, 02, 12),
                Priority = "Normal",
                Approved = false,
                Duration = 11,
                Progress = "Inprogress",
                Resources = 4,
                ParentId = 12
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 30,
                TaskName = "Implementation Module 3",
                StartDate = new DateTime(2017, 08, 17),
                EndDate = new DateTime(2017, 09, 27),
                Priority = "High",
                Approved = false,
                Duration = 11,
                Resources = 5,
                Progress = "Validated",
                ParentId = 29,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 31,
                TaskName = "Development Task 1",
                StartDate = new DateTime(2017, 11, 17),
                EndDate = new DateTime(2017, 12, 19),
                Duration = 3,
                Progress = "Closed",
                Priority = "Low",
                Approved = true,
                Resources = 3,
                ParentId = 30
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 32,
                TaskName = "Development Task 2",
                StartDate = new DateTime(2017, 12, 17),
                EndDate = new DateTime(2017, 02, 19),
                Duration = 3,
                Progress = "Closed",
                Priority = "Normal",
                Approved = false,
                Resources = 2,
                ParentId = 30
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 33,
                TaskName = "Testing",
                StartDate = new DateTime(2017, 01, 01),
                EndDate = new DateTime(2017, 07, 21),
                Duration = 2,
                Progress = "Closed",
                Priority = "Critical",
                ParentId = 30,
                Resources = 4,
                Approved = true,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 34,
                TaskName = "Bug fix",
                StartDate = new DateTime(2017, 01, 24),
                EndDate = new DateTime(2017, 01, 25),
                Duration = 2,
                Progress = "Open",
                Priority = "High",
                Approved = false,
                Resources = 3,
                ParentId = 30
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 35,
                TaskName = "Customer review meeting",
                StartDate = new DateTime(2017, 12, 26),
                EndDate = new DateTime(2017, 12, 27),
                Duration = 2,
                Progress = "Inprogress",
                Priority = "Normal",
                ParentId = 30,
                Resources = 6,
                Approved = true,
            });
            BusinessObjectCollection.Add(new WrapData()
            {
                TaskId = 36,
                TaskName = "Phase 3 complete",
                StartDate = new DateTime(2017, 05, 27),
                EndDate = new DateTime(2017, 05, 27),
                Duration = 2,
                Priority = "Critical",
                Progress = "Open",
                Resources = 5,
                ParentId = 30,
                Approved = false,
            });
            return BusinessObjectCollection;
        }
    }
}

Output be like the below.

`Final output`
