Select Tree Grid rows based on certain condition in Blazor TreeGrid component

03 Aug 2021 / 1 minute to read

You can select specific rows in the Tree Grid based on some conditions by using the SelectRows method in the DataBound event of the Tree Grid component.

This is demonstrated in the below sample code where the index value of Tree Grid rows with Duration column value greater than 6 are stored in the RowDataBound event and then selected in the DataBound event,

index.razor
treegriddata.cs
Copied to clipboard
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.Grids;
@using  Syncfusion.Blazor.TreeGrid;

<SfTreeGrid @ref="TreeGrid" DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1">
    <TreeGridSelectionSettings Type=SelectionType.Multiple></TreeGridSelectionSettings>
    <TreeGridEvents RowDataBound="OnRowDataBound" DataBound="OnDataBound" TValue="TreeData"></TreeGridEvents>
    <TreeGridPageSettings PageSize="8"></TreeGridPageSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="70" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="85"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="60"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="60" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="60" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Resources" HeaderText="Resources" Width="70" TextAlign="TextAlign.Right"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{
    SfTreeGrid<TreeData> TreeGrid;

    public List<TreeData> TreeGridData { get; set; }

    public List<int> SelectedNodeIndex = new List<int>();

    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }

    public void OnDataBound(object args)
    {
        // The filtered index values are selected
        this.TreeGrid.SelectRows(SelectedNodeIndex);
    }

    public void OnRowDataBound(RowDataBoundEventArgs<TreeData> args)
    {
        // Freight values greater than 10 are filtered by comparing the primary column values
        if (args.Data.Duration > 6)
        {
            var dataSource = this.TreeGrid.DataSource;
            var index = 0;
            foreach (var data in dataSource)
            {
                if (data.TaskId == args.Data.TaskId)
                {
                    SelectedNodeIndex.Add(index);
                    break;
                }
                index++;
            }
        }
    }
}
Copied to clipboard
namespace TreeGridComponent.Data {

public class TreeData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int? Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
            return TreeDataCollection;
        }
    }
}

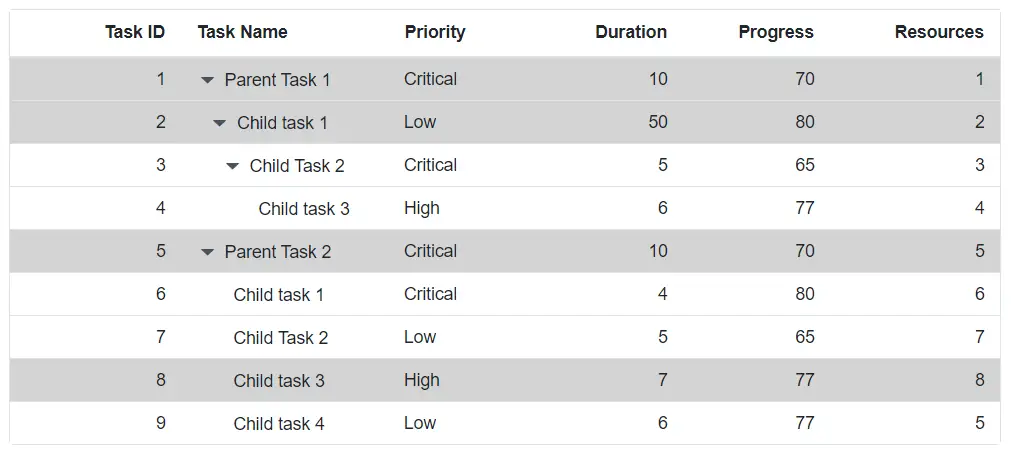

Output be like the below.

`Final output`
