Show or Hide columns in Dialog editing in Blazor TreeGrid component

28 Jul 2021 / 1 minute to read

You can show hidden columns or hide visible column’s editor in the dialog while editing the Tree Grid record. This can be achieved by Template. In the below example, we have rendered the Tree Grid columns Progress as hidden column and Priority as visible column. In the edit mode, we have changed the Progress column to visible state and Priority column to hidden state.

index.razor
treegriddata.cs
Copied to clipboard
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.TreeGrid
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Inputs
@using Syncfusion.Blazor.Calendars

<SfTreeGrid DataSource="@TreeGridData" AllowPaging="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" Toolbar="@(new List<string>() { "Add", "Edit", "Delete", "Update", "Cancel" })">
    <TreeGridEvents TValue="TreeData" OnActionComplete="OnComplete"></TreeGridEvents>
    <TreeGridEditSettings AllowEditing="true" AllowAdding="true" AllowDeleting="true" Mode="Syncfusion.Blazor.TreeGrid.EditMode.Dialog" NewRowPosition="RowPosition.Child">
        <Template>
            @{
                var employee = (context as TreeData);
            }
            <div>
                <div class="form-row">
                    <div class="form-group col-md-6">
                        <SfNumericTextBox ID="TaskId" @bind-Value="@(employee.TaskId)" Enabled="@Check" FloatLabelType="FloatLabelType.Always" Placeholder="Task ID"></SfNumericTextBox>
                    </div>
                    <div class="form-group col-md-6">
                        <SfAutoComplete TItem="TreeData" ID="TaskName" @bind-Value="@(employee.TaskName)" TValue="string" DataSource="@TreeGridData" FloatLabelType="FloatLabelType.Always" Placeholder="Task Name">
                            <AutoCompleteFieldSettings Value="TaskName"></AutoCompleteFieldSettings>
                        </SfAutoComplete>
                    </div>
                </div>
                <div class="form-row">
                    <div class="form-group col-md-6">
                        <SfNumericTextBox ID="Duration" @bind-Value="@(employee.Duration)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Duration"></SfNumericTextBox>
                    </div>
                    <div class="form-group col-md-6">
                        <SfNumericTextBox ID="Progress" @bind-Value="@(employee.Progress)" TValue="int?" FloatLabelType="FloatLabelType.Always" Placeholder="Progress"></SfNumericTextBox>
                    </div>
                </div>
            </div>
        </Template>
    </TreeGridEditSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" Visible="false" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{

    private Boolean Check = false;

    public List<TreeData> TreeGridData { get; set; }

    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }

    private void OnComplete(ActionEventArgs<TreeData> args)
    {
        if (args.RequestType.ToString() == "Add")
        {
            Check = true;
        }
        else
        {
            Check = false;
        }
    }

}
Copied to clipboard
namespace TreeGridComponent.Data {

public class TreeData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int? Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
            return TreeDataCollection;
        }
    }
}

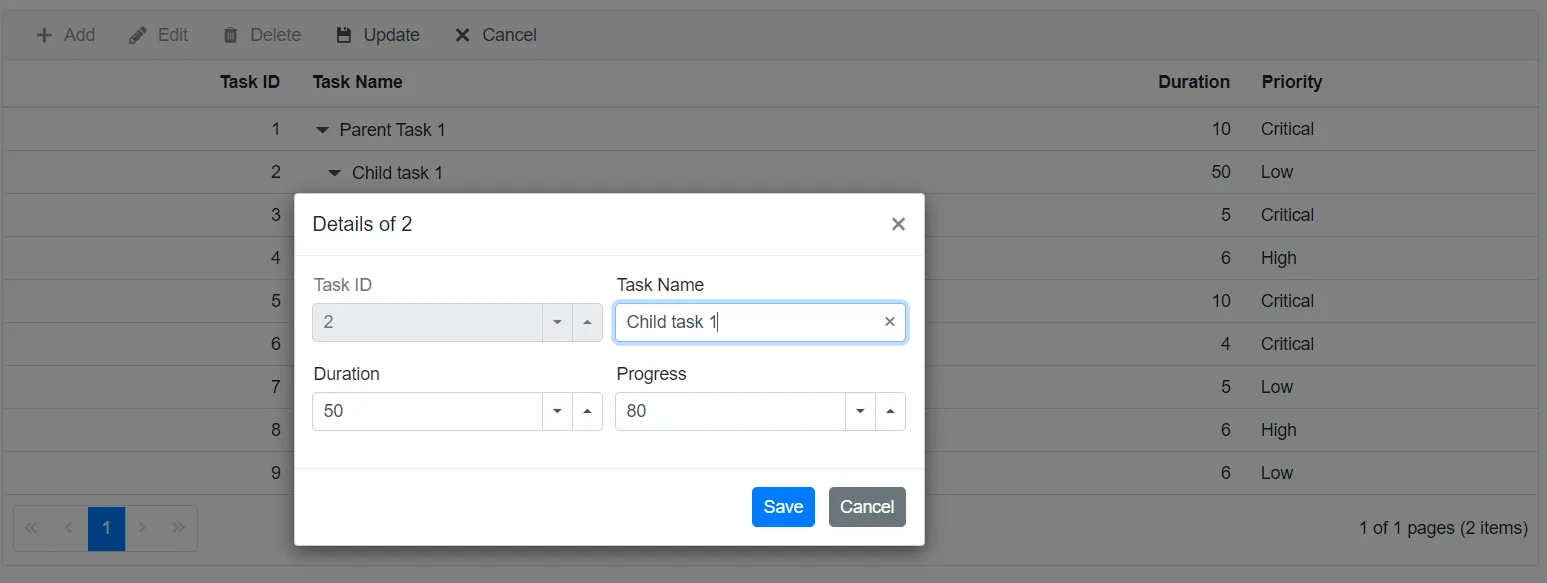

Output be like the below. `Final output`
