Create custom toolbar with drop-down list in Blazor TreeGrid component

03 Aug 2021 / 1 minute to read

You can create your own ToolBar items in the Tree Grid. It can be added by defining the Toolbar. Actions for this ToolBar template items are defined in the [ToolbarClick]

Step 1:

Initialize the template for your custom component. Using the following code add the DropDownList component to the ToolBar.

Copied to clipboard
    <SfToolbar>
        <ToolbarItems>
            <ToolbarItem Type="ItemType.Input">
                <Template>
                    <SfDropDownList TValue="string" TItem="Select" DataSource=@LocalData Width="200">
                        <DropDownListFieldSettings Text="text" Value="text"> </DropDownListFieldSettings>
                        <DropDownListEvents TValue="string" ValueChange="OnChange" TItem="Select"> </DropDownListEvents>
                    </SfDropDownList>
                </Template>
            </ToolbarItem>
        </ToolbarItems>
    </SfToolbar>

Step 2:

To render the DropDownList component, use the DropDownListEvents You can select the Tree Grid row index based on the selected data in the DropDownList. The output will appear as follows.

index.razor
treegriddata.cs
Copied to clipboard
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.DropDowns

<SfTreeGrid @ref="TreeGrid" DataSource="@TreeGridData" AllowPaging="true"
            IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" Height="200">
    <SfToolbar>
        <ToolbarItems>
            <ToolbarItem Type="ItemType.Input">
                <Template>
                    <SfDropDownList TValue="string" TItem="Select" DataSource=@LocalData Width="200">
                        <DropDownListFieldSettings Text="text" Value="text"> </DropDownListFieldSettings>
                        <DropDownListEvents TValue="string" ValueChange="OnChange" TItem="Select"> </DropDownListEvents>
                    </SfDropDownList>
                </Template>
            </ToolbarItem>
        </ToolbarItems>
    </SfToolbar>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{
    SfTreeGrid<TreeData> TreeGrid;

    public List<TreeData> TreeGridData { get; set; }

    public class Select
    {
        public string text { get; set; }
    }
    List<Select> LocalData = new List<Select>
    {
            new Select() { text = "0"},
            new Select() { text = "1"},
            new Select() { text = "2"},
            new Select() { text = "3"},
            new Select() { text = "4"},
            new Select() { text = "5"},
            new Select() { text = "6"},
            new Select() { text = "7"},
            new Select() { text = "8"},
            new Select() { text = "9"},
    };
    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }
    public void OnChange(Syncfusion.Blazor.DropDowns.ChangeEventArgs<string, Select> args)
    {
        this.TreeGrid.SelectRow(int.Parse(args.Value));
    }

}
Copied to clipboard
namespace TreeGridComponent.Data {

public class TreeData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int? Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
            return TreeDataCollection;
        }
    }
}

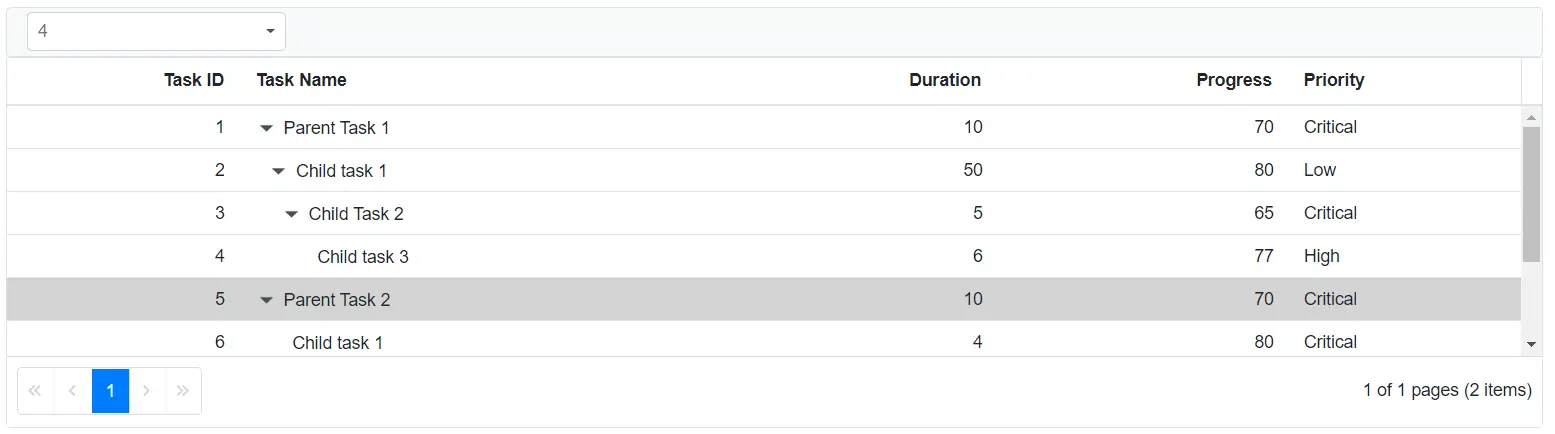

Output be like the below. `Final output`
