Tree Grid customization in Blazor Tree Grid component

08 Apr 2021 / 1 minute to read

It is possible to customize the default styles of the Tree Grid component. This can be achieved by adding class dynamically to the columns using the AddClass method of the QueryCellInfo event. Then the required styles are added to this class.

This is demonstrated in the below sample code,

index.razor
treegriddata.cs
Copied to clipboard
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.Grids;
@using  Syncfusion.Blazor.TreeGrid;

<SfTreeGrid @ref="TreeGrid" DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1"
            AllowPaging="true">
    <TreeGridEvents QueryCellInfo="QueryCellInfoHandler" TValue="TreeData"></TreeGridEvents>
    <TreeGridPageSettings PageSize="8"></TreeGridPageSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160">
        </TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80">
        </TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right">
        </TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

<style>
    .e-treegrid .e-gridcontent .e-rowcell.above-10 {
        color: green;
    }

    .e-treegrid .e-gridcontent .e-rowcell.above-5 {
        color: blue;
    }

    .e-treegrid .e-gridcontent .e-rowcell.below-5 {
        color: red;
    }
</style>
@code{
    SfTreeGrid<TreeData> TreeGrid;

    public List<TreeData> TreeGridData { get; set; }


    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }
    public void QueryCellInfoHandler(QueryCellInfoEventArgs<TreeData> args)
    {
        if (args.Data.Duration > 10)
        {
            args.Cell.AddClass(new string[] { "above-10" });
        }
        else if (args.Data.Duration > 5 && args.Data.Duration <= 10)
        {
            args.Cell.AddClass(new string[] { "above-5" });
        }
        else
        {
            args.Cell.AddClass(new string[] { "below-5" });
        }
    }
}
Copied to clipboard
namespace TreeGridComponent.Data {

public class TreeData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int? Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2, TaskName = "Child task 1", Progress = 80, Priority = "Low", Duration = 50, ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 8, TaskName = "Child task 3", Duration = 6, Progress = 77, Priority = "High", ParentId = 5 });
            TreeDataCollection.Add(new TreeData() { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5 });
            return TreeDataCollection;
        }
    }
}

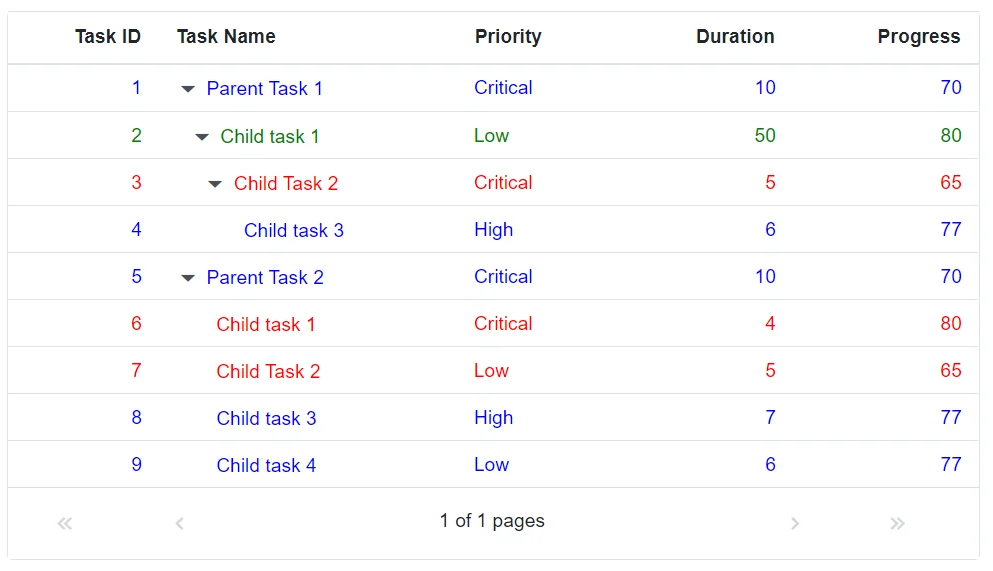

The following image represents customized Tree Grid columns, `Tree Grid Customization`
