Using dictionary values in Tree Grid datasource in Blazor TreeGrid component

03 Aug 2021 / 1 minute to read

You can assign dictionary values in the Tree Grid’s data source by accessing them using KeyValuePair data type inside the Template property of the TreeGridColumn component

This is demonstrated in the below sample code where Designation is defined as Dictionary value and it is accessed inside the template property of the TreeGridColumn using KeyValuePair data type. The key value is compared with the TaskId column value and based on that the value is displayed,

index.razor
Copied to clipboard
@using TreeGridComponent.Data;
@using  Syncfusion.Blazor.Grids;
@using  Syncfusion.Blazor.TreeGrid;


<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" AllowPaging="true"
            TreeColumnIndex="1" >
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" IsPrimaryKey="true" Width="100" TextAlign="TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="145"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duation" Width="90"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="90"></TreeGridColumn>
        <TreeGridColumn Field="Designation" HeaderText="Designation" Width="90">
            <Template>
                @{
                    var Details = context as TaskDetails;
                    var level = Details.Designation.Select(kvp => (kvp.Key == Details.TaskId) ? kvp.Value.ToString() : "");
                    <p>@string.Join("", level)</p>
                }
            </Template>
        </TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{
    SfTreeGrid<TaskDetails> TreeGrid;

    public class TaskDetails
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public int Duration { get; set; }
        public int? Progress { get; set; }
        public string Priority { get; set; }
        public int? ParentId { get; set; }
        public Dictionary<int, string> Designation { get; set; }

    }
    List<TaskDetails> TreeGridData = new List<TaskDetails>
    {
        new TaskDetails { TaskId = 1, TaskName = "Parent Task 1", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null, Designation = DesignationDetails},
        new TaskDetails { TaskId = 2, TaskName = "Child task 1",Duration = 50, Progress = 80, Priority = "Low",  ParentId = 1, Designation = DesignationDetails},
        new TaskDetails { TaskId = 3, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Critical", ParentId = 2, Designation = DesignationDetails},
        new TaskDetails { TaskId = 4, TaskName = "Child task 3", Duration = 6, Priority = "High", Progress = 77, ParentId = 3, Designation = DesignationDetails},
        new TaskDetails { TaskId = 5, TaskName = "Parent Task 2", Duration = 10, Progress = 70, Priority = "Critical", ParentId = null, Designation = DesignationDetails},
        new TaskDetails { TaskId = 6, TaskName = "Child task 1", Duration = 4, Progress = 80, Priority = "Critical", ParentId = 5, Designation = DesignationDetails},
        new TaskDetails { TaskId = 7, TaskName = "Child Task 2", Duration = 5, Progress = 65, Priority = "Low", ParentId = 5, Designation = DesignationDetails},
        new TaskDetails { TaskId = 8, TaskName = "Child task 3", Duration = 7, Progress = 77, Priority = "High", ParentId = 5, Designation = DesignationDetails},
        new TaskDetails { TaskId = 9, TaskName = "Child task 4", Duration = 6, Progress = 77, Priority = "Low", ParentId = 5, Designation = DesignationDetails},
    };
    private static Dictionary<int, string> DesignationDetails = new Dictionary<int, string>()
    {
            { 1, "Level1" },
            { 2, "Level2" },
            { 3, "Level3" },
            { 4, "Level4" },
            { 5, "Level5" },
            { 6, "Level6" },
            { 7, "Level7" },
            { 8, "Level8" },
            { 9, "Level9" },
        };
}

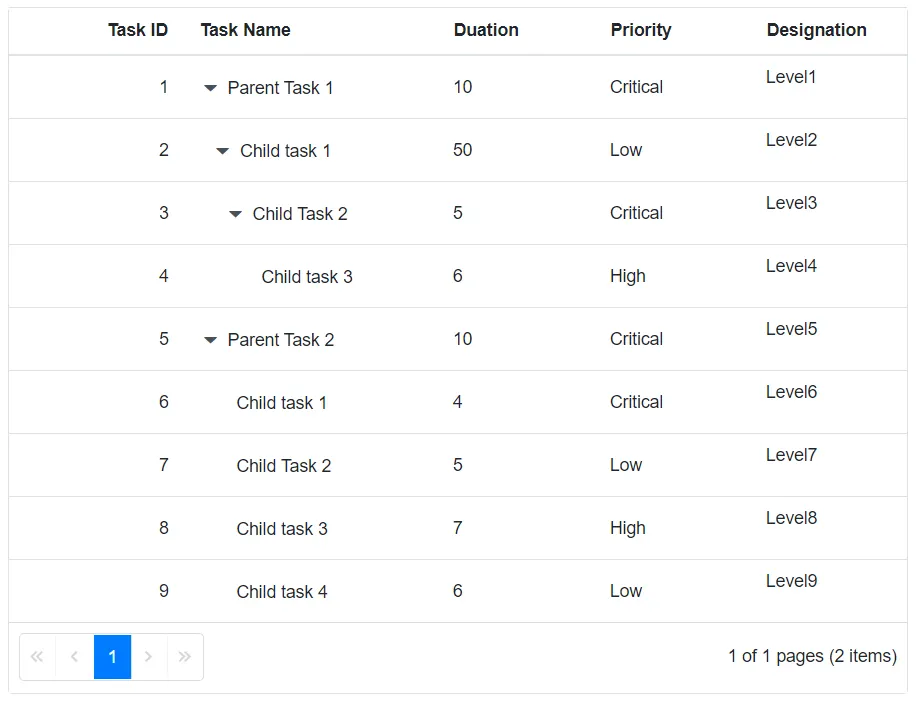

The following image represent the Tree Grid rendered using the above sample code, `Dictionary Values`
