Paging in Blazor TreeGrid Component
18 Dec 202424 minutes to read

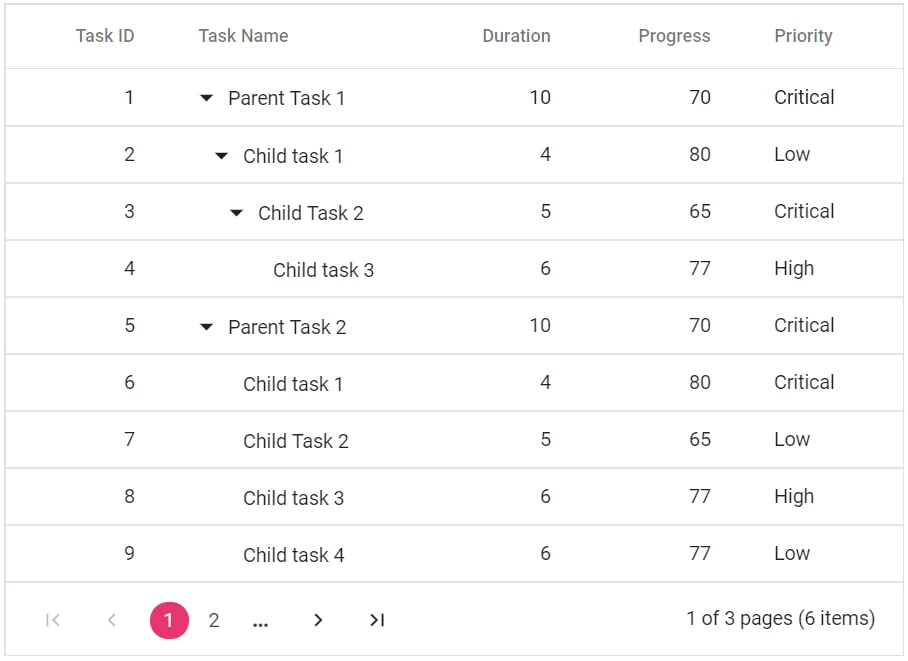

Paging provides an option to display Tree Grid data in page segments. To enable paging, set the AllowPaging to true. When paging is enabled, pager component renders at the bottom of the tree grid. Paging options can be configured through the TreeGridPageSettings.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowPaging="true">
<TreeGridPageSettings PageCount="2" PageSize="2" PageSizeMode="PageSizeMode.Root">
</TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public List<TreeData.BusinessObject> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
}namespace TreeGridComponent.Data {
public class TreeData
{
public class BusinessObject
{
public int TaskId { get; set;}
public string TaskName { get; set;}
public int? Duration { get; set;}
public int? Progress { get; set;}
public string Priority { get; set;}
public int? ParentId { get; set;}
}
public static List<BusinessObject> GetSelfDataSource()
{
List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",ParentId = 1 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
return BusinessObjectCollection;
}
}
}
NOTE
Better performance can be achieved by using tree grid paging to fetch only a pre-defined number of records from the data source.

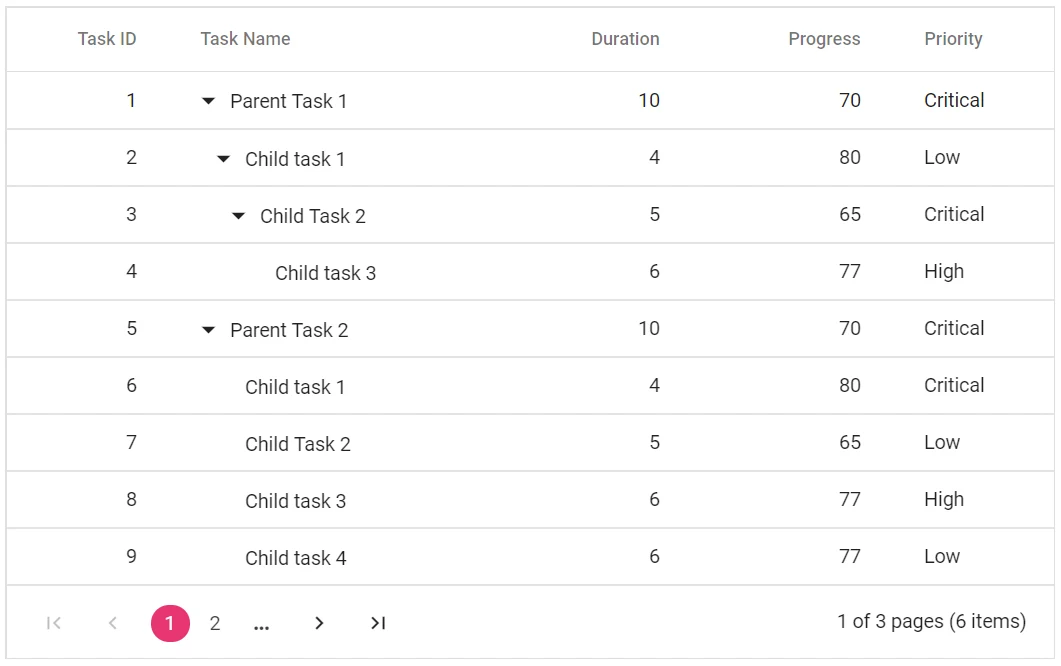

Page size mode
Two behaviors are available in Tree Grid paging to display certain number of records in a current page. Following are the two types of PageSizeMode property of TreeGridPageSettings.
- All : The number of records in a page is based on PageSize property.
- Root : This is the default mode. The number of root nodes or the 0th level records to be displayed per page is based on PageSize property. With PageSizeMode property as Root, only the root level or the 0th level records are considered in records count.
NOTE
The ALL mode of PageSizeMode is not supported with remote data binding in the Tree Grid.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowPaging="true">
<TreeGridPageSettings PageCount="2" PageSize="2" PageSizeMode="PageSizeMode.Root">
</TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public List<TreeData.BusinessObject> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
}namespace TreeGridComponent.Data {
public class TreeData
{
public class BusinessObject
{
public int TaskId { get; set;}
public string TaskName { get; set;}
public int? Duration { get; set;}
public int? Progress { get; set;}
public string Priority { get; set;}
public int? ParentId { get; set;}
}
public static List<BusinessObject> GetSelfDataSource()
{
List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",ParentId = 1 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
return BusinessObjectCollection;
}
}
}
Pager template
The pager template in the Syncfusion TreeGrid allows you to customize the appearance and behavior of the pager element, which is used for navigation through different pages of tree grid data. This feature is particularly useful when you want to use custom elements inside the pager instead of the default elements.
To use the pager template, you must specify the Template property of the TreeGridPageSettings component in your Syncfusion TreeGrid configuration. Within the pager Template, utilize the PagerTemplateContext context to retrieve vital paging values such as CurrentPage, PageSize, PageCount, TotalPage, and TotalRecordCount . These values provide the data necessary to display and manage the pager effectively.
When implementing a custom pager template, you can design the layout of pager controls as desired. However, for actual paging functionality, you need to integrate the GoToPageAsync method. This method handles navigation to a specific page based on the page number input.
The following example demonstrates how to render a NumericTextBox component in the pager using the Template property
@using Syncfusion.Blazor.TreeGrid
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Inputs
@using Syncfusion.Blazor.Navigations
@using System.ComponentModel.DataAnnotations
@using TreeGridComponent.Data;
<SfTreeGrid @ref="TreeGrid" DataSource="@TreeData" Height="312" IdMapping="TaskID" ParentIdMapping="ParentID" TreeColumnIndex="1" AllowPaging="true">
<TreeGridPageSettings PageSize="@pageSize">
<Template>
@{
var Paging = ( context as PagerTemplateContext);
<div>
<div>
<div>
<SfNumericTextBox TValue="int" Format="###" Step="1" Min="1" Max="5" Placeholder="Select Page Size" Width="200px">
<NumericTextBoxEvents TValue="int" ValueChange="@CalculatePageSize"></NumericTextBoxEvents>
</SfNumericTextBox>
</div>
</div>
<div style="margin-top:5px;margin-left:30px;border: none; display: inline-block">
<span> of @totalPages pages (@TreeData.Count items)</span>
</div>
</div>
}
</Template>
</TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskID" HeaderText="Task ID" Width="80" TextAlign="TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="170"></TreeGridColumn>
<TreeGridColumn Field="StartDate" HeaderText="Start Date" Format="d" Type=ColumnType.Date Width="145" TextAlign="TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="110"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="100"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code {
private List<SelfReferenceData> TreeData { get; set; }
SfTreeGrid<SelfReferenceData> TreeGrid;
public int pageSize { get; set; } = 3;
public int totalPages => (int)Math.Ceiling((double)TreeData.Count / (pageSize * 6));
protected override void OnInitialized()
{
TreeData = SelfReferenceData.GetTree().Take(90).ToList();
}
private async Task CalculatePageSize(Syncfusion.Blazor.Inputs.ChangeEventArgs<int> args)
{
await TreeGrid.GoToPageAsync(args.Value);
}
}namespace TreeGridComponent.Data {
public class SelfReferenceData
{
public static List<SelfReferenceData> tree = new List<SelfReferenceData>();
[Key]
public int? TaskID { get; set; }
public string TaskName { get; set; }
public DateTime? StartDate { get; set; }
public DateTime? EndDate { get; set; }
public String Progress { get; set; }
public String Priority { get; set; }
public double? Duration { get; set; }
public int? ParentID { get; set; }
public bool? IsParent { get; set; }
public bool? Approved { get; set; }
public int? ParentItem { get; set; }
public SelfReferenceData() { }
public static List<SelfReferenceData> GetTree()
{
tree.Clear();
int root = -1;
int TaskNameID = 0;
int ChildCount = -1;
int SubTaskCount = -1;
for (var t = 1; t <= 60; t++)
{
DateTime start = new DateTime(2022, 08, 25);
DateTime end = new DateTime(2027, 08, 25);
DateTime startingDate = start.AddDays(t + 2);
DateTime endingDate = end.AddDays(t + 20);
string math = "";
string progr = "";
bool appr = true;
int duration = 0;
duration = (t % 2 == 0) ? 52 : (t % 5 == 0) ? 14 : (t % 3 == 0) ? 25 : 34;
math = (t % 3) == 0 ? "High" : (t % 2) == 0 ? "Low" : "Critical";
progr = (t % 3) == 0 ? "Started" : (t % 2) == 0 ? "Open" : "In Progress";
appr = (t % 3) == 0 ? true : (t % 2) == 0 ? false : true;
root++; TaskNameID++;
int rootItem = root + 1;
tree.Add(new SelfReferenceData() { TaskID = rootItem, TaskName = "Parent task " + TaskNameID.ToString(), StartDate = startingDate, EndDate = endingDate, IsParent = true, ParentID = null, Progress = progr, Priority = math, Duration = duration, Approved = appr });
int parent = tree.Count;
for (var c = 0; c < 2; c++)
{
DateTime start1 = new DateTime(2022, 08, 25);
DateTime startingDate1 = start1.AddDays(c + 4);
DateTime end1 = new DateTime(2025, 06, 16);
DateTime endingDate1 = end1.AddDays(c + 15);
root++; ChildCount++;
int parn = parent + c + 1;
string val = "";
duration = (c % 3 == 0) ? 1 : (c % 2 == 0) ? 12 : 98;
val = ((parent + c + 1) % 3 == 0) ? "Low" : "Critical";
progr = ((c + 1) % 3) == 0 ? "In Progress" : ((c + 1) % 2) == 0 ? "Open" : "Validated";
appr = ((c + 1) % 3) == 0 ? true : ((c + 3) % 2) == 0 ? false : true;
int iD = root + 1;
tree.Add(new SelfReferenceData() { TaskID = iD, TaskName = "Child task " + (ChildCount + 1).ToString(), StartDate = startingDate1, EndDate = endingDate1, IsParent = (((parent + c + 1) % 3) == 0), ParentID = rootItem, Progress = progr, Priority = val, Duration = duration, Approved = appr });
if ((((parent + c + 1) % 3) == 0))
{
int immParent = tree.Count;
for (var s = 0; s < 3; s++)
{
DateTime start2 = new DateTime(2022, 08, 25);
DateTime startingDate2 = start2.AddDays(s + 4);
DateTime end2 = new DateTime(2024, 06, 16);
DateTime endingDate2 = end2.AddDays(s + 13);
root++; SubTaskCount++;
duration = (s % 2 == 0) ? 67 : 14;
string Prior = (immParent % 2 == 0) ? "Validated" : "Normal";
tree.Add(new SelfReferenceData() { TaskID = root + 1, TaskName = "Sub task " + (SubTaskCount + 1).ToString(), StartDate = startingDate2, EndDate = endingDate2, IsParent = false, ParentID = iD, Progress = (immParent % 2 == 0) ? "In Progress" : "Closed", Priority = Prior, Duration = duration, Approved = appr });
}
}
}
}
return tree;
}
}

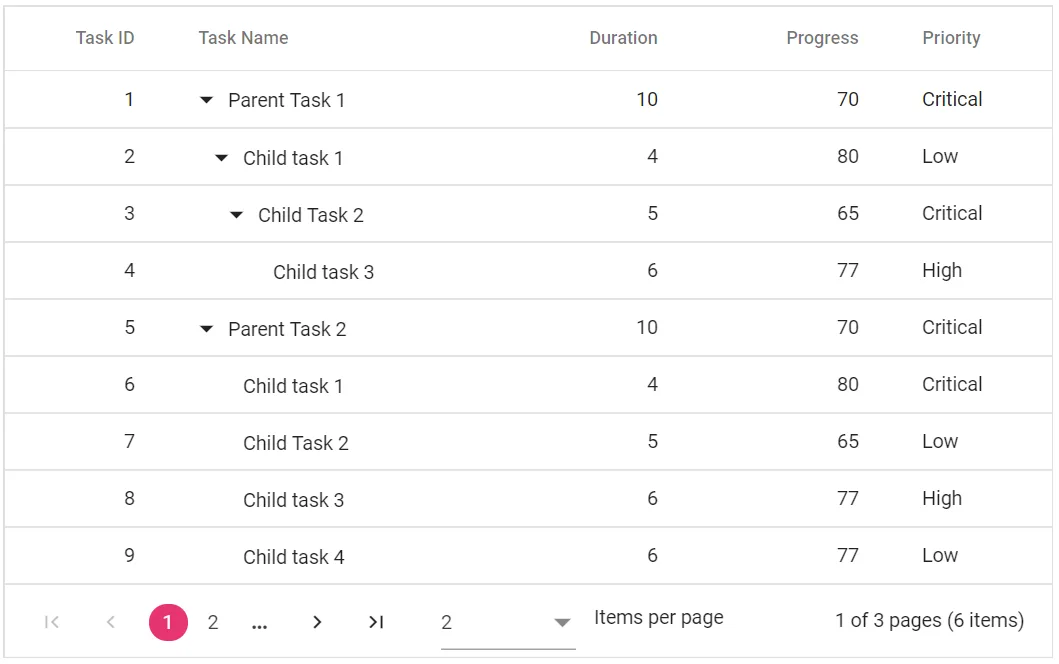

}Pager with page size dropdown
The pager Dropdown allows to change the number of records in the Tree Grid dynamically. It can be enabled by defining the PageSizes property of TreeGridPageSettings as true.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid DataSource="@TreeGridData" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1" AllowPaging="true">
<TreeGridPageSettings PageCount="2" PageSize="2" PageSizeMode="PageSizeMode.Root" PageSizes="new List<int>() { 2, 5, 10}"></TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public List<TreeData.BusinessObject> TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = TreeData.GetSelfDataSource().ToList();
}
}namespace TreeGridComponent.Data {
public class TreeData
{
public class BusinessObject
{
public int TaskId { get; set;}
public string TaskName { get; set;}
public int? Duration { get; set;}
public int? Progress { get; set;}
public string Priority { get; set;}
public int? ParentId { get; set;}
}
public static List<BusinessObject> GetSelfDataSource()
{
List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",ParentId = 1 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
return BusinessObjectCollection;
}
}
}
