Row Height in Blazor Tree Grid Component

17 Nov 202310 minutes to read

The row height of tree grid rows can be customized through the RowHeight property. The RowHeight property changes the row height of the entire tree grid rows.

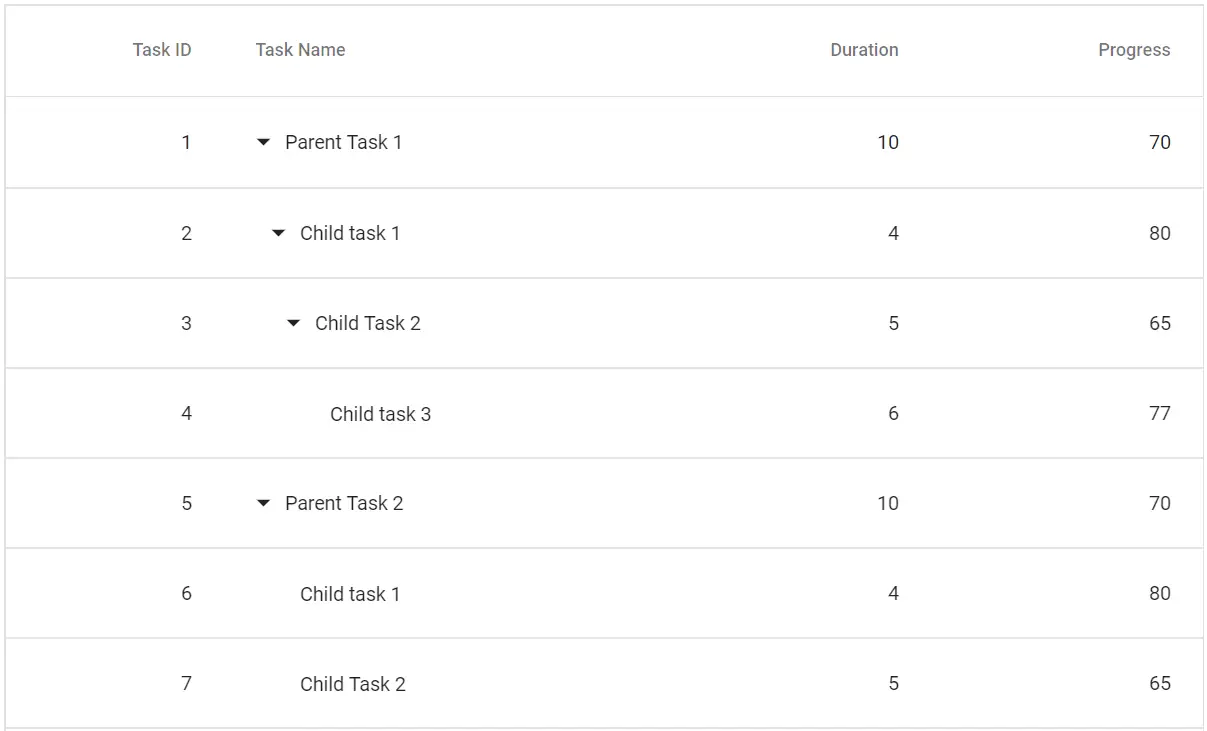

In the below example, the RowHeight is set as 60px.

RAZOR

@using TreeGridComponent.Data
@using Syncfusion.Blazor.TreeGrid;

<SfTreeGrid DataSource="@TreeGridData" ParentIdMapping="ParentId"  IdMapping="TaskId" RowHeight="60" TreeColumnIndex="1">
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{
    public List<TreeData.BusinessObject> TreeGridData { get; set; }
    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }
}

C#

namespace TreeGridComponent.Data {

public class TreeData
    {
        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public int? ParentId { get; set;}
        }

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Duration = 6,Progress = 80,ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}

Customize row height for particular row

The row height for a particular row can be customized using the RowDataBound event by adding row-height custom class in required row element.

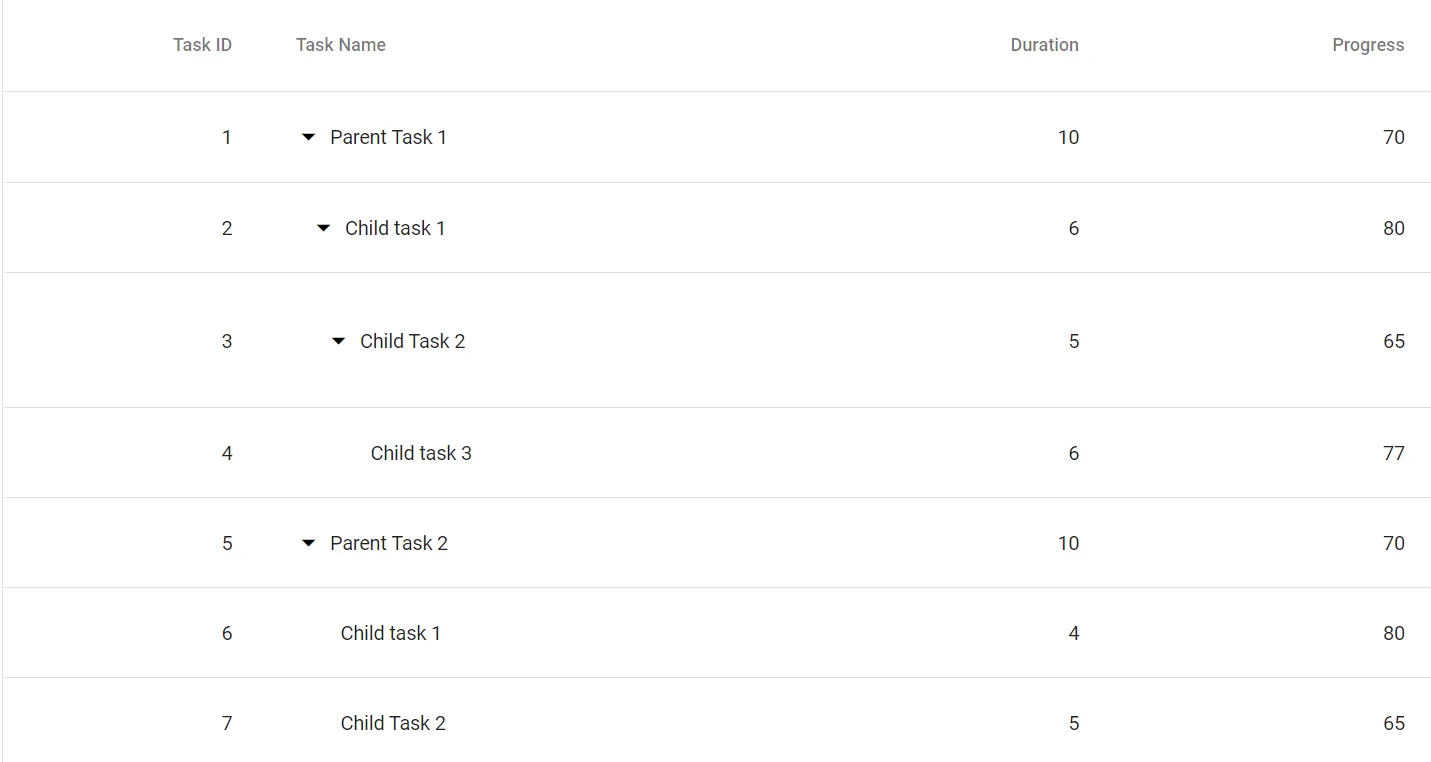

In the below example, the row height for the row with TaskId as ‘3’ is set as ‘90px’ using the RowDataBound event.

RAZOR

@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Grids;

<SfTreeGrid DataSource="@TreeGridData" ParentIdMapping="ParentId"  IdMapping="TaskId" RowHeight="60" TreeColumnIndex="1">
    <TreeGridEvents TValue="TreeData.BusinessObject" RowDataBound="RowBound"></TreeGridEvents>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

<style>
    .row-height {
        height: 90px !important;
    }
</style>

@code{
    public List<TreeData.BusinessObject> TreeGridData { get; set; }
    public EventCallback<RowDataBoundEventArgs<TreeData.BusinessObject>> RowDataBound { get; set; }
    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }
    public void RowBound(RowDataBoundEventArgs<TreeData.BusinessObject> args)
    {
        if (args.Data.TaskId == 3)
        {
            args.Row.AddClass(new string[] { "row-height" });
        }
    }
}

C#

namespace TreeGridComponent.Data {

public class TreeData
    {
        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public int? ParentId { get; set;}
        }

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Duration = 6,Progress = 80,ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}
