Sorting in Blazor TreeGrid Component

11 Oct 202117 minutes to read

Sorting enables to sort data in the Ascending or Descending order. To sort a column, click the column header. To sort multiple columns, press and hold the CTRL key and click the column header. Sorting of any one of the multi-sorted columns can be cleared by pressing and holding the SHIFT key and clicking the specific column header.

To enable sorting in the Tree Grid, set the AllowSorting to true. Sorting options can be configured through the TreeGridSortSettings.

@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;

<SfTreeGrid DataSource="@TreeGridData" AllowSorting="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1">
    <TreeGridSortSettings Columns="@Sort"></TreeGridSortSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{
    public List<TreeData.BusinessObject> TreeGridData { get; set; }
    public List<TreeGridSortColumn> Sort { get; set; }
    protected override void OnInitialized()
    {
        this.Sort = new List<TreeGridSortColumn>();
        this.Sort.Add(new TreeGridSortColumn() { Field = "TaskName", Direction = Syncfusion.Blazor.Grids.SortDirection.Descending });

        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }
}
namespace TreeGridComponent.Data {

public class TreeData
    {
        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}
        }

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}
  • Tree Grid columns are sorted in the Ascending order. If you click the already sorted column, the sort direction toggles.
  • Apply and clear sorting by invoking SortByColumn and ClearSorting methods.
  • To disable sorting for a particular column, set the AllowSorting property of Column to false.

Initial sort

To sort at initial rendering, set the Field and Direction in the Columns property of SortSettings.

@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;

<SfTreeGrid DataSource="@TreeGridData" AllowSorting="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1">
    <TreeGridSortSettings>
        <TreeGridSortColumns>
            <TreeGridSortColumn Field="TaskName" Direction="Syncfusion.Blazor.Grids.SortDirection.Descending"></TreeGridSortColumn>
        </TreeGridSortColumns>
    </TreeGridSortSettings>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{
    public List<TreeData.BusinessObject> TreeGridData { get; set; }
    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }
}
namespace TreeGridComponent.Data {

public class TreeData
    {
        public class BusinessObject
        {
            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}
        }

        public static List<BusinessObject> GetSelfDataSource()
        {
            List<BusinessObject> BusinessObjectCollection = new List<BusinessObject>();
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",ParentId = 1 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            BusinessObjectCollection.Add(new BusinessObject() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return BusinessObjectCollection;
        }
    }
}

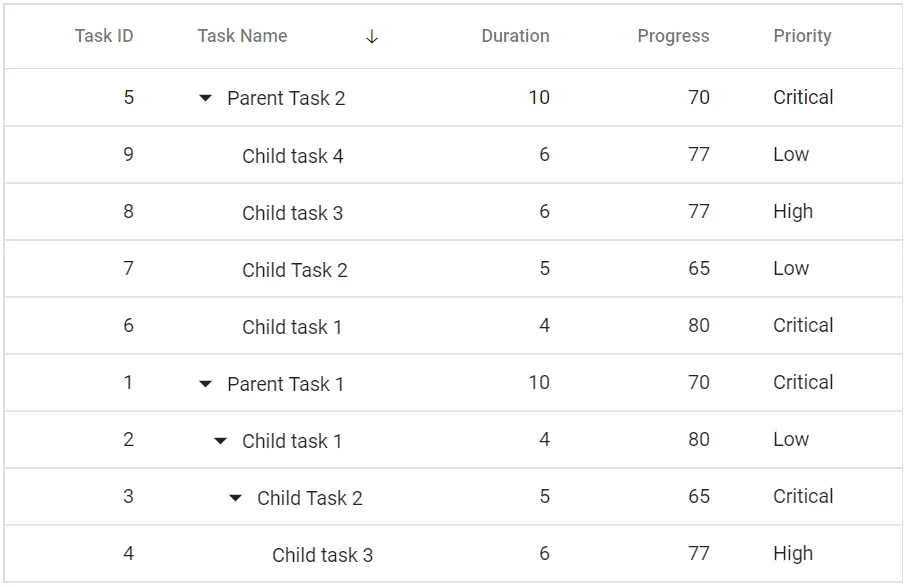

Sorting in Blazor TreeGrid

Sorting events

During the sort action, the tree grid component triggers two events. The ActionBegin event triggers before the sort action starts, and the ActionComplete event triggers after the sort action is completed. Using these events the needed actions can be performed.

@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
@inject IJSRuntime  JsRuntime;

<SfTreeGrid DataSource="@TreeGridData" AllowSorting="true" IdMapping="TaskId" ParentIdMapping="ParentId" TreeColumnIndex="1">
    <TreeGridEvents OnActionBegin="actionbegin" OnActionComplete="actioncomplete" TValue="TreeData"></TreeGridEvents>
    <TreeGridColumns>
        <TreeGridColumn Field="TaskId" HeaderText="Task ID" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="TaskName" HeaderText="Task Name" Width="160"></TreeGridColumn>
        <TreeGridColumn Field="Duration" HeaderText="Duration" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Progress" HeaderText="Progress" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
        <TreeGridColumn Field="Priority" HeaderText="Priority" Width="80"></TreeGridColumn>
    </TreeGridColumns>
</SfTreeGrid>

@code{

    public List<TreeData> TreeGridData { get; set; }

    protected override void OnInitialized()
    {
        this.TreeGridData = TreeData.GetSelfDataSource().ToList();
    }

    private void actionbegin(ActionEventArgs<TreeData> args)
    {
        JsRuntime.InvokeAsync<string>("window.alert", args.RequestType.ToString());
    }

    private void actioncomplete(ActionEventArgs<TreeData> args)
    {
        JsRuntime.InvokeAsync<string>("window.alert", args.RequestType.ToString());
    }
}
namespace TreeGridComponent.Data {

public class TreeData
    {

            public int TaskId { get; set;}
            public string TaskName { get; set;}
            public int? Duration { get; set;}
            public int? Progress { get; set;}
            public string Priority { get; set;}
            public int? ParentId { get; set;}

        public static List<TreeData> GetSelfDataSource()
        {
            List<TreeData> TreeDataCollection = new List<TreeData>();
            TreeDataCollection.Add(new TreeData() { TaskId = 1,TaskName = "Parent Task 1",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null });
            TreeDataCollection.Add(new TreeData() { TaskId = 2,TaskName = "Child task 1",Progress = 80,Priority = "Low",ParentId = 1 });
            TreeDataCollection.Add(new TreeData() { TaskId = 3,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Critical",ParentId = 2 });
            TreeDataCollection.Add(new TreeData() { TaskId = 4,TaskName = "Child task 3",Duration = 6,Priority = "High",Progress = 77,ParentId = 3 });
            TreeDataCollection.Add(new TreeData() { TaskId = 5,TaskName = "Parent Task 2",Duration = 10,Progress = 70,Priority = "Critical",ParentId = null});
            TreeDataCollection.Add(new TreeData() { TaskId = 6,TaskName = "Child task 1",Duration = 4,Progress = 80,Priority = "Critical",ParentId = 5});
            TreeDataCollection.Add(new TreeData() { TaskId = 7,TaskName = "Child Task 2",Duration = 5,Progress = 65,Priority = "Low",ParentId = 5});
            TreeDataCollection.Add(new TreeData() { TaskId = 8,TaskName = "Child task 3",Duration = 6,Progress = 77,Priority = "High",ParentId = 5});
            TreeDataCollection.Add(new TreeData() { TaskId = 9,TaskName = "Child task 4",Duration = 6,Progress = 77,Priority = "Low",ParentId = 5});
            return TreeDataCollection;
        }
    }
}

The args.requestType is the current action name. For example, in sorting the args.requestType value is sorting.

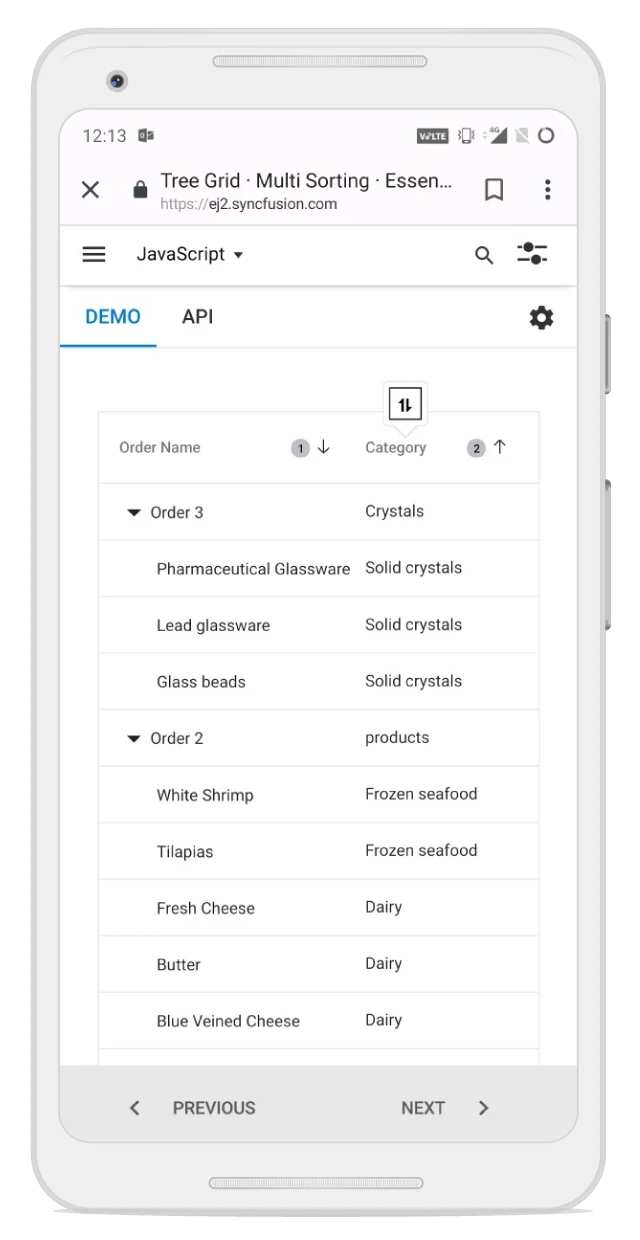

Touch interaction

When the tree grid header is tapped on the touchscreen devices, the selected column header is sorted. A popup Multi column sorting is displayed for the multi-column sorting. To sort multiple columns, tap the popupMulti sorting, and then tap the desired tree grid headers.

Sorting in Blazor TreeGrid
