Data Binding in Blazor TreeMap component

14 Apr 2021 / 10 minutes to read

Populate data

The DataSource property accepts a collection of values as input. For example, a list of objects can be provided as input. Data can be given as either flat or hierarchical collection to the DataSource property.

Flat data

The following code example demonstrates how to bind a flat collection as data source to the TreeMap component.

@using Syncfusion.Blazor.TreeMap

<SfTreeMap WeightValuePath="GDP" TValue="GDPReport" DataSource="GrowthReports">
    <TreeMapLeafItemSettings LabelPath="Country">
    </TreeMapLeafItemSettings>
</SfTreeMap>

@code {
    public class GDPReport
    {
        public string Country;
        public double GDP;
        public double Percentage;
        public double Rank;
    };

    private List<GDPReport> GrowthReports = new List<GDPReport> {
        new GDPReport {Country = "United States", GDP=17946, Percentage=11.08, Rank=1},
        new GDPReport {Country="China", GDP=10866, Percentage= 28.42, Rank=2},
        new GDPReport {Country="Japan", GDP=4123, Percentage=-30.78, Rank=3},
        new GDPReport {Country="Germany", GDP=3355, Percentage=-5.19, Rank=4},
        new GDPReport {Country="United Kingdom", GDP=2848, Percentage=8.28, Rank=5},
        new GDPReport {Country="France", GDP=2421, Percentage=-9.69, Rank=6},
        new GDPReport {Country="India", GDP=2073, Percentage=13.65, Rank=7},
        new GDPReport {Country="Italy", GDP=1814, Percentage=-12.45, Rank=8},
        new GDPReport {Country="Brazil", GDP=1774, Percentage=-27.88, Rank=9},
        new GDPReport {Country="Canada", GDP=1550, Percentage=-15.02, Rank=10}
    };
}

TreeMap with flat data

Hierarchical data

The following code example demonstrates how to bind a hierarchical collection as data source to the TreeMap component.

@using Syncfusion.Blazor.TreeMap

<SfTreeMap WeightValuePath="Population" DataSource="PopulationReport">
    <TreeMapLeafItemSettings LabelPath="Name" Fill="#0077b3">
        <TreeMapLeafBorder Width="0.5" Color="black"></TreeMapLeafBorder>
    </TreeMapLeafItemSettings>
    <TreeMapLevels>
        <TreeMapLevel GroupPath="Continent" Fill="#004466">
            <TreeMapLevelBorder Width="0.5" Color="black"></TreeMapLevelBorder>
        </TreeMapLevel>
        <TreeMapLevel GroupPath="States" Fill="#0099e6">
            <TreeMapLevelBorder Width="0.5" Color="black"></TreeMapLevelBorder>
        </TreeMapLevel>
    </TreeMapLevels>
</SfTreeMap>

@code  {
    private List<object> PopulationReport { get; set; } = new List<object> {
        new {
            Continent =  new List<object> { new {
            Name= "Africa",
            Population= 1216130000,
            States= new List<object> { new {
                Name= "Eastern Africa",
                Population= 410637987,
                Region= new List<object> { new {
                    Name= "Ethiopia",
                    Population= 107534882
                 }}
             },
            new {
                Name= "Middle Africa",
                Population= 158562976,
                Region= new List<object>{ new {
                     Name= "Democratic, Republic of the Congo",
                     Population= 84004989
                 }}
                 }
             }
         }}
     },
    new {
         Continent= new List<object> { new {
             Name= "Asia",
             Population= 4436224000,
             States= new List<object> { new {
                     Name= "Central Asia",
                     Population= 69787760,
                     Region= new List<object> { new {
                         Name= "Uzbekistan",
                         Population= 32364996
                     }}
                 },
                 new {
                     Name= "Eastern Asia",
                     Population= 1641908531,
                     Region= new List<object> { new {
                         Name= "China",
                         Population= 1415045928
                     }}
                 }
             }
         }}
     },
     new {
         Continent= new List<object> { new {
             Name= "North America",
             Population= 579024000,
             States= new List<object> { new {
                     Name= "Central America",
                     Population= 174988756,
                     Region= new List<object> { new {
                         Name= "Mexico",
                         Population= 130759074
                     }}
                 },
                 new {
                     Name= "Northern America",
                     Population= 358593810,
                     Region= new List<object> { new {
                         Name= "U.S.",
                         Population= 3267667480
                     }}
                 }
             }
         }}
     },
     new {
         Continent= new List<object> { new {
             Name= "South America",
             Population= 422535000,
             States= new List<object> { new {
                 Name= "Brazil",
                 Population= 204519000
             }}
         }}
     },
     new {
         Continent= new List<object> { new {
             Name= "Europe",
             Population= 738849000,
             States= new List<object> { new {
                     Name= "Eastern Europe",
                     Population= 291953328,
                     Region= new List<object> { new {
                         Name= "Russia",
                         Population= 143964709
                     }}
                 },
                 new {
                     Name= "Northern Europe",
                     Population= 103642971,
                     Region= new List<object> { new {
                         Name= "United Kingdom",
                         Population= 66573504
                     }}
                 }
             }
         }}
     }
    };
}

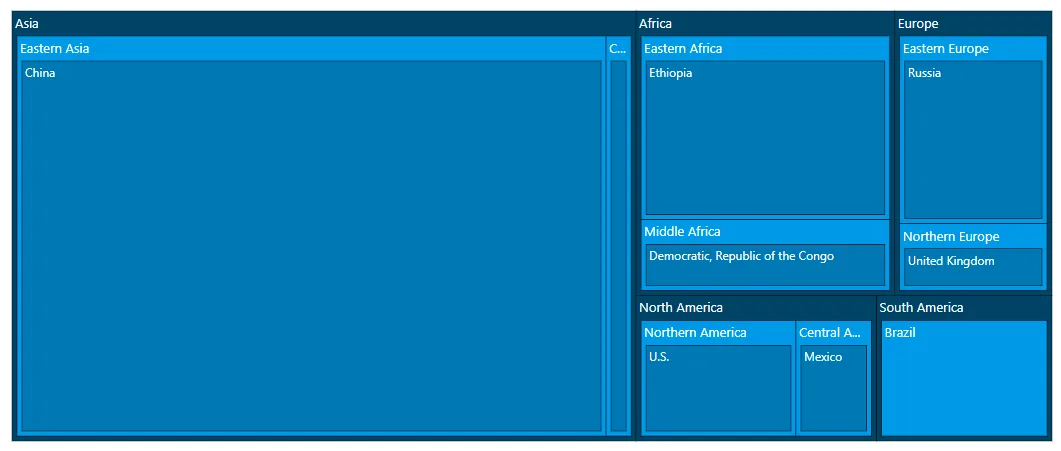

TreeMap with hierarchical data

Local data

Fetching data from collection

The following code example demonstrates how to bind a list of objects, that is, a collection, to the TreeMap component as a data source.

@using Syncfusion.Blazor.TreeMap

<SfTreeMap DataSource="GrowthReports"
           TValue="GDPReport" Palette="@Palette"
           WeightValuePath="GDP">
    <TreeMapLeafItemSettings LabelPath="CountryName">
        <TreeMapLeafLabelStyle Color="White"></TreeMapLeafLabelStyle>
    </TreeMapLeafItemSettings>
</SfTreeMap>

@code{
    public class GDPReport
    {
        public string CountryName;
        public double GDP;
        public double Percentage;
        public int Rank;
    };
    public string[] Palette = new string[] { "#87CEFA", "#87CEEB"  };
    private List<GDPReport> GrowthReports = new List<GDPReport> {
            new GDPReport {CountryName="United States", GDP=17946, Percentage=11.08, Rank=1},
            new GDPReport {CountryName="China", GDP=10866, Percentage= 28.42, Rank=2},
            new GDPReport {CountryName="Japan", GDP=4123, Percentage=-30.78, Rank=3},
            new GDPReport {CountryName="Germany", GDP=3355, Percentage=-5.19, Rank=4},
            new GDPReport {CountryName="United Kingdom", GDP=2848, Percentage=8.28, Rank=5},
            new GDPReport {CountryName="France", GDP=2421, Percentage=-9.69, Rank=6},
            new GDPReport {CountryName="India", GDP=2073, Percentage=13.65, Rank=7},
            new GDPReport {CountryName="Italy", GDP=1814, Percentage=-12.45, Rank=8},
            new GDPReport {CountryName="Brazil", GDP=1774, Percentage=-27.88, Rank=9},
            new GDPReport {CountryName="Canada", GDP=1550, Percentage=-15.02, Rank=10}
    };
}

Local data

Fetching data from JSON file

User can read the JSON file data, convert it to the C# object, and assign it to the DataSource property of TreeMap component.

The Http.GetJsonAsync method is used in the OnInitAsync lifecycle method to load JSON file data. As this is done asynchronously, check whether the corresponding data is available and render the TreeMap component or display the loading statement.

@using Syncfusion.Blazor.TreeMap
@inject HttpClient Http;

@if (growthReports == null)
{
    <p><em>Loading TreeMap component...</em></p>
}
else
{
    <SfTreeMap WeightValuePath="GDP" TValue="GDPReport" DataSource="GrowthReports">
        <TreeMapLeafItemSettings LabelPath="State">
        </TreeMapLeafItemSettings>
    </SfTreeMap>
}
@code{
    GDPReport[] growthReports;
    protected override async Task OnInitAsync()
    {
        GrowthReports = await Http.GetJsonAsync<GDPReport[]>("sample-data/product-growth.json");
    }
    class GDPReport
    {
        public string State { get; set; }
        public int GDP { get; set; }
        public double Percentage { get; set; }
        public int Rank { get; set; }
    };
}

Load TreeMap data from JSON file

Remote data

To interact with remote data source, provide the endpoint Url within SfDataManager class along with appropriate Adaptor. By default, SfDataManager uses ODataAdaptor for remote data-binding.

When using SfDataManager for data binding then the TValue must be provided explicitly to the treemap component.

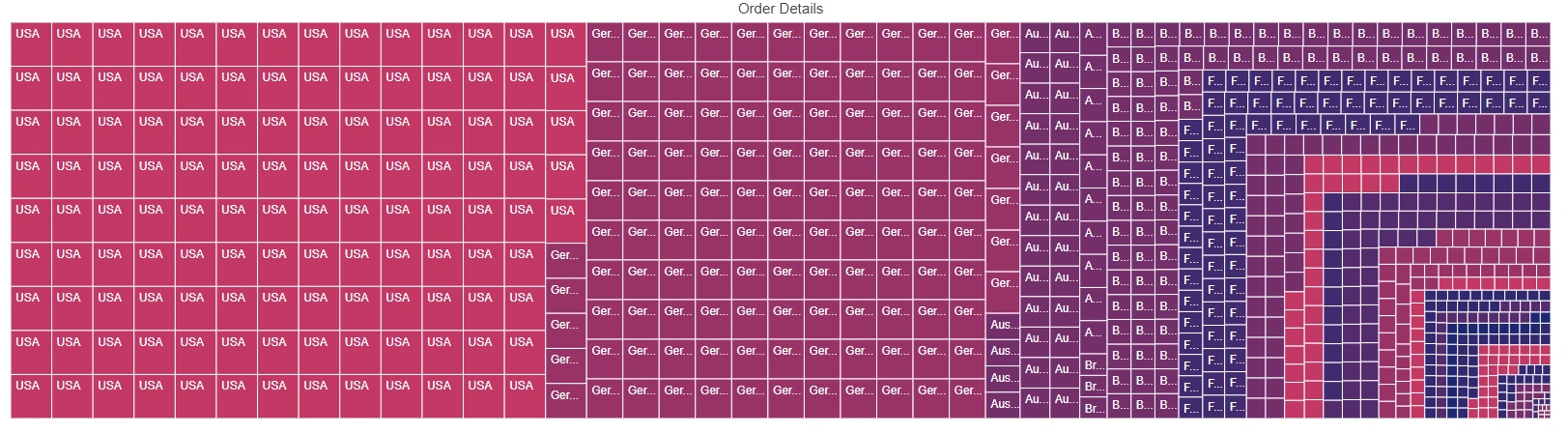

Binding with OData services

OData is a standardized protocol for creating and consuming data. User can retrieve data from OData service using the SfDataManager class. Refer to the following code example for remote data binding using OData service.

@using Syncfusion.Blazor.TreeMap
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Data

<div class="control-section">
    <div>
        <SfTreeMap TValue="OrderDetails" WeightValuePath="Freight"
                   Palette="@Palette">
            <SfDataManager Url="https://js.syncfusion.com/demos/ejservices/Wcf/Northwind.svc/Orders"
                           Adaptor="Syncfusion.Blazor.Adaptors.ODataAdaptor">
            </SfDataManager>
            <TreeMapTitleSettings Text="Order Details">
            </TreeMapTitleSettings>
            <TreeMapLeafItemSettings LabelPath="ShipCity">
                <TreeMapLeafBorder Color="white" Width="0.5">
                </TreeMapLeafBorder>
            </TreeMapLeafItemSettings>
            <TreeMapTooltipSettings Visible="true"></TreeMapTooltipSettings>
        </SfTreeMap>
    </div>
</div>
@code{
    public string[] Palette = new string[] { "#C33764", "#AB3566", "#993367", "#853169", "#742F6A", "#632D6C", "#532C6D", "#412A6F", "#312870", "#1D2671" };
    public class OrderDetails
    {
        public int OrderID { get; set; }
        public string OrderDate { get; set; }
        public string CustomerID { get; set; }
        public string ShipCity { get; set; }
        public double Freight { get; set; }
    }
}

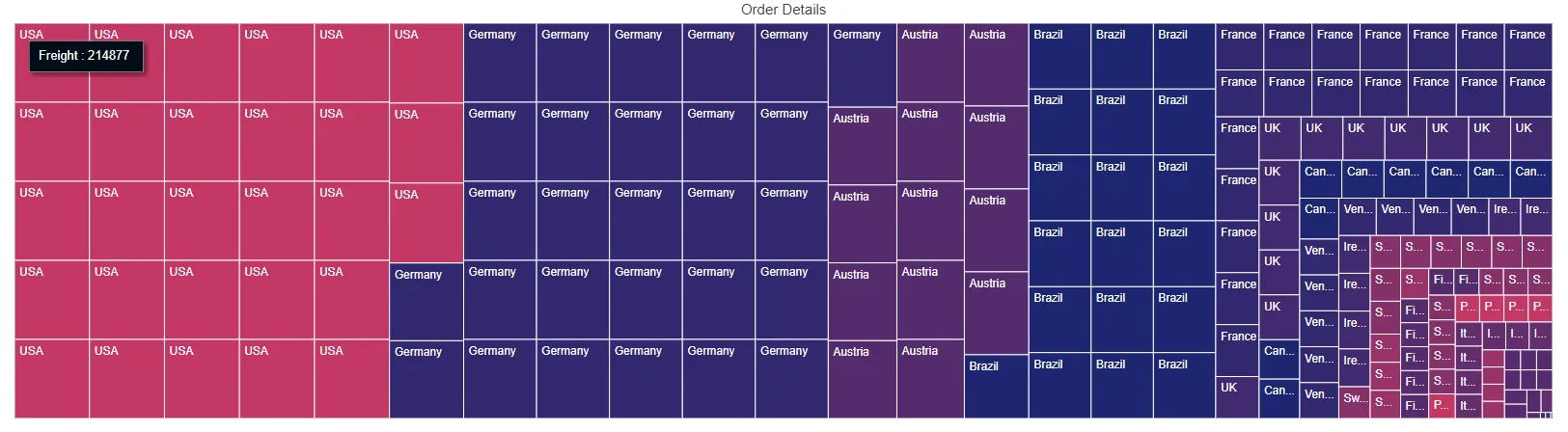

Binding with OData V4 services

The OData V4 is an improved version of OData protocols, and the SfDataManager class can be used to retrieve and consume OData V4 services. For more details on OData V4 services, refer to the OData documentation. To bind OData V4 service, use the ODataV4Adaptor.

@using Syncfusion.Blazor.TreeMap
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Data

<div class="control-section">
    <div>
        <SfTreeMap TValue="OrderDetails" WeightValuePath="Freight"
                   Palette="@Palette">
            <SfDataManager Url="https://js.syncfusion.com/demos/ejservices/Wcf/Northwind.svc/Orders"
                           Adaptor="Syncfusion.Blazor.Adaptors.ODataV4Adaptor">
            </SfDataManager>
            <TreeMapTitleSettings Text="Order Details">
            </TreeMapTitleSettings>
            <TreeMapLeafItemSettings LabelPath="ShipCity">
                <TreeMapLeafBorder Color="white" Width="0.5">
                </TreeMapLeafBorder>
            </TreeMapLeafItemSettings>
            <TreeMapTooltipSettings Visible="true"></TreeMapTooltipSettings>
        </SfTreeMap>
    </div>
</div>
@code{
    public string[] Palette = new string[] { "#C33764", "#AB3566", "#993367", "#853169", "#742F6A", "#632D6C", "#532C6D", "#412A6F", "#312870", "#1D2671" };
    public class OrderDetails
    {
        public int OrderID { get; set; }
        public string OrderDate { get; set; }
        public string CustomerID { get; set; }
        public string ShipCity { get; set; }
        public double Freight { get; set; }
    }
}

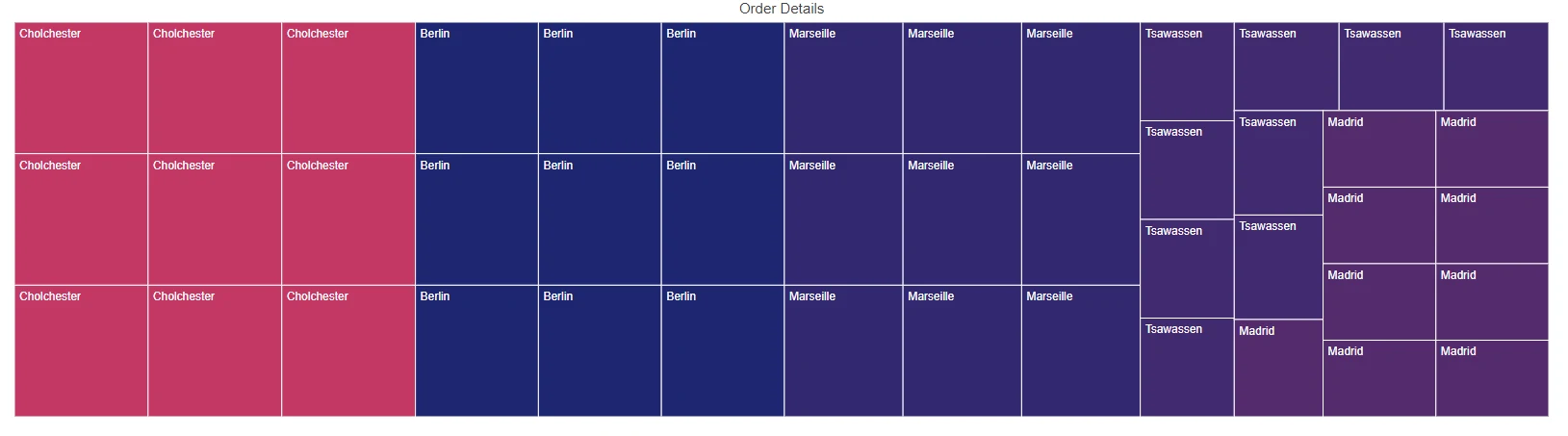

Web API

One can use WebApiAdaptor to bind treemap with Web API created using OData endpoint.

@using Syncfusion.Blazor.TreeMap
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Data

<div class="control-section">
    <div>
        <SfTreeMap TValue="OrderDetails" WeightValuePath="Freight"
                   Palette="@Palette">
            <SfDataManager Url="https://js.syncfusion.com/demos/ejservices/Wcf/Northwind.svc/Orders"
                           Adaptor="Syncfusion.Blazor.Adaptors.WebApiAdaptor">
            </SfDataManager>
            <TreeMapTitleSettings Text="Order Details">
            </TreeMapTitleSettings>
            <TreeMapLeafItemSettings LabelPath="ShipCity">
                <TreeMapLeafBorder Color="white" Width="0.5">
                </TreeMapLeafBorder>
            </TreeMapLeafItemSettings>
            <TreeMapTooltipSettings Visible="true"></TreeMapTooltipSettings>
        </SfTreeMap>
    </div>
</div>
@code{
    public string[] Palette = new string[] { "#C33764", "#AB3566", "#993367", "#853169", "#742F6A", "#632D6C", "#532C6D", "#412A6F", "#312870", "#1D2671" };
    public class OrderDetails
    {
        public int OrderID { get; set; }
        public string OrderDate { get; set; }
        public string CustomerID { get; set; }
        public string ShipCity { get; set; }
        public double Freight { get; set; }
    }
}

Remote Data

Entity Framework

Entity Framework acts as a modern object-database mapper for .NET. This section explains how to consume data from the Microsoft SQL Server database and bind it to the treemap component.

Create DBContext class

The first step is to create a DBContext class called OrderContext for establishing connection to a Microsoft SQL Server database.

    using Microsoft.EntityFrameworkCore;
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using EFTreeMap.Data;

    namespace EFTreeMap.Data
    {
        public class OrderContext : DbContext
        {
            public virtual DbSet<Order> Orders { get; set; }

            protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
            {
                if (!optionsBuilder.IsConfigured)
                {
                    // Configures the context to connect to a Microsoft SQL Serve database
                    optionsBuilder.UseSqlServer(@"Data Source=(LocalDB)\MSSQLLocalDB;AttachDbFilename='D:\blazor\EFTreeMap\App_Data\NORTHWND.MDF';Integrated Security=True;Connect Timeout=30");
                }
            }
        }

        public class Order
        {
            [Key]
            public int? OrderID { get; set; }
            [Required]
            public string CustomerID { get; set; }
            [Required]
            public int EmployeeID { get; set; }
        }
    }

Create data access layer to perform data operation

Now need to create a class called OrderDataAccessLayer, which acts as a data access layer to retrieve the records from the database table.

    using Microsoft.EntityFrameworkCore;
    using System;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using EFTreeMap.Data;

    namespace EFTreeMap.Data
    {
        public class OrderDataAccessLayer
        {
            OrderContext db = new OrderContext();

            //To Get all Orders details
            public DbSet<Order> GetAllOrders()
            {
                try
                {
                    return db.Orders;
                }
                catch
                {
                    throw;
                }
            }
        }
    }

Creating Web API Controller

A Web API Controller must be created which allows the treemap to directly consume data from the Entity framework.

    using System;
    using System.Collections;
    using System.Collections.Generic;
    using System.Linq;
    using System.Threading.Tasks;
    using Microsoft.AspNetCore.Http;
    using Microsoft.AspNetCore.Mvc;
    using Microsoft.Extensions.Primitives;
    using EFTreeMap.Data;

    namespace EFTreeMap.Controller
    {
        [Route("api/[controller]")]
        [ApiController]
        public class DefaultController : ControllerBase
        {
            OrderDataAccessLayer db = new OrderDataAccessLayer();
            [HttpGet]
            public object Get()
            {
                IQueryable<Order> data = db.GetAllOrders().AsQueryable();
                var count = data.Count();
                var queryString = Request.Query;
                if (queryString.Keys.Contains("$inlinecount"))
                {
                    StringValues Skip;
                    StringValues Take;
                    int skip = (queryString.TryGetValue("$skip", out Skip)) ? Convert.ToInt32(Skip[0]) : 0;
                    int top = (queryString.TryGetValue("$top", out Take)) ? Convert.ToInt32(Take[0]) : data.Count();
                    return new { Items = data.Skip(skip).Take(top), Count = count };
                }
                else
                {
                    return data;
                }
            }
        }
    }

Add Web API Controller services in Startup.cs

Open the Startup.cs file and add services and endpoints required for Web API Controller as follows.

using Newtonsoft.Json.Serialization;

namespace BlazorApplication
{
    public class Startup
    {
        ....
        ....
        public void ConfigureServices(IServiceCollection services)
        {
            ....
            ....
            services.AddSingleton<OrderDataAccessLayer>();

            // Adds services for controllers to the specified Microsoft.Extensions.DependencyInjection.IServiceCollection.
            services.AddControllers().AddNewtonsoftJson(options =>
            {
                options.SerializerSettings.ContractResolver = new DefaultContractResolver();
            });
        }

        public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
        {
            ....
            ....
            app.UseEndpoints(endpoints =>
            {
                // Adds endpoints for controller actions to the Microsoft.AspNetCore.Routing.IEndpointRouteBuilder
                endpoints.MapDefaultControllerRoute();
                .....
                .....
            });
        }
    }
}

Configure treemap component

Configure the treemap to bind data using either DataSource property or SfDataManager.

For instance, to bind data directly from the data access layer class OrderDataAccessLayer, assign the DataSource property to be OrderData.GetAllOrders().

    @inject OrderDataAccessLayer OrderData

    @using EFTreeMap.Data
    @using Syncfusion.Blazor.TreeMap

    <SfTreeMap TValue="Order" WeightValuePath="OrderID"
                   Palette="@Palette" DataSource="@OrderData.GetAllOrders()">
            <TreeMapTitleSettings Text="Order Details">
            </TreeMapTitleSettings>
            <TreeMapLeafItemSettings LabelPath="CustomerID">
                <TreeMapLeafBorder Color="white" Width="0.5">
                </TreeMapLeafBorder>
            </TreeMapLeafItemSettings>
            <TreeMapTooltipSettings Visible="true"></TreeMapTooltipSettings>
    </SfTreeMap>
    @code{
        public string[] Palette = new string[] { "#C33764", "#AB3566", "#993367", "#853169", "#742F6A", "#632D6C", "#532C6D", "#412A6F", "#312870", "#1D2671" };
    }

On the other hand, to configure the treemap using Web API, provide the appropriate endpoint Url within SfDataManager along with Adaptor. Here, need to use WebApiAdaptor in-order to interact with the Web API to consume data from the entity framework appropriately.

@using Syncfusion.Blazor.TreeMap
@using Syncfusion.Blazor.DropDowns
@using Syncfusion.Blazor.Data

<div class="control-section">
    <div>
        <SfTreeMap TValue="Order" WeightValuePath="OrderID"
                   Palette="@Palette">
            <SfDataManager Url="api/Default" Adaptor="Syncfusion.Blazor.Adaptors.WebApiAdaptor">
            </SfDataManager>
            <TreeMapTitleSettings Text="Order Details">
            </TreeMapTitleSettings>
            <TreeMapLeafItemSettings LabelPath="CustomerID">
                <TreeMapLeafBorder Color="white" Width="0.5">
                </TreeMapLeafBorder>
            </TreeMapLeafItemSettings>
            <TreeMapTooltipSettings Visible="true"></TreeMapTooltipSettings>
        </SfTreeMap>
    </div>
</div>
@code{
    public string[] Palette = new string[] { "#C33764", "#AB3566", "#993367", "#853169", "#742F6A", "#632D6C", "#532C6D", "#412A6F", "#312870", "#1D2671" };
}

Contents

Populate data
Flat data
Hierarchical data
Local data
Fetching data from collection
Fetching data from JSON file
Remote data
Binding with OData services
Binding with OData V4 services
Web API
Entity Framework
Create DBContext class
Create data access layer to perform data operation
Creating Web API Controller
Add Web API Controller services in Startup.cs
Configure treemap component

Contents

Populate data
Flat data
Hierarchical data
Local data
Fetching data from collection
Fetching data from JSON file
Remote data
Binding with OData services
Binding with OData V4 services
Web API
Entity Framework
Create DBContext class
Create data access layer to perform data operation
Creating Web API Controller
Add Web API Controller services in Startup.cs
Configure treemap component

Please provide additional information

Thank you for your feedback and comments.We will rectify this as soon as possible!
