Node customization in Blazor TreeView Component
27 Feb 202324 minutes to read
The TreeView nodes in the Blazor TreeView component can be customised based on your needs.
In TreeView component, you can customise the appearance of each node with images by mapping the ImageUrl field, enable or disable wrapping the text using the AllowTextWrap property, enable or disable the nodes on initial load or dynamically, show or hide the nodes on initial load or dynamically, and enable or customise the tooltip for tree nodes, and more.
Images in Blazor TreeView Component
The Blazor TreeView component has the built-in option to customize each node’s appearance with images by mapping the ImageUrl fields.
@using Syncfusion.Blazor.Navigations
@inject Microsoft.AspNetCore.Components.NavigationManager UriHelper
<div class="control-section">
<div class="control_wrapper">
@*Initialize the TreeView component*@
<SfTreeView TValue="TreeItem" SortOrder="Syncfusion.Blazor.Navigations.SortOrder.Ascending">
<TreeViewFieldsSettings DataSource="@TreeDataSource" Id="NodeId" Text="NodeText" Expanded="Expanded" Child="@("Child")" IconCss="Icon" ImageUrl="ImageUrl"></TreeViewFieldsSettings>
</SfTreeView>
</div>
</div>
@code{
// Specifies the DataSource value for TreeView component.
List<TreeItem> TreeDataSource = new List<TreeItem>();
protected override void OnInitialized()
{
base.OnInitialized();
TreeDataSource.Add(new TreeItem
{
NodeId = "01",
NodeText = "Music",
Icon = "folder",
Child = new List<TreeItem>()
{
new TreeItem { NodeId = "01-01", NodeText = "Gouttes.mp3", Icon = "audio" }
}
});
TreeDataSource.Add(new TreeItem
{
NodeId = "02",
NodeText = "Videos",
Icon = "folder",
Child = new List<TreeItem>()
{
new TreeItem { NodeId = "02-01", NodeText = "Naturals.mp4", Icon = "video" },
new TreeItem { NodeId = "02-02", NodeText = "Wild.mpeg", Icon = "video" },
},
});
TreeDataSource.Add(new TreeItem
{
NodeId = "03",
NodeText = "Documents",
Icon = "folder",
Child = new List<TreeItem>()
{
new TreeItem { NodeId = "03-01", NodeText = "Environment Pollution.docx", Icon = "docx" },
new TreeItem { NodeId = "03-02", NodeText = "Global Water, Sanitation, & Hygiene.docx", Icon = "docx" },
new TreeItem { NodeId = "03-03", NodeText = "Global Warming.ppt", Icon = "ppt" },
new TreeItem { NodeId = "03-04", NodeText = "Social Network.pdf", Icon = "pdf" },
new TreeItem { NodeId = "03-05", NodeText = "Youth Empowerment.pdf", Icon = "pdf" },
},
});
TreeDataSource.Add(new TreeItem
{
NodeId = "04",
NodeText = "Pictures",
Icon = "folder",
Expanded = true,
Child = new List<TreeItem>()
{
new TreeItem { NodeId = "04-01", NodeText = "Camera Roll", Icon = "folder", Expanded=true,
Child = new List<TreeItem>(){
new TreeItem { NodeId = "04-01-01", NodeText = "WIN_20160726_094117.JPG", ImageUrl = "//ej2.syncfusion.com/demos/src/treeview/images/employees/9.png" },
new TreeItem { NodeId = "04-01-02", NodeText = "WIN_20160726_094118.JPG", ImageUrl="//ej2.syncfusion.com/demos/src/treeview/images/employees/3.png" },
} },
new TreeItem { NodeId = "04-02", NodeText = "Wind.jpg", Icon = "images" },
new TreeItem { NodeId = "04-03", NodeText = "Stone.jpg", Icon = "images" },
},
});
TreeDataSource.Add(new TreeItem
{
NodeId = "05",
NodeText = "Downloads",
Icon = "folder",
Child = new List<TreeItem>()
{
new TreeItem { NodeId = "05-01", NodeText = "UI-Guide.pdf", Icon = "pdf" },
new TreeItem { NodeId = "05-02", NodeText = "Tutorials.zip", Icon = "zip" },
new TreeItem { NodeId = "05-03", NodeText = "Game.exe", Icon = "exe" },
new TreeItem { NodeId = "05-04", NodeText = "TypeScript.7z", Icon = "zip" },
},
});
}
class TreeItem
{
public string NodeId { get; set; }
public string NodeText { get; set; }
public string Icon { get; set; }
public string ImageUrl { get; set; }
public bool Expanded { get; set; }
public bool Selected { get; set; }
public List<TreeItem> Child;
}
}
<style>
/* Sample specific styles */
.control_wrapper {
max-width: 500px;
margin: auto;
border: 1px solid #dddddd;
border-radius: 3px;
max-height: 470px;
overflow: auto;
}
/* Loading sprite image for TreeView */
.e-treeview .e-list-icon {
background-repeat: no-repeat;
background-image: url('@UriHelper.ToAbsoluteUri($"https://blazor.syncfusion.com/demos/_content/blazorservercommon_net6/images/treeview/file-icons.png")');
height: 20px;
}
.e-treeview .e-list-img {
width: 25px;
height: 25px;
}
/* Specify the Icon positions based upon the class name */
.e-treeview .e-list-icon.folder {
background-position: -197px -552px
}
.e-bigger .e-treeview .e-list-icon.folder {
background-position: -197px -549px;
}
.e-treeview .e-list-icon.docx {
background-position: -197px -20px
}
.e-treeview .e-list-icon.ppt {
background-position: -197px -48px
}
.e-treeview .e-list-icon.pdf {
background-position: -197px -104px
}
.e-treeview .e-list-icon.images {
background-position: -197px -132px
}
.e-treeview .e-list-icon.zip {
background-position: -197px -188px
}
.e-treeview .e-list-icon.audio {
background-position: -197px -244px
}
.e-treeview .e-list-icon.video {
background-position: -197px -272px
}
.e-treeview .e-list-icon.exe {
background-position: -197px -412px
}
</style>Wrapping Text in Blazor TreeView Component
The AllowTextWrap property is used to enable or disable wrapping the text in the TreeView node. When this property is set to true, the TreeView node’s text content will wrap to the next line when its text content exceeds the width of the TreeView node.
The default value of the AllowTextWrap property is false.
@using Syncfusion.Blazor.Navigations
<div style="width:500px">
<SfTreeView TValue="MailItem" @ref="treeview" AllowTextWrap="true">
<TreeViewFieldsSettings TValue="MailItem" Id="ID" DataSource="@MyFolder" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
</SfTreeView>
</div>
@code{
SfTreeView<MailItem> treeview;
public class MailItem
{
public string ID { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}
List<MailItem> MyFolder = new List<MailItem>();
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
ID = "1",
FolderName = "The Inbox is the default location for all incoming mail, unless rules are set up to forward messages to another e-mail address, folder, or program.",
HasSubFolders = true,
Expanded = true,
});
MyFolder.Add(new MailItem
{
ID = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true,
});
MyFolder.Add(new MailItem
{
ID = "3",
ParentId = "2",
FolderName = "Primary"
});
MyFolder.Add(new MailItem
{
ID = "4",
ParentId = "2",
FolderName = "Social"
});
MyFolder.Add(new MailItem
{
ID = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
}Enable or Disable individual node on load in Blazor TreeView Component
In the Blazor TreeView component, you are able to disable individual nodes on initial rendering by passing the particular node id inside the DisableNodesAsync method in the Created event. You can enable the disabled node by reverting the changes in the Created event.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="MailItem" @ref="tree" >
<TreeViewFieldsSettings TValue="MailItem" Id="ID" DataSource="@MyFolder" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
<TreeViewEvents TValue="MailItem" Created="created" />
</SfTreeView>
@code{
SfTreeView<MailItem> tree;
public class MailItem
{
public string ID { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}
List<MailItem> MyFolder = new List<MailItem>();
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
ID = "1",
FolderName = "Inbox",
HasSubFolders = true,
Expanded = true
});
MyFolder.Add(new MailItem
{
ID = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true
});
MyFolder.Add(new MailItem
{
ID = "3",
ParentId = "2",
FolderName = "Primary"
});
MyFolder.Add(new MailItem
{
ID = "4",
ParentId = "2",
FolderName = "Social"
});
MyFolder.Add(new MailItem
{
ID = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
void created(ActionEventArgs args)
{
tree.DisableNodesAsync(new string[] { "1","2" });
}
}Enable or disable individual node programmatically in Blazor TreeView Component
In the Blazor TreeView component, you are able to enable or disable individual nodes dynamically by passing the particular node id inside the EnableNodeAsync and DisableNodesAsync methods with a button click.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfTreeView TValue="MailItem" @ref="tree">
<TreeViewFieldsSettings TValue="MailItem" Id="ID" DataSource="@MyFolder" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
</SfTreeView>
<SfButton @onclick="DisableNode" CssClass="e-flat" IsPrimary="true">Disable Social node</SfButton>
<SfButton @onclick="EnableNode" CssClass="e-flat" IsPrimary="true">Enable Social node</SfButton>
@code {
SfTreeView<MailItem> tree;
public class MailItem
{
public string ID { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}
List<MailItem> MyFolder = new List<MailItem>();
void DisableNode()
{
tree.DisableNodesAsync(new string[] { "4" });
}
void EnableNode()
{
tree.EnableNodesAsync(new string[] { "4" });
}
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
ID = "1",
FolderName = "Inbox",
HasSubFolders = true,
Expanded = true
});
MyFolder.Add(new MailItem
{
ID = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true
});
MyFolder.Add(new MailItem
{
ID = "3",
ParentId = "2",
FolderName = "Primary"
});
MyFolder.Add(new MailItem
{
ID = "4",
ParentId = "2",
FolderName = "Social"
});
MyFolder.Add(new MailItem
{
ID = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
}Show or Hide an individual node on load in Blazor TreeView Component
In the Blazor TreeView component, you can show or hide particular TreeView nodes on initial rendering by adding or removing them from the data source.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfTreeView TValue="MailItem">
<TreeViewFieldsSettings TValue="MailItem" DataSource="@MyFolder" Id="ID" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
</SfTreeView>
@code {
public string Content = "Hide Social node";
List<MailItem> MyFolder = new List<MailItem>();
MailItem showHideItem = new MailItem();
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
ID = "1",
FolderName = "Root",
HasSubFolders = true,
Expanded = true
});
MyFolder.Add(new MailItem
{
ID = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true
});
MyFolder.Add( new MailItem
{
ID = "3",
ParentId = "2",
FolderName = "Primary"
});
showHideItem=(new MailItem
{
ID = "4",
ParentId = "2",
FolderName = "Social"
});
//To hide the Social node during initial rendering, comment out the below line to remove it from the data source.
MyFolder.Add(showHideItem);
MyFolder.Add(new MailItem
{
ID = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
public class MailItem
{
public string ID { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}
}Show or Hide an individual node Programmatically in Blazor TreeView Component
In the Blazor TreeView component, you can show or hide particular TreeView nodes dynamically on a button click by adding or removing them from the data source.
<SfTreeView TValue="MailItem">
<TreeViewFieldsSettings TValue="MailItem" DataSource="@MyFolder" Id="ID" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
</SfTreeView>
<SfButton @onclick="onToggleClick" CssClass="e-flat" IsToggle="true" IsPrimary="true" Content="@Content"></SfButton>
@code {
public string Content = "Hide Social node";
List<MailItem> MyFolder = new List<MailItem>();
MailItem showHideItem = new MailItem();
private void onToggleClick(MouseEventArgs args)
{
if (Content == "Hide Social node")
{
this.Content = "Show Social node";
MyFolder.Remove(showHideItem);
}
else
{
this.Content = "Hide Social node";
MyFolder.Insert(3, showHideItem);
}
}
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
ID = "1",
FolderName = "Root",
HasSubFolders = true,
Expanded = true
});
MyFolder.Add(new MailItem
{
ID = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true
});
MyFolder.Add( new MailItem
{
ID = "3",
ParentId = "2",
FolderName = "Primary"
});
showHideItem=(new MailItem
{
ID = "4",
ParentId = "2",
FolderName = "Social"
});
MyFolder.Add(showHideItem);
MyFolder.Add(new MailItem
{
ID = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
public class MailItem
{
public string ID { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}

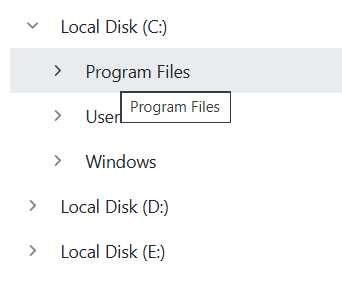

}Enable Tooltip in Blazor TreeView Component
The TreeView control allows to set tooltip option to tree nodes using the Tooltip property.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="DriveData">
<TreeViewFieldsSettings DataSource="@Drive" Id="NodeId" Text="NodeText" Tooltip="Tooltip" Expanded="Expanded" Child="@("Child")"></TreeViewFieldsSettings>
</SfTreeView>
@code {
List<DriveData> Drive = new List<DriveData>();
protected override void OnInitialized()
{
base.OnInitialized();
Drive.Add(new DriveData
{
NodeId = "01",
NodeText = "Local Disk (C:)",
Tooltip = "Local Disk (C:)",
Expanded = true,
Child = new List<DriveData>()
{
new DriveData { NodeId = "01-01", NodeText = "Program Files", Tooltip = "Program Files",
Child = new List<DriveData>()
{
new DriveData { NodeId = "01-01-01", NodeText = "Windows NT" , Tooltip = "Windows NT"},
},
},
new DriveData { NodeId = "01-02", NodeText = "Users", Tooltip="Users",
Child = new List<DriveData>()
{
new DriveData { NodeId = "01-02-01", NodeText = "Smith", Tooltip= "Smith" },
new DriveData { NodeId = "01-02-02", NodeText = "Public", Tooltip="Public" },
},
},
new DriveData { NodeId = "01-03", NodeText = "Windows", Tooltip= "Windows",
Child = new List<DriveData>()
{
new DriveData { NodeId = "01-03-01", NodeText = "Boot", Tooltip = "Boot" },
}
},
},
});
Drive.Add(new DriveData
{
NodeId = "02",
NodeText = "Local Disk (D:)",
Tooltip = "Local Disk (D:)",
Child = new List<DriveData>()
{
new DriveData { NodeId = "02-01", NodeText = "Personals", Tooltip="Personals"
},
new DriveData { NodeId = "02-02", NodeText = "Projects", Tooltip = "Projects"
},
new DriveData { NodeId = "02-02", NodeText = "Office", Tooltip = "Office"
}
}
});
Drive.Add(new DriveData
{
NodeId = "03",
NodeText = "Local Disk (E:)",
Tooltip = "Local Disk (E:)",
Child = new List<DriveData>()
{
new DriveData { NodeId = "03-01", NodeText = "Pictures", Tooltip = "Pictures"
},
new DriveData { NodeId = "03-02", NodeText = "Documents", Tooltip ="Documents"
},
new DriveData { NodeId = "03-03", NodeText = "Study Materials", Tooltip = "Study Materials"
},
},
});
}
class DriveData
{
public string NodeId { get; set; }
public string NodeText { get; set; }
public string Tooltip { get; set; }
public string Icon { get; set; }
public bool Expanded { get; set; }
public bool Selected { get; set; }
public List<DriveData> Child { get; set; }
}

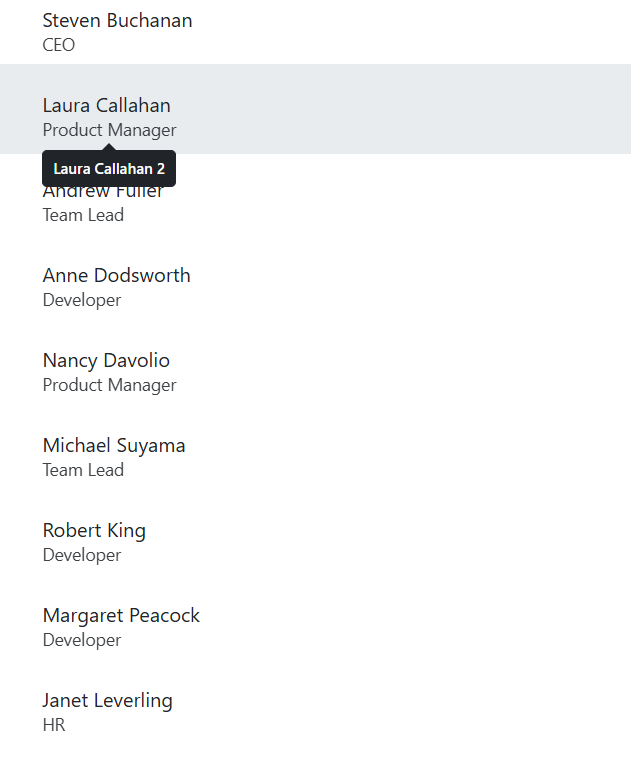

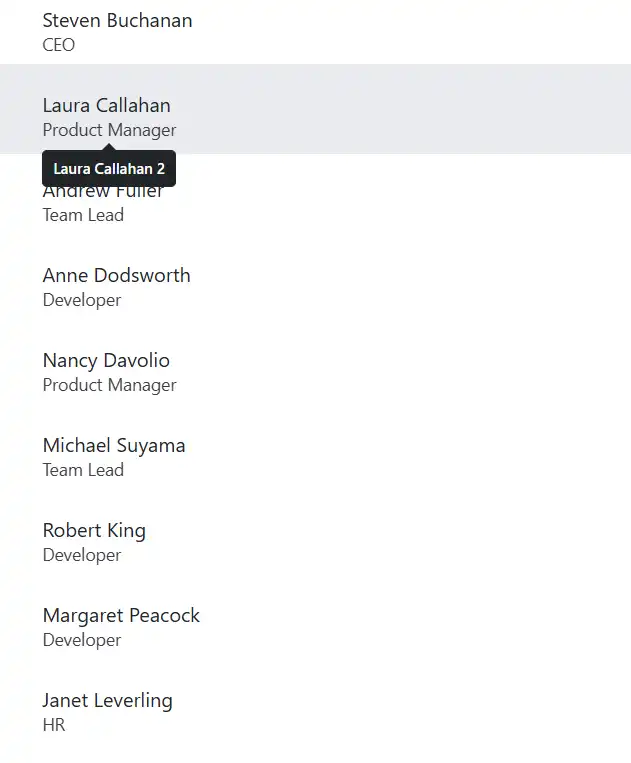

}Customize nodes Tooltip in Blazor TreeView Component
In the Blazor TreeView component, you are unable to customize the native tooltip element. But you can customize using the Blazor Tooltip component inside the TreeView node template and setting the Tooltip Target property.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Popups
<SfTreeView TValue="EmployeeDetails" CssClass="custom" FullRowSelect="true">
<TreeViewFieldsSettings TValue="EmployeeDetails" Id="EmployeeId" Text="EmployeeName" DataSource="@Employee" Expanded="Expanded" HasChildren="HasChild" Selected="Selected" ParentID="ParentId"></TreeViewFieldsSettings>
<TreeViewTemplates TValue="EmployeeDetails">
<NodeTemplate>
@{
var employee = ((context as EmployeeDetails));
<SfTooltip Target="#def">
<TooltipTemplates>
<Content>
@employee.EmployeeName
</Content>
</TooltipTemplates>
<div id="def">
<div class="ename">@((@context as EmployeeDetails).EmployeeName)</div>
<div class="ejob">@((@context as EmployeeDetails).Designation)</div>
</div>
</SfTooltip>
}
</NodeTemplate>
</TreeViewTemplates>
<TreeViewEvents TValue="EmployeeDetails"></TreeViewEvents>
</SfTreeView>
@code
{
public class EmployeeDetails
{
public string EmployeeName { get; set; }
public int EmployeeId { get; set; }
public int? ParentId { get; set; }
public bool HasChild { get; set; }
public bool Expanded { get; set; }
public bool Selected { get; set; }
public string Image { get; set; }
public string Designation { get; set; }
}
List<EmployeeDetails> Employee = new List<EmployeeDetails>();
protected override void OnInitialized()
{
base.OnInitialized();
Employee.Add(new EmployeeDetails
{
EmployeeId = 1,
EmployeeName = "Steven Buchanan",
HasChild = false,
Expanded = true,
Image = "10",
Designation = "CEO"
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 2,
EmployeeName = "Laura Callahan",
Image = "2",
Designation = "Product Manager",
HasChild = false
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 3,
EmployeeName = "Andrew Fuller",
Image = "7",
Designation = "Team Lead",
HasChild = false
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 4,
EmployeeName = "Anne Dodsworth",
Image = "1",
Designation = "Developer"
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 5,
EmployeeName = "Nancy Davolio",
HasChild = false,
Image = "4",
Designation = "Product Manager"
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 6,
EmployeeName = "Michael Suyama",
Image = "9",
Designation = "Team Lead",
HasChild = false
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 7,
EmployeeName = "Robert King",
Image = "8",
Designation = "Developer"
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 8,
EmployeeName = "Margaret Peacock",
Image = "6",
Designation = "Developer"
});
Employee.Add(new EmployeeDetails
{
EmployeeId = 9,
EmployeeName = "Janet Leverling",
Image = "3",
Designation = "HR"
});
}
}
<style>
/* Customize the Tooltip*/
.e-tooltip-wrap .e-tip-content {
color: white;
font-size: 12px;
line-height: 20px;
}
.custom.e-treeview .e-fullrow {
height: 72px;
}
.custom.e-treeview .e-list-text {
line-height: normal;
}
.eimage {
float: left;
padding: 11px 16px 11px 0;
height: 48px;
width: 48px;
box-sizing: content-box;
}
.ename {
font-size: 16px;
padding: 14px 0 0;
}
.ejob {
font-size: 14px;
opacity: .87;
}
.e-list-text[data-title] {
background-color: red;
}
</style>Get all nodes in Blazor TreeView Component
In the Blazor TreeView component, you can get all TreeView node details using the GetTreeData method. The following code example demonstrates how to get the TreeView node’s text values by clicking the button.
@using Syncfusion.Blazor.Navigations
<button @onclick="@TreeData">TreeView Data</button>
<SfTreeView TValue="MailItem" @ref="tree">
<TreeViewFieldsSettings TValue="MailItem" Id="ID" DataSource="@MyFolder" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
</SfTreeView>
<h4>TreeView node texts</h4>
@foreach (var datas in data)
{
<p>@datas.FolderName</p>
}
@code {
public List<MailItem> data = new List<MailItem>();
SfTreeView<MailItem> tree;
public class MailItem
{
public string ID { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}
List<MailItem> MyFolder = new List<MailItem>();
void TreeData()
{
data = tree.GetTreeData();
}
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
ID = "1",
FolderName = "Inbox",
HasSubFolders = true,
Expanded = true
});
MyFolder.Add(new MailItem
{
ID = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true
});
MyFolder.Add(new MailItem
{
ID = "3",
ParentId = "2",
FolderName = "Primary"
});
MyFolder.Add(new MailItem
{
ID = "4",
ParentId = "2",
FolderName = "Social"
});
MyFolder.Add(new MailItem
{
ID = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
}
