Node Editing in Blazor TreeView Component
10 Mar 202324 minutes to read
The Blazor TreeView allows to edit nodes by setting the AllowEditing property to true. To directly edit the nodes in place, double click the TreeView node or select the node and press F2 key.
When editing is completed by focus out or by pressing the Enter key, the modified node’s text saves automatically. If you do not want to save the modified node’s text in TreeView node, press Escape key. It does not save the edited text to the TreeView node.
-

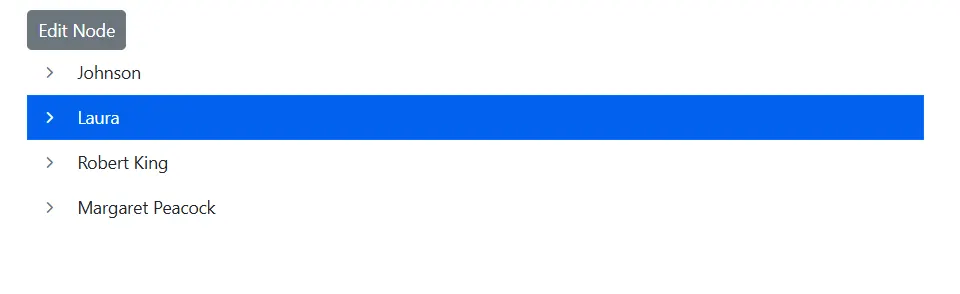

Node editing can also be performed programmatically by using the
BeginEditmethod. On passing the node ID or element through this method, the edit textbox will be created for the particular node thus allowing us to edit it. -
In order to validate or prevent editing, the
NodeEditingevent can be used which is triggered before the TreeView node is renamed. On successfully renaming a node theNodeEditedevent will be triggered.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="DriveData" AllowEditing="true">
<TreeViewFieldsSettings TValue="DriveData" Id="NodeId" Text="NodeText" Child="Children" DataSource="@Drive" Expanded="Expanded"></TreeViewFieldsSettings>
</SfTreeView>
@code{
public class DriveData
{
public string NodeId { get; set; }
public string NodeText { get; set; }
public bool Expanded { get; set; }
public bool Selected { get; set; }
public List<DriveData> Children;
}
object Child;
List<DriveData> Drive = new List<DriveData>();
protected override void OnInitialized()
{
base.OnInitialized();
List<DriveData> Folder1 = new List<DriveData>();
Drive.Add(new DriveData
{
NodeId = "01",
NodeText = "Local Disk (C:)",
Children = Folder1,
});
List<DriveData> File1 = new List<DriveData>();
Folder1.Add(new DriveData
{
NodeId = "01-01",
NodeText = "Program Files",
Children = File1
});
File1.Add(new DriveData
{
NodeId = "01-01-01",
NodeText = "Windows NT"
});
List<DriveData> File2 = new List<DriveData>();
Folder1.Add(new DriveData
{
NodeId = "01-02",
NodeText = "Users",
Expanded = true,
Children = File2
});
File2.Add(new DriveData
{
NodeId = "01-02-01",
NodeText = "Smith"
});
List<DriveData> File3 = new List<DriveData>();
Folder1.Add(new DriveData
{
NodeId = "01-03",
NodeText = "Windows",
Children = File3
});
File3.Add(new DriveData
{
NodeId = "01-03-01",
NodeText = "Boot"
});
List<DriveData> Folder2 = new List<DriveData>();
Drive.Add(new DriveData
{
NodeId = "02",
NodeText = "Local Disk (D:)",
Children = Folder2,
Expanded = true,
});
List<DriveData> File4 = new List<DriveData>();
Folder2.Add(new DriveData
{
NodeId = "02-01",
NodeText = "Personals"
});
Folder2.Add(new DriveData
{
NodeId = "02-02",
NodeText = "Projects"
});
Folder2.Add(new DriveData
{
NodeId = "02-03",
NodeText = "Office"
});
}
}
CRUD operations
The Blazor TreeView component provides dynamic options for adding, removing, and renaming nodes.

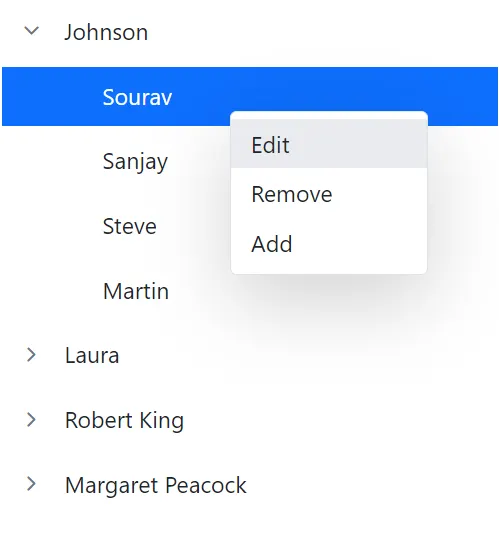

CRUD operation using list
The Blazor TreeView component allows for the integration of a context menu to perform CRUD operations, such as adding, removing, and renaming nodes, on the TreeView.
The example provided demonstrates how to use the ItemSelected event of the context menu to manipulate TreeView operations.
@using Syncfusion.Blazor.Navigations
<div id="treeview">
<SfTreeView TValue="EmployeeData" @ref="tree" AllowDragAndDrop="true" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="Pid" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
<SfContextMenu TValue="MenuItem" @ref="menu" Target="#treeview" Items="@MenuItems">
<MenuEvents TValue="MenuItem" ItemSelected="MenuSelect"></MenuEvents>
</SfContextMenu>
</SfTreeView>
</div>
@code
{
// Reference for treeview
SfTreeView<EmployeeData> tree;
// Reference for context menu
SfContextMenu<MenuItem> menu;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { };
int index = 100;
// Datasource for menu items
public List<MenuItem> MenuItems = new List<MenuItem>{
new MenuItem { Text = "Edit" },
new MenuItem { Text = "Remove" },
new MenuItem { Text = "Add" }
};
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string Pid { get; set; }
public bool HasChild { get; set; }
}
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To add a new node
async Task AddNodes()
{
// Expand the selected nodes
expandedNodes = new string[] { this.selectedId };
string NodeId = "tree_" + this.index.ToString();
ListData.Add(new EmployeeData
{
Id = NodeId,
Name = "NewItem",
Pid = this.selectedId
});
await Task.Delay(100);
// Edit the added node.
await this.tree.BeginEditAsync(NodeId);
this.index = this.index + 1;
}
// To delete a tree node
void RemoveNodes()
{
List<EmployeeData> removeNode = tree.GetTreeData(selectedId);
ListData.Remove(removeNode.ElementAt(0));
}
// To edit a tree node
async Task RenameNodes()
{
await this.tree.BeginEditAsync(this.selectedId);
}
// Triggers when context menu is selected
public async Task MenuSelect(MenuEventArgs<MenuItem> args)
{
string selectedText;
selectedText = args.Item.Text;
if (selectedText == "Edit")
{
await this.RenameNodes();
}
else if (selectedText == "Remove")
{
this.RemoveNodes();
}
else if (selectedText == "Add")
{
await this.AddNodes();
}
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
Pid = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
Pid = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
Pid = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
Pid = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
Pid = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
Pid = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
Pid = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
Pid = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
Pid = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
Pid = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
Pid = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
Pid = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
Pid = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
Pid = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
Pid = "16",
Name = "Raffel",
});
}
}

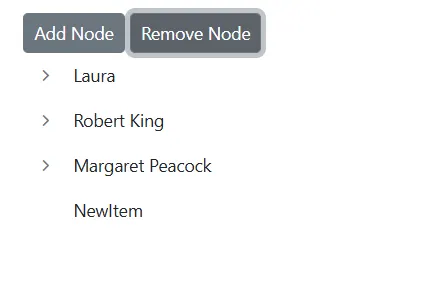

Add or remove node programmatically
The Blazor TreeView component allows for the dynamic addition or removal of specific nodes by manipulating the data source.This can be achieved by using appropriate methods to update the data source.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="AddNodes"> Add Node</SfButton>
<SfButton OnClick="RemoveNodes"> Remove Node</SfButton>
<div id="treeview">
<SfTreeView TValue="EmployeeData" @ref="tree" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="Pid" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
</SfTreeView>
</div>
@code
{
// Reference for treeview
SfTreeView<EmployeeData> tree;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { };
int index = 100;
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string Pid { get; set; }
public bool HasChild { get; set; }
}
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To add a new node
public async Task AddNodes()
{
// Expand the selected nodes
expandedNodes = new string[] { this.selectedId };
string NodeId = "tree_" + this.index.ToString();
ListData.Add(new EmployeeData
{
Id = NodeId,
Name = "NewItem",
Pid = this.selectedId
});
await Task.Delay(100);
// Edit the added node.
await this.tree.BeginEditAsync(NodeId);
this.index = this.index + 1;
}
// To delete a tree node
void RemoveNodes()
{
List<EmployeeData> removeNode = tree.GetTreeData(selectedId);
ListData.Remove(removeNode.ElementAt(0));
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
Pid = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
Pid = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
Pid = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
Pid = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
Pid = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
Pid = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
Pid = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
Pid = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
Pid = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
Pid = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
Pid = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
Pid = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
Pid = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
Pid = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
Pid = "16",
Name = "Raffel",
});
}

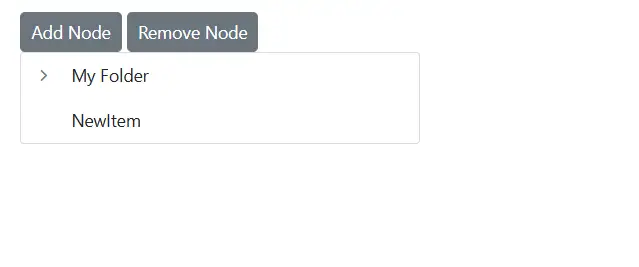

}Add or remove node Programmatically with template
The Blazor TreeView component with template support also allows for the dynamic addition or removal of specific nodes by manipulating the data source. This can be achieved by using appropriate methods to update the data source.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="AddNodes"> Add Node</SfButton>
<SfButton OnClick="RemoveNodes"> Remove Node</SfButton>
<div class="control_wrapper">
<SfTreeView TValue="TreeData" @ref="tree" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" Text="Name" ParentID="Pid" HasChildren="HasChild" Selected="Selected" Expanded="Expanded" DataSource="@LocalData"></TreeViewFieldsSettings>
<TreeViewEvents TValue="TreeData" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
<TreeViewTemplates TValue="TreeData">
<NodeTemplate>
<div>
<div class="treeviewdiv">
<div class="nodetext">
<span class="treeName">@((context as TreeData).Name)</span>
</div>
@{
@if (((context as TreeData).Count) != 0)
{
<div class="nodebadge">
<span class="treeCount e-badge e-badge-primary">@((context as TreeData).Count)</span>
</div>
}
}
</div>
</div>
</NodeTemplate>
</TreeViewTemplates>
</SfTreeView>
</div>
@code {
// Reference for treeview
SfTreeView<TreeData>? tree;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { };
int index = 100;
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To add a new node
public async Task AddNodes()
{
// Expand the selected nodes
expandedNodes = new string[] { this.selectedId };
string NodeId = "tree_" + this.index.ToString();
LocalData.Add(new TreeData
{
Id = NodeId,
Name = "NewItem",
Pid = this.selectedId
});
await Task.Delay(100);
// Edit the added node.
await this.tree.BeginEditAsync(NodeId);
this.index = this.index + 1;
}
// To delete a tree node
public void RemoveNodes()
{
List<TreeData> removeNode = tree.GetTreeData(selectedId);
LocalData.Remove(removeNode.ElementAt(0));
}
// Specifies the DataSource value for TreeView component.
List<TreeData> LocalData = new List<TreeData>();
protected override void OnInitialized()
{
base.OnInitialized();
LocalData.Add(new TreeData
{
Id = "1",
Name = "Favorites",
HasChild = true,
});
LocalData.Add(new TreeData
{
Id = "2",
Pid = "1",
Name = "Sales Reports",
Count = 4
});
LocalData.Add(new TreeData
{
Id = "3",
Pid = "1",
Name = "Sent Items"
});
LocalData.Add(new TreeData
{
Id = "4",
Pid = "1",
Name = "Marketing Reports",
Count = 6
});
LocalData.Add(new TreeData
{
Id = "5",
HasChild = true,
Name = "My Folder",
Expanded = true
});
LocalData.Add(new TreeData
{
Id = "6",
Pid = "5",
Name = "Inbox",
Selected = true,
Count = 20
});
LocalData.Add(new TreeData
{
Id = "7",
Pid = "5",
Name = "Drafts",
Count = 5
});
LocalData.Add(new TreeData
{
Id = "8",
Pid = "5",
Name = "Deleted Items"
});
LocalData.Add(new TreeData
{
Id = "9",
Pid = "5",
Name = "Sent Items"
});
LocalData.Add(new TreeData
{
Id = "10",
Pid = "5",
Name = "Sales Reports",
Count = 4
});
LocalData.Add(new TreeData
{
Id = "11",
Pid = "5",
Name = "Marketing Reports",
Count = 6
});
LocalData.Add(new TreeData
{
Id = "12",
Pid = "5",
Name = "Outbox"
});
}
class TreeData
{
public string Id { get; set; }
public string Pid { get; set; }
public string Name { get; set; }
public bool HasChild { get; set; }
public bool Expanded { get; set; }
public int Count { get; set; }
public bool Selected { get; set; }
}
}
<style>
/* Sample specific styles */
.control_wrapper {
max-width: 320px;
border: 1px solid #dddddd;
border-radius: 3px;
max-height: 420px;
overflow: auto;
}
/* Specifies the styles for custom generated elements in the TreeView component */
.e-treeview .e-list-text {
width: 99%;
}
.treeCount.e-badge {
padding: 0.4em;
vertical-align: text-bottom;
}
.material .treeCount.e-badge {
vertical-align: middle;
}
.bootstrap5.e-bigger .treeCount.e-badge,
.tailwind.e-bigger .treeCount.e-badge,
.tailwind-dark.e-bigger .treeCount.e-badge,
.bootstrap5-dark.e-bigger .treeCount.e-badge {
line-height: 10px;
}
.bootstrap4 .treeviewdiv .treeCount.e-badge,
.bootstrap5 .treeviewdiv .treeCount.e-badge,
.bootstrap .treeviewdiv .treeCount.e-badge,
.bootstrap-dark .treeviewdiv .treeCount.e-badge,
.highcontrast .treeviewdiv .treeCount.e-badge,
.bootstrap5-dark .treeviewdiv .treeCount.e-badge {
background-color: #008800;
}
.highcontrast .treeviewdiv .treeCount.e-badge {
color: white;
}
.nodetext {
float: left;
}
.e-rtl .nodetext {
float: right;
}
.nodebadge {
float: right;
margin-right: 5px
}
.e-rtl .nodebadge {
float: left;
margin-left: 5px
}
</style>Add node through popup
In the Blazor TreeView component, it is possible to add a new tree node using a Dialog popup window. This can be done by using appropriate methods to add new items to the data source in the popup.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.Popups
<SfButton @onclick="@OpenDialog">Open Dialog Popup</SfButton>
<SfDialog Width="300px" CssClass="dialog" ShowCloseIcon="true" IsModal="true" @bind-Visible="@IsVisible">
<DialogTemplates>
<Header> Dialog </Header>
<Content>
<input type="text" placeholder="Enter new node name" @bind="newNodeName" />
<SfButton OnClick="AddNodeInPopup"> Add</SfButton>
</Content>
</DialogTemplates>
</SfDialog>
<SfTreeView TValue="EmployeeData" @ref="tree" AllowEditing="true" AllowDragAndDrop="true" @bind-SelectedNodes="@selectedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="Pid" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
</SfTreeView>
@code
{
private bool IsVisible { get; set; } = false;
private void OpenDialog()
{
this.IsVisible = true;
}
public string newNodeName;
async Task AddNodeInPopup()
{
// Expand the selected nodes
expandedNodes = new string[] { this.selectedId };
string NodeId = "tree_" + this.index.ToString();
ListData.Add(new EmployeeData
{
Id = NodeId,
Name = newNodeName,
Pid = this.selectedId
});
this.index = this.index + 1;
}
// Reference for treeview
SfTreeView<EmployeeData>? tree;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { };
int index = 100;
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string Pid { get; set; }
public bool HasChild { get; set; }
}
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
Pid = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
Pid = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
Pid = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
Pid = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
Pid = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
Pid = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
Pid = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
Pid = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
Pid = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
Pid = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
Pid = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
Pid = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
Pid = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
Pid = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
Pid = "16",
Name = "Raffel",
});
}
}Edit a node programmatically
The Blazor TreeView component enables dynamic editing of specific nodes. This can be accomplished by passing the selected node’s ID to the BeginEditAsync method of the TreeView component.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="EditNodes"> Edit Node</SfButton>
<div id="treeview">
<SfTreeView TValue="EmployeeData" @ref="tree" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="Pid" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
</SfTreeView>
</div>
@code
{
// Reference for treeview
SfTreeView<EmployeeData>? tree;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { };
int index = 100;
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string Pid { get; set; }
public bool HasChild { get; set; }
}
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To edit a tree node
async Task EditNodes()
{
await this.tree.BeginEditAsync(this.selectedId);
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
Pid = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
Pid = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
Pid = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
Pid = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
Pid = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
Pid = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
Pid = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
Pid = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
Pid = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
Pid = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
Pid = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
Pid = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
Pid = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
Pid = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
Pid = "16",
Name = "Raffel",
});
}
}Edit a node with template
The Blazor TreeView component with template enables dynamic editing of specific nodes. This can be accomplished by passing the selected node’s ID to the BeginEditAsync method of the TreeView component.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="EditNodes"> Edit Node</SfButton>
<div class="control_wrapper">
<SfTreeView TValue="TreeData" @ref="tree" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" Text="Name" ParentID="Pid" HasChildren="HasChild" Selected="Selected" Expanded="Expanded" DataSource="@LocalData"></TreeViewFieldsSettings>
<TreeViewEvents TValue="TreeData" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
<TreeViewTemplates TValue="TreeData">
<NodeTemplate>
<div>
<div class="treeviewdiv">
<div class="nodetext">
<span class="treeName">@((context as TreeData).Name)</span>
</div>
@{
@if (((context as TreeData).Count) != 0)
{
<div class="nodebadge">
<span class="treeCount e-badge e-badge-primary">@((context as TreeData).Count)</span>
</div>
}
}
</div>
</div>
</NodeTemplate>
</TreeViewTemplates>
</SfTreeView>
</div>
@code {
// Reference for treeview
SfTreeView<TreeData>? tree;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { };
int index = 100;
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To edit a tree node
async Task EditNodes()
{
await this.tree.BeginEditAsync(this.selectedId);
}
// Specifies the DataSource value for TreeView component.
List<TreeData> LocalData = new List<TreeData>();
protected override void OnInitialized()
{
base.OnInitialized();
LocalData.Add(new TreeData
{
Id = "1",
Name = "Favorites",
HasChild = true,
});
LocalData.Add(new TreeData
{
Id = "2",
Pid = "1",
Name = "Sales Reports",
Count = 4
});
LocalData.Add(new TreeData
{
Id = "3",
Pid = "1",
Name = "Sent Items"
});
LocalData.Add(new TreeData
{
Id = "4",
Pid = "1",
Name = "Marketing Reports",
Count = 6
});
LocalData.Add(new TreeData
{
Id = "5",
HasChild = true,
Name = "My Folder",
Expanded = true
});
LocalData.Add(new TreeData
{
Id = "6",
Pid = "5",
Name = "Inbox",
Selected = true,
Count = 20
});
LocalData.Add(new TreeData
{
Id = "7",
Pid = "5",
Name = "Drafts",
Count = 5
});
LocalData.Add(new TreeData
{
Id = "8",
Pid = "5",
Name = "Deleted Items"
});
LocalData.Add(new TreeData
{
Id = "9",
Pid = "5",
Name = "Sent Items"
});
LocalData.Add(new TreeData
{
Id = "10",
Pid = "5",
Name = "Sales Reports",
Count = 4
});
LocalData.Add(new TreeData
{
Id = "11",
Pid = "5",
Name = "Marketing Reports",
Count = 6
});
LocalData.Add(new TreeData
{
Id = "12",
Pid = "5",
Name = "Outbox"
});
}
class TreeData
{
public string Id { get; set; }
public string Pid { get; set; }
public string Name { get; set; }
public bool HasChild { get; set; }
public bool Expanded { get; set; }
public int Count { get; set; }
public bool Selected { get; set; }
}
}
<style>
/* Sample specific styles */
.control_wrapper {
max-width: 320px;
border: 1px solid #dddddd;
border-radius: 3px;
max-height: 420px;
overflow: auto;
}
/* Specifies the styles for custom generated elements in the TreeView component */
.e-treeview .e-list-text {
width: 99%;
}
.treeCount.e-badge {
padding: 0.4em;
vertical-align: text-bottom;
}
.material .treeCount.e-badge {
vertical-align: middle;
}
.bootstrap5.e-bigger .treeCount.e-badge,
.tailwind.e-bigger .treeCount.e-badge,
.tailwind-dark.e-bigger .treeCount.e-badge,
.bootstrap5-dark.e-bigger .treeCount.e-badge {
line-height: 10px;
}
.bootstrap4 .treeviewdiv .treeCount.e-badge,
.bootstrap5 .treeviewdiv .treeCount.e-badge,
.bootstrap .treeviewdiv .treeCount.e-badge,
.bootstrap-dark .treeviewdiv .treeCount.e-badge,
.highcontrast .treeviewdiv .treeCount.e-badge,
.bootstrap5-dark .treeviewdiv .treeCount.e-badge {
background-color: #008800;
}
.highcontrast .treeviewdiv .treeCount.e-badge {
color: white;
}
.nodetext {
float: left;
}
.e-rtl .nodetext {
float: right;
}
.nodebadge {
float: right;
margin-right: 5px
}
.e-rtl .nodebadge {
float: left;
margin-left: 5px
}
</style>Read-only TreeView
The Blazor TreeView component can be set to read-only mode by disabling certain features or handling events that trigger actions, such as disabling the context menu, handling item selected, item expand, and item collapse events, and disabling the editable property of the TreeView component, which will prevent for adding, removing, or editing nodes.
<SfTreeView TValue="MailItem">
<TreeViewFieldsSettings TValue="MailItem" Id="Id" DataSource="@MyFolder" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
<TreeViewEvents TValue="MailItem" NodeSelecting="NodeSelecting" NodeExpanding="NodeExpanding" NodeCollapsing="NodeCollapsing"></TreeViewEvents>
</SfTreeView>
@code {
public class MailItem
{
public string Id { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}
List<MailItem> MyFolder = new List<MailItem>();
public void NodeSelecting(NodeSelectEventArgs args)
{
args.Cancel = true;
}
public void NodeExpanding(NodeExpandEventArgs args)
{
args.Cancel = true;
}
public void NodeCollapsing(NodeExpandEventArgs args)
{
args.Cancel = true;
}
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
Id = "1",
FolderName = "Inbox",
HasSubFolders = true,
Expanded = true
});
MyFolder.Add(new MailItem
{
Id = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true
});
MyFolder.Add(new MailItem
{
Id = "3",
ParentId = "2",
FolderName = "Primary"
});
MyFolder.Add(new MailItem
{
Id = "4",
ParentId = "2",
FolderName = "Social"
});
MyFolder.Add(new MailItem
{
Id = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
}Restrict Node Editing for Specific Node
In the Blazor TreeView component, it is possible to prevent editing of a specific node by setting the Cancel argument to true in the NodeEditing event.
An example of this can be seen in the provided code snippet, where the node editing is prevented for the Johnson TreeView node.
@using Syncfusion.Blazor.Navigations
<div id="treeview">
<SfTreeView TValue="EmployeeData" @ref="tree" AllowEditing="true" AllowDragAndDrop="true" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="Pid" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeEditing="NodeEditing" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
<SfContextMenu TValue="MenuItem" @ref="menu" Target="#treeview" Items="@MenuItems">
<MenuEvents TValue="MenuItem" ItemSelected="MenuSelect"></MenuEvents>
</SfContextMenu>
</SfTreeView>
</div>
@code
{
// Reference for treeview
SfTreeView<EmployeeData>? tree;
// Reference for context menu
SfContextMenu<MenuItem>? menu;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { "" };
int index = 100;
public void NodeEditing(NodeEditEventArgs args)
{
if (args.NodeData.Text == "Johnson")
{
args.Cancel = true;
}
}
// Datasource for menu items
public List<MenuItem> MenuItems = new List<MenuItem>{
new MenuItem { Text = "Edit" },
};
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string Pid { get; set; }
public bool HasChild { get; set; }
}
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To edit a tree node
async Task RenameNodes()
{
await tree.BeginEditAsync(this.selectedId);
}
// Triggers when context menu is selected
public async Task MenuSelect(MenuEventArgs<MenuItem> args)
{
string selectedText;
selectedText = args.Item.Text;
if (selectedText == "Edit")
{
await this.RenameNodes();
}
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
Pid = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
Pid = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
Pid = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
Pid = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
Pid = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
Pid = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
Pid = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
Pid = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
Pid = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
Pid = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
Pid = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
Pid = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
Pid = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
Pid = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
Pid = "16",
Name = "Raffel",
});
}
}Get index of editing node
In the Blazor TreeView component, you can obtain the index value of the editing node by using the NodeEditing event. To access the TreeView data, you can use the GetTreeData method and store it in a variable. Then, you can use a for loop to check if the id of the current data item matches the id of the node being edited. If it does, it is the index of the edited node.
@using Syncfusion.Blazor.Navigations
<div>Node Index value : @indexValue</div>
<div id="treeview">
<SfTreeView TValue="EmployeeData" @ref="tree" AllowEditing="true" AllowDragAndDrop="true" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="Pid" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeEditing="NodeEditing" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
<SfContextMenu TValue="MenuItem" @ref="menu" Target="#treeview" Items="@MenuItems">
<MenuEvents TValue="MenuItem" ItemSelected="MenuSelect"></MenuEvents>
</SfContextMenu>
</SfTreeView>
</div>
@code
{
// Reference for treeview
SfTreeView<EmployeeData>? tree;
// Reference for context menu
SfContextMenu<MenuItem>? menu;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { "" };
int index = 100;
int indexValue;
public void NodeEditing(NodeEditEventArgs args)
{
var data = tree.GetTreeData();
for (int i = 0; i < data.Count(); i++)
{
if (data[i].Id == args.NodeData.Id)
{
indexValue = i;
}
}
}
// Datasource for menu items
public List<MenuItem> MenuItems = new List<MenuItem>{
new MenuItem { Text = "Edit" },
};
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string Pid { get; set; }
public bool HasChild { get; set; }
}
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To edit a tree node
async Task RenameNodes()
{
await tree.BeginEditAsync(this.selectedId);
}
// Triggers when context menu is selected
public async Task MenuSelect(MenuEventArgs<MenuItem> args)
{
string selectedText;
selectedText = args.Item.Text;
if (selectedText == "Edit")
{
await this.RenameNodes();
}
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
Pid = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
Pid = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
Pid = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
Pid = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
Pid = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
Pid = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
Pid = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
Pid = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
Pid = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
Pid = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
Pid = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
Pid = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
Pid = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
Pid = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
Pid = "16",
Name = "Raffel",
});
}
}Prevent node editing on node double-click
In the Blazor TreeView component, you have the AllowEditing property, which enables editing a node’s text by either double-clicking on the TreeView node or pressing the F2 key. When the AllowEditing property is set to true, the TreeView allows for editing a node by either double-clicking on the node or navigating to the node and pressing the F2 key. However, when the property is set to false, the TreeView only allows for reading the node’s text.
The default value of AllowEditing property is false.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="MailItem" AllowEditing="false">
<TreeViewFieldsSettings TValue="MailItem" Id="Id" DataSource="@MyFolder" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded"></TreeViewFieldsSettings>
</SfTreeView>
@code {
public class MailItem
{
public string Id { get; set; }
public string ParentId { get; set; }
public string FolderName { get; set; }
public bool Expanded { get; set; }
public bool HasSubFolders { get; set; }
}
List<MailItem> MyFolder = new List<MailItem>();
protected override void OnInitialized()
{
base.OnInitialized();
MyFolder.Add(new MailItem
{
Id = "1",
FolderName = "Inbox",
HasSubFolders = true,
Expanded = true
});
MyFolder.Add(new MailItem
{
Id = "2",
ParentId = "1",
FolderName = "Categories",
Expanded = true,
HasSubFolders = true
});
MyFolder.Add(new MailItem
{
Id = "3",
ParentId = "2",
FolderName = "Primary"
});
MyFolder.Add(new MailItem
{
Id = "4",
ParentId = "2",
FolderName = "Social"
});
MyFolder.Add(new MailItem
{
Id = "5",
ParentId = "2",
FolderName = "Promotions"
});
}
}Cancel the edit action
In the Blazor TreeView component, it is possible to cancel the edit action by setting the Cancel argument to true in the NodeEditing event.
An example of this can be seen in the provided code snippet, where the node editing is canceled for all the TreeView nodes.
@using Syncfusion.Blazor.Navigations
<div id="treeview">
<SfTreeView TValue="EmployeeData" @ref="tree" AllowEditing="true" AllowDragAndDrop="true" @bind-SelectedNodes="@selectedNodes" @bind-ExpandedNodes="expandedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="Pid" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeEditing="NodeEditing" NodeSelected="OnSelect" NodeClicked="nodeClicked"></TreeViewEvents>
<SfContextMenu TValue="MenuItem" @ref="menu" Target="#treeview" Items="@MenuItems">
<MenuEvents TValue="MenuItem" ItemSelected="MenuSelect"></MenuEvents>
</SfContextMenu>
</SfTreeView>
</div>
@code
{
// Reference for treeview
SfTreeView<EmployeeData>? tree;
// Reference for context menu
SfContextMenu<MenuItem>? menu;
string selectedId;
public string[] selectedNodes = Array.Empty<string>();
public string[] expandedNodes = new string[] { "" };
int index = 100;
public void NodeEditing(NodeEditEventArgs args)
{
args.Cancel = true;
}
// Datasource for menu items
public List<MenuItem> MenuItems = new List<MenuItem>{
new MenuItem { Text = "Edit" },
};
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string Pid { get; set; }
public bool HasChild { get; set; }
}
// Triggers when TreeView Node is selected
public void OnSelect(NodeSelectEventArgs args)
{
this.selectedId = args.NodeData.Id;
}
// Triggers when TreeView node is clicked
public void nodeClicked(NodeClickEventArgs args)
{
selectedId = args.NodeData.Id;
selectedNodes = new string[] { args.NodeData.Id };
}
// To edit a tree node
async Task RenameNodes()
{
await tree.BeginEditAsync(this.selectedId);
}
// Triggers when context menu is selected
public async Task MenuSelect(MenuEventArgs<MenuItem> args)
{
string selectedText;
selectedText = args.Item.Text;
if (selectedText == "Edit")
{
await this.RenameNodes();
}
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
Pid = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
Pid = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
Pid = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
Pid = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
Pid = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
Pid = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
Pid = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
Pid = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
Pid = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
Pid = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
Pid = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
Pid = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
Pid = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
Pid = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
Pid = "16",
Name = "Raffel",
});
}
}
