Node Selection in Blazor TreeView Component
29 Sep 202324 minutes to read
You can select a node in the Blazor TreeView component by clicking on the corresponding nodes. In the TreeView component, the Selected field or SelectedNodes property is used to perform node selection.
If you use the Selected field, you can map it directly in the data source.
In the TreeView component, the SelectedNodes property provides two-way binding.

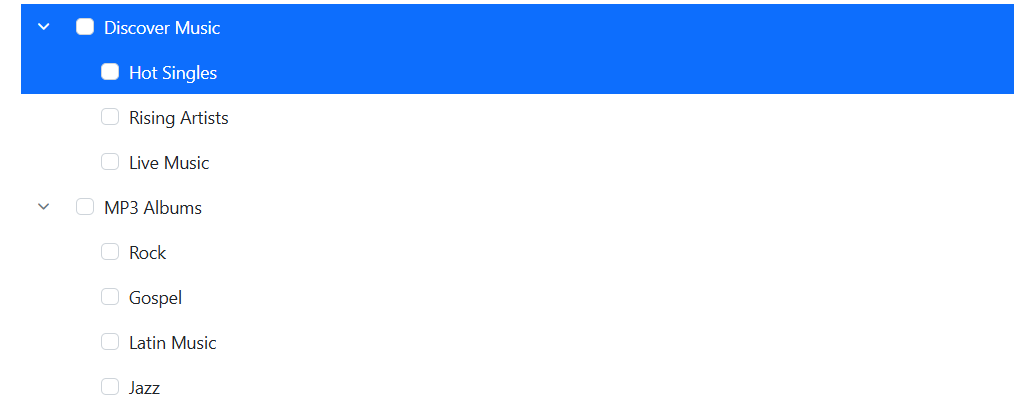

Select nodes through data binding
The Blazor TreeView component enables the selection of specific nodes during initialization by utilizing the Selected field, where setting it to true for a node in the data source will select the corresponding node in the user interface.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true">
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked" Selected="Selected"></TreeViewFieldsSettings>
</SfTreeView>
@code {
public class MusicAlbum
{
public int Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
public bool Selected { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true,
Selected=true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles",
Selected = true
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}
Select nodes through API
The Blazor TreeView component provides the capability to select specific nodes during initialization or dynamically through the two-way binding provided by the SelectedNodes property. This property allows for the selection of particular nodes by passing in an array collection of the corresponding node IDs as strings.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true" @bind-SelectedNodes="SelectedNodes">
<TreeViewEvents TValue="MusicAlbum" NodeSelecting="NodeSelecting"></TreeViewEvents>
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
public string[] SelectedNodes = new string[] { "1","2" };
public class MusicAlbum
{
public int Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles"
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}Select all nodes programmatically
In the Blazor TreeView component, you can select all the nodes using a button click. Based on the requirement, you can add the needed selected TreeView nodes in an empty List and assign them to the SelectedNodes property.
Parent nodes
Here, selected all TreeView parent nodes by clicking a button. If the nodes have child nodes, added those node IDs in the SelectedItems list and assigned that value to the SelectedNodes property.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="ParentNode">Parent Node Selection</SfButton>
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true" @ref="tree" @bind-SelectedNodes="SelectedNodes">
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
SfTreeView<MusicAlbum>? tree;
List<string> SelectedItems = new List<string>();
public string[] SelectedNodes = new string[] { };
public void ParentNode()
{
var data = tree.GetTreeData();
for(int i=0; i < data.Count(); i++)
{
if (data[i].HasChild)
{
SelectedItems.Add(data[i].Id.ToString());
}
}
SelectedNodes = SelectedItems.ToArray();
}
public class MusicAlbum
{
public int? Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles",
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}

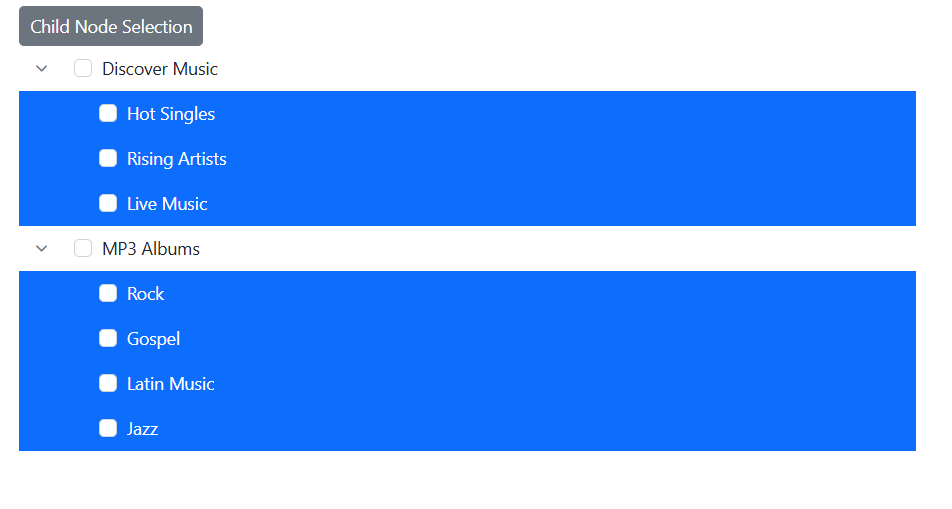

Child nodes
Here, selected all TreeView child nodes by clicking a button. If the nodes do not have child nodes, added those node IDs in the SelectedItems list and assigned that value to the SelectedNodes property.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="ChildNode">Child Node Selection</SfButton>
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true" @ref="tree" @bind-SelectedNodes="SelectedNodes">
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
SfTreeView<MusicAlbum>? tree;
List<string> SelectedItems = new List<string>();
public string[] SelectedNodes = new string[] { };
public void ChildNode()
{
var data = tree.GetTreeData();
for(int i=0; i < data.Count(); i++)
{
if (!data[i].HasChild)
{
SelectedItems.Add(data[i].Id.ToString());
}
}
SelectedNodes = SelectedItems.ToArray();
}
public class MusicAlbum
{
public int? Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles",
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}
Get selected nodes
The Blazor TreeView component provides the capability to select specific nodes during initialization or dynamically through the two-way binding provided by the SelectedNodes property. This property allows for the selection of particular nodes by passing in an array collection of the corresponding node IDs as strings. Additionally, the component offers the GetTreeData method, which allows for retrieval of the updated data source of the TreeView. By passing the SelectedNodes of specific TreeView nodes as arguments to this method, the updated data source of only those nodes will be returned. If no arguments are passed, the entire updated data source of the TreeView will be returned.
@using Syncfusion.Blazor.Navigations
<div class="control_wrapper">
<SfTreeView TValue="MusicAlbum" @ref="TreeRef" AllowMultiSelection="true" ShowCheckBox="true" @bind-SelectedNodes="@SelectedNodes">
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
</div>
<div class="col-lg-4 property-section property-custom">
<div class="property-panel-section">
<div class="property-panel-header">Selected Items</div>
<div id="selecttable" class="property-panel-content">
<table id="property" title="Properties" class="property-panel-table">
<thead>
<tr>
<th style="width: 50%">Id</th>
<th style="width: 50%;">Text</th>
</tr>
</thead>
<tbody>
@if (TreeRef != null)
{
@for (int i = 0; i < SelectedNodes?.Length; i++)
{
List<MusicAlbum> tree = TreeRef.GetTreeData(SelectedNodes[i]);
<tr>
<td style="width: 30%">
<div>@tree[0].Id</div>
</td>
<td style="width: 30%">
<div>@tree[0].Name</div>
</td>
</tr>
}
}
</tbody>
</table>
</div>
</div>
</div>
@code {
// Specify the reference of TreeView element.
SfTreeView<MusicAlbum>? TreeRef;
// Specifies the SelectedNodes value for TreeView component.
string[] SelectedNodes = new string[] { "2", "4" };
public class MusicAlbum
{
public string? Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnAfterRender(bool firstRender)
{
if (firstRender)
{
StateHasChanged();
}
}
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = "1",
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = "2",
ParentId = 1,
Name = "Hot Singles"
});
Albums.Add(new MusicAlbum
{
Id = "3",
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = "4",
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = "14",
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = "15",
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = "16",
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = "17",
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = "18",
ParentId = 14,
Name = "Jazz"
});
}
}
<style>
.control_wrapper {
max-width: 500px;
border: 1px solid #dddddd;
border-radius: 3px;
max-height: 470px;
overflow: auto;
}
.col-lg-4.property-section.property-custom {
border: 1px solid #dddddd;
padding: 15px;
width: 500px !important;
}
#selecttable {
overflow: auto;
max-height: 420px;
}
#selecttable div {
padding-left: 0;
}
</style>

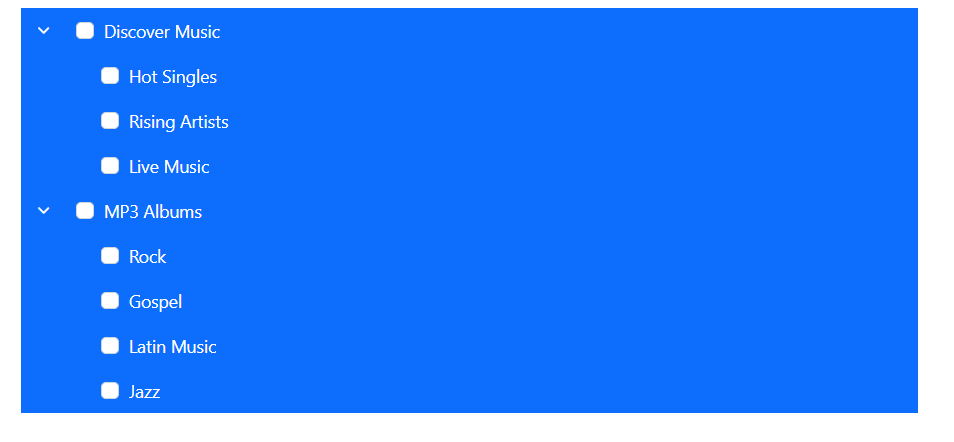

Select all nodes on load
In the Blazor TreeView component, you can select all TreeView nodes on initial rendering by using the TreeView component’s Created event. This event is raised when the TreeView component is created successfully. In this event, you can add all the TreeView nodes IDs in the TreeData list and assign that to the SelectedNodes property to select all the nodes on initial rendering.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true" @ref="tree" @bind-SelectedNodes="SelectedNodes">
<TreeViewEvents TValue="MusicAlbum" Created="Created"></TreeViewEvents>
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
SfTreeView<MusicAlbum>? tree;
List<string> TreeData = new List<string>();
public string[] SelectedNodes = new string[] { };
public void Created(ActionEventArgs args)
{
var data = tree.GetTreeData();
for (int i = 0; i < data.Count(); i++)
{
TreeData.Add(data[i].Id.ToString());
}
SelectedNodes = TreeData.ToArray();
}
public class MusicAlbum
{
public int Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles"
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}
Select all nodes programmatically
In the Blazor TreeView component, you can select all TreeView nodes using a button click. In this button click, you can add all the TreeView nodes IDs in the TreeData list and assign that to the SelectedNodes property to select all the nodes on the button click operation.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="SelectAll">Select All Nodes</SfButton>
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true" @bind-SelectedNodes="SelectedNodes">
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
SfTreeView<MusicAlbum>? tree;
List<string> TreeData = new List<string>();
public string[] SelectedNodes = new string[] { };
public void SelectAll()
{
var data = tree.GetTreeData();
for (int i = 0; i < data.Count(); i++)
{
TreeData.Add(data[i].Id.ToString());
}
SelectedNodes = TreeData.ToArray();
}
public class MusicAlbum
{
public int Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles"
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}
Select individual node programmatically
In the Blazor TreeView component, you can select particular TreeView nodes using a button click. In this button click, you can select a particular node by passing the corresponding node IDs as strings in the SelectedNodes property.
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
<SfButton OnClick="SelectIndividualNode">Select Discover Music node</SfButton>
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true" @bind-SelectedNodes="SelectedNodes">
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
public string[] SelectedNodes = Array.Empty<string>();
public void SelectIndividualNode()
{
SelectedNodes = new string[] { "1" };
}
public class MusicAlbum
{
public int Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles"
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}
Retrieve indices of selected nodes
In the Blazor treeview component, you can show the index value of the selected TreeView nodes in the UI. You can obtain the index of selected items values with the help of the TreeView’s GetTreeData method in the NodeSelecting event.
@using Syncfusion.Blazor.Navigations
<div>Index value : @indexValue</div>
<div id="treeview">
<SfTreeView TValue="EmployeeData" @ref="tree" AllowEditing="true" AllowDragAndDrop="true" @bind-SelectedNodes="@selectedNodes">
<TreeViewFieldsSettings Id="Id" ParentID="PId" DataSource="@ListData" Text="Name" HasChildren="HasChild"></TreeViewFieldsSettings>
<TreeViewEvents TValue="EmployeeData" NodeSelecting="NodeSelecting" ></TreeViewEvents>
</SfTreeView>
</div>
@code
{
// Reference for treeview
SfTreeView<EmployeeData>? tree;
public string[] selectedNodes = Array.Empty<string>();
int indexValue;
public void NodeSelecting(NodeSelectEventArgs args)
{
//index value
var data = tree.GetTreeData();
for (int i = 0; i < data.Count(); i++)
{
if (data[i].Id == (args.NodeData.Id))
{
indexValue = i;
}
}
}
public class EmployeeData
{
public string Id { get; set; }
public string Name { get; set; }
public string PId { get; set; }
public bool HasChild { get; set; }
}
// local data source
List<EmployeeData> ListData = new List<EmployeeData>();
protected override void OnInitialized()
{
selectedNodes = new string[] { "1" };
base.OnInitialized();
ListData = new List<EmployeeData>();
ListData.Add(new EmployeeData
{
Id = "1",
Name = "Johnson",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "2",
PId = "1",
Name = "Sourav",
});
ListData.Add(new EmployeeData
{
Id = "3",
PId = "1",
Name = "Sanjay",
});
ListData.Add(new EmployeeData
{
Id = "4",
PId = "1",
Name = "Steve",
});
ListData.Add(new EmployeeData
{
Id = "6",
PId = "1",
Name = "Martin",
});
ListData.Add(new EmployeeData
{
Id = "7",
Name = "Laura",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "8",
PId = "7",
Name = "Mic",
});
ListData.Add(new EmployeeData
{
Id = "9",
PId = "7",
Name = "Nancy",
});
ListData.Add(new EmployeeData
{
Id = "10",
PId = "7",
Name = "Andrew",
});
ListData.Add(new EmployeeData
{
Id = "11",
Name = "Robert King",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "12",
PId = "11",
Name = "Richard",
});
ListData.Add(new EmployeeData
{
Id = "13",
PId = "11",
Name = "James",
});
ListData.Add(new EmployeeData
{
Id = "14",
PId = "11",
Name = "Murrey",
});
ListData.Add(new EmployeeData
{
Id = "15",
PId = "11",
Name = "Chris",
});
ListData.Add(new EmployeeData
{
Id = "16",
Name = "Margaret Peacock",
HasChild = true,
});
ListData.Add(new EmployeeData
{
Id = "17",
PId = "16",
Name = "Ryaz",
});
ListData.Add(new EmployeeData
{
Id = "18",
PId = "16",
Name = "Mary",
});
ListData.Add(new EmployeeData
{
Id = "19",
PId = "16",
Name = "Stephen",
});
ListData.Add(new EmployeeData
{
Id = "20",
PId = "16",
Name = "Raffel",
});
}
}
Disable full row selection
The Blazor TreeView component offers the FullRowSelect property to control the selection of the entire row of a node by clicking on it.
By default, the value of this property is true. When set to false, full-row selection is disabled and only the node’s text section is selected.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="MusicAlbum" AllowMultiSelection="true" FullRowSelect="false">
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
public class MusicAlbum
{
public int? Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}Get path of selected node
In the Blazor TreeView component, you can get the parent node details when selecting child nodes by passing the selected nodes IDs and parent nodes IDs in the TreeView GetNode method in the NodeSelected event.
@using Syncfusion.Blazor.Navigations
@for (int i = 0; i < ParentIdArray.Length; i++)
{
<p> @(i+1) Parent Id : @ParentIdArray[i] Parent Text : @ParentTextArray[i]</p>
}
<SfTreeView TValue="MusicAlbum" AllowMultiSelection="true" @ref="tree" @bind-SelectedNodes="SelectedNodes">
<TreeViewEvents TValue="MusicAlbum" NodeSelected="NodeSelected"></TreeViewEvents>
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
SfTreeView<MusicAlbum>? tree;
public string[] SelectedNodes = new string[] {};
public string[] ParentIdArray = new string[] {};
public string[] ParentTextArray = new string[] {};
public void NodeSelected(NodeSelectEventArgs args)
{
List<string> IdList = new List<string>();
List<string> TextList = new List<string>();
var TreeViewIds = tree.GetNode(args.NodeData.Id).ParentID;
var TreeViewTexts = tree.GetNode(args.NodeData.ParentID).Text;
while (TreeViewIds != null)
{
IdList.Add(TreeViewIds);
TextList.Add(TreeViewTexts);
TreeViewIds = tree.GetNode(TreeViewIds).ParentID;
TreeViewTexts = tree.GetNode(TreeViewIds).Text;
}
ParentIdArray = IdList.ToArray();
ParentTextArray = TextList.ToArray();
}
public class MusicAlbum
{
public int? Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 2,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}Cancel the node selection
The Blazor TreeView component offers the ability to cancel the selection action by setting the Cancel argument value as true within the NodeSelecting event. This will prevent the select action from occurring within the TreeView component.
@using Syncfusion.Blazor.Navigations
<SfTreeView TValue="MusicAlbum" ShowCheckBox="true" AllowMultiSelection="true" AutoCheck="true">
<TreeViewEvents TValue="MusicAlbum" NodeSelecting="NodeSelecting"></TreeViewEvents>
<TreeViewFieldsSettings TValue="MusicAlbum" Id="Id" DataSource="@Albums" Text="Name" ParentID="ParentId" HasChildren="HasChild" Expanded="Expanded" IsChecked="IsChecked"></TreeViewFieldsSettings>
</SfTreeView>
@code {
public class MusicAlbum
{
public int Id { get; set; }
public int? ParentId { get; set; }
public string? Name { get; set; }
public bool Expanded { get; set; }
public bool? IsChecked { get; set; }
public bool HasChild { get; set; }
}
public void NodeSelecting(NodeSelectEventArgs args)
{
args.Cancel = true;
}
List<MusicAlbum> Albums = new List<MusicAlbum>();
protected override void OnInitialized()
{
base.OnInitialized();
Albums.Add(new MusicAlbum
{
Id = 1,
Name = "Discover Music",
HasChild = true,
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 2,
ParentId = 1,
Name = "Hot Singles"
});
Albums.Add(new MusicAlbum
{
Id = 3,
ParentId = 1,
Name = "Rising Artists"
});
Albums.Add(new MusicAlbum
{
Id = 4,
ParentId = 1,
Name = "Live Music"
});
Albums.Add(new MusicAlbum
{
Id = 14,
HasChild = true,
Name = "MP3 Albums",
Expanded = true
});
Albums.Add(new MusicAlbum
{
Id = 15,
ParentId = 14,
Name = "Rock"
});
Albums.Add(new MusicAlbum
{
Id = 16,
Name = "Gospel",
ParentId = 14,
});
Albums.Add(new MusicAlbum
{
Id = 17,
ParentId = 14,
Name = "Latin Music"
});
Albums.Add(new MusicAlbum
{
Id = 18,
ParentId = 14,
Name = "Jazz"
});
}
}
