Pie and Doughnut in Blazor Accumulation Chart Component

28 Dec 202313 minutes to read

Pie Chart

The Pie Chart is used to represent numeric proportional data in divided slices. To render a Pie Chart, set the series Type as Pie.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users"
                                 Name="Browser">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartLegendSettings Visible="true"></AccumulationChartLegendSettings>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
    {
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

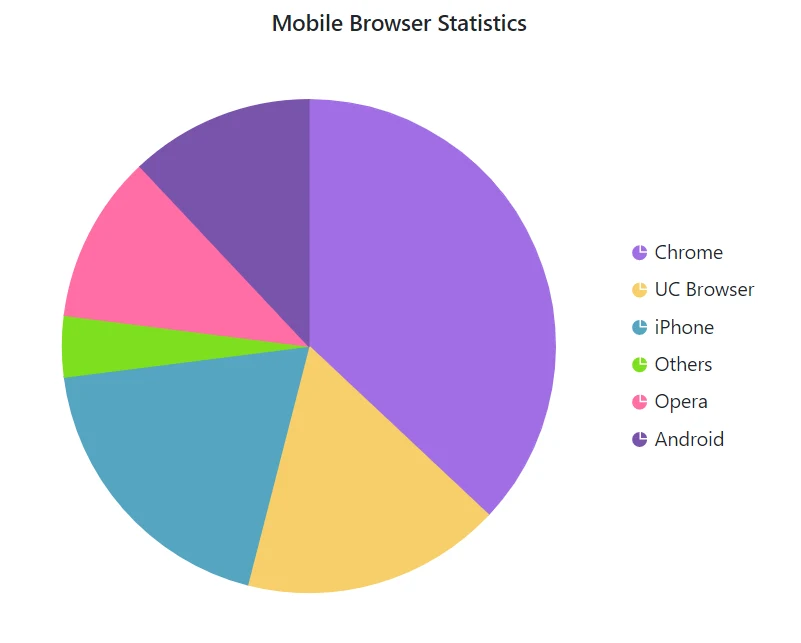

Blazor Pie Chart

Radius customization

The radius of the pie series will be set to 80% of its size (minimum of chart width and height) by default. The Radius property of the series can be used to customize the radius of the pie chart.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users"
                                 Name="Browser" Radius="100%">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
    {
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

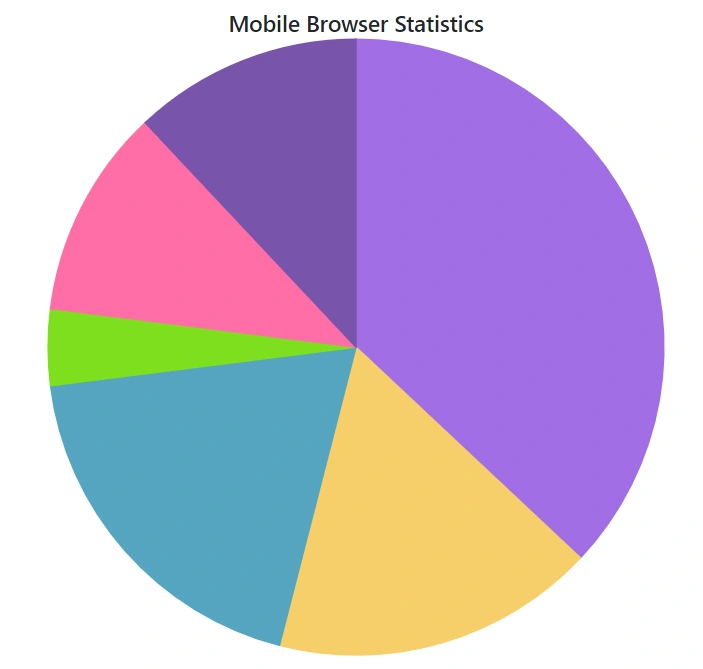

Customizing Radius in Blazor Pie Chart

Pie center

The center x and center y can be used to change the pie’s center position. The pie series’ center x and center y are set to 50% by default. The AccumulationChartCenter property of the series can be used to customize this.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart EnableAnimation="false" Title="Mobile Browser Statistics">
    <AccumulationChartCenter X="70%" Y="60%" />

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users" />
    </AccumulationChartSeriesCollection>

    <AccumulationChartLegendSettings Visible="false" />

</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
    {
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

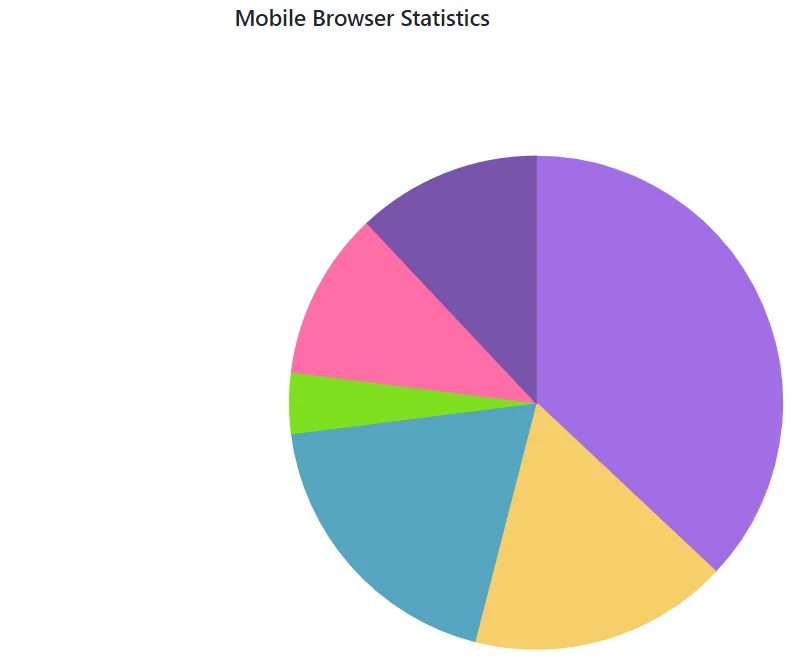

Changing Blazor Pie Chart Center Position

Various Radius Pie Chart

The Radius mapping can be used to render the slice with different radius.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Oil and other liquid imports in USA" EnableAnimation="true" EnableSmartLabels="true">
    <AccumulationChartLegendSettings Visible="true"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users"
                                 InnerRadius="20%" Radius="R">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
        public string R { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
    {
        new Statistics { Browser = "Argentina", Users = 505370, R = "100"},
        new Statistics { Browser = "Belgium",    Users = 551500, R = "118.7"},
        new Statistics { Browser = "Cuba",  Users = 312685 , R = "124.6"},
        new Statistics { Browser = "Dominican Republic", Users = 350000 , R = "137.5"},
        new Statistics { Browser = "Egypt", Users = 301000 , R = "150.8"},
        new Statistics { Browser = "Kazakhstan", Users = 300000, R = "155.5"},
        new Statistics { Browser = "Somalia",  Users = 357022, R = "160.6"}
    };
}

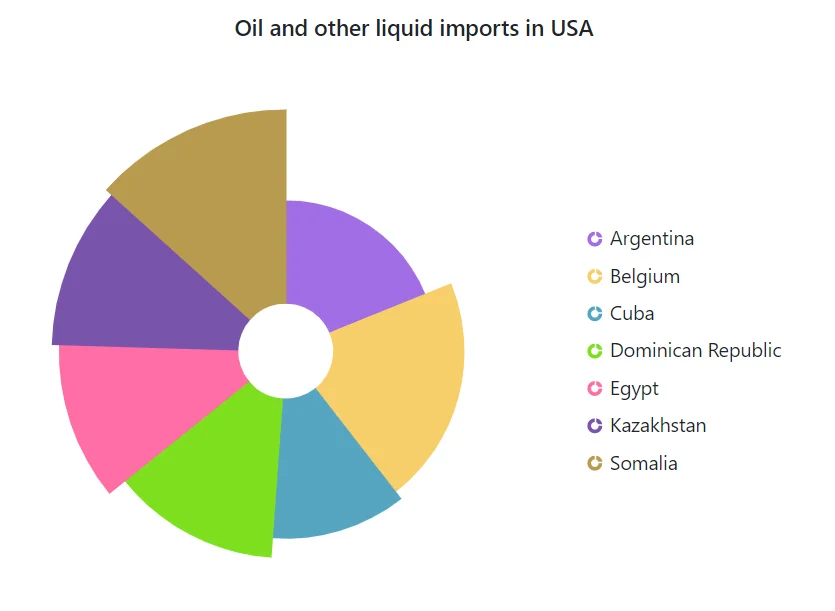

Blazor Pie Chart displays Various Radius

Doughnut chart

The doughnut chart can be created by setting the InnerRadius property of the Pie Chart to a value ranging from 0% to 100%.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users"
                                 Name="Browser" InnerRadius="40%">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

Blazor Doughnut Chart

Start and end angles

The StartAngle and EndAngle properties can be used to customize the start and end angles of the pie series. StartAngle is set to 0 degrees by default, and EndAngle is set to 360 degrees by default. Semi-pie series can be achieved by customizing these properties.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users"
                                 StartAngle="270" EndAngle="90">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartLegendSettings Visible="false">
    </AccumulationChartLegendSettings>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

Customizing Start and End angles in Blazor Pie Chart

Color and text mapping

PointColorMapping in series and Name in datalabel can be used to map the fill color and text from the data source to the chart.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartLegendSettings Visible="true"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users" Name="Browser" PointColorMapping="Fill">
            <AccumulationDataLabelSettings Visible="true" Name="Text"></AccumulationDataLabelSettings>
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
        public string Fill { get; set; }
        public string Text { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
{
         new Statistics { Browser = "Chrome", Users = 37, Text= "37%", Fill="#498fff" },
         new Statistics { Browser = "UC Browser", Users = 17, Text= "17%", Fill="#ffa060" },
         new Statistics { Browser = "iPhone", Users = 19, Text= "19%", Fill="#ff68b6" },
         new Statistics { Browser = "Others", Users = 4, Text= "4%", Fill="#81e2a1"  },
         new Statistics { Browser = "Opera", Users = 11, Text= "11%", Fill="#ffb980" },
         new Statistics { Browser = "Android", Users = 12, Text= "12%", Fill="#09e1e8" },
    };
}

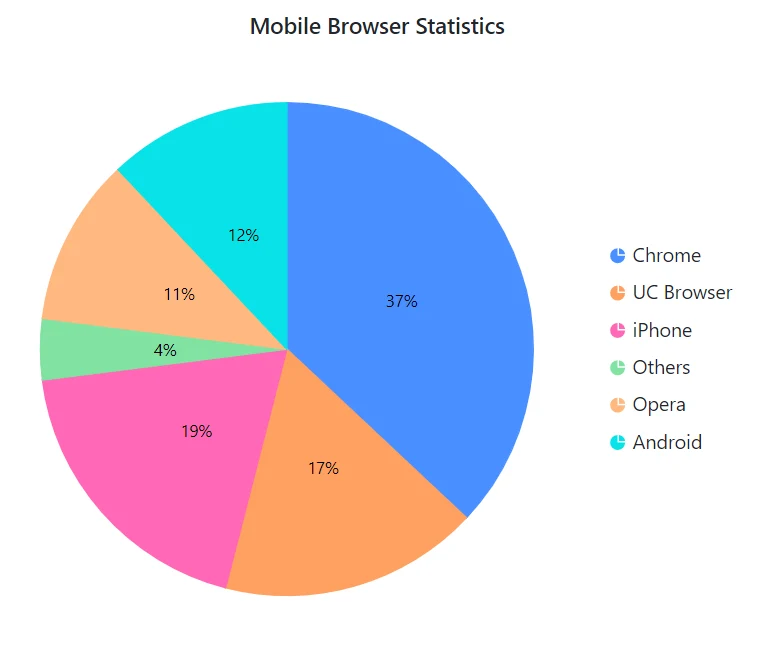

Blazor Pie Chart with Color and Text Mapping

Hide pie or doughnut border

When the mouse hovers over the pie/doughnut chart, the border appears by default. The border can be turned off by setting the EnableBorderOnMouseMove property to false.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics" EnableBorderOnMouseMove="false">
    <AccumulationChartLegendSettings Visible="true"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users" Name="Browser">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

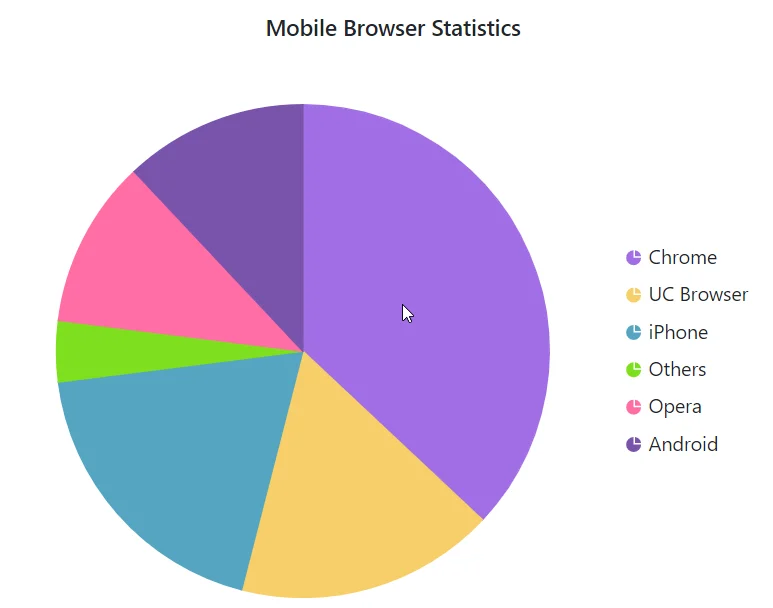

Hiding Blazor Pie Chart Border

NOTE

Refer to the Blazor Charts feature tour page for its groundbreaking feature representations and also explore the Blazor Accumulation Chart Example to know various features of accumulation charts and how it is used to represent numeric proportional data.
