Grouping in Blazor Accumulation Chart Component

20 Aug 20217 minutes to read

The value set to the GroupTo property can be used to club/group a few points in the series. Points with a value less than GroupTo are grouped together and displayed as a single point with the label Others. In addition, the property value can be set in percentage (percentage of total data points value).

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Sales Analysis" EnableSmartLabels="true">
    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@DataSource" XName="XValue" YName="YValue" Name="Sales" GroupTo="10">
            <AccumulationDataLabelSettings Visible="true" Name="Text" Position="AccumulationLabelPosition.Outside">
            </AccumulationDataLabelSettings>
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class ChartData
    {
        public string XValue { get; set; }
        public double YValue { get; set; }
        public string Text { get; set; }
    }

    public List<ChartData> DataSource = new List<ChartData>
    {
       new ChartData { XValue = "Jan", YValue = 3, Text= "Jan: 3M" },
       new ChartData { XValue = "Feb", YValue = 3.5, Text= "Feb: 3.5M" },
       new ChartData { XValue = "Mar", YValue = 7, Text= "'Mar: 7M" },
       new ChartData { XValue = "Apr", YValue = 13.5, Text= "Apr: 13.5M" },
       new ChartData { XValue = "May", YValue = 19, Text= "May: 19M" },
       new ChartData { XValue = "Jun", YValue = 23.5, Text= "Jun: 23.5M" },
       new ChartData { XValue = "Jul", YValue = 26, Text= "Jul: 26M" },
       new ChartData { XValue = "Aug", YValue = 25, Text= "Aug: 25M" },
       new ChartData { XValue = "Sep", YValue = 21, Text= "Sep: 21M" },
       new ChartData { XValue = "Oct", YValue = 15, Text= "Oct: 15M" },
       new ChartData { XValue = "Nov", YValue = 9, Text= "Nov: 9M" },
       new ChartData { XValue = "Dec", YValue = 3.5, Text= "Dec: 3.5M" }
   };
}

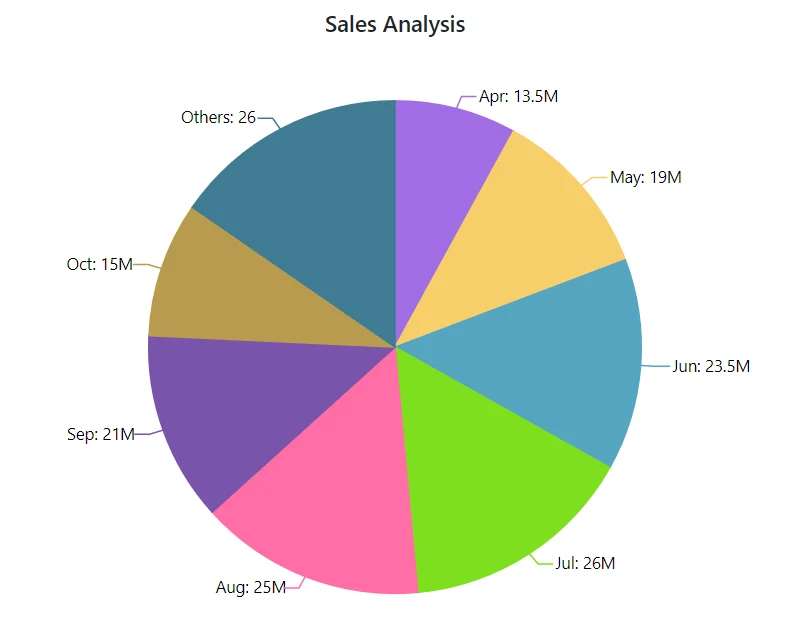

Grouping in Blazor Accumulation Chart

Pie Grouping

Broken Slice

The points that have been grouped together will appear as a single slice with the label Others, which will explode and break into separate slices when clicked.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Sales Analysis" EnableSmartLabels="true">
    <AccumulationChartTooltipSettings Enable="true"></AccumulationChartTooltipSettings>

    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@DataSource" XName="XValue" YName="YValue" Explode="true" Radius="70%" GroupTo="15">
            <AccumulationDataLabelSettings Visible="true" Name="Text" Position="AccumulationLabelPosition.Outside">
                <AccumulationChartConnector Type="ConnectorType.Line" Length="5%"></AccumulationChartConnector>
                <AccumulationChartDataLabelFont Size="14px"></AccumulationChartDataLabelFont>
            </AccumulationDataLabelSettings>
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class ChartData
    {
        public string XValue { get; set; }
        public double YValue { get; set; }
        public string Text { get; set; }
    }

    public List<ChartData> DataSource = new List<ChartData>
    {
       new ChartData { XValue = "Jan", YValue = 3, Text= "Jan: 3M" },
       new ChartData { XValue = "Feb", YValue = 3.5, Text= "Feb: 3.5M" },
       new ChartData { XValue = "Mar", YValue = 7, Text= "'Mar: 7M" },
       new ChartData { XValue = "Apr", YValue = 3.5, Text= "Apr: 13.5M" },
       new ChartData { XValue = "May", YValue = 19, Text= "May: 19M" },
       new ChartData { XValue = "Jun", YValue = 23.5, Text= "Jun: 23.5M" },
       new ChartData { XValue = "Jul", YValue = 26, Text= "Jul: 26M" },
       new ChartData { XValue = "Aug", YValue = 25, Text= "Aug: 25M" },
       new ChartData { XValue = "Sep", YValue = 21, Text= "Sep: 21M" },
       new ChartData { XValue = "Oct", YValue = 15, Text= "Oct: 15M" },
       new ChartData { XValue = "Nov", YValue = 9, Text= "Nov: 9M" },
       new ChartData { XValue = "Dec", YValue = 13.5, Text= "Dec: 3.5M" }
   };
}

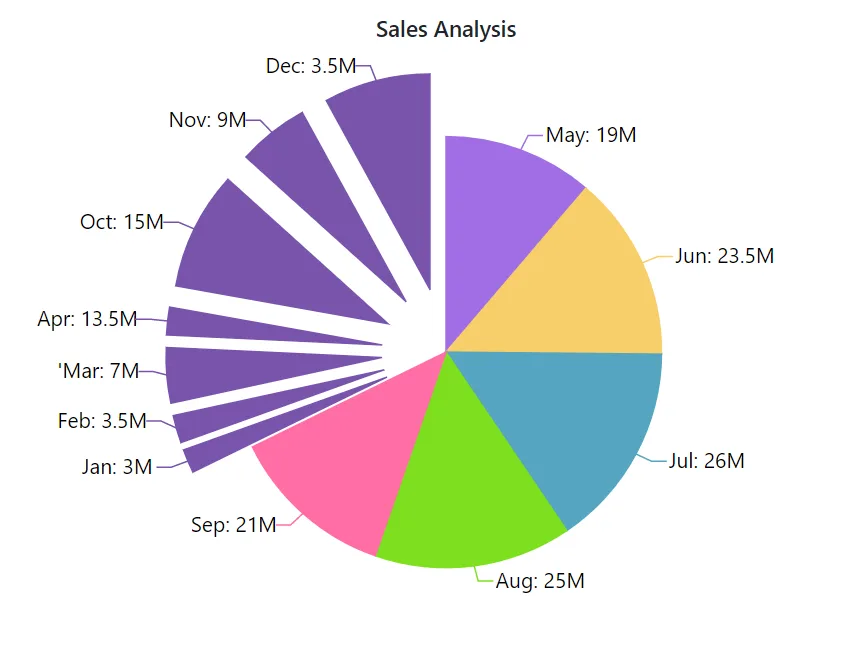

Blazor Accumulation Chart with Broken Slice

Group Mode

When the GroupMode property is set to Point, the points are displayed as separate slices according to the GroupTo value. The remaining points will be grouped into a single slice and displayed.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Sales Analysis" EnableSmartLabels="true">
    <AccumulationChartTooltipSettings Enable="true"></AccumulationChartTooltipSettings>

    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@DataSource" XName="XValue" YName="YValue" GroupTo="9" GroupMode=GroupMode.Point>
            <AccumulationDataLabelSettings Visible="true" Name="Text" Position="AccumulationLabelPosition.Outside">
                <AccumulationChartConnector Type="ConnectorType.Line" Length="5%"></AccumulationChartConnector>
                <AccumulationChartDataLabelFont Size="14px"></AccumulationChartDataLabelFont>
            </AccumulationDataLabelSettings>
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class ChartData
    {
        public string XValue { get; set; }
        public double YValue { get; set; }
        public string Text { get; set; }
    }

    public List<ChartData> DataSource = new List<ChartData>
    {
       new ChartData { XValue = "Jan", YValue = 3, Text= "Jan: 3M" },
       new ChartData { XValue = "Feb", YValue = 3.5, Text= "Feb: 3.5M" },
       new ChartData { XValue = "Mar", YValue = 7, Text= "'Mar: 7M" },
       new ChartData { XValue = "Apr", YValue = 13.5, Text= "Apr: 13.5M" },
       new ChartData { XValue = "May", YValue = 19, Text= "May: 19M" },
       new ChartData { XValue = "Jun", YValue = 23.5, Text= "Jun: 23.5M" },
       new ChartData { XValue = "Jul", YValue = 26, Text= "Jul: 26M" },
       new ChartData { XValue = "Aug", YValue = 25, Text= "Aug: 25M" },
       new ChartData { XValue = "Sep", YValue = 21, Text= "Sep: 21M" },
       new ChartData { XValue = "Oct", YValue = 15, Text= "Oct: 15M" },
       new ChartData { XValue = "Nov", YValue = 9, Text= "Nov: 9M" },
       new ChartData { XValue = "Dec", YValue = 3.5, Text= "Dec: 3.5M" }
   };
}

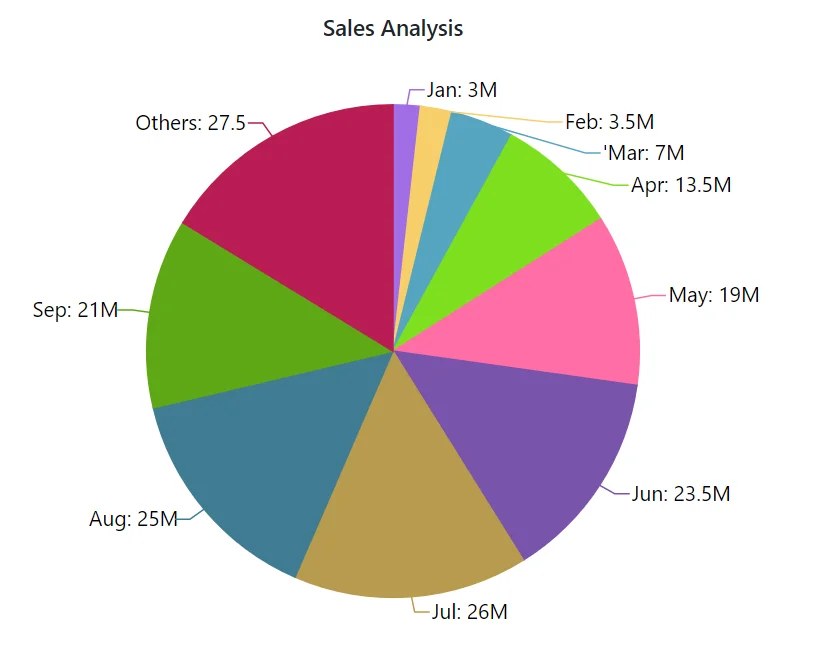

Blazor Accumulation Chart with Group Mode

Refer to the Blazor Charts feature tour page for its groundbreaking feature representations and also explore the Blazor Accumulation Chart Example to know various features of accumulation charts and how it is used to represent numeric proportional data.
