Title and Subtitle in Blazor Accumulation Chart Component

28 Dec 20236 minutes to read

The Title property can be used to give the accumulation chart a title in-order to provide information about the data displayed.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users"
                                 Name="Browser">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

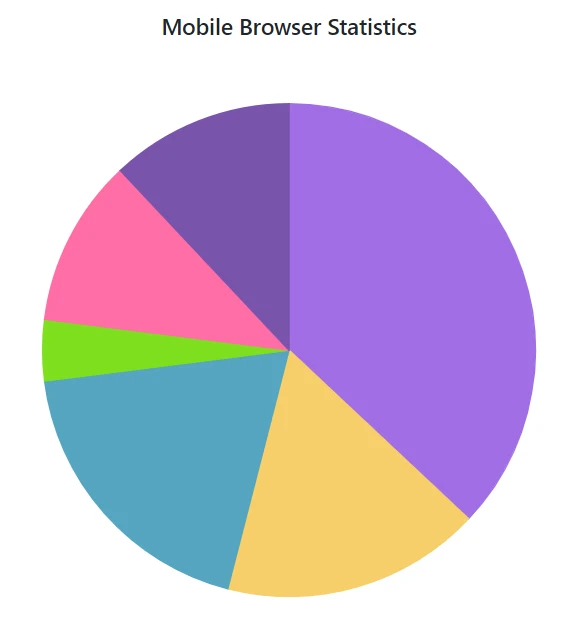

Title in Blazor Accumulation Chart

Title customization

The Title can be customized to be defined in the AccumulationChartTitleStyle.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
	<AccumulationChartTitleStyle FontFamily="Arial" FontWeight="regular" Color="#E27F2D" Size="23px"></AccumulationChartTitleStyle>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users"
                                 Name="Browser">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

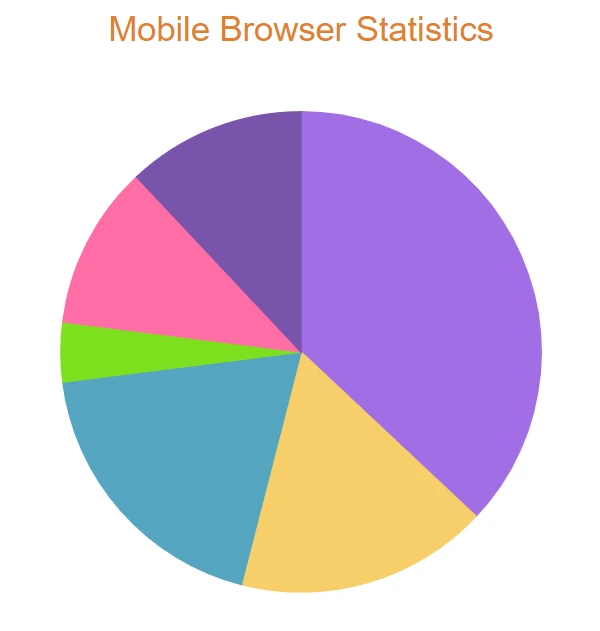

Customizing Title in Blazor Accumulation Chart

Subtitle

The SubTitle property can be used to give the accumulation chart a subtitle in-order to provide an additional information about the data displayed.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics" SubTitle="In the year 2014 - 2015">
    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

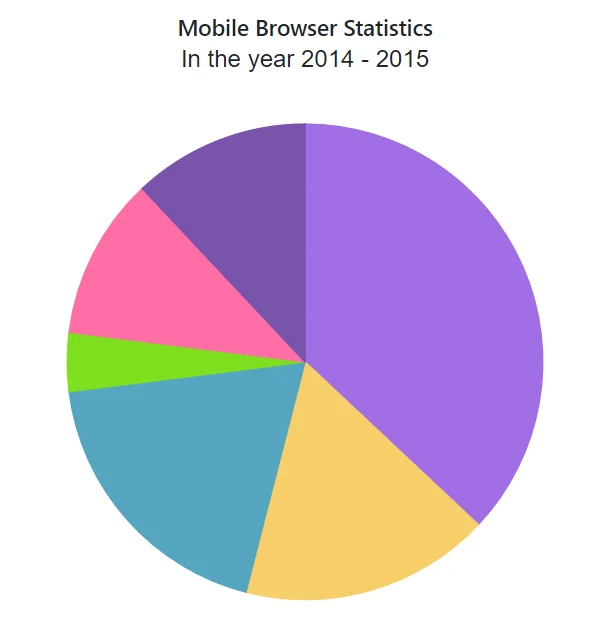

Subtitle in Blazor Accumulation Chart

Subtitle customization

The SubTitle can be customized to be defined in the AccumulationChartSubTitleStyle.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics" SubTitle="In the year 2014 - 2015">
    <AccumulationChartSubTitleStyle FontFamily="Arial" FontWeight="regular" Color="#E27F2D" Size="13px"></AccumulationChartSubTitleStyle>

    <AccumulationChartLegendSettings Visible="false"></AccumulationChartLegendSettings>

    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users">
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

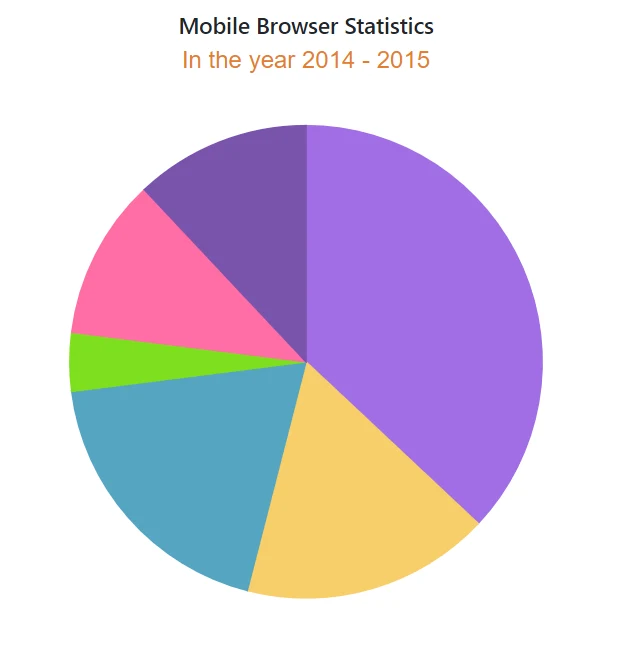

Customizing Subtitle in Blazor Accumulation Chart

NOTE

Refer to the Blazor Charts feature tour page for its groundbreaking feature representations and also explore the Blazor Accumulation Chart Example to know various features of accumulation charts and how it is used to represent numeric proportional data.
