Animation in Blazor Circular Gauge Component

21 Dec 20235 minutes to read

All of the elements in the Circular Gauge, such as the axis lines, ticks, labels, ranges, pointers, and annotations, can be animated sequentially by using the AnimationDuration property. The animation for the Circular Gauge is enabled when the AnimationDuration property is set to an appropriate value in milliseconds, providing a smooth rendering effect for the component. If the AnimationDuration property is set to 0, which is the default value, the animation effect is disabled. If the animation is enabled, the component will behave in the following order.

  1. The axis line will be animated in the rendering direction (clockwise or anticlockwise).
  2. Each tick line and label will then be animated.
  3. If available, ranges will be animated.
  4. If available, pointers will be animated in the same way as pointer animation.
  5. If available, annotations will be animated.

The animation of the Circular Gauge is demonstrated in the following example.

@using Syncfusion.Blazor.CircularGauge;

<SfCircularGauge AnimationDuration="2000">
        <CircularGaugeAxes>
            <CircularGaugeAxis Radius="80%" StartAngle="230" EndAngle="130">
                <CircularGaugeAxisLabelStyle Offset="-1">
                    <CircularGaugeAxisLabelFont FontFamily="inherit"></CircularGaugeAxisLabelFont>
                </CircularGaugeAxisLabelStyle>
                <CircularGaugeAxisLineStyle Width="8" Color="#E0E0E0" />
                <CircularGaugeAxisMajorTicks Offset="5" />
                <CircularGaugeAxisMinorTicks Offset="5" />
                <CircularGaugePointers>
                    <CircularGaugePointer Value=60 Radius="60%" PointerWidth="7" Color="#c06c84">
                        <CircularGaugePointerAnimation Duration="500" />
                        <CircularGaugeCap Radius="8" Color="#c06c84">
                            <CircularGaugeCapBorder Width="0" />
                        </CircularGaugeCap>
                        <CircularGaugeNeedleTail Length="0%" />
                    </CircularGaugePointer>
                </CircularGaugePointers>
            <CircularGaugeRanges>
                <CircularGaugeRange Color="#E63B86" Start="0" End="30" StartWidth="22" EndWidth="22" Radius="60%">
                    <LinearGradient StartValue="0%" EndValue="100%">
                        <ColorStops>
                            <ColorStop Opacity="1" Offset="0%" Color="#9e40dc" />
                            <ColorStop Opacity="1" Offset="70%" Color="#d93c95" />
                        </ColorStops>
                    </LinearGradient>
                </CircularGaugeRange>
                <CircularGaugeRange Color="#E0E0E0" Start="30" End="60" StartWidth="22" EndWidth="22" Radius="60%" />
            </CircularGaugeRanges>
            <CircularGaugeAnnotations>
                <CircularGaugeAnnotation Angle="165" Radius="35%" ZIndex="1">
                    <ContentTemplate>
                        <div style="font-size:18px;margin-left: -20px;margin-top: -12px; color:#9DD55A">60</div>
                    </ContentTemplate>
                </CircularGaugeAnnotation>
            </CircularGaugeAnnotations>
            </CircularGaugeAxis>
        </CircularGaugeAxes>
    </SfCircularGauge>

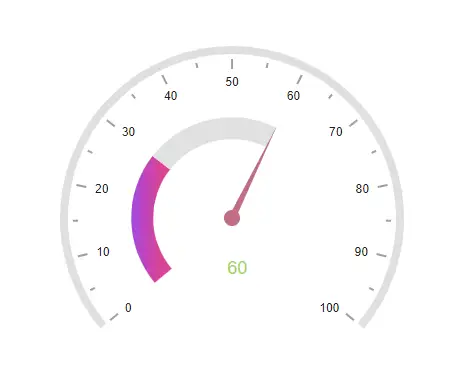

Blazor Circular Gauge Animation

NOTE

Only the pointer of the Circular Gauge can be animated individually, not the axis lines, ticks, labels, ranges, and annotations. You can refer this link to enable only pointer animation.
