How to Create a Blazor WebAssembly Application with Prerendering

3 Aug 202110 minutes to read

This section explains how to enable prerendering to a Blazor WebAssembly application.

Prerequisites

.NET 5.0 SDK or later.

Create a New Project for Blazor WebAssembly ASP.NET Core Hosted Application

  1. Create a new Blazor WebAssembly ASP.NET Core Hosted application.

  2. Delete ~/wwwroot/index.html file in the Client project.

  3. Remove the below line from Client project’s ~/Program.cs file.

     // builder.RootComponents.Add<App>("#app");

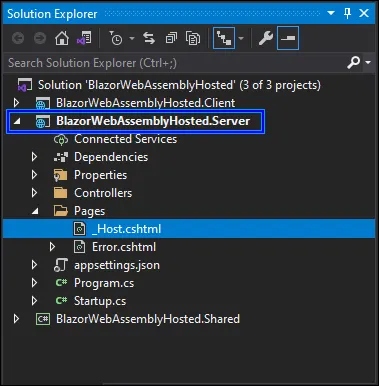

  4. Add ~/Pages/_Host.cshtml file in the Server project.

    Add Host.cshtml file in Server app

  5. Copy and paste the below code content in the ~/Server/Pages/_Host.cshtml file.

     @page "/"
     @namespace BlazorWebAssemblyHosted.Client.Pages
     @addTagHelper *, Microsoft.AspNetCore.Mvc.TagHelpers
     @{
         Layout = null;
     }

     <!DOCTYPE html>
     <html>

     <head>
         <meta charset="utf-8" />
         <meta name="viewport" content="width=device-width, initial-scale=1.0" />
         <title>BlazorWebAssemblyHosted</title>
         <base href="~/" />
         <link rel="stylesheet" href="css/bootstrap/bootstrap.min.css" />
         <link href="css/bootstrap/bootstrap.min.css" rel="stylesheet" />
         <link href="css/app.css" rel="stylesheet" />
         <link href="BlazorWebAssemblyHosted.Client.styles.css" rel="stylesheet" />
         <link href="_content/Syncfusion.Blazor.Themes/bootstrap4.css" rel="stylesheet" />
     </head>

     <body>

         <component type="typeof(App)" render-mode="WebAssemblyPrerendered" />

         <script src="_framework/blazor.webassembly.js"></script>
     </body>

     </html>
  6. Open Startup.cs file in the Server project and change endpoint of MapFallbackToFile configuration from index.html to /_Host on Configure method.

     public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
     {
         ....
         ....
         app.UseEndpoints(endpoints =>
             {
                 ....
                 ....
                 endpoints.MapFallbackToFile("/_Host"); // Previously it was mapped into "index.html".
             });
     }
  7. Add Syncfusion Blazor service in the ~/Server/Startup.cs file.

     using Syncfusion.Blazor;

     public void ConfigureServices(IServiceCollection services)
     {

         ....
         ....
         services.AddSyncfusionBlazor();
     }
  8. If you don’t inject and use HttpClient DI on your index page, you can run the application and the component will render in the web browser with prerendering mode.

    The created Blazor WebAssembly ASP.NET Core Hosted application has injected the HttpClient DI and fetch the data from server for SfGrid component data source. So, refer to the next topic to resolve the HttpClient error on prerendering mode.

Resolving HttpClient Errors on WebAssembly Prerendering

When the index page has injected with the HttpClient and tried to prerender on the server, the client will not establish its connection on that time. So, it will throws the runtime exceptions.

ERROR

InvalidOperationException: An invalid request URI was provided. The request URI must either be an absolute URI or BaseAddress must be set.

The Syncfusion Blazor service has registered the HttpClient service itself by default. When you run the WebAssemblyPrerendered mode application, the it tried to get the WebAPI with its absolute URI or BaseAddress.

If you configure with absolute URI in the ~/Client/Pages/Index.razor file, you will face another runtime error.

protected override async Task OnInitializedAsync()
{
    forecasts = await Http.GetFromJsonAsync<WeatherForecast[]>("http://localhost:44376/WeatherForecast");
}

ERROR

SocketException: An existing connection was forcibly closed by the remote host.

IOException: Unable to read data from the transport connection: An existing connection was forcibly closed by the remote host

HttpRequestException: An error occurred while sending the request.

We are trying to use HTTP from Server to get the fetch data. But, it is also not possible in the prerender mode because of the client is not yet established.

Refer to the below steps to resolve these issues and make the app running with HttpClient in the prerendering mode.

  1. Create a public interface in the ~/Shared/WeatherForecast.cs file on the Shared project to abstract the API call.

     using System.Threading.Tasks;

     public interface IWeatherForecastService
     {
         Task<WeatherForecast[]> GetForecastAsync();
     }
  2. Create a class file ~/Client/Shared/WeatherForecastService.cs and inherit the class with the new interface IWeatherForecastService. Here, the override method GetForecastAsync will fetch the data using HTTP Get action.

     using System.Net.Http;
     using System.Net.Http.Json;
     using System.Threading.Tasks;
     using BlazorWebAssemblyHosted.Shared;

     namespace BlazorWebAssemblyHosted.Client.Shared
     {
         public class WeatherForecastService : IWeatherForecastService
         {
             private readonly HttpClient httpClient;

             public WeatherForecastService(HttpClient http)
             {
                 httpClient = http;
             }

             public async Task<WeatherForecast[]> GetForecastAsync()
             {
                 return await httpClient.GetFromJsonAsync<WeatherForecast[]> ("WeatherForecast");
             }
         }
     }
  3. create a new class file with same class name on the Server project and inherit with the interface IWeatherForecastService. Here, the existing API ~/Server/Controller/WeatherForecastController.cs data creation process moved into the override method GetForecastAsync.

     using System;
     using System.Linq;
     using System.Threading.Tasks;
     using BlazorWebAssemblyHosted.Shared;

     namespace BlazorWebAssemblyHosted.Server.Shared
     {
         public class WeatherForecastService : IWeatherForecastService
         {
             private static readonly string[] Summaries = new[]
             {
                 "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy",   "Hot", "Sweltering", "Scorching"
             };

             public async Task<WeatherForecast[]> GetForecastAsync()
             {
                 var rng = new Random();
                 return Enumerable.Range(1, 5).Select(index => new WeatherForecast
                 {
                     Date = DateTime.Now.AddDays(index),
                     TemperatureC = rng.Next(-20, 55),
                     Summary = Summaries[rng.Next(Summaries.Length)]
                 }).ToArray();
             }
         }
     }
  4. Now, the API controller will have the below changes on ~/Server/Controller/WeatherForecastController.cs file.

     using System.Threading.Tasks;
     using Microsoft.AspNetCore.Mvc;
     using System.Collections.Generic;
     using BlazorWebAssemblyHosted.Shared;

     namespace BlazorWebAssemblyHosted.Server.Controllers
     {
         [ApiController]
         [Route("[controller]")]
         public class WeatherForecastController : ControllerBase
         {
             private readonly IWeatherForecastService weatherForecastService;

             public WeatherForecastController(IWeatherForecastService    weatherService)
             {
                 weatherForecastService = weatherService;
             }

             [HttpGet]
             public async Task<IEnumerable<WeatherForecast>> Get()
             {
                 return await weatherForecastService.GetForecastAsync();
             }
         }
     }
  5. Register the services in both Client and Server project

    Client/Program.cs

     using BlazorWebAssemblyHosted.Shared;
     using BlazorWebAssemblyHosted.Client.Shared;

     public static async Task Main(string[] args)
     {
         ....
         ....
         builder.Services.AddSyncfusionBlazor();
         builder.Services.AddScoped<IWeatherForecastService, WeatherForecastService>();
         await builder.Build().RunAsync();
     }

    Server/Startup.cs

     using BlazorWebAssemblyHosted.Shared;
     using BlazorWebAssemblyHosted.Server.Shared;

     public void ConfigureServices(IServiceCollection services)
     {
         ....
         ....
         services.AddSyncfusionBlazor();
         services.AddScoped<IWeatherForecastService, WeatherForecastService>();
     }
  6. Now, change the DI injection from HttpClient to IWeatherForecastService on the ~/Client/Pages/Index.razor file.

     @using BlazorWebAssemblyHosted.Shared
     @inject IWeatherForecastService  WeatherForecastService

     ....
     ....

     @code {
         private WeatherForecast[] forecasts;

         protected override async Task OnInitializedAsync()
         {
             forecasts = await WeatherForecastService.GetForecastAsync();
         }
     }
  7. Run the application by pressing F5 key. The Server prerendering will get the data from its local service and when it will render on the Client, the HTTP Get request sent to get the data.
