Integrating Blazor DataGrid with PDF Viewer

18 Sep 202613 minutes to read

This article explains how to integrate the Blazor PDF Viewer with the Blazor DataGrid in a Blazor Web App using Server render mode.

If you haven’t created a Blazor Web App yet, follow the Blazor getting started guide to create your project.

Install Blazor NuGet packages

From the server project folder (where the .csproj file is located), install the following packages:

dotnet add package Syncfusion.Blazor.SfPdfViewer -v 35.1.37
dotnet add package Syncfusion.Blazor.Grid -v 35.1.37
dotnet add package Syncfusion.Blazor.Themes -v 35.1.37
dotnet restore

Blazor components are available in nuget.org. Refer to the NuGet packages topic for the available NuGet package list with component details. Verify the latest versions before installation.

Add required namespaces

Add Blazor and required .NET namespaces in the ~/Components/_Imports.razor file.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Grids
@using System.IO
@using Microsoft.AspNetCore.Hosting

Register Blazor service

Add the Blazor service to the ~/Program.cs file to enable Blazor components in the application.

...
using Syncfusion.Blazor;
var builder = WebApplication.CreateBuilder(args);

builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents();
// Configure SignalR to support large PDF file transfers
builder.Services.AddSignalR(o => { o.MaximumReceiveMessageSize = 102400000; });
// Add memory cache for PDF Viewer component caching
builder.Services.AddMemoryCache();
// Add Blazor service to the container.
builder.Services.AddSyncfusionBlazor();
...

Add stylesheet and script resources

Before adding the stylesheet, ensure no other Blazor theme CSS (for example, bootstrap5.css or tailwind.css) is referenced to avoid conflicts.

Add the following Blazor stylesheet and script references to ~/App.razor.

<head>
    ...
    <!-- Blazor theme stylesheet -->
    <link href="_content/Syncfusion.Blazor.Themes/fluent2.css" rel="stylesheet" />
</head>

<body>
    ...
    <!-- Blazor core script (required for most components, including DataGrid) -->
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!-- Blazor PDF Viewer component script -->
    <script src="_content/Syncfusion.Blazor.SfPdfViewer/scripts/syncfusion-blazor-sfpdfviewer.min.js" type="text/javascript"></script>
</body>

Ensure the Syncfusion.Blazor.Core script is loaded before the SfPdfViewer script, as shown above. The PDF Viewer component requires the core Blazor script to initialize and function correctly.

Configure render mode (Server)

For Server render mode, if your app’s interactivity location is set to Per page/component, add the following directive at the top of each ~/Pages/*.razor file that requires interactive Server components.

Per‑page directive (Server)

@* Define the desired render mode here *@
@rendermode InteractiveServer

If the interactivity location is set to Global and the app is configured for Server render mode, no per‑page directive is required.

Integrate DataGrid and PDF Viewer

Add the Blazor PDF Viewer and Blazor DataGrid components to any .razor file in the server project’s Pages folder (for example, ~/Pages/Home.razor).

The example below displays a DataGrid with sample order data, and selecting a row generates and loads a detailed PDF for that order in the PDF Viewer.

Ensure that PDF files are placed in the wwwroot/PDFs folder of your Blazor project. The PDF filename must match the PdfFileName property value from the selected order record. For example, if the PdfFileName is Order_1001.pdf, the file should exist at wwwroot/PDFs/Order_1001.pdf.

@page "/"
@rendermode InteractiveServer
@inject IWebHostEnvironment WebHostEnvironment

<PageTitle>Dynamic PDF Viewer</PageTitle>

<div class="container-fluid">
    <h2 class="mb-4">Order Management System</h2>
    <div class="row">
        <div class="col-12 mb-4">
            <h4>Orders - DataGrid</h4>
            <p class="text-muted">Click on any row to view detailed order information in the PDF viewer below.</p>
            <SfGrid DataSource="@Orders" TValue="Order" AllowSelection="true">
                <GridSelectionSettings Type="SelectionType.Single"></GridSelectionSettings>
                <GridEvents TValue="Order" RowSelected="OnRowSelected"></GridEvents>
                <GridColumns>
                    <GridColumn Field="OrderID" HeaderText="Order ID" Width="120"></GridColumn>
                    <GridColumn Field="CustomerName" HeaderText="Customer" Width="150"></GridColumn>
                    <GridColumn Field="EmployeeName" HeaderText="Sales Rep" Width="150"></GridColumn>
                    <GridColumn Field="OrderDate" HeaderText="Order Date" Format="d" Width="130"></GridColumn>
                    <GridColumn Field="ShipCity" HeaderText="Ship City" Width="120"></GridColumn>
                    <GridColumn Field="ShippingCost" HeaderText="Shipping Cost" Format="C2" Width="120"></GridColumn>
                </GridColumns>
            </SfGrid>
        </div>
    </div>

    <div class="row">
        <div class="col-12">
            <h4>Order Details - PDF Viewer</h4>
            @if (!string.IsNullOrEmpty(ErrorMessage))
            {
                <div class="alert alert-danger">@ErrorMessage</div>
            }
            <SfPdfViewer2 @ref="PdfViewer" Height="600px" Width="100%"></SfPdfViewer2>
        </div>
    </div>
</div>

@code {
    private SfPdfViewer2? PdfViewer;
    public List<Order> Orders { get; set; } = new();
    private string ErrorMessage = string.Empty;
    protected override void OnInitialized()
    {
        string[] customers = {
            "Alfreds Futterkiste",
            "Ana Trujillo Emparedados",
            "Antonio Moreno Taquería",
            "Blondel père et fils",
            "Bólido Comidas preparadas"
        };
        string[] cities = { "Berlin", "Madrid", "Paris", "London", "Rome" };
        string[] employees = { "John Smith", "Jane Doe", "Bob Wilson", "Alice Brown", "Mike Johnson" };

        // Create 5 sample orders with sequential data
        Orders = Enumerable.Range(1, 5).Select(x => new Order()
        {
            OrderID = 1000 + x,
            CustomerName = customers[x - 1],
            EmployeeName = employees[x - 1],
            OrderDate = DateTime.Now.AddDays(-x * 2),
            ShipCity = cities[x - 1],
            ShippingCost = Math.Round(15.5 + (x * 8.25), 2),
            PdfFileName = $"Order_{1000 + x}.pdf"
        }).ToList();
    }

    private async Task OnRowSelected(RowSelectEventArgs<Order> args)
    {
        ErrorMessage = string.Empty;
        try
        {
            // Build the full path to the selected order's PDF in wwwroot/PDFs using its PdfFileName
            string pdfFilePath = Path.Combine(WebHostEnvironment.WebRootPath, "PDFs", args.Data.PdfFileName);
            if (File.Exists(pdfFilePath))
            {
                var pdfBytes = await File.ReadAllBytesAsync(pdfFilePath);
                using var pdfStream = new MemoryStream(pdfBytes);
                if (PdfViewer != null)
                {
                    await PdfViewer.LoadAsync(pdfStream);
                }
            }
            else
            {
                ErrorMessage = $"PDF file not found: {args.Data.PdfFileName}";
                Console.WriteLine($"PDF file not found: {pdfFilePath}");
            }
        }
        catch (Exception ex)
        {
            ErrorMessage = $"Error loading PDF: {ex.Message}";
            Console.WriteLine($"Error loading PDF: {ex.Message}");
        }
    }

    public class Order
    {
        public int OrderID { get; set; }
        public string CustomerName { get; set; } = "";
        public string EmployeeName { get; set; } = "";
        public DateTime OrderDate { get; set; }
        public string ShipCity { get; set; } = "";
        public double ShippingCost { get; set; }
        // PDF filename for this order (place the matching file in wwwroot/PDFs)
        public string PdfFileName { get; set; } = "";
    }
}

This example uses direct file system access for simplicity. In production applications, consider implementing a dedicated file service with proper security, caching, and error handling. Ensure PDF files are stored in a secure location with appropriate access controls.

Run the application

dotnet run

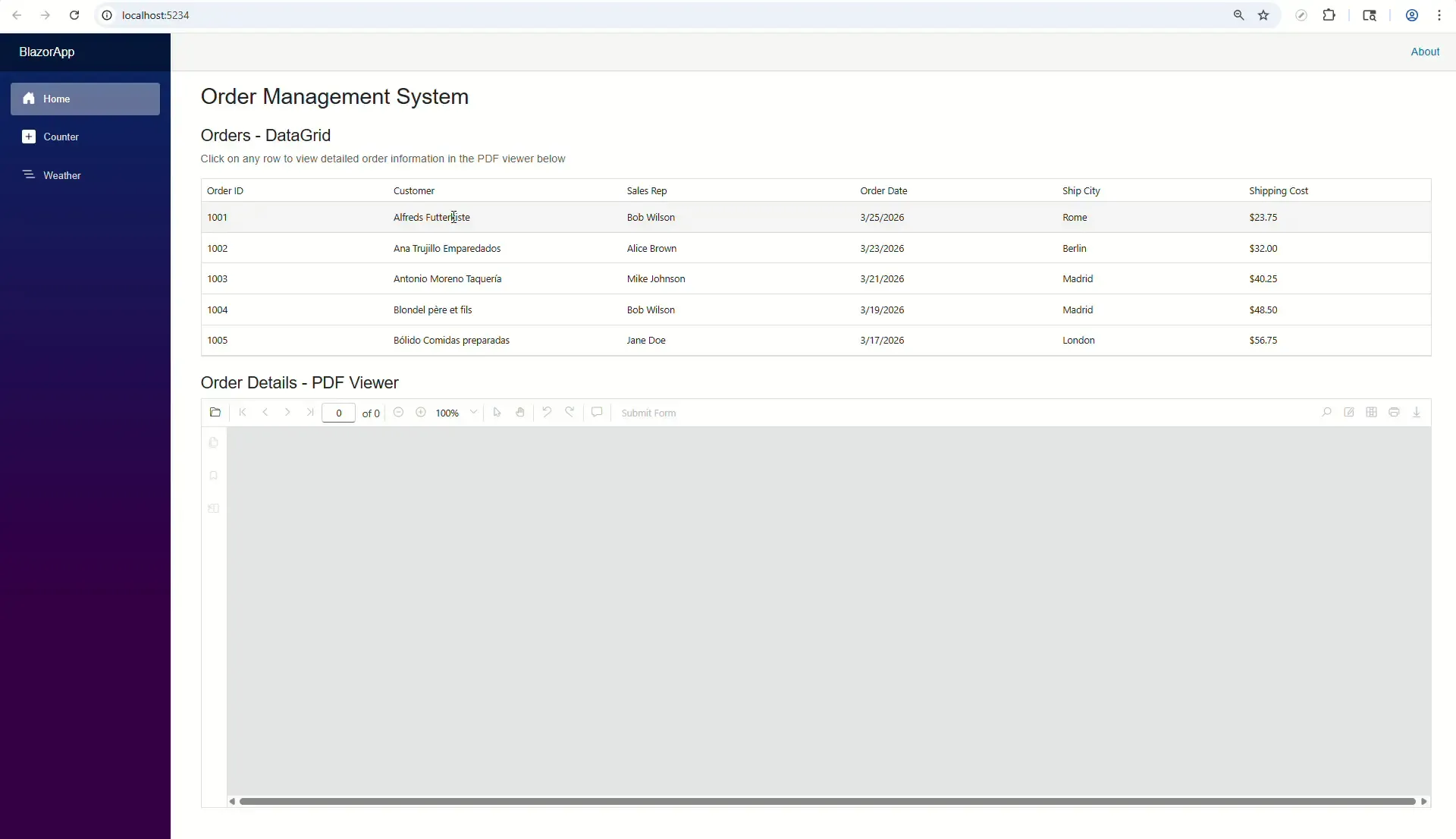

The app launches and renders the Blazor DataGrid and Blazor PDF Viewer in your default browser.

Blazor DataGrid with PDF Viewer

View sample in GitHub

Expected behavior:

  1. The DataGrid displays 5 sample orders on page load
  2. Clicking any row in the grid triggers the RowSelected event
  3. The PDF Viewer loads the corresponding PDF file (if it exists in wwwroot/PDFs)
  4. If the PDF file is not found, an error message displays above the viewer

To fully test this example, create sample PDF files named Order_1001.pdf through Order_1005.pdf and place them in the wwwroot/PDFs folder of your project. You can use any valid PDF files for testing purposes.

Use cases

Integrating the Blazor DataGrid with Blazor PDF Viewer provides powerful solutions for various business scenarios:

Invoice management system

Display a list of invoices in the DataGrid with columns for invoice number, customer name, date, and amount. When a user selects an invoice row, the PDF Viewer loads and displays the corresponding invoice PDF document. This allows users to quickly browse through invoices in the grid and view detailed invoice documents without leaving the page.

Document repository and archive

Create a document management system where the DataGrid shows metadata such as document title, author, category, upload date, and file size. Users can click on a document row to preview the PDF in the viewer, enabling efficient document browsing and quick access to content without downloading files.

Report viewing dashboard

Build a reporting dashboard where the DataGrid lists available reports (sales reports, financial statements, analytics) with filters for date range, department, or report type. Selecting a report row dynamically loads the PDF report in the viewer, providing a seamless experience for business users to access and review multiple reports.

Contract and agreement management

Implement a contract management system displaying contract records in the DataGrid with contract number, party names, start date, end date, and status. Users can select contracts to view the full PDF document in the viewer, making it easy to manage and review legal documents, track renewals, and maintain compliance.

Educational material distribution

Develop an e-learning platform where the DataGrid shows course materials, assignments, or lecture notes with columns for title, subject, instructor, and upload date. Students can click on any material to view the PDF content directly in the viewer, streamlining access to educational resources.
