NodeGroup in Blazor Diagram Component

29 Oct 202117 minutes to read

NodeGroup is used to cluster multiple nodes and connectors into a single element. It acts like a container for its children (nodes, nodegroups, and connectors). Every change made to the node group also affects the children. Child elements can be edited individually.

Create NodeGroup

Add NodeGroup when initializing diagram

A node group can be added to the diagram model through Nodes collection. To define an object as node group, add the child objects to the Children collection of the node group. The following code illustrates how to create a node group.

  • While creating node group, its child node needs to be declared before the node group declaration.

  • Add a node to the existing node group child by using the Group method.

  • The nodegroup’s UnGroup method is used to define whether the node group can be ungrouped or not.

  • A node group can be added into a child of another node group.

@using Syncfusion.Blazor.Diagram

@* Initialize the diagram with NodeCollection *@
<SfDiagramComponent Height="500px" @ref="diagram" Nodes="@nodes">
    <SnapSettings>
        <HorizontalGridLines LineColor="white" LineDashArray="2,2"></HorizontalGridLines>
        <VerticalGridLines LineColor="white" LineDashArray="2,2"></VerticalGridLines>
    </SnapSettings>
</SfDiagramComponent>

@code
{
    SfDiagramComponent diagram;
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();

    protected override void OnInitialized()
    {
        Node node1 = createNode("node1", 100, 100, "Node1");
        Node node2 = createNode("node2", 300, 100, "Node2");
        Node node3 = createNode("node3", 200, 250, "Node3");
        NodeGroup groupnode = new NodeGroup();
        // Grouping node 1 and node 2 into a single nodegroup
        groupnode.Children = new string[] { "node1", "node2" };
        nodes.Add(node1);
        nodes.Add(node2);
        nodes.Add(node3);
        nodes.Add(groupnode);
    }

    public Node createNode(string id, double offx, double offy, string content)
    {
        Node node = new Node()
        {
            ID = id,
            OffsetX = offx,
            OffsetY = offy,
            Height = 100,
            Width = 100,
            Style = new ShapeStyle() { Fill = "#6495ED" }
        };
        ShapeAnnotation annotation = new ShapeAnnotation
        {
            ID = "annotation1",
            Content = content,
            Style = new TextStyle()
            {
                Color = "white",
                Fill = "transparent",
                StrokeColor = "None"
            },
        };
        node.Annotations = new DiagramObjectCollection<ShapeAnnotation>()
    {
            annotation
        };
        return node;
    }

    protected override async Task OnAfterRenderAsync(bool firstRender)
    {
        if (firstRender)
        {
            await Task.Delay(500);
            diagram.SelectAll();
            // Adding the third node into the existing nodegroup
            diagram.Group();
        }
    }
}

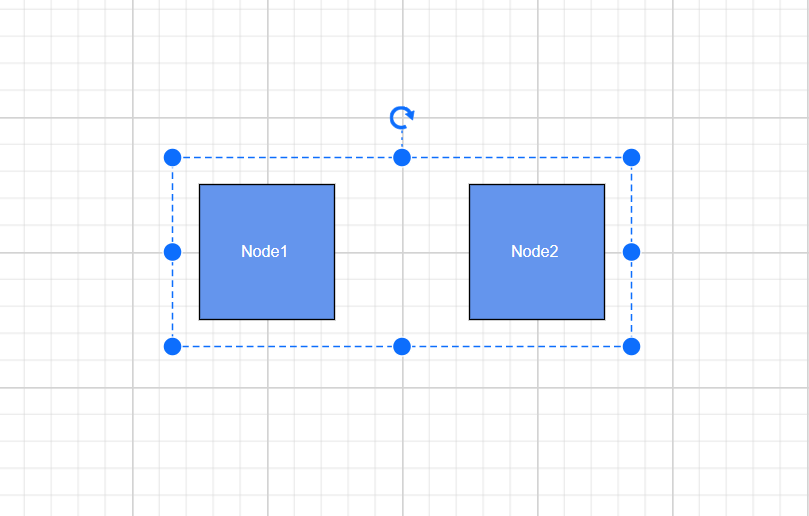

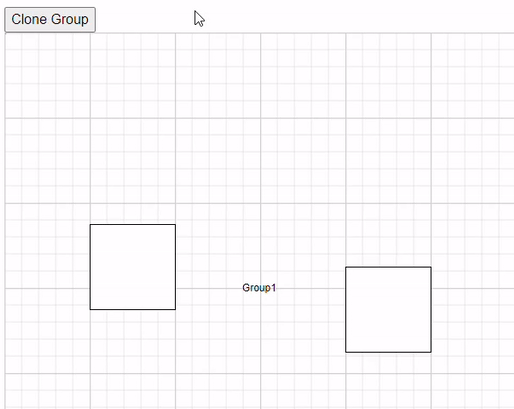

Grouping in Blazor Diagram

The following code illustrates how a ungroup at runtime.

@using Syncfusion.Blazor.Diagram

@* Initialize the diagram with nodes *@
<SfDiagramComponent Height="500px" @ref="diagram" Nodes="@nodes" />

@code
{
    SfDiagramComponent diagram;
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
    protected override void OnInitialized()
    {
        Node node1 = createNode("node1", 100, 100, "Node1");
        Node node2 = createNode("node2", 300, 100, "Node2");
        NodeGroup groupnode = new NodeGroup();
        // Grouping node 1 and node 2 into a single nodegroup
        groupnode.Children = new string[] { "node1", "node2" };
        nodes.Add(node1);
        nodes.Add(node2);
        nodes.Add(groupnode);
    }

    public Node createNode(string id, double offx, double offy, string content)
    {
        Node node = new Node()
        {
            ID = id,
            OffsetX = offx,
            OffsetY = offy,
            Height = 100,
            Width = 100,
            Style = new ShapeStyle() { Fill = "#6495ED" }
        };
        ShapeAnnotation annotation = new ShapeAnnotation
        {
            ID = "annotation1",
            Content = content,
            Style = new TextStyle()
            {
                Color = "white",
                Fill = "transparent",
                StrokeColor = "None"
            },
        };
        node.Annotations = new DiagramObjectCollection<ShapeAnnotation>()
        {
            annotation
        };
        return node;
    }

    protected override async Task OnAfterRenderAsync(bool firstRender)
    {
        if (firstRender)
        {
            await Task.Delay(500);
            diagram.SelectAll();
            // Ungroup the selected group into nodes
            diagram.UnGroup();
        }
    }
}

Add NodeGroup at runtime

A node group can be added at runtime by using Nodes collection of diagram.

The following code illustrates how a node group is added at runtime

@using Syncfusion.Blazor.Diagram

<input type="button" value="AddGroup" @onclick="@AddGroup" />
@* Initialize the diagram with NodeCollection *@
<SfDiagramComponent Height="500px" Nodes="@nodes" />

@code
{
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
    NodeGroup groupnode = new NodeGroup();

    protected override void OnInitialized()
    {
        Node node1 = createNode("node1", 100, 100, "Node1");
        Node node2 = createNode("node2", 300, 100, "Node2");
        // Grouping node 1 and node 2 into a single nodegroup
        groupnode.Children = new string[] { "node1", "node2" };
        nodes.Add(node1);
        nodes.Add(node2);
    }

    public Node createNode(string id, double offx, double offy, string content)
    {
        Node node = new Node()
        {
            ID = id,
            OffsetX = offx,
            OffsetY = offy,
            Height = 100,
            Width = 100,
            Style = new ShapeStyle() { Fill = "#6495ED" }
        };
        ShapeAnnotation annotation = new ShapeAnnotation()
        {
            ID = "annotation1",
            Content = content,
            Style = new TextStyle()
            {
                Color = "white",
                Fill = "transparent",
                StrokeColor = "None"
            },
        };
        node.Annotations = new DiagramObjectCollection<ShapeAnnotation>()
        {
            annotation
        };
        return node;
    }

    private void AddGroup()
    {
        nodes.Add(groupnode);
    }
}
  • Also, you can add the child to the node group through AddChild method. The following code illustrates how to add child to the existing node group through AddChild method.
@using Syncfusion.Blazor.Diagram

<input type="button" value="AddChildToGroup" @onclick="@AddChildToGroup" />
@* Initialize the diagram with nodes *@
<SfDiagramComponent @ref="@diagram" Height="500px" Nodes="@nodes"/>

@code
{
    SfDiagramComponent diagram;
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
    NodeGroup groupnode = new NodeGroup();

    protected override void OnInitialized()
    {
        Node node1 = createNode("node1", 100, 100, "Node1");
        Node node2 = createNode("node2", 300, 100, "Node2");
        // Grouping node 1 and node 2 into a single nodegroup
        groupnode.Children = new string[] { "node1", "node2" };
        nodes.Add(node1);
        nodes.Add(node2);
        nodes.Add(groupnode);
    }

    public Node createNode(string id, double offx, double offy, string content)
    {
        Node node = new Node()
        {
            ID = id,
            OffsetX = offx,
            OffsetY = offy,
            Height = 100,
            Width = 100,
            Style = new ShapeStyle() { Fill = "#6495ED" }
        };
        ShapeAnnotation annotation = new ShapeAnnotation()
        {
            ID = "annotation1",
            Content = content,
            Style = new TextStyle()
            {
                Color = "white",
                Fill = "transparent",
                StrokeColor = "None"
            },
        };
        node.Annotations = new DiagramObjectCollection<ShapeAnnotation>()
        {
            annotation
        };
        return node;
    }

    private async void AddChildToGroup()
    {
        NodeGroup group = diagram.SelectionSettings.Nodes[0] as NodeGroup;
        Node node = new Node()
        {
            ID = "node" + nodes.Count.ToString(),
            OffsetX = 250,
            OffsetY = 250,
            Width = 50,
            Height = 50,
            Style = new ShapeStyle() { Fill = "#6495ED" },
            Annotations = new DiagramObjectCollection<ShapeAnnotation>()
            {
                new ShapeAnnotation()
                {
                    Content = "Node" + nodes.Count.ToString(),
                    Style = new TextStyle()
                    {
                        Color = "white",
                        Fill = "transparent",
                        StrokeColor = "None"
                    },
                }
            }
        };
        await diagram.AddChild(group as NodeGroup, node);
    }
}

Update position at runtime

You can change the position of the node group similar to node. For more information about node positioning, refer to Positioning.

@using Syncfusion.Blazor.Diagram

<input type="button" value="UpdatePosition" @onclick="@UpdatePosition" />
@* Initialize the diagram with NodeCollection *@
<SfDiagramComponent Height="500px" Nodes="@nodes" />

@code
{
    DiagramObjectCollection<Node> nodes = new DiagramObjectCollection<Node>();
    NodeGroup groupnode = new NodeGroup();

    protected override void OnInitialized()
    {
        nodes = new DiagramObjectCollection<Node>();
        Node node1 = createNode("node1", 100, 100, "Node1");
        Node node2 = createNode("node2", 300, 100, "Node2");
        // Grouping node 1 and node 2 into a single nodegroup
        groupnode.Children = new string[] { "node1", "node2" };
        nodes.Add(node1);
        nodes.Add(node2);
        nodes.Add(groupnode);
    }

    public Node createNode(string id, double offx, double offy, string content)
    {
        Node node = new Node()
        {
            ID = id,
            OffsetX = offx,
            OffsetY = offy,
            Height = 100,
            Width = 100,
            Style = new ShapeStyle() { Fill = "#6495ED" }
        };
        ShapeAnnotation annotation = new ShapeAnnotation
        {
            ID = "annotation1",
            Content = content,
            Style = new TextStyle()
            {
                Color = "white",
                Fill = "transparent",
                StrokeColor = "None"
            },
        };
        node.Annotations = new DiagramObjectCollection<ShapeAnnotation>()
        {
            annotation
        };
        return node;
    }

    private void UpdatePosition()
    {
        nodes[2].OffsetX = 500;
        nodes[2].OffsetY = 200;
    }
}

Appearance

You can change the appearance of the node group similar to node. For more information about node appearance, refer to Appearance.

Interaction

You can edit the node group and its children at runtime. We able to interact the nodegroup as like the node interaction like resize, rotate and drag. For more information about node interaction, refer to Interaction.

Selecting a NodeGroup

When a child element of any node group is clicked, its contained node group is selected instead of the child element. With consecutive clicks on the selected element, selection is changed from top to bottom in the hierarchy of parent nodegroup to its children.
