Interaction in Blazor Diagram Component

10 Jan 202410 minutes to read

The port can be used to create connector by enabling the Draw in the PortConstraints.

How to draw connector from the port

You can draw connectors from the port by enabling Draw constraints to the Constraints property. By default, the connector segment type is set to Orthogonal.

The following code explains how to draw the connector by using the port constraints.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent Height="600px" Nodes="@nodes" />

@code
{
    DiagramObjectCollection<Node> nodes;

    protected override void OnInitialized()
    {
        nodes = new DiagramObjectCollection<Node>();
        // A node is created and stored in the nodes array.
        Node node = new Node()
        {
            // Position of the node.
            OffsetX = 250,
            OffsetY = 250,
            // Size of the node.
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" },
            // Initialize port collection.
            Ports = new DiagramObjectCollection<PointPort>()
            {
                new PointPort()
                {
                    ID = "port1",
                    Offset = new DiagramPoint() { X = 1, Y = 0.5 },
                    Visibility = PortVisibility.Visible,
                    //Set the style for the port.
                    Style = new ShapeStyle()
                    {
                        Fill = "gray",
                        StrokeColor = "black"
                     },
                    Width = 12,
                    Height = 12,
                    // Sets the shape of the port as Square.
                    Shape = PortShapes.Square,
                    // Enable draw operation for Port.
                    Constraints = PortConstraints.Default | PortConstraints.Draw
                }
            },
        };
        nodes.Add(node);
    }
}

You can download a complete working sample from GitHub

Drawing Port Connection in Blazor Diagram

How to draw different types of connector from the port

You can change the default connector type while drawing the connector from the port by setting the specific connector type instance to theDrawingObject property. This enables the drawing of various connector types from the port, including:

  • Staright
  • Bezier
  • Polyline
  • Orthagonal
  • Free Hand

The following code explains how to draw the connector by using the port constraints.

@using Syncfusion.Blazor.Diagram

<SfDiagramComponent @ref="diagram" Height="600px" Nodes="@nodes" DrawingObject="DrawingObject"/>

@code
{
    DiagramObjectCollection<Node> nodes;

    protected override void OnInitialized()
    {
        public SfDiagramComponent diagram;
        nodes = new DiagramObjectCollection<Node>();
        // Nodes are created and stored in the nodes array.
        Node node1 = new Node()
        {
            // Position of the node.
            OffsetX = 250,
            OffsetY = 250,
            // Size of the node.
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" },
            // Initialize port collection.
            Ports = new DiagramObjectCollection<PointPort>()
            {
                new PointPort()
                {
                    ID = "port1",
                    Offset = new DiagramPoint() { X = 1, Y = 0.5 },
                    Visibility = PortVisibility.Visible,
                    //Set the style for the port.
                    Style= new ShapeStyle(){ Fill = "gray", StrokeColor = "black"},
                    // Sets the shape of the port as Circle.
                    Width = 12, Height = 12, Shape = PortShapes.Square,
                    // Enable drag operation for Port.
                    Constraints = PortConstraints.Default|PortConstraints.Draw
                }
            },
        };
        nodes.Add(node1);
        Node node2 = new Node()
        {
            // Position of the node.
            OffsetX = 500,
            OffsetY = 350,
            // Size of the node.
            Width = 100,
            Height = 100,
            Style = new ShapeStyle() { Fill = "#6495ED", StrokeColor = "white" },
            // Initialize port collection.
            Ports = new DiagramObjectCollection<PointPort>()
            {
                new PointPort()
                {
                    ID = "port1",
                    Offset = new DiagramPoint() { X = 0, Y = 0.5 },
                    Visibility = PortVisibility.Visible,
                    //Set the style for the port.
                    Style= new ShapeStyle(){ Fill = "gray", StrokeColor = "black"},
                    // Sets the shape of the port as Circle.
                    Width = 12, Height = 12, Shape = PortShapes.Square,
                    // Enable drag operation for Port.
                    Constraints = PortConstraints.Default|PortConstraints.Draw
                }
            },
        };
        nodes.Add(node2);
        DrawingObject = new Connector()
        {
            ID = "connector1",
            Type = ConnectorSegmentType.Bezier,
        };
    }
}

You can download a complete working sample from GitHub.

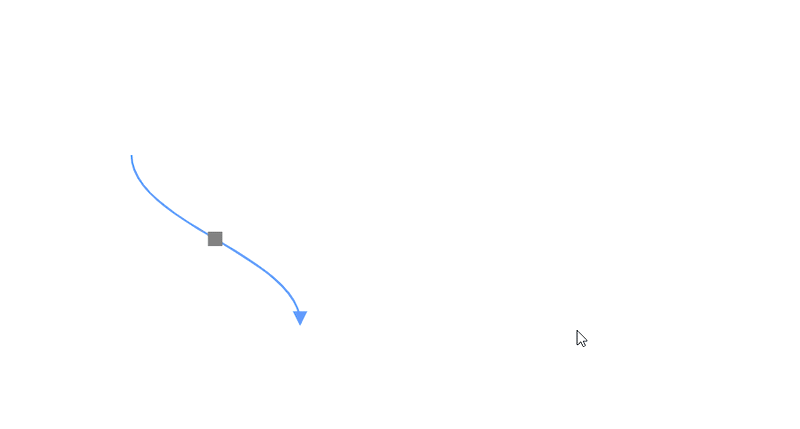

Drawing Bezier Port Connection in Blazor Diagram
