Creating a Blazor Desktop App with Electron

2 Apr 20268 minutes to read

This guide explains how to create a cross-platform desktop application by combining a Blazor Web App (Server) with the ElectronNET.Core framework and integrating Syncfusion® Blazor DataGrid within an Electron‑powered desktop environment.

NOTE

ElectronNET.Core is a community-maintained fork of Electron.NET that supports .NET 6 and later versions (including .NET 8, 9, and 10). It is not an official Microsoft package.

What is Electron?

Electron is a framework for building cross-platform desktop applications using web technologies. It uses Node.js and the Chromium rendering engine to run a web application inside a desktop environment.

ElectronNET.Core connects a Blazor Web App (Server) with the Electron shell by hosting an internal ASP.NET Core Kestrel server and loading it in a Chromium window. The Electron main process communicates with the Blazor backend through this local server, enabling desktop‑native features without requiring changes to the application’s architecture.

Prerequisites

Create a Blazor web app (Server render mode)

Run the following commands in the command-line interface (CLI).

dotnet new blazor -o BlazorElectronApp -int Server
cd BlazorElectronApp

Install required packages

From the project folder (where the .csproj is located), install the Syncfusion® Grid, Themes, and the ElectronNET.Core packages.

dotnet add package Syncfusion.Blazor.Grid -v 33.1.44
dotnet add package Syncfusion.Blazor.Themes -v 33.1.44

dotnet add package ElectronNET.Core --version 0.4.1
dotnet add package ElectronNET.Core.AspNet --version 0.4.1

dotnet restore

NOTE

Replace 0.4.1 with the latest stable version. Check NuGet for the current release.

Add required namespaces

Add the required Syncfusion® Blazor namespaces in ~/_Imports.razor.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Grids

Register Syncfusion® and Electron services

Add the required Syncfusion® Blazor service and configure ElectronNET.Core in your ~/Program.cs file.

NOTE

Before using the code snippet, update the namespace BlazorElectronApp to match your project’s root namespace. You can find this in App.razor or _Imports.razor. For example, if your project is named MyApp, use MyApp.Components.App.

...
using Syncfusion.Blazor;
using ElectronNET.API;
using ElectronNET.API.Entities;
...

// Syncfusion services
builder.Services.AddSyncfusionBlazor();
// Electron services
builder.Services.AddElectron();
// Electron window bootstrap (modern ElectronNET.Core)
builder.UseElectron(args, async () =>
{
    var options = new BrowserWindowOptions
    {
        Width = 1200, Height = 800, Show = false, AutoHideMenuBar = true
    };

    var window = await Electron.WindowManager.CreateWindowAsync(options);

    window.OnReadyToShow += () => window.Show();
    window.OnClosed += () => Electron.App.Quit();
});
...

// Required for serving assets like _content/ (Syncfusion)
app.UseStaticFiles();

// Disable HTTPS redirection to avoid certificate issues in Electron apps
// app.UseHttpsRedirection();
...

// Map the root Razor Components app
app.MapRazorComponents<BlazorElectronApp.Components.App>()
    .AddInteractiveServerRenderMode();

app.Run();

Add stylesheet and script resources

Before adding the stylesheet, ensure that no other Syncfusion® theme CSS (for example, bootstrap5.css or material.css) is already referenced to avoid conflicts.

Add the following stylesheet and script references in ~/App.razor.

<head>
    ...
    <!-- Syncfusion theme style sheet -->
    <link href="_content/Syncfusion.Blazor.Themes/fluent2.css" rel="stylesheet" />
</head>

<body>
    ...
    <!-- Syncfusion Blazor Core script (required for most components, including DataGrid) -->
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js"></script>
</body>

Add RuntimeIdentifiers to support cross-platform builds

The RuntimeIdentifiers property specifies the target platforms for the application and enables .NET to restore the necessary platform‑specific assets. This configuration allows the application to be built and packaged for Windows, Linux, and macOS from a single project.

To enable this, add the following property to your project’s .csproj file.

<PropertyGroup>
    ...
    <RuntimeIdentifiers>win-x64;win-arm64;linux-x64;osx-x64;osx-arm64</RuntimeIdentifiers>
</PropertyGroup>

NOTE

The example includes x64 and ARM64 architectures for Windows, macOS, and Linux. Adjust runtime identifiers based on your target platforms. See .NET RID Catalog for a full list.

Add Packaging Configuration for ElectronNET.Core

ElectronNET.Core uses the electron-builder.json file to configure packaging settings for desktop builds. Create a file named electron-builder.json in your project’s root folder (next to the .csproj file) and add the following content.

{
  "appId": "com.companyname.blazorelectronapp",
  "productName": "Blazor Electron App",
  "directories": {
    "output": "dist-electron"
  },
  "files": [
    "**/*"
  ],
  "win": {
    "target": "nsis"
  },
  "mac": {
    "target": "dmg"
  },
  "linux": {
    "target": "AppImage"
  }
}

Add Syncfusion® Blazor DataGrid component

Add the Syncfusion® Blazor DataGrid component to a .razor file within your app. For example, update ~/Components/Pages/Home.razor.

@rendermode InteractiveServer
@using Syncfusion.Blazor.Grids

<SfGrid DataSource="@Orders" />

@code{
    public List<Order> Orders { get; set; }

    protected override void OnInitialized()
    {
        Orders = Enumerable.Range(1, 10).Select(x => new Order()
        {
            OrderID = 1000 + x,
            CustomerID = (new string[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
            Freight = 2 * x,
            OrderDate = DateTime.Now.AddDays(-x),
        }).ToList();
    }

    public class Order {
        public int? OrderID { get; set; }
        public string CustomerID { get; set; }
        public DateTime? OrderDate { get; set; }
        public double? Freight { get; set; }
    }
}

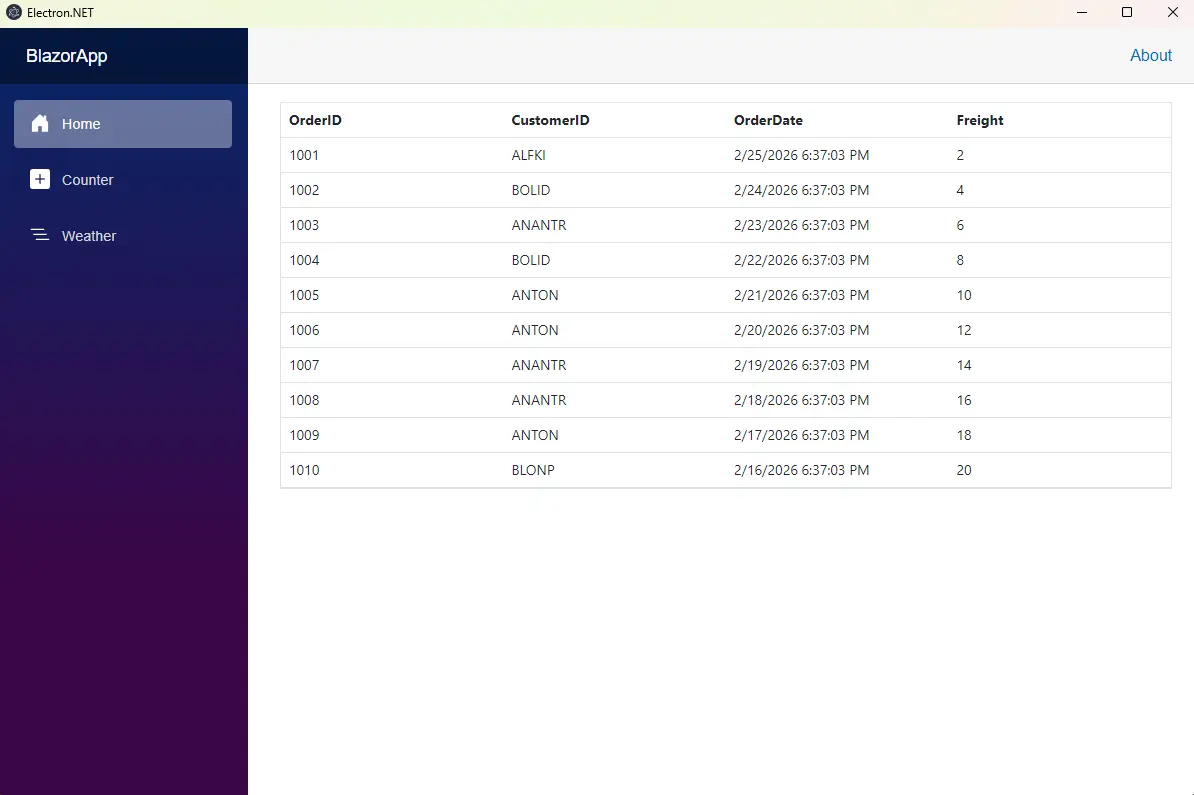

Run the application

dotnet run

Blazor Electron App

Publish and build desktop packages

The following commands publish the application for the x64 architecture. Update the runtime identifier as needed (for example, osx-arm64 or linux-arm64) to target other platforms.

dotnet publish -r win-x64 -c Release
dotnet publish -r osx-x64 -c Release
dotnet publish -r linux-x64 -c Release
