Markers in Blazor Maps Component

14 Dec 202424 minutes to read

Markers are notes that are used to leave a message on the Maps. It indicates or marks a specific location with desired symbols on the Maps. It can be enabled by setting the Visible property of the MapsMarker to true.

Adding marker

To add the markers, the DataSource property of the MapsMarker has a list of objects that contains the data for markers. Using this property, any number of markers can be added to the layers of the Maps. By default, it displays the markers based on the specified latitude and longitude in the given data source. Each data source object should contain the following list of properties.

  • Latitude - Specifies the position of the marker in latitude co-ordinate.
  • Longitude - Specifies the position of the marker in longitude co-ordinate.
@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/usa.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="California" Height="25" Width="15" TValue="City"></MapsMarker>
                <MapsMarker Visible="true" DataSource="NewYork" Height="25" Width="15" TValue="City"></MapsMarker>
                <MapsMarker Visible="true" DataSource="Iowa" Height="25" Width="15" TValue="City"></MapsMarker>
            </MapsMarkerSettings>
            <MapsShapeSettings Fill="lightgray"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
    };
    public List<City> California = new List<City> {
        new City {Latitude=35.145083,Longitude=-117.960260}
    };
    public List<City> NewYork = new List<City> {
        new City { Latitude=40.724546, Longitude=-73.850344 }
    };
    public List<City> Iowa = new List<City> {
        new City {Latitude= 41.657782, Longitude=-91.533857}
    };
}

Blazor Maps with Marker

Adding marker template

The marker can be added as a template in the Maps component. The MarkerTemplate property of the MapsMarker is used to set HTML element as a template for the marker.

@using Syncfusion.Blazor.Maps

<SfMaps Height="600" Width="700">
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="Europe" TValue="City">
                    <MarkerTemplate>
                        @{
                            <div id="marker4" class="markerTemplate">Europe</div>
                        }
                    </MarkerTemplate>
                </MapsMarker>
                <MapsMarker Visible="true" DataSource="NorthAmerica" TValue="City">
                    <MarkerTemplate>
                        @{
                            <div id="marker5" class="markerTemplate" style="width:50px">North America</div>
                        }
                    </MarkerTemplate>
                </MapsMarker>
                <MapsMarker Visible="true" DataSource="SouthAmerica" TValue="City">
                    <MarkerTemplate>
                        @{
                            <div id="marker6" class="markerTemplate" style="width:50px">South America</div>
                        }
                    </MarkerTemplate>
                </MapsMarker>
            </MapsMarkerSettings>
            <MapsShapeSettings Fill="lightgray"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
    };
    public List<City> Europe = new List<City> {
        new City { Latitude=49.95121990866204, Longitude=18.468749999999998 }
    };
    public List<City> NorthAmerica = new List<City> {
        new City { Latitude= 59.88893689676585, Longitude= -109.3359375 }
    };
    public List<City> SouthAmerica = new List<City> {
        new City { Latitude= -6.64607562172573, Longitude=-55.54687499999999 }
    };
}

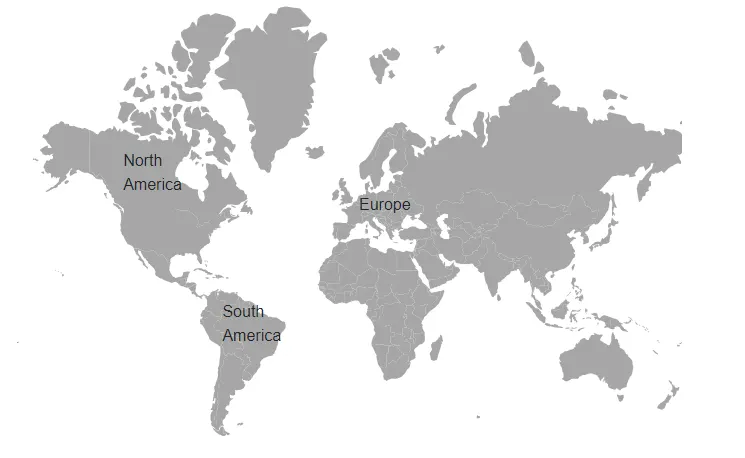

Blazor Maps with Marker Template

Customization

The following properties and class are available in MapsMarker to customize the markers of the Maps component.

  • MapsMarkerBorder - To customize the color and width of the border for the markers in Maps.
  • Fill - To apply the color for markers in Maps.
  • DashArray - To define the pattern of dashes and gaps that is applied to the outline of the markers in Maps.
  • Height - To customize the height of the markers in Maps.
  • Width - To customize the width of the markers in Maps.
  • Opacity - To customize the transparency of the markers in Maps.
  • AnimationDelay - To change the time delay in the transition for markers.
  • AnimationDuration - To change the time duration of animation for markers.
@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new { dataOptions = "https://cdn.syncfusion.com/maps/map-data/world-map.json" }' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="MarkerData" Height="25" Width="15" Fill="red" DashArray="1" Opacity="0.9"
                            Shape="Syncfusion.Blazor.Maps.MarkerType.Balloon" TValue="City">
                    <MapsMarkerBorder Color="green" Width="2"></MapsMarkerBorder>
                </MapsMarker>
            </MapsMarkerSettings>
            <MapsShapeSettings Fill="lightgray"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
    };
    public List<City> MarkerData = new List<City> {
        new City { Latitude=35.145083, Longitude=-117.960260 },
        new City { Latitude=40.724546, Longitude=-73.850344 },
        new City { Latitude= 41.657782, Longitude=-91.533857 }
    };
}

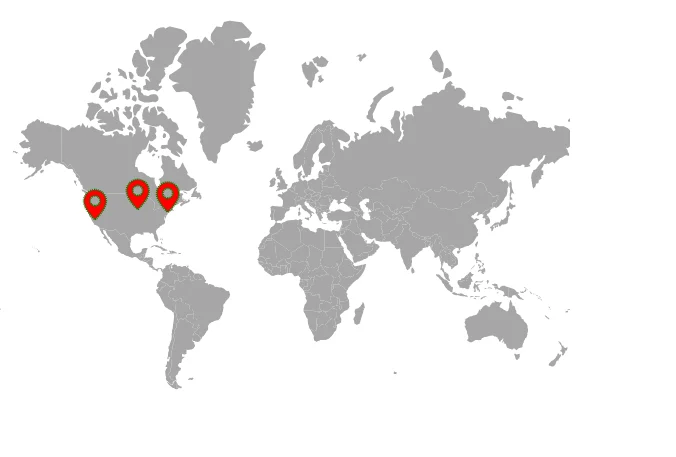

Blazor Maps with Custom Marker

Marker shapes

The Maps component supports the following marker shapes. To set the shape of the marker, the Shape property in MapsMarker is used.

  • Balloon
  • Circle
  • Cross
  • Diamond
  • Image
  • Rectangle
  • Start
  • Triangle
  • VerticalLine
  • HorizontalLine

Rendering marker shape as image

To render a marker as an image in Maps, set the Shape property of MapsMarker as Image and specify the path of the image to ImageUrl property. There is another way to render a marker as an image using the ImageUrlValuePath property of the MapsMarker. Bind the field name that contains the path of the image in the data source to the ImageUrlValuePath property.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new { dataOptions = "https://cdn.syncfusion.com/maps/map-data/world-map.json" }' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="MarkerData" Height="25" Width="15" TValue="City"
                            Shape="Syncfusion.Blazor.Maps.MarkerType.Image" ImageUrl="https://blazor.syncfusion.com/demos/_content/blazor_server_common_net8/images/maps/ballon.png">
                </MapsMarker>
            </MapsMarkerSettings>
            <MapsShapeSettings Fill="lightgray"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
    };
    public List<City> MarkerData = new List<City> {
        new City { Latitude=35.145083,Longitude=-117.960260 },
        new City { Latitude=40.724546, Longitude=-73.850344 },
        new City { Latitude= 41.657782, Longitude=-91.533857 }
    };
}

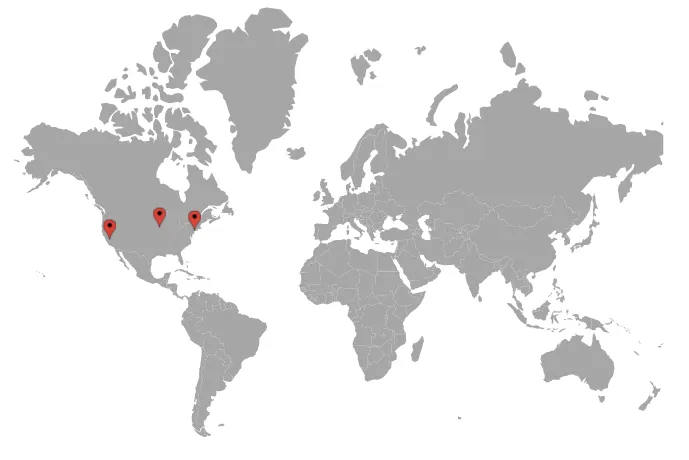

Blazor Maps Marker with Image

Multiple marker groups

Multiple groups of markers can be added in the Maps by adding multiple MapsMarker in the MapsMarkerSettings and customization for the markers can be done with the MapsMarker.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="CitiesInUS" Shape="MarkerType.Diamond" Height="15" Fill="green" Width="15" TValue="City">
                    <MapsMarkerTooltipSettings ValuePath="Name" Visible="true"></MapsMarkerTooltipSettings>
                </MapsMarker>
                <MapsMarker Visible="true" DataSource="CitiesInIndia" Shape="MarkerType.Circle" Fill="blue" Height="10" Width="10" TValue="City">
                    <MapsMarkerTooltipSettings ValuePath="Name" Visible="true"></MapsMarkerTooltipSettings>
                </MapsMarker>
            </MapsMarkerSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
    };
    private List<City> CitiesInUS = new List<City> {
        new City { Latitude = 37.0000, Longitude = -120.0000, Name = "California" },
        new City { Latitude= 40.7127, Longitude = -74.0059, Name = "New York" },
        new City { Latitude = 42, Longitude = -93, Name = "Iowa" }
    };
    private List<City> CitiesInIndia = new List<City> {
        new City { Latitude = 19.228825, Longitude = 72.854118, Name= "Mumbai" },
        new City { Latitude = 28.610001, Longitude = 77.230003, Name= "Delhi" },
        new City { Latitude = 13.067439, Longitude = 80.237617, Name= "Chennai" }
    };
}

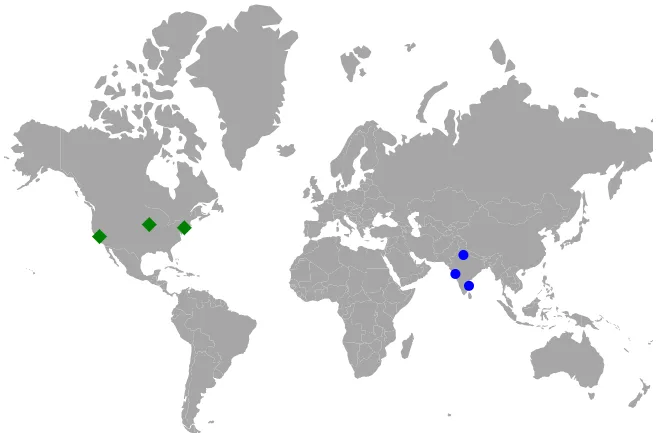

Blazor Maps with Multiple Marker Group

Customize marker shapes from data source

Bind different colors and shapes to the marker from data source

Using the ShapeValuePath and ColorValuePath properties, the color and shape of the marker can be applied from the given data source. Bind the data source to the DataSource property of the MapsMarker and set the field names that contains the shape and color values in the data source to the ShapeValuePath and ColorValuePath properties.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible='true' DataSource='MarkerDataSource' ShapeValuePath="shape" ColorValuePath="color" TValue="MapMarkerDataSource">
                </MapsMarker>
            </MapsMarkerSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public class MapMarkerDataSource
    {
        public double latitude { get; set; }
        public double longitude { get; set; }
        public string name { get; set; }
        public string color { get; set; }
        public string shape { get; set; }
    };
    public List<MapMarkerDataSource> MarkerDataSource = new List<MapMarkerDataSource> {
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe", color="red", shape="Triangle" },
        new MapMarkerDataSource{ latitude= 59.88893689676585, longitude= -109.3359375, name= "North America", color="blue", shape="Pentagon" },
        new MapMarkerDataSource{ latitude= -6.64607562172573, longitude= -55.54687499999999, name= "South America", color="green", shape="InvertedTriangle" }
    };
}

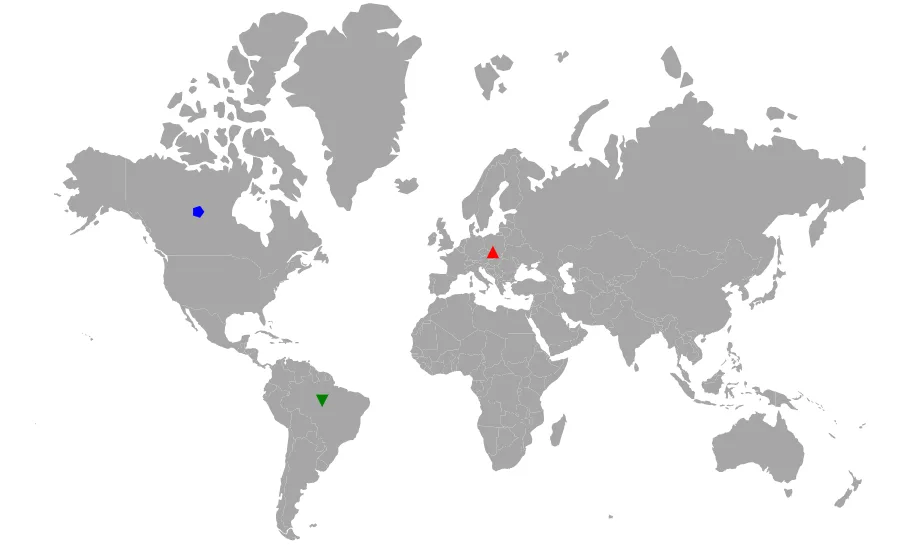

Blazor Maps with Custom Marker Shape

Setting value path from the data source

The latitude and longitude values are used to determine the location of each marker in the Maps. The LatitudeValuePath and LongitudeValuePath properties are used to specify the value path that presents in the data source of the marker. In the following example, the field name from the data source is set to the LatitudeValuePath and LongitudeValuePath properties.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new { dataOptions = "https://cdn.syncfusion.com/maps/map-data/world-map.json" }' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="MarkerData" LatitudeValuePath="Latitude" LongitudeValuePath="Longitude" TValue="City">
                </MapsMarker>
            </MapsMarkerSettings>
        <MapsShapeSettings Fill="lightgray"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
    };
    public List<City> MarkerData = new List<City> {
        new City { Latitude=35.145083, Longitude=-117.960260 },
        new City { Latitude=40.724546, Longitude=-73.850344 },
        new City { Latitude= 41.657782, Longitude=-91.533857 }
    };
}

Setting Value Path from DataSource in Blazor Maps Marker

Setting different sizes for markers individually

The size of the markers in a marker group can be customized using the WidthValuePath and HeightValuePath properties, which allow the user to change the width and height of the markers based on values from the given data source. Bind the data source to the DataSource property of the MapsMarker tag, and specify the field names containing the width and height values in the data source for the WidthValuePath and HeightValuePath properties.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new { dataOptions = "https://cdn.syncfusion.com/maps/map-data/world-map.json" }' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" Shape="MarkerType.Circle" DataSource="MarkerData" WidthValuePath="Width" HeightValuePath="Height" TValue="City">
                </MapsMarker>
            </MapsMarkerSettings>
        <MapsShapeSettings Fill="lightgray"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public double Width {get; set; }
        public double Height {get; set; }
    };
    public List<City> MarkerData = new List<City> {
        new City { Latitude=49.95121990866204, Longitude=18.468749999999998, Width=30, Height=30  },
        new City { Latitude=59.88893689676585, Longitude=-109.3359375 , Width=20, Height=20 },
        new City { Latitude=-6.64607562172573, Longitude=-55.54687499999999 , Width=10, Height=10}
    };
}

Setting different sizes for markers from DataSource in Blazor Maps Marker

Repositioning the marker using drag and drop

The markers on the map can be dragged and dropped to change their position. To enable marker drag and drop, set the EnableDrag property to true in the MapsMarker setting.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker EnableDrag="true" Visible="true" DataSource="MarkerDataSource" Height="20" Width="20" TValue="City">
                    <MapsMarkerBorder Width="2" Color="#285255"></MapsMarkerBorder>
                    <MapsMarkerTooltipSettings Visible="true" ValuePath="Name"></MapsMarkerTooltipSettings>
                </MapsMarker>
            </MapsMarkerSettings>
            <MapsShapeSettings Fill="#C3E6ED"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
    };
    public List<City> MarkerDataSource = new List<City> {
        new City {Latitude=49.95121990866204,Longitude=18.468749999999998, Name = "Marker 1"},
        new City {Latitude=59.88893689676585,Longitude= -109.3359375, Name = "Marker 2"},
        new City {Latitude=-6.64607562172573,Longitude=-55.54687499999999, Name = "Marker 3"},
        new City {Latitude=23.644385824912135,Longitude=77.83189239539234, Name = "Marker 4"},
        new City {Latitude=63.66569332894224,Longitude= 98.2225173953924, Name = "Marker 5"}
    };
}

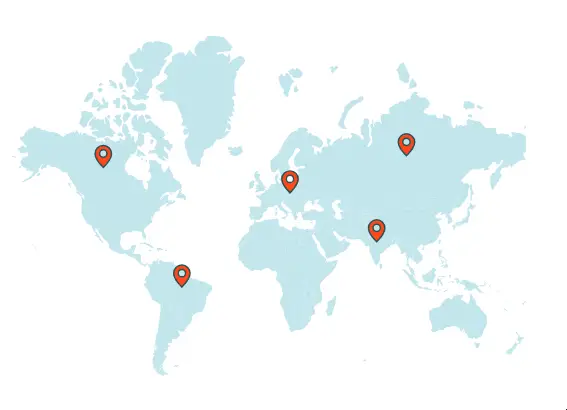

Marker with drag and drop functionality in Blazor Maps

The data of the drag and dropped marker in the marker data source can be customized using the OnMarkerDragStart and OnMarkerDragEnd events. When you change the appropriate marker data, the tooltip and legend item text of that marker are automatically updated. The following properties are available in the event argument of the marker drag events.

Argument Name Description
DataIndex It represents the index of the data of the dragged marker in the marker data source.
Latitude It represents the latitude coordinate point of the dragged marker.
Longitude It represents the longitude coordinate point for the dragged marker.
MarkerIndex It represents the index of the marker setting.
LayerIndex It represents the index of the layer in which the marker belongs.
EventName It represents the name of the event.
X It represents the horizontal location of the mouse pointer on the map when the drag action is performed.
Y It represents the vertical location of the mouse pointer on the map when the drag action is performed.

The following example shows how to use marker drag events to customize the data of the drag and dropped marker in the marker data source.

@using Syncfusion.Blazor.Maps

<SfMaps @ref="maps">
    <MapsEvents OnMarkerDragStart="MarkerDragStartEvent" OnMarkerDragEnd="MarkerDragEndEvent"></MapsEvents>
    <MapsLegendSettings Visible="true" Type="LegendType.Markers" Shape="LegendShape.Circle" ShapeWidth="10" ShapeHeight="10" Fill="#FF471A">
    </MapsLegendSettings>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker LegendText="Name" EnableDrag="true" Visible="true" DataSource="MarkerDataSource" AnimationDuration="0" Height="20" Width="20" TValue="City">
                    <MapsMarkerBorder Width="2" Color="#285255"></MapsMarkerBorder>
                    <MapsMarkerTooltipSettings Visible="true" ValuePath="Name"></MapsMarkerTooltipSettings>
                </MapsMarker>
            </MapsMarkerSettings>
            <MapsShapeSettings Fill="#C3E6ED"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>
@code {
    public SfMaps maps;
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
    };
    public List<City> MarkerDataSource = new List<City> {
        new City {Latitude=49.95121990866204,Longitude=18.468749999999998, Name = "Europe"},
        new City {Latitude=59.88893689676585,Longitude= -109.3359375, Name = "North America"},
        new City {Latitude=-6.64607562172573,Longitude=-55.54687499999999, Name = "Sout America"},
        new City {Latitude=23.644385824912135,Longitude=77.83189239539234, Name = "India"},
        new City {Latitude=63.66569332894224,Longitude= 98.2225173953924, Name = "China"}
    };
    public void MarkerDragStartEvent(MarkerDragStartEventArgs args)
    {
        // When the marker begins to move on the map, the event is triggered.
    }
    public void MarkerDragEndEvent(MarkerDragEndEventArgs args)
    {
        // When the marker on the map stops dragging, the event is triggered.
        MarkerDataSource[args.DataIndex].Name = "Australia";
        maps.Refresh();
    }
}

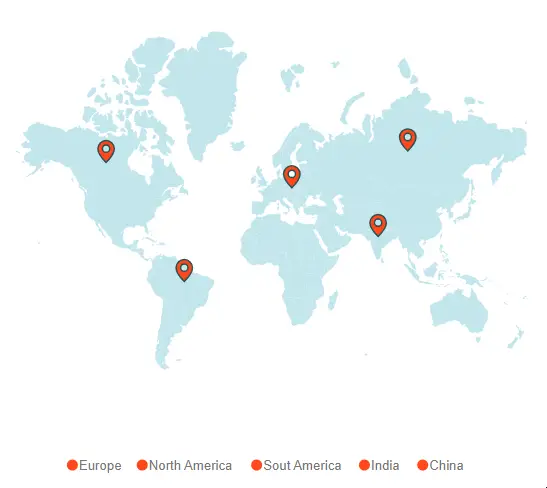

Marker customization using marker drag events in Blazor Maps

Marker zooming

The Maps can be initially scaled to the center value based on the marker distance. This can be achieved by setting the ShouldZoomInitially property in MapsZoomSettings as true.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible='true' DataSource='MarkerDataSource' TValue="MapMarkerDataSource">
                </MapsMarker>
            </MapsMarkerSettings>
        </MapsLayer>
    </MapsLayers>
    <MapsZoomSettings Enable='true' ShouldZoomInitially="true">
        <MapsZoomToolbarSettings HorizontalAlignment="Alignment.Near">
        </MapsZoomToolbarSettings>
    </MapsZoomSettings>
</SfMaps>
@code {
    public class MapMarkerDataSource
    {
        public double latitude { get; set; }
        public double longitude { get; set; }
        public string name { get; set; }
    };
    public List<MapMarkerDataSource> MarkerDataSource = new List<MapMarkerDataSource> {
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 59.88893689676585, longitude= -109.3359375, name= "North America" },
        new MapMarkerDataSource{ latitude= -6.64607562172573, longitude= -55.54687499999999, name= "South America" }
    };
}

Blazor Maps Marker with Zooming

Disabling Zoom on Marker Click

Maps typically zoom in when you click or double-click on them. This zooming also occurs when you click on a marker. To prevent zooming when clicking on a marker, you can set ZoomOnMarkerClick to false in the MapsZoomSettings. This setting disables zooming specifically for marker clicks. By default, ZoomOnMarkerClick is set to true.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible='true' Width="20" Height="20" AnimationDuration="0" DataSource='MarkerDataSource' TValue="MapMarkerDataSource">
                </MapsMarker>
            </MapsMarkerSettings>
        </MapsLayer>
    </MapsLayers>
    <MapsZoomSettings Enable='true' ZoomOnClick="true" ZoomOnMarkerClick="false">
        <MapsZoomToolbarSettings HorizontalAlignment="Alignment.Far">
        </MapsZoomToolbarSettings>
    </MapsZoomSettings>
</SfMaps>
@code {
    public class MapMarkerDataSource
    {
        public double latitude { get; set; }
        public double longitude { get; set; }
        public string name { get; set; }
    };
    public List<MapMarkerDataSource> MarkerDataSource = new List<MapMarkerDataSource> {
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 59.88893689676585, longitude= -109.3359375, name= "North America" },
        new MapMarkerDataSource{ latitude= -6.64607562172573, longitude= -55.54687499999999, name= "South America" }
    };
}

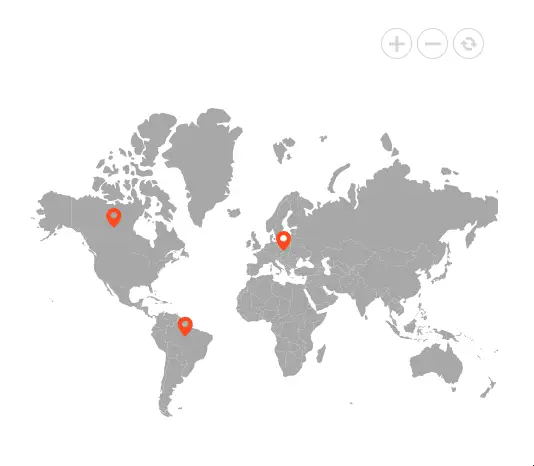

Disabling Zoom on Marker Click in Blazor Maps

Marker clustering

Maps support hiding and clustering markers when they overlap. The number on a cluster indicates how many overlapping markers it contains. When zooming into any cluster location on the map, the number on the cluster decreases, and individual markers become visible. When zooming out, the overlapping markers increase, causing them to cluster again, which increases the count on the cluster.

To enable clustering for markers within a layer, set the AllowClustering property of MapsMarkerClusterSettings in the MapsLayer to true. Customization of clustering can be done using the MapsMarkerClusterSettings property.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsZoomSettings Enable="true"></MapsZoomSettings>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="LargestCities" Height="25" Width="15" TValue="City">
                </MapsMarker>
            </MapsMarkerSettings>
            <MapsMarkerClusterSettings AllowClustering="true" Shape="MarkerType.Circle" Fill="#008CFF" Height="25" Width="25">
                <MapsLayerMarkerClusterLabelStyle Color="white"></MapsLayerMarkerClusterLabelStyle>
            </MapsMarkerClusterSettings>
            <MapsShapeSettings Fill="lightgray">
            </MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
        public double Area { get; set; }
    };
    private List<City> LargestCities = new List<City> {
        new City { Latitude=40.6971494, Longitude= -74.2598747, Name="New York", Area=8683 },
        new City { Latitude=40.0024137, Longitude= -75.2581194, Name="Philadelphia", Area=4661 },
        new City { Latitude=42.3142647, Longitude= -71.11037, Name="Boston", Area=4497 },
        new City { Latitude=42.3526257, Longitude= -83.239291, Name="Detroit", Area=3267 },
        new City { Latitude=47.2510905, Longitude= -123.1255834, Name="Washington", Area=2996 },
        new City { Latitude=25.7823907, Longitude= -80.2994995, Name="Miami", Area=2891 },
        new City { Latitude=19.3892246, Longitude= -70.1305136, Name="San Juan", Area=2309 }
    };
}

Blazr Maps Marker with Clustering

Customization of marker cluster

The following properties and classes are available to customize the marker clustering in the Maps component.

  • MapsLayerMarkerClusterBorder - To customize the color and width of the border of cluster in Maps.
  • MapsLayerMarkerClusterConnectorLineSettings - To customize the connector line in cluster separating the markers.
  • DashArray - To customize the dash array for the marker cluster in Maps.
  • Fill - Applies the color of the cluster in Maps.
  • Height - To customize the height of the marker cluster in Maps.
  • ImageUrl - To customize the URL path for the marker cluster when the cluster shape is set as image in Maps.
  • MapsLayerMarkerClusterLabelStyle - To customize the text in marker cluster.
  • Offset - To customize the offset position for the marker cluster in Maps.
  • Opacity - To customize the opacity of the marker cluster.
  • Shape - To customize the shape for the cluster of markers.
  • Width - To customize the width of the marker cluster in Maps.
@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsZoomSettings Enable="true"></MapsZoomSettings>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource="LargestCities" Height="25" Width="15" TValue="City">
                </MapsMarker>
            </MapsMarkerSettings>
            <MapsMarkerClusterSettings AllowClustering="true" AllowClusterExpand="true" Shape="MarkerType.Circle"
                                       Fill="#008CFF" Height="25" Width="25" Offset="10" Opacity="0.9">
                <MapsLayerMarkerClusterConnectorLineSettings Color="Orange" Opacity="0.8" Width="2"></MapsLayerMarkerClusterConnectorLineSettings>
                <MapsLayerMarkerClusterLabelStyle Color="green"></MapsLayerMarkerClusterLabelStyle>
            </MapsMarkerClusterSettings>
            <MapsShapeSettings Fill="lightgray">
            </MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
        public double Area { get; set; }
    };
    private List<City> LargestCities = new List<City> {
        new City { Latitude=40.6971494, Longitude= -74.2598747, Name="New York", Area=8683 },
        new City { Latitude=40.0024137, Longitude= -75.2581194, Name="Philadelphia", Area=4661 },
        new City { Latitude=42.3142647, Longitude= -71.11037, Name="Boston", Area=4497 },
        new City { Latitude=42.3526257, Longitude= -83.239291, Name="Detroit", Area=3267 },
        new City { Latitude=47.2510905, Longitude= -123.1255834, Name="Washington", Area=2996 },
        new City { Latitude=25.7823907, Longitude= -80.2994995, Name="Miami", Area=2891 },
        new City { Latitude=19.3892246, Longitude= -70.1305136, Name="San Juan", Area=2309 }
    };
}

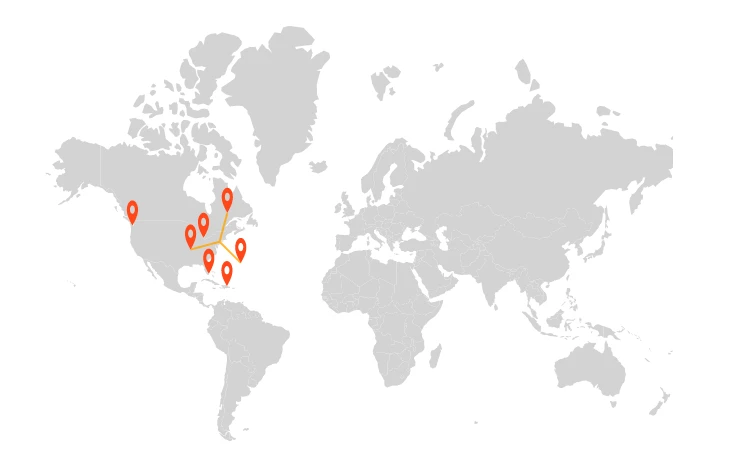

Blazor Maps Marker with Custom Cluster

Expanding the marker cluster

The cluster is formed by grouping an identical and non-identical marker from the surrounding area. By clicking on the cluster and setting the AllowClusterExpand property in MapsMarkerClusterSettings as true to expand the identical markers. If zooming is performed in any of the locations of the cluster, the number on the cluster will decrease and the overlapping marker will be split into an individual marker on the map. When performing zoom out, it will increase the marker count and then cluster it again.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" DataSource='MarkerDataSource' TValue="MapMarkerDataSource"/>
            </MapsMarkerSettings>
            <MapsMarkerClusterSettings AllowClustering="true" AllowClusterExpand="true" Shape="MarkerType.Circle" Height="40" Width="40">
                <MapsLayerMarkerClusterLabelStyle Color="white"></MapsLayerMarkerClusterLabelStyle>
            </MapsMarkerClusterSettings>
        </MapsLayer>
    </MapsLayers>
    <MapsZoomSettings Enable='true' MouseWheelZoom="true"></MapsZoomSettings>
</SfMaps>
@code {
    public class MapMarkerDataSource
    {
        public double latitude { get; set; }
        public double longitude { get; set; }
        public string name { get; set; }
    };
    public List<MapMarkerDataSource> MarkerDataSource = new List<MapMarkerDataSource> {
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 49.95121990866204, longitude= 18.468749999999998, name= "Europe" },
        new MapMarkerDataSource{ latitude= 59.88893689676585, longitude= -109.3359375, name= "North America" },
        new MapMarkerDataSource{ latitude= -6.64607562172573, longitude= -55.54687499999999, name= "South America" }
    };
}

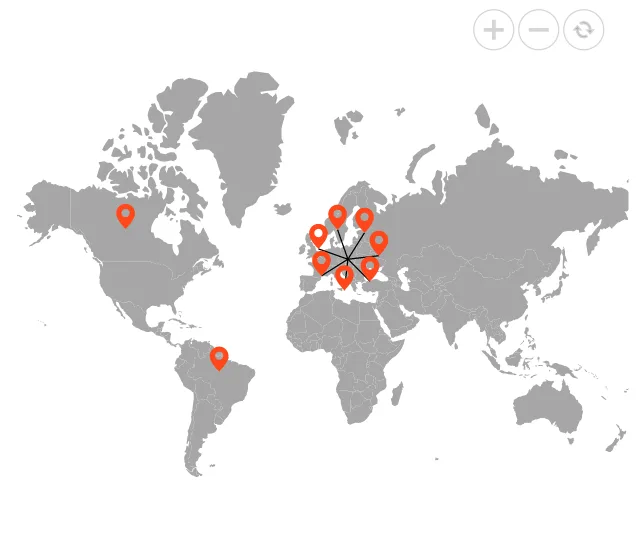

Expanding Marker Cluster in Blazor Maps

Clustering markers within each marker group

Marker clustering can be enabled for each marker group in the map by using the MapsMarkerClusterSettings tag within the MapsMarker of the MapsLayer tag. This allows for individual customization of clusters for each marker group which group markers that are located near each other to reduce clutter and improve readability. When the AllowClustering property is set to true, the markers within each group are clustered and visually represented as separate clusters. As users zoom in, the clusters expand to reveal individual markers, enabling more detailed exploration. Clusters can also be expanded manually by setting the AllowClusterExpand property to true. The appearance of the clusters and their expansion behavior can be customized using the MapsMarkerClusterSettings property, similar to the MapsMarkerClusterSettings property, as explained in the sections above.

NOTE

When the MapsMarkerClusterSettings tag is enabled for a specific marker group, the MapsMarkerClusterSettings tag within the layers becomes ineffective.

@using Syncfusion.Blazor.Maps

<SfMaps>
        <MapsZoomSettings Enable="true">
            <MapsZoomToolbarSettings>
                <MapsZoomToolbarButton ToolbarItems="new List<ToolbarItem>() { ToolbarItem.Zoom,
                                   ToolbarItem.ZoomIn, ToolbarItem.ZoomOut, ToolbarItem.Pan, ToolbarItem.Reset }"></MapsZoomToolbarButton>
            </MapsZoomToolbarSettings>
        </MapsZoomSettings>
        <MapsTitleSettings Text="Attractive places around the world">
            <MapsTitleTextStyle Size="16px"/>
        </MapsTitleSettings>
        <MapsLayers>
            <MapsLayer  ShapeData='new { dataOptions = "https://cdn.syncfusion.com/maps/map-data/world-map.json" }' TValue="string">
                <MapsMarkerSettings>
                    <MapsMarker Visible="true" TValue="City" DataSource="@MarkerDataFrance" Shape="MarkerType.Circle" Fill="#b38600" Height="15" Width="15">
                        <MapsMarkerBorder Color="#e6f2ff" Width="2"></MapsMarkerBorder>
                        <MapsMarkerClusterSettings AllowClustering="true" AllowClusterExpand="true" Shape="MarkerType.Image" ImageUrl="https://blazor.syncfusion.com/demos/_content/Blazor_Server_Common_NET9/images/maps/cluster-france.svg" Height="40" Width="40">
                            <MapsLayerMarkerClusterLabelStyle Color="White" Size="10px"></MapsLayerMarkerClusterLabelStyle>
                        </MapsMarkerClusterSettings>
                        <MapsMarkerTooltipSettings Visible="true" ValuePath="Name" Format="<b>Name:<b> ${Name} <br/> <b>State:<b> ${State} <br/> <b>Country:<b> ${Country}">
                            <MapsMarkerTooltipTextStyle FontFamily="inherit"></MapsMarkerTooltipTextStyle>
                        </MapsMarkerTooltipSettings>
                    </MapsMarker>
                    <MapsMarker Visible="true" TValue="City" DataSource="@MarkerDataUSA" Shape="MarkerType.Circle" Fill="#bf4040" Height="15" Width="15">
                        <MapsMarkerBorder Color="#e6f2ff" Width="2"></MapsMarkerBorder>
                        <MapsMarkerClusterSettings AllowClustering="true" AllowClusterExpand="true" Shape="MarkerType.Image" ImageUrl="https://blazor.syncfusion.com/demos/_content/Blazor_Server_Common_NET9/images/maps/cluster-usa.svg" Height="40" Width="40">
                            <MapsLayerMarkerClusterLabelStyle Color="White" Size="10px"></MapsLayerMarkerClusterLabelStyle>
                        </MapsMarkerClusterSettings>
                        <MapsMarkerTooltipSettings Visible="true" ValuePath="Name" Format="<b>Name:<b> ${Name} <br/> <b>State:<b> ${State} <br/> <b>Country:<b> ${Country}">
                            <MapsMarkerTooltipTextStyle FontFamily="inherit"></MapsMarkerTooltipTextStyle>
                        </MapsMarkerTooltipSettings>
                    </MapsMarker>
                    <MapsMarker Visible="true" TValue="City" DataSource="@MarkerDataIndia" Shape="MarkerType.Circle" Fill="#00b3b3" Height="15" Width="15">
                        <MapsMarkerBorder Color="#e6f2ff" Width="2"></MapsMarkerBorder>
                        <MapsMarkerClusterSettings AllowClustering="true" AllowClusterExpand="true" Shape="MarkerType.Image" ImageUrl="https://blazor.syncfusion.com/demos/_content/Blazor_Server_Common_NET9/images/maps/cluster-india.svg" Height="40" Width="40">
                            <MapsLayerMarkerClusterLabelStyle Color="White" Size="10px"></MapsLayerMarkerClusterLabelStyle>
                        </MapsMarkerClusterSettings>
                        <MapsMarkerTooltipSettings Visible="true" ValuePath="Name" Format="<b>Name:<b> ${Name} <br/> <b>State:<b> ${State} <br/> <b>Country:<b> ${Country}">
                            <MapsMarkerTooltipTextStyle FontFamily="inherit"></MapsMarkerTooltipTextStyle>
                        </MapsMarkerTooltipSettings>
                    </MapsMarker>
                </MapsMarkerSettings>
            </MapsLayer>
        </MapsLayers>
    </SfMaps>
@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
        public string State { get; set; }
        public string Country { get; set; }
    }
    private List<City> MarkerDataFrance = new List<City> {
          new City { Latitude= 48.8584, Longitude= 2.2945, Name= "Eiffel Tower", State= "Paris", Country= "France" },
          new City { Latitude= 48.8606, Longitude= 2.3376, Name= "Louvre Museum", State= "Paris", Country= "France" },
          new City { Latitude= 48.8529, Longitude= 2.3500, Name= "Notre-Dame Cathedral", State= "Paris", Country= "France" },
          new City { Latitude= 48.6360, Longitude= 1.5115, Name= "Mont Saint-Michel", State= "Normandy", Country= "France" }
    };
    private List<City> MarkerDataUSA = new List<City> {
          new City { Latitude= 35.019028, Longitude= -85.339439,  Name= "Ruby Falls", State= "Tennessee", Country= "United States of America" },
          new City { Latitude= 35.654613, Longitude= -105.996979, Name= "Meow Wolf Santa Fe", State= "New Mexico", Country= "United States of America" },
          new City { Latitude= 36.107216, Longitude= -115.175804, Name= "City Center of Las Vegas", State= "Nevada", Country= "United States of America" },
          new City { Latitude= 36.879047, Longitude= -111.510498, Name= "Horseshoe Bend", State= "Arizona", Country= "United States of America" },
          new City { Latitude= 36.011955, Longitude= -113.810951, Name= "Grand Canyon West Skywalk", State= "Arizona", Country= "United States of America" }
    };
    private List<City> MarkerDataIndia = new List<City> {
          new City { Latitude= 26.985901, Longitude= 75.850700, Name= "Amber Fort, Amer", State= "Rajastan", Country= "India" },
          new City { Latitude= 22.957390, Longitude= 77.625275, Name= "Bhimbetka, Raisen District", State= "Madhya Pradesh", Country= "India" },
          new City { Latitude= 26.809330, Longitude= 75.540527, Name= "Bagru Fort, Bagru", State= "Rajasthan", Country= "India" },
          new City { Latitude= 25.489504, Longitude= 80.330116, Name= "Kalinjar Fort, Banda", State= "Uttar Pradesh", Country= "India" },
          new City { Latitude= 27.988890, Longitude= 76.388336, Name= "Neemrana", State= "Rajasthan", Country= "India" }
    };
}

Clustering Marker Within Each Marker Group in Blazor Maps

Tooltip for marker

Tooltip is used to display more information about a marker on mouse over or touch end event. This can be enabled separately for marker by setting the Visible property of MapsMarkerTooltipSettings to true. The ValuePath property in the MapsMarkerTooltipSettings takes the field name that presents in data source and displays that value as tooltip text.

@using Syncfusion.Blazor.Maps

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions ="https://cdn.syncfusion.com/maps/map-data/usa.json"}' TValue="string">
            <MapsMarkerSettings>
                <MapsMarker Visible="true" Shape="MarkerType.Circle" Fill="white" Width="20"
                            DataSource="HighestPopulation" TValue="City">
                    <MapsMarkerBorder Width="2" Color="#333"></MapsMarkerBorder>
                    <MapsMarkerTooltipSettings Visible="true" ValuePath="Name"></MapsMarkerTooltipSettings>
                </MapsMarker>
            </MapsMarkerSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

@code {
    public class City
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
    };
    public List<City> HighestPopulation = new List<City> {
        new City { Latitude = 40.7424509, Longitude = -74.0081468, Name = "New York" }
    };
}

Blazor Maps with Marker Tooltip

See also
