Multicolumn MultiSelect Dropdown

4 Nov 20253 minutes to read

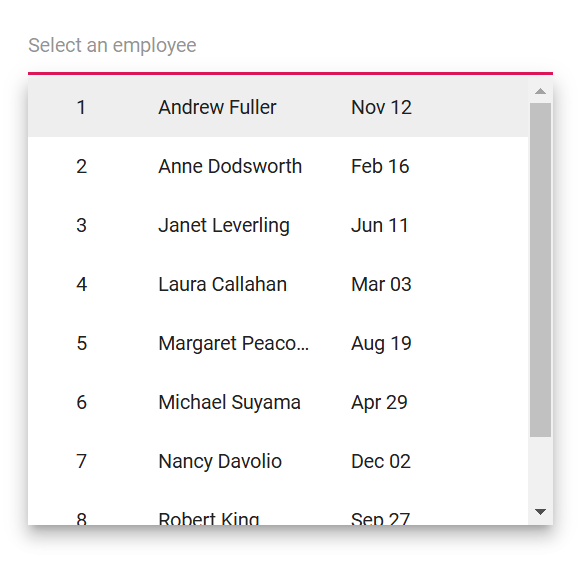

Display two or more columns in the popup by applying the e-multi-column class through the CssClass property. This organizes item content into a grid-like layout within each list item.

• ItemTemplate – Use ItemTemplate to define the columns rendered for each item in the popup.
• ValueTemplate – Use ValueTemplate to control how the selected value (chips/input) is displayed based on the defined columns.

Use the built-in utility classes below to control text alignment within each column:

• e-text-center: Centers the text in the column.
• e-text-right: Right-aligns the text in the column.
• e-text-left: Left-aligns the text in the column.

CSHTML

@using Syncfusion.Blazor.DropDowns;

<SfMultiSelect TValue="string[]" TItem="EmployeeData" Placeholder="Select an employee" CssClass="e-multi-column" DataSource="@Data" PopupHeight="300px" Width="350px">
    <MultiSelectTemplates TItem="EmployeeData">
        <ItemTemplate>
            <table><tbody><tr><td class="e-text-center column-width">@((context as EmployeeData).unit_id)</td><td>@((context as EmployeeData).unit_name)</td><td>@((context as EmployeeData).create_date)</td></tr> </tbody></table>
        </ItemTemplate>
        <ValueTemplate>
            <span>@((context as EmployeeData).unit_name)-@((context as EmployeeData).create_date) </span>
        </ValueTemplate>
    </MultiSelectTemplates>
    <MultiSelectFieldSettings Text="unit_name" Value="unit_id" />
</SfMultiSelect>
@code{

Type models = typeof(EmployeeData);
public class EmployeeData
{
public string unit_name { get; set; }
public string unit_id { get; set; }
public string create_date { get; set; }
public string Country { get; set; }
}
List<EmployeeData> Data = new List<EmployeeData>
{
new EmployeeData() { unit_name = "Andrew Fuller", unit_id = "1", create_date = "Nov 12", Country = "England"  },
new EmployeeData() { unit_name = "Anne Dodsworth", unit_id = "2", create_date = "Feb 16", Country = "USA" },
new EmployeeData() { unit_name = "Janet Leverling", unit_id = "3", create_date = "Jun 11", Country = "USA" },
new EmployeeData() { unit_name = "Laura Callahan", unit_id = "4", create_date = "Mar 03", Country = "USA" },
new EmployeeData() { unit_name = "Margaret Peacock", unit_id = "5", create_date = "Aug 19", Country = "USA" },
new EmployeeData() { unit_name = "Michael Suyama", unit_id = "6", create_date = "Apr 29", Country = "USA"  },
new EmployeeData() { unit_name = "Nancy Davolio", unit_id = "7", create_date = "Dec 02", Country = "USA" },
new EmployeeData() { unit_name = "Robert King", unit_id = "8", create_date = "Sep 27 ", Country = "England"  },
new EmployeeData() { unit_name = "Steven Buchanan", unit_id = "9", create_date = "Jan 10", Country = "England" }
};
}

<style>
    .column-width {
        width: 75px;
    }
</style>

How to display multicolumn item and CheckBox inline

To align the checkbox and item details on the same line within a templated item, apply the following CSS. These styles position the checkbox so it appears inline with the item content:

    .e-popup.e-multi-select-list-wrapper .e-list-item .e-checkbox-wrapper {
     position: absolute;
     top: 10px;
     left: 5px;
   }

Limitations of multicolumn layout

• Column-level features such as filtering and sorting are not supported.
• The multicolumn layout visually aligns fields in a grid-like manner but does not provide a full data grid feature set.
