Connecting MySQL to Blazor Pivot Table Using URL Adaptor

3 Aug 202624 minutes to read

The Blazor Pivot Table can load and edit MySQL data through an ASP.NET Core API and the Syncfusion URL Adaptor. The adaptor sends read and CRUD requests to controller endpoints; the controller uses MySql.Data to execute parameterized SQL against MySQL.

This tutorial is a small-data sample. Its read endpoint returns every raw order because the Pivot Table’s built-in engine needs the complete raw dataset to calculate accurate aggregates. For large datasets, use the Syncfusion server-side Pivot Engine instead of applying ordinary paging to this endpoint.

Prerequisites

The sample was tested with the following versions:

Software or package	Version
.NET SDK	10.0
MySQL Server	8.0 or later
MySQL Workbench	8.0 or later
Syncfusion.Blazor.PivotTable	34.2.2
Syncfusion.Blazor.Themes	34.2.2
MySql.Data	9.4.0

Use the same version for all Syncfusion packages. Later compatible patch releases can be used, but verify the Syncfusion release notes before changing versions.

You also need:

• A MySQL account allowed to create the sample database and application user.
• A valid Syncfusion license or trial key.
• An available local HTTPS development certificate. Run dotnet dev-certs https --trust if the certificate is not already trusted.

MySQL Database Setup and Application Configuration

Step 1: Create the Blazor Web App

Create an Interactive Server Blazor Web App:

dotnet new blazor --name PivotTableMySQL --framework net10.0 --interactivity Server --all-interactive
cd PivotTableMySQL

The remaining commands in this guide must be run from the PivotTableMySQL project directory.

Step 2: Create the MySQL Database and User

Open MySQL Workbench, connect with an administrative account, open a query tab, and run the following script. Replace CHOOSE_A_STRONG_PASSWORD before executing it.

CREATE DATABASE IF NOT EXISTS Orders
    CHARACTER SET utf8mb4
    COLLATE utf8mb4_0900_ai_ci;

CREATE USER IF NOT EXISTS 'pivotapp'@'localhost'
    IDENTIFIED BY 'CHOOSE_A_STRONG_PASSWORD';

ALTER USER 'pivotapp'@'localhost'
    IDENTIFIED BY 'CHOOSE_A_STRONG_PASSWORD';

USE Orders;

CREATE TABLE IF NOT EXISTS orders (
    orderid INT NOT NULL AUTO_INCREMENT,
    customername VARCHAR(100) NOT NULL,
    employeeid INT NOT NULL,
    shipcity VARCHAR(100) NULL,
    freight DECIMAL(12, 2) NULL,
    PRIMARY KEY (orderid)
);

GRANT SELECT, INSERT, UPDATE, DELETE
    ON Orders.orders
    TO 'pivotapp'@'localhost';

INSERT INTO orders (customername, employeeid, shipcity, freight)
VALUES
    ('Alice Johnson', 1, 'New York', 120.50),
    ('Bob Smith', 2, 'London', 85.20),
    ('Carol Davis', 1, 'New York', 210.75),
    ('David Brown', 3, 'Berlin', 95.00),
    ('Eve Wilson', 2, 'London', 150.25),
    ('Frank Moore', 4, 'Tokyo', 60.80),
    ('Grace Taylor', 1, 'New York', 180.40),
    ('Henry Anderson', 3, 'Berlin', 220.60),
    ('Ivy Thomas', 2, 'London', 75.10),
    ('Jack White', 4, 'Tokyo', 130.90);

The host portion of a MySQL account is significant. The account above is for an application running on the same computer as MySQL. Use the appropriate restricted host value when the application runs elsewhere.

Verify the setup:

SELECT * FROM Orders.orders ORDER BY orderid;
SHOW GRANTS FOR 'pivotapp'@'localhost';

Step 3: Install the NuGet Packages

Install the tested package versions:

dotnet add package Syncfusion.Blazor.PivotTable --version 34.2.2
dotnet add package Syncfusion.Blazor.Themes --version 34.2.2
dotnet add package MySql.Data --version 9.4.0

The resulting package references are:

<ItemGroup>
  <PackageReference Include="MySql.Data" Version="9.4.0" />
  <PackageReference Include="Syncfusion.Blazor.PivotTable" Version="34.2.2" />
  <PackageReference Include="Syncfusion.Blazor.Themes" Version="34.2.2" />
</ItemGroup>

This sample uses System.Text.Json, which is included with ASP.NET Core. Newtonsoft.Json is not required.

Step 4: Store the Connection String and License Key

Do not put database passwords or license keys in appsettings.json. Initialize .NET user secrets and store both values outside the project files:

dotnet user-secrets init
dotnet user-secrets set "ConnectionStrings:MySQL" "Server=localhost;Port=3306;Database=Orders;Uid=pivotapp;Pwd=CHOOSE_A_STRONG_PASSWORD;SslMode=Preferred;"
dotnet user-secrets set "SyncfusionLicenseKey" "YOUR_SYNCFUSION_LICENSE_KEY"

Replace both placeholder values. For deployment, set ConnectionStrings__MySQL and SyncfusionLicenseKey through the hosting platform’s secret store.

The connection-string components used by the sample are:

Component	Description
Server	MySQL host name or IP address
Port	MySQL port; the default is 3306
Database	Default database, Orders
Uid	Dedicated application account, pivotapp
Pwd	Application-account password
SslMode	TLS behavior; use Required with a correctly configured production server

Step 5: Create the Shared Order Model

Create a Models folder and add Models/Order.cs:

using System.ComponentModel.DataAnnotations;

namespace PivotTableMySQL.Models;

public class Order
{
    [Key]
    public int OrderID { get; set; }

    [Required]
    [StringLength(100)]
    public string CustomerName { get; set; } = string.Empty;

    [Range(1, int.MaxValue)]
    public int EmployeeID { get; set; }

    [Range(typeof(decimal), "0", "9999999999.99")]
    public decimal? Freight { get; set; }

    [StringLength(100)]
    public string? ShipCity { get; set; }
}

The same model is used by the controller and Razor component. The [Key] annotation identifies OrderID as the primary key when the Pivot Table creates its raw-item edit grid. Do not attempt to access BeginDrillThroughEventArgs.GridObj; the current event documentation states that this property is returned as null.

Step 6: Create the API Controller

Create a Controllers folder and add Controllers/OrderController.cs:

using System.Data.Common;
using Microsoft.AspNetCore.Mvc;
using MySql.Data.MySqlClient;
using PivotTableMySQL.Models;
using Syncfusion.Blazor;
using Syncfusion.Blazor.Data;

namespace PivotTableMySQL.Controllers;

[ApiController]
[Route("api/[controller]")]
public class OrderController : ControllerBase
{
    private readonly string connectionString;

    public OrderController(IConfiguration configuration)
    {
        connectionString = configuration.GetConnectionString("MySQL")
            ?? throw new InvalidOperationException(
                "ConnectionStrings:MySQL is not configured.");

        if (string.IsNullOrWhiteSpace(connectionString))
        {
            throw new InvalidOperationException(
                "ConnectionStrings:MySQL must not be empty.");
        }
    }

    [HttpPost]
    public async Task<ActionResult<object>> Read(
        [FromBody] DataManagerRequest request,
        CancellationToken cancellationToken)
    {
        // The built-in Pivot Table engine requires the complete raw dataset.
        // DataManagerRequest paging must not be applied to this endpoint.
        _ = request;

        List<Order> orders = [];

        const string sql = """
            SELECT orderid, customername, employeeid, shipcity, freight
            FROM orders
            ORDER BY orderid;
            """;

        await using MySqlConnection connection = new(connectionString);
        await connection.OpenAsync(cancellationToken);

        await using MySqlCommand command = new(sql, connection);
        await using DbDataReader reader =
            await command.ExecuteReaderAsync(cancellationToken);

        int orderIdOrdinal = reader.GetOrdinal("orderid");
        int customerNameOrdinal = reader.GetOrdinal("customername");
        int employeeIdOrdinal = reader.GetOrdinal("employeeid");
        int shipCityOrdinal = reader.GetOrdinal("shipcity");
        int freightOrdinal = reader.GetOrdinal("freight");

        while (await reader.ReadAsync(cancellationToken))
        {
            orders.Add(new Order
            {
                OrderID = reader.GetInt32(orderIdOrdinal),
                CustomerName = reader.GetString(customerNameOrdinal),
                EmployeeID = reader.GetInt32(employeeIdOrdinal),
                ShipCity = reader.IsDBNull(shipCityOrdinal)
                    ? null
                    : reader.GetString(shipCityOrdinal),
                Freight = reader.IsDBNull(freightOrdinal)
                    ? null
                    : reader.GetDecimal(freightOrdinal)
            });
        }

        return Ok(new
        {
            result = orders,
            count = orders.Count
        });
    }

    [HttpPost("Insert")]
    public async Task<ActionResult<Order>> Insert(
        [FromBody] CRUDModel<Order> request,
        CancellationToken cancellationToken)
    {
        if (request.Value is not Order order)
        {
            return BadRequest("The request must contain an order value.");
        }

        const string sql = """
            INSERT INTO orders
                (customername, employeeid, shipcity, freight)
            VALUES
                (@customername, @employeeid, @shipcity, @freight);
            """;

        await using MySqlConnection connection = new(connectionString);
        await connection.OpenAsync(cancellationToken);

        await using MySqlCommand command = new(sql, connection);
        command.Parameters.Add("@customername", MySqlDbType.VarChar, 100)
            .Value = order.CustomerName;
        command.Parameters.Add("@employeeid", MySqlDbType.Int32)
            .Value = order.EmployeeID;
        command.Parameters.Add("@shipcity", MySqlDbType.VarChar, 100)
            .Value = order.ShipCity ?? (object)DBNull.Value;
        command.Parameters.Add("@freight", MySqlDbType.Decimal)
            .Value = order.Freight ?? (object)DBNull.Value;

        await command.ExecuteNonQueryAsync(cancellationToken);
        order.OrderID = checked((int)command.LastInsertedId);

        return Ok(order);
    }

    [HttpPost("Update")]
    public async Task<ActionResult<Order>> Update(
        [FromBody] CRUDModel<Order> request,
        CancellationToken cancellationToken)
    {
        if (request.Value is not Order order || order.OrderID <= 0)
        {
            return BadRequest(
                "The request must contain an order with a valid OrderID.");
        }

        const string sql = """
            UPDATE orders
            SET customername = @customername,
                employeeid = @employeeid,
                shipcity = @shipcity,
                freight = @freight
            WHERE orderid = @orderid;
            """;

        await using MySqlConnection connection = new(connectionString);
        await connection.OpenAsync(cancellationToken);

        await using MySqlCommand command = new(sql, connection);
        command.Parameters.Add("@customername", MySqlDbType.VarChar, 100)
            .Value = order.CustomerName;
        command.Parameters.Add("@employeeid", MySqlDbType.Int32)
            .Value = order.EmployeeID;
        command.Parameters.Add("@shipcity", MySqlDbType.VarChar, 100)
            .Value = order.ShipCity ?? (object)DBNull.Value;
        command.Parameters.Add("@freight", MySqlDbType.Decimal)
            .Value = order.Freight ?? (object)DBNull.Value;
        command.Parameters.Add("@orderid", MySqlDbType.Int32)
            .Value = order.OrderID;

        int affectedRows =
            await command.ExecuteNonQueryAsync(cancellationToken);

        return affectedRows == 0 ? NotFound() : Ok(order);
    }

    [HttpPost("Delete")]
    public async Task<IActionResult> Delete(
        [FromBody] CRUDModel<Order> request,
        CancellationToken cancellationToken)
    {
        if (!int.TryParse(request.Key?.ToString(), out int orderId)
            || orderId <= 0)
        {
            return BadRequest("A positive numeric order key is required.");
        }

        const string sql =
            "DELETE FROM orders WHERE orderid = @orderid;";

        await using MySqlConnection connection = new(connectionString);
        await connection.OpenAsync(cancellationToken);

        await using MySqlCommand command = new(sql, connection);
        command.Parameters.Add("@orderid", MySqlDbType.Int32)
            .Value = orderId;

        int affectedRows =
            await command.ExecuteNonQueryAsync(cancellationToken);

        return affectedRows == 0
            ? NotFound()
            : Ok(new { key = orderId });
    }
}

The controller uses the built-in Syncfusion.Blazor.Data.CRUDModel<T> request type. ASP.NET Core automatically returns validation responses for invalid annotated model values. Unhandled database exceptions are converted to Problem Details responses by the middleware configured in the next step.

Step 7: Configure Program.cs

Replace Program.cs with:

using PivotTableMySQL.Components;
using Syncfusion.Blazor;
using Syncfusion.Licensing;

var builder = WebApplication.CreateBuilder(args);

string licenseKey = builder.Configuration["SyncfusionLicenseKey"]
    ?? throw new InvalidOperationException(
        "SyncfusionLicenseKey is not configured.");

SyncfusionLicenseProvider.RegisterLicense(licenseKey);

builder.Services.AddSyncfusionBlazor();
builder.Services.AddProblemDetails();
builder.Services.AddControllers();
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents();

var app = builder.Build();

app.UseExceptionHandler();

if (!app.Environment.IsDevelopment())
{
    app.UseHsts();
}

app.UseHttpsRedirection();
app.UseAntiforgery();

app.MapStaticAssets();
app.MapControllers();
app.MapRazorComponents<App>()
    .AddInteractiveServerRenderMode();

app.Run();

The sample API is same-origin and does not require CORS. If the API and Blazor application are deployed on different origins, configure a named CORS policy that allows only the Blazor application’s origin.

Step 8: Add Imports, Theme, and Scripts

Add these imports to Components/_Imports.razor:

@using PivotTableMySQL.Models
@using Syncfusion.Blazor
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.PivotView

In the <head> element of Components/App.razor, add:

<link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css"
      rel="stylesheet" />

Before the closing </body> tag, add the Syncfusion script after the existing Blazor script:

<script src="_framework/blazor.web.js"></script>
<script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js"
        type="text/javascript"></script>

Do not add a second _framework/blazor.web.js reference if the template already contains it.

Step 9: Configure the Pivot Table

Replace Components/Pages/Home.razor with:

@page "/"

<PageTitle>MySQL Pivot Table</PageTitle>

<SfPivotView TValue="Order"
             Width="100%"
             Height="400"
             ShowFieldList="true">
    <PivotViewDataSourceSettings TValue="Order"
                                 ExpandAll="false"
                                 EnableSorting="true">
        <SfDataManager Url="/api/Order"
                       InsertUrl="/api/Order/Insert"
                       UpdateUrl="/api/Order/Update"
                       RemoveUrl="/api/Order/Delete"
                       Adaptor="Adaptors.UrlAdaptor">
        </SfDataManager>
        <PivotViewColumns>
            <PivotViewColumn Name="@nameof(Order.EmployeeID)">
            </PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="@nameof(Order.CustomerName)">
            </PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="@nameof(Order.Freight)"
                            Caption="Freight">
            </PivotViewValue>
        </PivotViewValues>
    </PivotViewDataSourceSettings>
    <PivotViewGridSettings ColumnWidth="120">
    </PivotViewGridSettings>
    <PivotViewCellEditSettings AllowEditing="true"
                               AllowAdding="true"
                               AllowDeleting="true"
                               Mode="EditMode.Normal">
    </PivotViewCellEditSettings>
</SfPivotView>

Relative URLs keep all requests on the application’s current scheme, host, and port. They work with both the HTTP and HTTPS launch profiles and avoid mixed-content and CORS failures.

The [Key] annotation on the shared Order.OrderID property supplies the raw-item grid’s primary key. Current Blazor Pivot Table releases return BeginDrillThroughEventArgs.GridObj as null, so the component does not use a BeginDrillThrough handler to configure columns.

API Contract

The URL Adaptor uses these endpoints:

Method	Route	Request body	Success response
POST	/api/Order	DataManagerRequest	{ "result": [...], "count": n }
POST	/api/Order/Insert	CRUDModel<Order>	Inserted Order, including its generated OrderID
POST	/api/Order/Update	CRUDModel<Order>	Updated Order
POST	/api/Order/Delete	CRUDModel<Order>	{ "key": orderId }

Example insert request:

{
  "action": "add",
  "keyColumn": "OrderID",
  "value": {
    "orderID": 0,
    "customerName": "Karen Lee",
    "employeeID": 3,
    "shipCity": "Berlin",
    "freight": 110.00
  }
}

Example update request:

{
  "action": "update",
  "keyColumn": "OrderID",
  "key": 1,
  "value": {
    "orderID": 1,
    "customerName": "Alice Johnson",
    "employeeID": 1,
    "shipCity": "Boston",
    "freight": 125.00
  }
}

Example delete request:

{
  "action": "remove",
  "keyColumn": "OrderID",
  "key": 1
}

Property-name casing in captured requests can vary with the serializer settings used by a specific package release. ASP.NET Core’s default web serializer matches property names case-insensitively.

Run and Verify the Application

Restore, build, and run the project:

dotnet restore
dotnet build
dotnet run

Open the HTTPS URL printed in the terminal. Then verify:

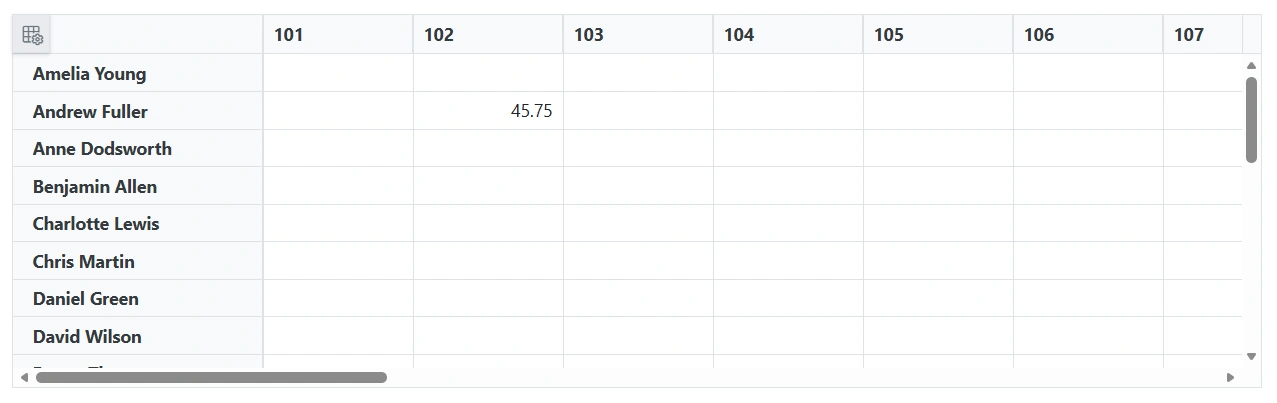

• The Pivot Table displays the ten sample orders.
• Adding a raw record creates a new row in Orders.orders.
• Editing a raw record changes the matching orderid.
• Deleting a raw record removes the matching orderid.
• The browser Network panel shows POST requests to the four /api/Order endpoints.

Verify the database after CRUD testing:

SELECT * FROM Orders.orders ORDER BY orderid;

The read endpoint accepts only POST; navigating to /api/Order in the browser address bar sends GET and correctly returns 405 Method Not Allowed.

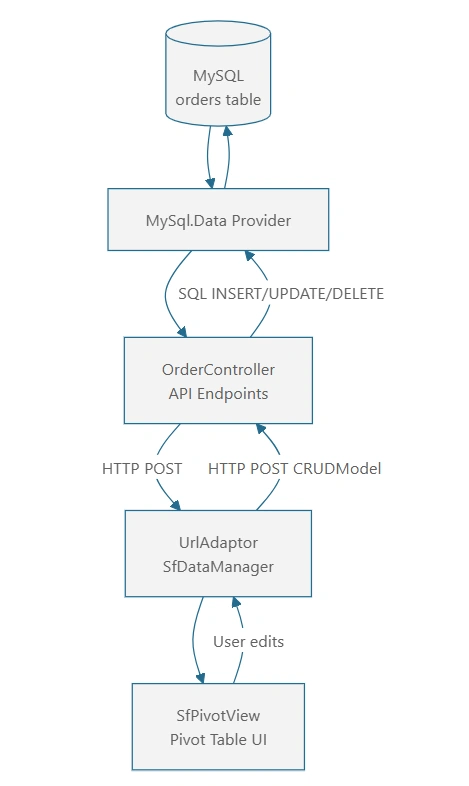

Data Flow Diagram

The following image illustrates how data flows between MySQL, the ASP.NET Core controller, and the Syncfusion Blazor Pivot Table.

Production Security

This tutorial’s CRUD endpoints are intentionally unauthenticated for local development. Do not expose them publicly in this form.

Before deployment:

1. Configure an ASP.NET Core authentication scheme appropriate for the application.
2. Add [Authorize] to OrderController or an equivalent authorization policy.
3. Restrict the MySQL application account to the required database, operations, and source host.
4. Use SslMode=Required with a trusted MySQL server certificate.
5. Keep the connection string and license key in the deployment platform’s secret store.
6. If cookie authentication protects the API, configure antiforgery tokens for adaptor write requests; otherwise use an appropriate non-cookie API authentication scheme.
7. Restrict CORS to known origins if the client and API are hosted separately.

Large Datasets

Do not apply Skip, Take, or ordinary DataManager paging to the read action in this sample. Doing so sends only part of the raw dataset to the built-in Pivot Table engine and produces incomplete aggregates.

For large datasets, follow the server-side Pivot Engine guide. The server-side engine performs aggregation, filtering, grouping, and sorting on the server and sends only the required pivot results to the browser.

Troubleshooting

Symptom	Resolution
ConnectionStrings:MySQL is not configured	Run the dotnet user-secrets set "ConnectionStrings:MySQL" "..." command from the project directory or configure ConnectionStrings__MySQL.
SyncfusionLicenseKey is not configured	Store a valid key with user secrets or the deployment secret store.
Unable to connect to any of the specified MySQL hosts	Confirm that MySQL is running and verify Server, Port, TLS settings, and firewall access.
Access denied for user 'pivotapp'	Verify the password, account host, and SHOW GRANTS FOR 'pivotapp'@'localhost'.
Table 'Orders.orders' doesn't exist	Run the database script and preserve the lowercase orders table name, especially on Linux.
405 Method Not Allowed for /api/Order	Test through the Pivot Table or send a POST request; an address-bar request is GET.
CRUD returns 400 Bad Request	Inspect the Problem Details response and confirm required fields, field lengths, numeric ranges, and request shape.
Update or delete returns 404 Not Found	Confirm that the request contains an existing positive OrderID key.
Editing affects the wrong row	Confirm that the shared model includes [Key] on OrderID and that the client and controller both use that model.
Browser reports mixed content or CORS	Keep the relative /api/Order URLs for same-origin hosting; otherwise configure HTTPS and a restricted CORS policy.
Authentication plugin error	Keep MySQL’s caching_sha2_password authentication and use the documented MySql.Data version or a later compatible release; do not switch to deprecated mysql_native_password.
Pivot values are incomplete for a large dataset	Remove ordinary endpoint paging and migrate to the Syncfusion server-side Pivot Engine.

Complete Sample Repository

A complete, working sample implementation is available in the GitHub repository.

Summary

The application now:

1. Connects to MySQL with a dedicated least-privilege account.
2. Keeps credentials and the Syncfusion license key outside source control.
3. Shares one annotated Order model between the controller and Pivot Table.
4. Uses asynchronous, parameterized MySQL commands.
5. Exposes documented URL Adaptor read and CRUD endpoints.
6. Uses relative same-origin URLs and standardized Problem Details errors.
7. Identifies the supported server-side approach for large datasets.
