Insert image in RichTextEditor
18 Aug 202323 minutes to read

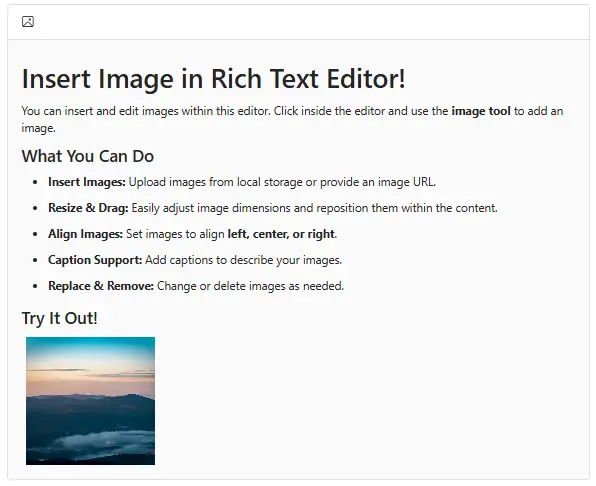

Insert image from web
To insert an image from an online source like Google, Ping, and more, enable the images tool on the editor’s toolbar. By default, the images tool opens an image dialog that allows inserting an image from the online source.
Upload and insert image
Through the browse option in the image dialog, select the image from the local machine and insert it into the Rich Text Editor content.
If the path field is not specified in RichTextEditorImageSettings, the image will be converted to base64, and a blob url for the image will be created, and the generated url will set as the src property of the <img> tag as follows:
The image has been loaded from the local machine and it will be saved in the given location.
<img src="blob:http://blazor.syncfusion.com/3ab56a6e-ec0d-490f-85a5-f0aeb0ad8879" >
NOTE
If you want to insert many tiny images in the editor and don’t want a specific physical location for saving images, opt to save the format as
Base64.
Restrict image upload based on size
By using the Rich Text Editor’s RichTextEditorEvents.OnImageUploading event, you can get the image size before uploading and restrict the image to upload when the given image size is greater than the allowed size.
In the following code, the image size has been validated before uploading and it has been determined whether the image has been uploaded or not.
@using Syncfusion.Blazor.RichTextEditor
<SfRichTextEditor>
<RichTextEditorImageSettings SaveUrl="https://aspnetmvc.syncfusion.com/services/api/uploadbox/Save" Path="./Images/" />
<RichTextEditorEvents BeforeUploadImage="@BeforeUploadImage" />
</SfRichTextEditor>
@code {
private void BeforeUploadImage(ImageUploadingEventArgs args)
{
var sizeInBytes = args.FilesData[0].Size;
var imgSize = 500000;
if (imgSize < sizeInBytes) {
args.Cancel = true;
}
}
}NOTE
You can’t restrict while uploading an image as a hyperlink in the insert image dialog. When inserting images using the link, the editor does not allow you to limit the image size. You could not identify the image file size when the image was provided as a link.
Server side action
The selected image can be uploaded to the required destination using the controller action below. Map this method name into RichTextEditorImageSettings.SaveUrl and provide required destination path through RichTextEditorImageSettings.Path property.
NOTE
@using Syncfusion.Blazor.RichTextEditor
<SfRichTextEditor>
<RichTextEditorImageSettings SaveUrl="api/Image/Save" Path="./Images/" />
</SfRichTextEditor>using System;
using System.IO;
using System.Net.Http.Headers;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Http;
using System.Collections.Generic;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Http.Features;
namespace ImageUpload.Controllers
{
[ApiController]
public class ImageController : ControllerBase
{
private readonly IWebHostEnvironment hostingEnv;
public ImageController(IWebHostEnvironment env)
{
this.hostingEnv = env;
}
[HttpPost("[action]")]
[Route("api/Image/Save")]
public void Save(IList<IFormFile> UploadFiles)
{
try
{
foreach (var file in UploadFiles)
{
if (UploadFiles != null)
{
string targetPath = hostingEnv.ContentRootPath + "\\wwwroot\\Images";
string filename = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
// Create a new directory, if it does not exists
if (!Directory.Exists(targetPath))
{
Directory.CreateDirectory(targetPath);
}
// Name which is used to save the image
filename = targetPath + $@"\{filename}";
if (!System.IO.File.Exists(filename))
{
// Upload a image, if the same file name does not exist in the directory
using (FileStream fs = System.IO.File.Create(filename))
{
file.CopyTo(fs);
fs.Flush();
}
Response.StatusCode = 200;
}
else
{
Response.StatusCode = 204;
}
}
}
}
catch (Exception e)
{
Response.Clear();
Response.ContentType = "application/json; charset=utf-8";
Response.HttpContext.Features.Get<IHttpResponseFeature>().ReasonPhrase = e.Message;
}
}
}
}
Save image in application path
Using the RichTextEditorImageSettings.Path property, save the uploaded image in your application path. Also, change the path of the image by creating a folder structure as per your requirements under the folder wwwroot. You can’t create a path outside the wwwroot folder since any files, including HTML files, CSS files, image files, and JavaScript files, sent to the user’s browser should be stored inside the wwwroot folder.
@using Syncfusion.Blazor.RichTextEditor
<SfRichTextEditor>
<RichTextEditorImageSettings SaveUrl="api/Image/Save" Path="./mnt/momfiles/WEB/NoticeBoard/Image/"></RichTextEditorImageSettings>
</SfRichTextEditor>public class ImageController : ControllerBase
{
private readonly IWebHostEnvironment hostingEnv;
public ImageController(IWebHostEnvironment env)
{
this.hostingEnv = env;
}
[HttpPost("[action]")]
[Route("api/Image/Save")]
public void Save(IList<IFormFile> UploadFiles)
{
try
{
foreach (var file in UploadFiles)
{
if (UploadFiles != null)
{
string targetPath = hostingEnv.ContentRootPath + \\wwwroot\\mnt\\momfiles\\WEB\\NoticeBoard\\Image;
string filename = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
// Create a new directory, if it does not exists
if (!Directory.Exists(targetPath))
{
Directory.CreateDirectory(targetPath);
}
// Name which is used to save the image
filename = targetPath + $@"\{filename}";
if (!System.IO.File.Exists(filename))
{
// Upload a image, if the same file name does not exist in the directory
using (FileStream fs = System.IO.File.Create(filename))
{
file.CopyTo(fs);
fs.Flush();
}
Response.StatusCode = 200;
}
else
{
Response.StatusCode = 204;
}
}
}
}
catch (Exception e)
{
Response.Clear();
Response.ContentType = "application/json; charset=utf-8";
Response.HttpContext.Features.Get<IHttpResponseFeature>().ReasonPhrase = e.Message;
}
}
}Image save format
By default, the Rich Text Editor inserts the images in Blob format, but you can also change the save format by setting the RichTextEditorImageSettings.SaveFormat property as SaveFormat.Base64.
@using Syncfusion.Blazor.RichTextEditor
<SfRichTextEditor>
<RichTextEditorImageSettings SaveFormat="SaveFormat.Base64"></RichTextEditorImageSettings>
</SfRichTextEditor>Delete image
To remove an image from the Rich Text Editor content, select the image and click the Remove tool from the quick toolbar. It will delete the image from the Rich Text Editor content.
After selecting the image from the local machine, the URL for the image will be generated. From there also, remove the image from the service location by clicking the cross icon as in the following image.
Dimension
Sets the default width and height of the image when it is inserted in the Rich Text Editor using the RichTextEditorImageSettings.Width and RichTextEditorImageSettings.Height property.
Through the quickToolbar, also change the width and height using the change size option. After clicking the option, the image size will open as follows. In that, specify the width and height of the image in pixels.

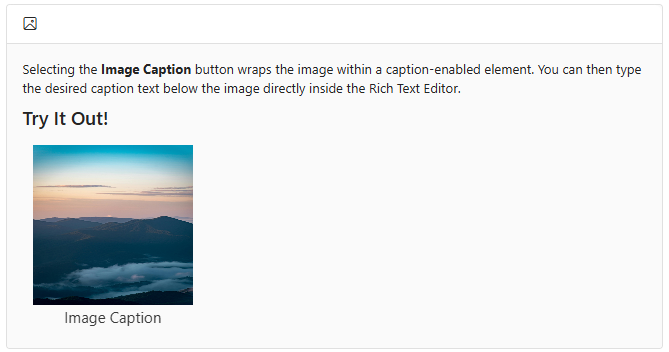

Caption and alt text
The image caption and alternative text can be specified for the inserted image in the Rich Text Editor using the RichTextEditorQuickToolbarSettings options such as Image Caption and Alternative Text.
Through the Alternative Text option, set the alternative text for the image when the image is not successfully uploaded into the Rich Text Editor.
When you click the Image Caption button, the image is wrapped in an image element with a caption. Then, type the caption content inside the Rich Text Editor.

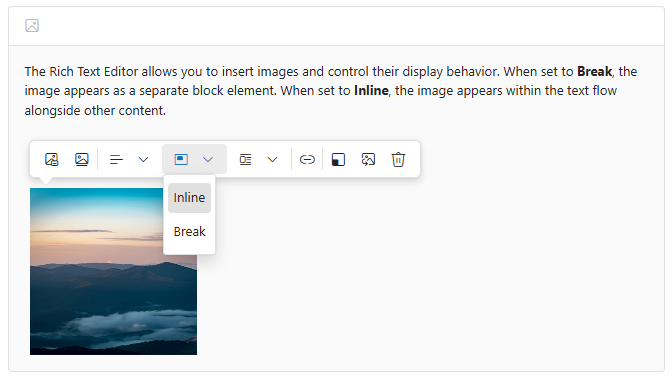

Display position
Sets the default display for an image when it is inserted in the Rich Text Editor using the RichTextEditorImageSettings.Display property.
NOTE
It has two possible options:
InlineandBreak.
@using Syncfusion.Blazor.RichTextEditor
<SfRichTextEditor>
<RichTextEditorImageSettings Display="ImageDisplay.Inline" />
<p>The Rich Text Editor allows you to insert images from the online source as well as the local computer where you want to insert the image in your content.</p>
<p><b>Get started with Quick Toolbar to click on the image</b></p>
<p>It is possible to add a custom style on the selected image inside the Rich Text Editor through the quick toolbar.</p>
<img alt='Logo' style='width: 300px; height: 300px; transform: rotate(0deg);' src='https://blazor.syncfusion.com/demos/images/RichTextEditor/RTEImage-Feather.png' />
</SfRichTextEditor>Image with link
The hyperlink itself can be an image in the Rich Text Editor. If the image is given as a hyperlink, the remove, edit, and open links will be added to the quick toolbar of the image as follows. For further details about the link, refer to the link documentation.

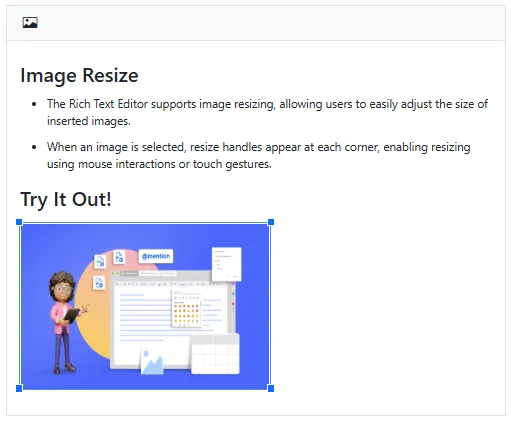

Resize image
The Rich Text Editor has built-in image inserting support. The resize points will appear on each corner of the image when focused. So, users can easily resize the image using mouse points or their thumbs through the resize points. Also, the resize calculation will be done based on the aspect ratio.
Rename images before inserting
By using the RichTextEditorImageSettings property, the server handler can be specified to upload and rename the selected image. Then, the OnImageUploadSuccess event could be bound, to receive the modified file name from the server and update it in the Rich Text Editor’s insert image dialog.
NOTE
@using Syncfusion.Blazor.RichTextEditor
<SfRichTextEditor>
<RichTextEditorImageSettings SaveUrl="[SERVICE_HOSTED_PATH]/api/Image/Rename" Path="./Images/" />
<RichTextEditorEvents OnImageUploadSuccess="@ImageUploadSuccess" />
</SfRichTextEditor>
@code {
public string[] header { get; set; }
private void ImageUploadSuccess(ImageSuccessEventArgs args)
{
var headers = args.Response.Headers.ToString();
header = headers.Split("name: ");
header = header[1].Split("\r");
// Update the modified image name to display a image in the editor.
args.File.Name = header[0];
}
}To configure the server-side handler in the Web API service, refer the below code.
using System;
using System.IO;
using System.Net.Http.Headers;
using Microsoft.AspNetCore.Mvc;
using Microsoft.AspNetCore.Http;
using System.Collections.Generic;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Http.Features;
namespace RenameImage.Controllers
{
[ApiController]
public class ImageController : ControllerBase
{
private double x;
private string imageFileName;
private readonly IWebHostEnvironment hostingEnv;
public ImageController(IWebHostEnvironment env)
{
this.hostingEnv = env;
}
[HttpPost("[action]")]
[Route("api/Image/Rename")]
public void Rename(IList<IFormFile> UploadFiles)
{
try
{
foreach (IFormFile file in UploadFiles)
{
if (UploadFiles != null)
{
string targetPath = hostingEnv.ContentRootPath + "\\wwwroot\\Images";
string filename = ContentDispositionHeaderValue.Parse(file.ContentDisposition).FileName.Trim('"');
// Create a new directory, if it does not exists
if (!Directory.Exists(targetPath))
{
Directory.CreateDirectory(targetPath);
}
imageFileName = filename;
string path = hostingEnv.WebRootPath + "\\Images" + $@"\{filename}";
// Rename a uploaded image file name
while (System.IO.File.Exists(path))
{
imageFileName = "rteImage" + x + "-" + filename;
path = hostingEnv.WebRootPath + "\\Images" + $@"\rteImage{x}-{filename}";
x++;
}
if (!System.IO.File.Exists(path))
{
using (FileStream fs = System.IO.File.Create(path))
{
file.CopyTo(fs);
fs.Flush();
fs.Close();
}
// Modified file name shared through response header by adding custom header
Response.Headers.Add("name", imageFileName);
Response.StatusCode = 200;
Response.ContentType = "application/json; charset=utf-8";
}
}
}
}
catch (Exception e)
{
Response.Clear();
Response.ContentType = "application/json; charset=utf-8";
Response.HttpContext.Features.Get<IHttpResponseFeature>().ReasonPhrase = e.Message;
}
}
}
}
