Data Binding in Blazor Scheduler component

The Scheduler uses DataManager, which supports both RESTful data service binding and datasource collections. The DataSource property of Scheduler can be assigned either with the instance of DataManager or List of datasource collection, as it supports the following two kind of data binding methods:

  • Local data
  • Remote data

You can check out the following video to bind the appointments in the Blazor Scheduler.

Binding local data

To bind local data to the Scheduler, you can simply assign a List of datasource collections to the DataSource option of the scheduler within the ScheduleEventSettings tag. The local data source can also be provided as an instance of the DataManager.

@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="AppointmentData" Height="550px" SelectedDate="@(new DateTime(2020, 2, 12))">
    <ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
</SfSchedule>

@code{
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, Subject = "Testing", StartTime = new DateTime(2020, 2, 13, 9, 30, 0) , EndTime = new DateTime(2020, 2, 13, 10, 30, 0)},
        new AppointmentData { Id = 2, Subject = "Conference", StartTime = new DateTime(2020, 2, 11, 10, 30, 0) , EndTime = new DateTime(2020, 2, 11, 12, 0, 0)},
        new AppointmentData { Id = 3, Subject = "Meeting", StartTime = new DateTime(2020, 2, 9, 9, 30, 0) , EndTime = new DateTime(2020, 2, 9, 11, 30, 0)},
        new AppointmentData { Id = 4, Subject = "Vacation", StartTime = new DateTime(2020, 2, 14, 11, 30, 0) , EndTime = new DateTime(2020, 2, 14, 13, 0, 0)}
    };
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

By default, DataManager uses BlazorAdaptor for binding local data.

You can also bind different field names to the default event fields as well as include additional custom fields to the event object collection which can be referred here.

Binding remote data

Any kind of remote data services can be bound to the Scheduler. To do so, provide the service URL to the Url option of SfDataManager within ScheduleEventSettings tag.

Using ODataV4Adaptor

ODataV4 is a standardized protocol for creating and consuming data. Refer to the following code example to retrieve the data from ODataV4 service using the DataManager. To connect with ODataV4 service end points, it is necessary to make use of ODataV4Adaptor within DataManager.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Data

<SfSchedule TValue="Restful_Crud.Models.EventData" Height="550px" SelectedDate="@(new DateTime(2020, 3, 11))">
    <ScheduleEventSettings TValue="Restful_Crud.Models.EventData" Query="@QueryData">
        <SfDataManager Url="http://localhost:25255/odata" Adaptor="Adaptors.ODataV4Adaptor"></SfDataManager>
    </ScheduleEventSettings>
</SfSchedule>

@code{
    public Query QueryData = new Query().From("EventDatas");
}

The runnable sample for the above code will be available here.

Using custom adaptor

It is possible to create your own CustomAdaptor by extending the built-in available adaptors. The following example demonstrates the custom adaptor usage and how to bind the data with custom service and the CRUD operations for custom bounded data is performed using the methods of DataAdaptor abstract class.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Data

<SfSchedule TValue="AppointmentData" Width="100%" Height="650px" SelectedDate="@(new DateTime(2020, 1, 9))">
    <ScheduleResources>
        <ScheduleResource TValue="ResourceData" DataSource="@ProjectData" Field="ProjectId" Title="Choose Project" Name="Projects" TextField="Text" IdField="Id" ColorField="Color">
        </ScheduleResource>
    </ScheduleResources>
    <ScheduleEventSettings TValue="AppointmentData">
        <SfDataManager AdaptorInstance="@typeof(CustomAdaptor)" Adaptor="Adaptors.CustomAdaptor"></SfDataManager>
    </ScheduleEventSettings>
</SfSchedule>

@code {
    public class CustomAdaptor : DataAdaptor
    {
        List<AppointmentData> EventData = DataList();
        public async override Task<object> ReadAsync(DataManagerRequest dataManagerRequest, string key = null)
        {
            await Task.Delay(100); //To mimic asynchronous operation, we delayed this operation using Task.Delay
            return dataManagerRequest.RequiresCounts ? new DataResult() { Result = EventData, Count = EventData.Count() } : (object)EventData;
        }
        public async override Task<object> InsertAsync(DataManager dataManager, object data, string key)
        {
            await Task.Delay(100); //To mimic asynchronous operation, we delayed this operation using Task.Delay
            EventData.Insert(0, data as AppointmentData);
            return data;
        }
        public async override Task<object> UpdateAsync(DataManager dataManager, object data, string keyField, string key)
        {
            await Task.Delay(100); //To mimic asynchronous operation, we delayed this operation using Task.Delay
            var val = (data as AppointmentData);
            var appointment = EventData.Where((AppointmentData) => AppointmentData.Id == val.Id).FirstOrDefault();
            if (appointment != null)
            {
                appointment.Id = val.Id;
                appointment.Subject = val.Subject;
                appointment.StartTime = val.StartTime;
                appointment.EndTime = val.EndTime;
                appointment.Location = val.Location;
                appointment.Description = val.Description;
                appointment.IsAllDay = val.IsAllDay;
                appointment.ProjectId = val.ProjectId;
                appointment.RecurrenceException = val.RecurrenceException;
                appointment.RecurrenceID = val.RecurrenceID;
                appointment.RecurrenceRule = val.RecurrenceRule;
            }
            return data;
        }
        public async override Task<object> RemoveAsync(DataManager dataManager, object data, string keyField, string key) //triggers on appointment deletion through public method DeleteEvent
        {
            await Task.Delay(100); //To mimic asynchronous operation, we delayed this operation using Task.Delay
            int value = (int)data;
            EventData.Remove(EventData.Where((AppointmentData) => AppointmentData.Id == value).FirstOrDefault());
            return data;
        }
        public async override Task<object> BatchUpdateAsync(DataManager dataManager, object changedRecords, object addedRecords, object deletedRecords, string keyField, string key, int? dropIndex)
        {
            await Task.Delay(100); //To mimic asynchronous operation, we delayed this operation using Task.Delay
            object records = deletedRecords;
            List<AppointmentData> deleteData = deletedRecords as List<AppointmentData>;
            foreach (var data in deleteData)
            {
                EventData.Remove(EventData.Where((AppointmentData) => AppointmentData.Id == data.Id).FirstOrDefault());
            }
            List<AppointmentData> addData = addedRecords as List<AppointmentData>;
            foreach (var data in addData)
            {
                EventData.Insert(0, data as AppointmentData);
                records = addedRecords;
            }
            List<AppointmentData> updateData = changedRecords as List<AppointmentData>;
            foreach (var data in updateData)
            {
                var val = (data as AppointmentData);
                var appointment = EventData.Where((AppointmentData) => AppointmentData.Id == val.Id).FirstOrDefault();
                if (appointment != null)
                {
                    appointment.Id = val.Id;
                    appointment.Subject = val.Subject;
                    appointment.StartTime = val.StartTime;
                    appointment.EndTime = val.EndTime;
                    appointment.Location = val.Location;
                    appointment.Description = val.Description;
                    appointment.IsAllDay = val.IsAllDay;
                    appointment.ProjectId = val.ProjectId;
                    appointment.RecurrenceException = val.RecurrenceException;
                    appointment.RecurrenceID = val.RecurrenceID;
                    appointment.RecurrenceRule = val.RecurrenceRule;
                }
                records = changedRecords;
            }
            return records;
        }
    }
    private static List<AppointmentData> DataList()
    {
        List<AppointmentData> eventDatas = new List<AppointmentData>
        {
            new AppointmentData { Id = 1, Subject = "Meeting", StartTime = new DateTime(2020, 1, 5, 10, 0, 0) , EndTime = new DateTime(2020, 1, 5, 11, 0, 0), ProjectId = 1, RecurrenceRule = "FREQ=DAILY;INTERVAL=1;COUNT=5;"},
            new AppointmentData { Id = 2, Subject = "Project Discussion", StartTime = new DateTime(2020, 1, 6, 11, 30, 0) , EndTime = new DateTime(2020, 1, 6, 13, 0, 0), ProjectId = 2},
            new AppointmentData { Id = 3, Subject = "Work Flow Analysis", StartTime = new DateTime(2020, 1, 7, 12, 0, 0) , EndTime = new DateTime(2020, 1, 7, 13, 0, 0), ProjectId = 2, RecurrenceRule = "FREQ=DAILY;INTERVAL=1;COUNT=3;"},
            new AppointmentData { Id = 4, Subject = "Report", StartTime = new DateTime(2020, 1, 10, 11, 30, 0) , EndTime = new DateTime(2020, 1, 10, 13, 0, 0), ProjectId = 2}
        };
        return eventDatas;
    }
    List<ResourceData> ProjectData = ResourceList();
    private static List<ResourceData> ResourceList()
    {
        List<ResourceData> resourceDatas = new List<ResourceData>
        {
            new ResourceData { Text = "PROJECT 1", Id = 1, Color = "#cb6bb2" },
            new ResourceData { Text = "PROJECT 2", Id = 2, Color = "#56ca85" }
        };
        return resourceDatas;
    }
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
        public int ProjectId { get; set; }
    }
    public class ResourceData
    {
        public int Id { get; set; }
        public string Text { get; set; }
        public string Color { get; set; }
    }
}

Performing CRUD using Entity Framework

You need to follow the below steps to consume data from the Entity Framework in our Scheduler component.

Create DBContext class

The first step is to create a DBContext class called ScheduleDataContext to connect to a Microsoft SQL Server database.

using System;
using Microsoft.EntityFrameworkCore;
using Microsoft.EntityFrameworkCore.Metadata;

namespace Restful_Services.Models
{
    public partial class ScheduleDataContext : DbContext
    {
        public ScheduleDataContext()
        {
        }

        public ScheduleDataContext(DbContextOptions<ScheduleDataContext> options)
            : base(options)
        {
        }

        public virtual DbSet<EventData> EventData { get; set; }

        protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
        {
            if (!optionsBuilder.IsConfigured)
            {
                optionsBuilder.UseSqlServer("Data Source=(LocalDB)\\MSSQLLocalDB;AttachDbFilename=D:\\SchedulerCRUD\\Restful_Services\\App_Data\\ScheduleData.mdf;Integrated Security=True;MultipleActiveResultSets=True;Application Name=EntityFramework;Integrated Security=True");
            }
        }

        protected override void OnModelCreating(ModelBuilder modelBuilder)
        {
            modelBuilder.Entity<EventData>(entity =>
            {
                entity.Property(e => e.Id).ValueGeneratedNever();
                entity.Property(e => e.EndTime).HasColumnType("datetime");
                entity.Property(e => e.RecurrenceID).HasColumnName("RecurrenceID");
                entity.Property(e => e.StartTime).HasColumnType("datetime");
            });
            OnModelCreatingPartial(modelBuilder);
        }

        partial void OnModelCreatingPartial(ModelBuilder modelBuilder);
    }
}

Creating Odata Controller

A Odata Controller has to be created which allows Scheduler directly to consume data from the Entity framework. The following code example shows how to perform CRUD operations using Entity Framework.

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Entity;
using System.Data.Entity.Infrastructure;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Web.Http;
using System.Web.ModelBinding;
using Microsoft.AspNet.OData;
using Restful_Services.Models;

namespace Restful_Services.Controllers
{
    public class ODataV4Controller : ODataController
    {
        private ScheduleDataContext db = new ScheduleDataContext();

        // GET: odata/ODataV4
        [EnableQuery]
        [AcceptVerbs("GET")]
        public IQueryable<EventData> GetODataV4()
        {
            return db.EventData;
        }

        // GET: odata/ODataV4(5)
        [EnableQuery]
        [AcceptVerbs("GET")]
        public IQueryable<EventData> GetODataV4(string StartDate, string EndDate)
        {
            DateTime start = DateTime.Parse(StartDate);
            DateTime end = DateTime.Parse(EndDate);
            return db.EventData.Where(evt => evt.StartTime >= start && evt.EndTime <= end);
        }

        // POST: odata/ODataV4
        [AcceptVerbs("POST", "OPTIONS")]
        public void Post([FromBody]EventData eventData)
        {
            if (ModelState.IsValid)
            {
                EventData insertData = new EventData();
                insertData.Id = (db.EventData.ToList().Count > 0 ? db.EventData.ToList().Max(p => p.Id) : 1) + 1;
                insertData.Subject = eventData.Subject;
                insertData.StartTime = Convert.ToDateTime(eventData.StartTime);
                insertData.EndTime = Convert.ToDateTime(eventData.EndTime);
                insertData.StartTimezone = eventData.StartTimezone;
                insertData.EndTimezone = eventData.EndTimezone;
                insertData.Location = eventData.Location;
                insertData.Description = eventData.Description;
                insertData.IsAllDay = eventData.IsAllDay;
                insertData.IsBlock = eventData.IsBlock;
                insertData.IsReadOnly = eventData.IsReadOnly;
                insertData.FollowingID = eventData.FollowingID;
                insertData.RecurrenceID = eventData.RecurrenceID;
                insertData.RecurrenceRule = eventData.RecurrenceRule;
                insertData.RecurrenceException = eventData.RecurrenceException;
                db.EventData.Add(insertData);
                db.SaveChanges();
            }
        }

        // PATCH: odata/ODataV4(5)
        [AcceptVerbs("PATCH", "MERGE", "OPTIONS")]
        public void Patch([FromBody]EventData eventData)
        {
            if (ModelState.IsValid)
            {
                EventData updateData = db.EventData.First(i => i.Id == Convert.ToInt32(eventData.Id));
                if (updateData != null)
                {
                    updateData.Subject = eventData.Subject;
                    updateData.StartTime = Convert.ToDateTime(eventData.StartTime);
                    updateData.EndTime = Convert.ToDateTime(eventData.EndTime);
                    updateData.StartTimezone = eventData.StartTimezone;
                    updateData.EndTimezone = eventData.EndTimezone;
                    updateData.Location = eventData.Location;
                    updateData.Description = eventData.Description;
                    updateData.IsAllDay = eventData.IsAllDay;
                    updateData.IsBlock = eventData.IsBlock;
                    updateData.IsReadOnly = eventData.IsReadOnly;
                    updateData.FollowingID = eventData.FollowingID;
                    updateData.RecurrenceID = eventData.RecurrenceID;
                    updateData.RecurrenceRule = eventData.RecurrenceRule;
                    updateData.RecurrenceException = eventData.RecurrenceException;
                    db.SaveChanges();
                }
            }
        }

        // DELETE: odata/ODataV4(5)
        [AcceptVerbs("DELETE", "OPTIONS")]
        public void Delete([FromODataUri]int key)
        {
            if (ModelState.IsValid)
            {
                EventData removeData = db.EventData.First(i => i.Id == key);
                if (removeData != null)
                {
                    db.EventData.Remove(removeData);
                    db.SaveChanges();
                }
            }
        }
    }
}

Configure Scheduler component using ODataV4Adaptor

Now you can configure the Scheduler using the SfDataManager to interact with the created Odata service and consume the data appropriately. To interact with Odata, you need to use ODataV4Adaptor.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Data

<SfSchedule TValue="Restful_Services.Models.EventData" Height="550px" SelectedDate="@(new DateTime(2020, 04, 14))" >
    <ScheduleEventSettings TValue="Restful_Services.Models.EventData" Query="@QueryData" >
        <SfDataManager Url="http://localhost:9876/odata/" Adaptor="Adaptors.ODataV4Adaptor"></SfDataManager>
    </ScheduleEventSettings>
</SfSchedule>
@code {
    public Query QueryData = new Query().From("ODataV4");
}

You can find the working sample here.

Passing additional parameters to the server

To send an additional custom parameter to the server-side post, you need to make use of the AddParams method of Query. Now, assign this Query object with additional parameters to the Query property of Scheduler.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Data

<SfSchedule TValue="Restful_Crud.Models.EventData" Height="550px" SelectedDate="@(new DateTime(2020, 3, 11))">
    <ScheduleEventSettings TValue="Restful_Crud.Models.EventData" Query="@QueryData">
        <SfDataManager Url="http://localhost:25255/odata" Adaptor="Adaptors.ODataV4Adaptor"></SfDataManager>
    </ScheduleEventSettings>
</SfSchedule>

@code{
    public Query QueryData = new Query().From("EventDatas").AddParams("Readonly", true);
}

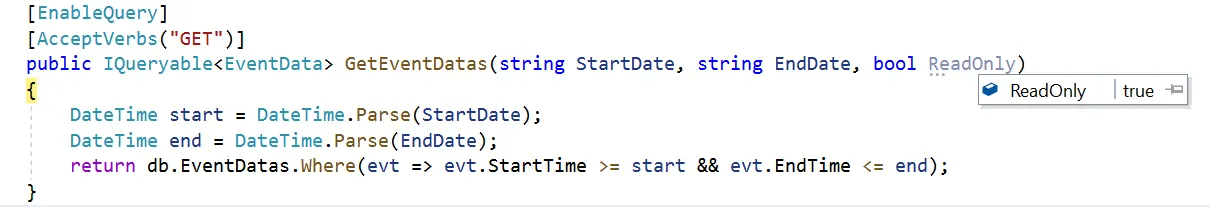

The value passed to the additional parameter is shown in the following image.

Passing additional parameters

The parameters added using the Query property will be sent along with the data request sent to the server on every scheduler actions.

Scheduler CRUD actions

The CRUD (Create, Read, Update and Delete) actions can be performed easily on Scheduler appointments using the various adaptors available within the DataManager. Most preferably, we will be using ODataV4Adaptor for performing CRUD actions on scheduler appointments.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Schedule

<SfSchedule TValue="Restful_Crud.Models.EventData" SelectedDate="@(DateTime.Now.Date)">
    <ScheduleEventSettings TValue="Restful_Crud.Models.EventData" Query="@QueryData">
        <SfDataManager Url="http://localhost:25255/odata" Adaptor="Adaptors.ODataV4Adaptor"></SfDataManager>
    </ScheduleEventSettings>
</SfSchedule>

@code{
    public Query QueryData { get; set; } = new Query().From("EventDatas");
}

The server-side controller code to handle the CRUD operations are as follows.

using System;
using System.Collections.Generic;
using System.Data;
using System.Data.Entity;
using System.Data.Entity.Infrastructure;
using System.Linq;
using System.Net;
using System.Net.Http;
using System.Web.Http;
using System.Web.Http.ModelBinding;
using System.Web.Http.OData;
using System.Web.Http.OData.Routing;
using Restful_Crud.Models;

namespace Restful_Crud.Controllers
{
    public class EventDatasController : ODataController
    {
        private ScheduleDataEntities1 db = new ScheduleDataEntities1();

        // GET: odata/EventDatas
        [EnableQuery]
        [AcceptVerbs("GET")]
        public IQueryable<EventData> GetEventDatas()
        {
            return db.EventDatas;
        }

        // GET: odata/EventDatas(5)
        [EnableQuery]
        [AcceptVerbs("GET")]
        public IQueryable<EventData> GetEventDatas(string StartDate, string EndDate, bool ReadOnly)
        {
            DateTime start = DateTime.Parse(StartDate);
            DateTime end = DateTime.Parse(EndDate);
            return db.EventDatas.Where(evt => evt.StartTime >= start && evt.EndTime <= end);
        }

        // POST: odata/EventDatas
        [AcceptVerbs("POST", "OPTIONS")]
        public void Post([FromBody]CrudData eventData)
        {
            EventData insertData = new EventData();
            insertData.Id = (db.EventDatas.ToList().Count > 0 ? db.EventDatas.ToList().Max(p => p.Id) : 1) + 1;
            insertData.StartTime = Convert.ToDateTime(eventData.StartTime).ToLocalTime();
            insertData.EndTime = Convert.ToDateTime(eventData.EndTime).ToLocalTime();
            insertData.Subject = eventData.Subject;
            insertData.IsAllDay = eventData.IsAllDay;
            insertData.Location = eventData.Location;
            insertData.Description = eventData.Description;
            insertData.RecurrenceRule = eventData.RecurrenceRule;
            insertData.RecurrenceID = eventData.RecurrenceID;
            insertData.RecurrenceException = eventData.RecurrenceException;
            insertData.StartTimezone = eventData.StartTimezone;
            insertData.EndTimezone = eventData.EndTimezone;

            db.EventDatas.Add(insertData);
            db.SaveChanges();
        }

        // PATCH: odata/EventDatas(5)
        [AcceptVerbs("PATCH", "MERGE", "OPTIONS")]
        public void Patch([FromBody]CrudData eventData)
        {
            EventData updateData = db.EventDatas.Find(Convert.ToInt32(eventData.Id));
            if (updateData != null)
            {
                updateData.StartTime = Convert.ToDateTime(eventData.StartTime).ToLocalTime();
                updateData.EndTime = Convert.ToDateTime(eventData.EndTime).ToLocalTime();
                updateData.Subject = eventData.Subject;
                updateData.IsAllDay = eventData.IsAllDay;
                updateData.Location = eventData.Location;
                updateData.Description = eventData.Description;
                updateData.RecurrenceRule = eventData.RecurrenceRule;
                updateData.RecurrenceID = eventData.RecurrenceID;
                updateData.RecurrenceException = eventData.RecurrenceException;
                updateData.StartTimezone = eventData.StartTimezone;
                updateData.EndTimezone = eventData.EndTimezone;

                db.SaveChanges();
            }
        }

        // DELETE: odata/EventDatas(5)
        [AcceptVerbs("DELETE", "OPTIONS")]
        public void Delete([FromODataUri]int key)
        {
            EventData removeData = db.EventDatas.Find(key);
            if (removeData != null)
            {
                db.EventDatas.Remove(removeData);
                db.SaveChanges();
            }
        }
    }
}
