Resource allocation with Blazor Gantt Chart and AI models

19 Jan 202624 minutes to read

This guide demonstrates how to use the Syncfusion.Blazor.AI package to automatic resource reallocation in a Syncfusion Blazor Gantt Chart component. The Syncfusion.Blazor.AI package enables integration with AI models to process and structure data, while Ollama provides self-hosted or cloud-based AI capabilities for analyzing relationships in datasets. This sample demonstrates how to efficiently manage resource overallocation by reallocating available resources to tasks.

Prerequisites

Ensure the following NuGet packages are installed based on the selected AI service.

For OpenAI

  • Microsoft.Extensions.AI
  • Microsoft.Extensions.AI.OpenAI

For Azure OpenAI

  • Microsoft.Extensions.AI
  • Microsoft.Extensions.AI.OpenAI
  • Azure.AI.OpenAI

For Ollama

  • Microsoft.Extensions.AI
  • OllamaSharp
Install-Package Syncfusion.Blazor.Gantt -Version 32.2.3
Install-Package Syncfusion.Blazor.Themes -Version 32.2.3
Install-Package Syncfusion.Blazor.AI -Version 32.2.3
Install-Package Microsoft.Extensions.AI
Install-Package Microsoft.Extensions.AI.OpenAI  # For OpenAI or Azure OpenAI
Install-Package Azure.AI.OpenAI  # For Azure OpenAI
Install-Package OllamaSharp  # For Ollama

Add stylesheet and script resources

Include the theme stylesheet and script from NuGet via Static Web Assets in the <head> of the main page:

  • For .NET 6 Blazor Server apps, add to ~/Pages/_Layout.cshtml.
  • For .NET 8 or .NET 9 or .NET 10 Blazor Server apps, add to ~/Components/App.razor.
<head>
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>
<body>
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</body>

Explore the Blazor Themes topic for methods to reference themes (Static Web Assets, CDN, or CRG). Refer to the Adding Script Reference topic for different approaches to adding script references in your Blazor application.

Configure AI service

Choose one of the following AI services (OpenAI, Azure OpenAI, or Ollama) based on requirements:

  • OpenAI: Cloud-based, general-purpose AI models with minimal setup.
  • Azure OpenAI: Enterprise-grade deployment with enhanced security and scalability.
  • Ollama: Self-hosted, privacy-focused AI models.

Follow the instructions for the selected service to register the AI model in the application.

OpenAI

Generate an API key from OpenAI and set openAIApiKey. Specify the desired model (for example, gpt-3.5-turbo, gpt-4) in openAIModel.

  • Install the required NuGet packages:
Install-Package Microsoft.Extensions.AI
Install-Package Microsoft.Extensions.AI.OpenAI
  • Add the following to the ~/Program.cs file in the Blazor Web App:
using Syncfusion.Blazor.AI;
using Microsoft.Extensions.AI;
using Syncfusion.Blazor.SmartComponents;
using OpenAI;

var builder = WebApplication.CreateBuilder(args);

string openAIApiKey = "API-KEY";
string openAIModel = "OPENAI_MODEL";
OpenAIClient openAIClient = new OpenAIClient(openAIApiKey);
IChatClient openAIChatClient = openAIClient.GetChatClient(openAIModel).AsIChatClient();
builder.Services.AddChatClient(openAIChatClient);
builder.Services.AddSingleton<IChatInferenceService, SyncfusionAIService>();

var app = builder.Build();

Azure OpenAI

Deploy an Azure OpenAI Service resource and model as described in Microsoft’s documentation. Obtain values for azureOpenAIKey, azureOpenAIEndpoint, and azureOpenAIModel.

  • Install the required NuGet packages:
Install-Package Microsoft.Extensions.AI
Install-Package Microsoft.Extensions.AI.OpenAI
Install-Package Azure.AI.OpenAI
  • Add the following to the ~/Program.cs file in the Blazor Web App:
using Syncfusion.Blazor.AI;
using Azure.AI.OpenAI;
using Microsoft.Extensions.AI;
using System.ClientModel;

var builder = WebApplication.CreateBuilder(args);

string azureOpenAIKey = "AZURE_OPENAI_KEY";
string azureOpenAIEndpoint = "AZURE_OPENAI_ENDPOINT";
string azureOpenAIModel = "AZURE_OPENAI_MODEL";
AzureOpenAIClient azureOpenAIClient = new AzureOpenAIClient(
     new Uri(azureOpenAIEndpoint),
     new ApiKeyCredential(azureOpenAIKey)
);
IChatClient azureOpenAIChatClient = azureOpenAIClient.GetChatClient(azureOpenAIModel).AsIChatClient();
builder.Services.AddChatClient(azureOpenAIChatClient);
builder.Services.AddSingleton<IChatInferenceService, SyncfusionAIService>();

var app = builder.Build();

Ollama

To use Ollama for self-hosted AI models:

  1. Download and install Ollama: Visit Ollama’s official website and install the application for the operating system.
  2. Install a model: Choose a model from the Ollama Library (for example, llama2:13b, mistral:7b).
  3. Configure the application: Provide the Endpoint URL (for example, http://localhost:11434) and ModelName (for example, llama2:13b).
  • Install the required NuGet packages:
Install-Package Microsoft.Extensions.AI
Install-Package OllamaSharp
  • Add the following to the ~/Program.cs file in the Blazor Web App:
using Syncfusion.Blazor.AI;
using Microsoft.Extensions.AI;
using OllamaSharp;

var builder = WebApplication.CreateBuilder(args);

string ModelName = "MODEL_NAME";
IChatClient chatClient = new OllamaApiClient("http://localhost:11434", ModelName);
builder.Services.AddChatClient(chatClient);
builder.Services.AddSingleton<IChatInferenceService, SyncfusionAIService>();

var app = builder.Build();
  • Verify connectivity: Ensure the Ollama server is running and accessible at the specified endpoint (for example, http://localhost:11434) before starting the application.

Register Syncfusion Blazor service

Add the Syncfusion Blazor service to the ~/Program.cs file. The configuration depends on the app’s Interactive Render Mode:

  • Server mode: Register the service in the single ~/Program.cs file.
  • WebAssembly or Auto mode: Register the service in both the server-side ~/Program.cs and client-side ~/Program.cs files.
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents()
    .AddInteractiveWebAssemblyComponents();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.Services.AddSyncfusionBlazor();

await builder.Build().RunAsync();

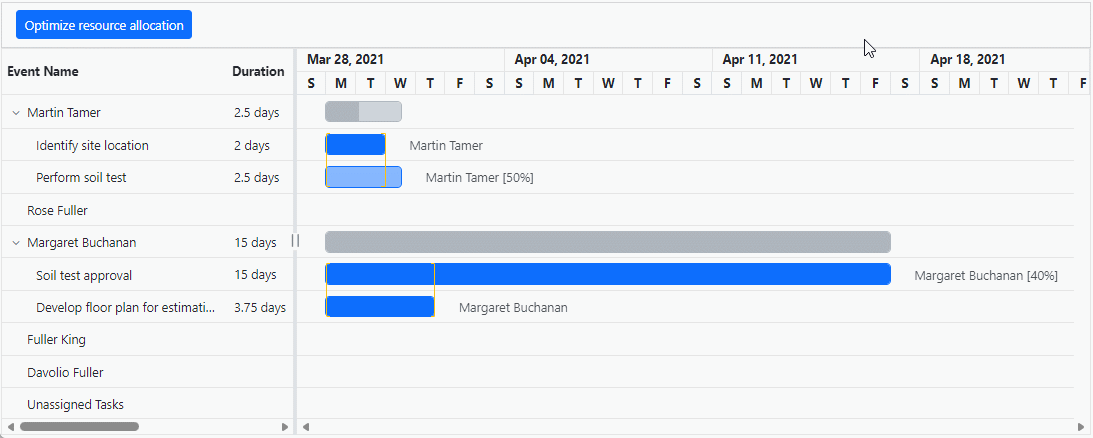

Integrated Gantt Chart with AI

The following code example show hot to integrate the Gantt Chart with AI for automatic resource allocation

@inject AzureAIService OpenAIService
@using GanttChart.Components.Model
@using GanttChart.Components.Service
@using Syncfusion.Blazor.Gantt
@using Syncfusion.Blazor.Navigations
@using Syncfusion.Blazor.Buttons
@using System.Text.Json
@inject IJSRuntime JsInterop

<div class="col-lg-12 control-section" id="gantt-control-section">
    @if (showMessage)
    {
        <div>
            <SfButton CssClass="e-flat" IsPrimary="true" IconCss="e-icons e-refresh" IconPosition=@IconPosition.Right OnClick="Reload">Something went wrong.</SfButton>
        </div>
    }
    <div style="position: relative">
        <SfGantt @ref="Gantt" ViewType="ViewType.ResourceView" ShowOverallocation="true" DataSource="@TaskCollection" Width="100%" TreeColumnIndex="1" WorkUnit="WorkUnit.Hour" AllowUnscheduledTasks="true">
            <GanttTaskFields Id="Id" Name="Name" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress"
            ParentID="ParentId" Work="Work" TaskType="TaskType">
            </GanttTaskFields>
            <GanttResource DataSource="ResourceCollection" Id="Id" Name="Name" MaxUnits="MaxUnit" TValue="GanttModel.TaskInfoModel" TResources="GanttModel.ResourceInfoModel"></GanttResource>
            <GanttAssignmentFields DataSource="AssignmentCollection" PrimaryKey="PrimaryId" TaskID="TaskId" ResourceID="ResourceId" Units="Unit" TValue="GanttModel.TaskInfoModel" TAssignment="GanttModel.AssignmentModel"></GanttAssignmentFields>
            <GanttLabelSettings RightLabel="Resources" TValue="GanttModel.TaskInfoModel"></GanttLabelSettings>
            <GanttColumns>
                <GanttColumn Field="Id" HeaderText="ID" Visible="false"></GanttColumn>
                <GanttColumn Field="Name" HeaderText="Event Name" Width="250px"></GanttColumn>
                <GanttResourceColumn HeaderText="Event Resources"></GanttResourceColumn>
                <GanttColumn Field="Duration" HeaderText="Duration"></GanttColumn>
                <GanttColumn Field="StartDate" HeaderText="Start Date"></GanttColumn>
                <GanttColumn Field="EndDate" HeaderText="End Date"></GanttColumn>
            </GanttColumns>
            <GanttTemplates TValue="GanttModel.TaskInfoModel">
                <TaskbarTemplate>
                    @{
                        var task = (context as GanttModel.TaskInfoModel);
                        if (task == null)
                        {
                            return;
                        }
                        var taskModel = Gantt.GetRowTaskModel(task);
                        string taskbarClassName = string.Empty;
                        string progressClassName = string.Empty;
                        if (TaskIds.Count > 0 && TaskIds.Any(s => s == task.Id))
                        {
                            taskbarClassName = "e-custom-taskbar";
                            progressClassName = "e-custom-progress";
                        }
                        <div class="e-gantt-child-taskbar e-gantt-child-taskbar-inner-div @taskbarClassName" style="height:22px;" tabindex=-1>
                            <div class="e-gantt-child-progressbar-inner-div e-gantt-child-progressbar @progressClassName" style="height:22px;width:@(taskModel.ProgressWidth + "px");text-align: right;border-radius: 0px;">
                            </div>
                        </div>
                    }
                </TaskbarTemplate>
            </GanttTemplates>
            <GanttSplitterSettings Position="50%"> </GanttSplitterSettings>
            <SfToolbar ID="Gantt_Toolbar">
                <ToolbarItems>
                    <ToolbarItem>
                        <Template>
                            <SfButton IsPrimary ID="openAI" @onclick="OpenAIHandler">Optimize resource allocation</SfButton>
                        </Template>
                    </ToolbarItem>
                </ToolbarItems>
            </SfToolbar>
        </SfGantt>
    </div>
</div>
<style>
    #Gantt_Toolbar {
    border: 1px solid lightgray !important;
    padding: 4px !important;
    }
    .e-icons.e-refresh::before {
    content: '\e706';
    }
    .e-custom-taskbar {
    background-color: lightgreen !important;
    }
    .e-custom-progress {
    background-color: green !important;
    }
</style>
using GanttChart.Components.Model;
using Microsoft.JSInterop;
using Syncfusion.Blazor.Gantt;
using System.Text.Json;

namespace GanttChart.Components.Pages
{
    public partial class Home
    {
        public  SfGantt<GanttModel.TaskInfoModel> Gantt;
        private List<GanttModel.TaskInfoModel> TaskCollection { get; set; }
        private List<GanttModel.ResourceInfoModel> ResourceCollection { get; set; }
        private static List<GanttModel.AssignmentModel> AssignmentCollection { get; set; }
        private string AIPrompt = string.Empty;
        private bool showMessage;
        List<int> TaskIds = new();
        protected override void OnInitialized()
        {
            TaskCollection = GanttModel.GetTaskCollection().Take(6).ToList();
            ResourceCollection = GanttModel.GetResources;
            AssignmentCollection = GanttModel.GetAssignmentCollection();
        }
        private string GeneratePrompt(List<GanttModel.TaskInfoModel> TaskCollection, List<GanttModel.ResourceInfoModel> ResourceCollection, List<GanttModel.AssignmentModel> AssignmentCollection)
        {
            return @"Here's a revised prompt to ensure the AI provides the results in JSON format:
    Function as an AI assistant responsible for optimizing resource assignments in a project management system. Your goal is to prevent overlapping task assignments for each resource, ensuring no resource is double-booked.
    1. **Check Task Assignments:** Review the start and end dates of tasks assigned to each resource to identify overlaps.
    2. **Resolve Conflicts:** Reassign conflicting tasks to other available resources without scheduling conflicts, ensuring each task is assigned to a resource.
    3. **Provide Updated Assignments:** Return the updated assignments.
    Please return a JSON object with the following:
    - **AssignmentCollection:** Updated resource assignments.
    - **TaskIds:** List of task IDs where resource assignments have changed.
    The response must be in JSON format only, with no additional explanations or content.
    Here is the dataset:
    - Task Collection Data: " + JsonSerializer.Serialize(TaskCollection) + @"
    - Resource Collection Data: " + JsonSerializer.Serialize(ResourceCollection) + @"
    - Assignment Collection Data: " + JsonSerializer.Serialize(AssignmentCollection) + @"
    Note: Ensure the response is a JSON string and does not include any extra information.";
        }
        private async Task Reload()
        {
            await JsInterop.InvokeVoidAsync("window.location.reload");
        }
        private async Task OpenAIHandler()
        {
            await Gantt.ShowSpinnerAsync();
            TaskIds = new();
            showMessage = false;
            List<GanttModel.AssignmentModel> sortedCollection = new List<GanttModel.AssignmentModel>();
            var AIPrompt = GeneratePrompt(TaskCollection, ResourceCollection, AssignmentCollection);
            string result = await OpenAIService.GetCompletionAsync(AIPrompt);
            try
            {
                if (result.StartsWith("```json"))
                {
                    result = result.Replace("```json", "").Replace("```", "").Trim();
                }
                else if (result.StartsWith("```"))
                {
                    result = result.Replace("```", "").Replace("```", "").Trim();
                }
                string response = JsonDocument.Parse(result).RootElement.GetProperty("AssignmentCollection").ToString();
                string taskIdCollection = JsonDocument.Parse(result).RootElement.GetProperty("TaskIds").ToString();
                if (response is not null)
                {
                    var collection = JsonSerializer.Deserialize<List<GanttModel.AssignmentModel>>(response);
                    if (collection is not null)
                    {
                        sortedCollection = collection;
                    }
                }
                if (taskIdCollection is not null)
                {
                    var collection = JsonSerializer.Deserialize<List<int>>(taskIdCollection);
                    if (collection is not null)
                    {
                        TaskIds = collection;
                    }
                }
                if (sortedCollection is not null && sortedCollection.Count > 0)
                {
                    AssignmentCollection = sortedCollection.Cast<GanttModel.AssignmentModel>().ToList();
                }
            }
            catch (Exception e)
            {
                showMessage = true;
                await Gantt.HideSpinnerAsync();
                return;
            }
            await Gantt.HideSpinnerAsync();
            await Task.CompletedTask;
        }
    }
}
using Microsoft.Extensions.AI;
using Syncfusion.Blazor.AI;

namespace GanttChart.Components.Service
{
    public class AzureAIService
    {
        private SyncfusionAIService _openAIConfiguration;
        private ChatParameters chatParameters_history = new ChatParameters();

        public AzureAIService(SyncfusionAIService openAIConfiguration)
        {
            _openAIConfiguration = openAIConfiguration;
        }

        /// <summary>
        /// Gets a text completion from the Azure OpenAI service.
        /// </summary>
        /// <param name="prompt">The user prompt to send to the AI service.</param>
        /// <param name="returnAsJson">Indicates whether the response should be returned in JSON format. Defaults to <c>true</c></param>
        /// <param name="appendPreviousResponse">Indicates whether to append previous responses to the conversation history. Defaults to <c>false</c></param>
        /// <param name="systemRole">Specifies the systemRole that is sent to AI Clients. Defaults to <c>null</c></param>
        /// <returns>The AI-generated completion as a string.</returns>
        public async Task<string> GetCompletionAsync(string prompt, bool returnAsJson = true, bool appendPreviousResponse = false, string systemRole = null)
        {
            string systemMessage = returnAsJson ? "You are a helpful assistant that only returns and replies with valid, iterable RFC8259 compliant JSON in your responses unless I ask for any other format. Do not provide introductory words such as 'Here is your result' or '```json', etc. in the response" : !string.IsNullOrEmpty(systemRole) ? systemRole : "You are a helpful assistant";
            try
            {
                ChatParameters chatParameters = appendPreviousResponse ? chatParameters_history : new ChatParameters();
                if (appendPreviousResponse)
                {
                    if (chatParameters.Messages == null)
                    {
                        chatParameters.Messages = new List<ChatMessage>() {
                        new ChatMessage(ChatRole.System,systemMessage),
                    };
                    }
                    chatParameters.Messages.Add(new ChatMessage(ChatRole.User, prompt));
                }
                else
                {
                    chatParameters.Messages = new List<ChatMessage>(2) {
                    new ChatMessage (ChatRole.System, systemMessage),
                    new ChatMessage(ChatRole.User,prompt)
                };
                }
                var completion = await _openAIConfiguration.GenerateResponseAsync(chatParameters);
                if (appendPreviousResponse)
                {
                    chatParameters_history?.Messages?.Add(new ChatMessage(ChatRole.Assistant, completion.ToString()));
                }
                return completion.ToString();
            }
            catch (Exception ex)
            {
                Console.WriteLine($"An exception has occurred: {ex.Message}");
                return "";
            }
        }
    }
}
namespace GanttChart.Components.Model
{
    public class GanttModel
    {
        public class ResourceInfoModel
        {
            public int Id { get; set; }
            public string Name { get; set; }
            public double MaxUnit { get; set; }
        }

        public class TaskInfoModel
        {
            public int Id { get; set; }
            public string Name { get; set; }
            public string TaskType { get; set; }
            public DateTime StartDate { get; set; }
            public DateTime? EndDate { get; set; }
            public string Duration { get; set; }
            public int Progress { get; set; }
            public int? ParentId { get; set; }
            public double? Work { get; set; }
        }

        public class AssignmentModel
        {
            public int PrimaryId { get; set; }
            public int TaskId { get; set; }
            public int ResourceId { get; set; }
            public double? Unit { get; set; }
        }

        public static List<ResourceInfoModel> GetResources = new List<ResourceInfoModel>()
        {
            new ResourceInfoModel() { Id= 1, Name= "Martin Tamer" ,MaxUnit=100},
            new ResourceInfoModel() { Id= 2, Name= "Rose Fuller", MaxUnit= 100 },
            new ResourceInfoModel() { Id= 3, Name= "Margaret Buchanan" },
            new ResourceInfoModel() { Id= 4, Name= "Fuller King", MaxUnit = 100},
            new ResourceInfoModel() { Id= 5, Name= "Davolio Fuller", MaxUnit = 100 }
        };

        public static List<AssignmentModel> GetAssignmentCollection()
        {
            List<AssignmentModel> assignments = new List<AssignmentModel>()
            {
                new AssignmentModel(){ PrimaryId=1, TaskId = 2, ResourceId=1, Unit=100},
                new AssignmentModel(){ PrimaryId=2, TaskId = 3, ResourceId=1, Unit=50},
                new AssignmentModel(){ PrimaryId=3, TaskId = 4, ResourceId=3, Unit=40},
                new AssignmentModel(){ PrimaryId=4, TaskId = 6, ResourceId=3, Unit = 100},
            };
            return assignments;
        }

        public static List<TaskInfoModel> GetTaskCollection()
        {
            return new List<TaskInfoModel>()
            {
                new TaskInfoModel() { Id = 1, Name = "Project initiation", StartDate = new DateTime(2021, 03, 28), EndDate = new DateTime(2021, 07, 28), TaskType ="FixedUnit", Work=128, Duration="4" },
                new TaskInfoModel() { Id = 2, Name = "Identify site location", StartDate = new DateTime(2021, 03, 29), Progress = 100, ParentId = 1, Duration="2", TaskType ="FixedUnit", Work=16 },
                new TaskInfoModel() { Id = 3, Name = "Perform soil test", StartDate = new DateTime(2021, 03, 29), ParentId = 1, Work=10, Duration="4", TaskType="FixedUnit" },
                new TaskInfoModel() { Id = 4, Name = "Soil test approval", StartDate = new DateTime(2021, 03, 29), Duration = "15", Progress = 100, ParentId = 1, Work=16, TaskType="FixedDuration" },
                new TaskInfoModel() { Id = 5, Name = "Project estimation", StartDate = new DateTime(2021, 03, 29), EndDate = new DateTime(2021, 04, 2), TaskType="FixedUnit", Duration="4" },
                new TaskInfoModel() { Id = 6, Name = "Develop floor plan for estimation", StartDate = new DateTime(2021, 03, 29), Duration = "3", Progress = 100, ParentId = 5, Work=30, TaskType="FixedUnit" },
                new TaskInfoModel() { Id = 7, Name = "List materials", StartDate = new DateTime(2021, 04, 01), Duration = "3", Progress = 30, ParentId = 5, TaskType="FixedUnit", Work=48 },
                new TaskInfoModel() { Id = 8, Name = "Estimation approval", StartDate = new DateTime(2021, 04, 01), Duration = "2", ParentId = 5, Work=60, TaskType="FixedUnit" },
                new TaskInfoModel() { Id = 9, Name = "Sign contract", StartDate = new DateTime(2021, 03, 31), EndDate = new DateTime(2021, 04, 01), Duration="3", TaskType="FixedUnit", Work=24 },
            };
        }
    }
}
using GanttChart.Components;
using GanttChart.Components.Service;
using Microsoft.Extensions.AI;
using OpenAI;
using Syncfusion.Blazor;
using Syncfusion.Blazor.AI;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents();
builder.Services.AddSyncfusionBlazor();

#region AI Integration
// Open AI Service.

string apiKey = "API-KEY";
string modelName = "OPENAI_MODEL";
OpenAIClient client = new OpenAIClient(apiKey);
IChatClient chatClient = openAIClient.GetChatClient(modelName).AsIChatClient();
builder.Services.AddChatClient(chatClient);

builder.Services.AddSingleton<SyncfusionAIService>();
builder.Services.AddSingleton<AzureAIService>();
#endregion

var app = builder.Build();
app.Run();

Error handling and troubleshooting

If the AI service fails to return a valid response, the TreeGrid displays an error message (“Oops! Please try again!”). Common issues include:

  • Invalid API key or endpoint: Verify that openAIApiKey, azureOpenAIKey, or the Ollama Endpoint is correct and the service is accessible.
  • Model unavailable: Ensure the specified openAIModel, azureOpenAIModel, or ModelName is deployed and supported.
  • Network issues: Check connectivity to the AI service endpoint, especially for self-hosted Ollama instances.
  • Large datasets: Processing large datasets may cause timeouts. Consider batching data or optimizing the prompt.

Performance considerations

When handling large datasets, ensure the Ollama server has sufficient resources (CPU/GPU) to process requests efficiently. For datasets exceeding 10,000 records, consider splitting the data into smaller batches to avoid performance bottlenecks. Test the application with your specific dataset to determine optimal performance.

Sample code

A complete working example is available in the Syncfusion Blazor AI Samples GitHub repository.

Resource allocation
