Virtualization in Blazor TreeGrid Component
24 Jun 202524 minutes to read
Tree Grid allows to load large amount of data without performance degradation.

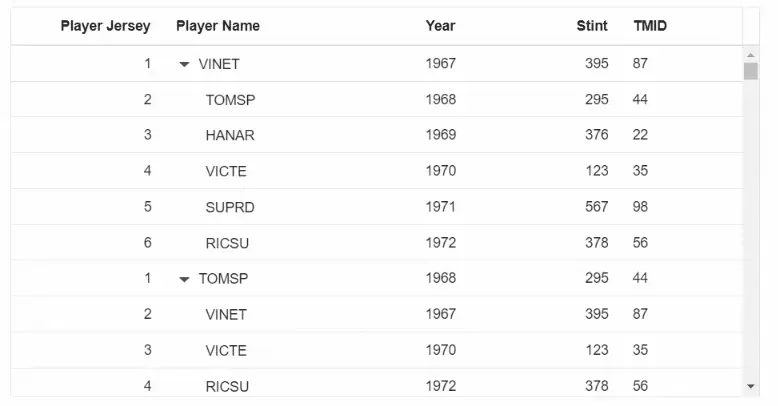

Row Virtualization
Row virtualization allows to load and render rows only in the content viewport. It is an alternative way of paging in which the rows will be appended while scrolling vertically. To setup the row virtualization, define the EnableVirtualization as true and content height by Height property.
The number of records displayed in the Tree Grid is determined implicitly by height of the content area and a buffer records will be maintained in the Tree Grid content in addition to the original set of rows.
Expand and Collapse state of any child record will be persisted.
@using TreeGridComponent.Data;
@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Grids;
<SfTreeGrid TValue="VirtualData" DataSource="@TreeGridData" ChildMapping="Children" EnableVirtualization="true" Height="350" TreeColumnIndex="1">
<TreeGridColumns>
<TreeGridColumn Field="TaskID" HeaderText="Player Jersey" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="FIELD1" HeaderText="Player Name" Width="100"></TreeGridColumn>
<TreeGridColumn Field="FIELD2" HeaderText="Year" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="FIELD3" HeaderText="Stint" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="FIELD4" HeaderText="TMID" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public VirtualData[] TreeGridData { get; set; }
protected override void OnInitialized()
{
this.TreeGridData = VirtualData.GetVirtualData().ToArray();
}
}
namespace TreeGridComponent.Data {
public class VirtualData
{
public int? TaskID { get; set; }
public string FIELD1 { get; set; }
public int? FIELD2 { get; set; }
public int? FIELD3 { get; set; }
public int? FIELD4 { get; set; }
public List<VirtualData> Children { get; set; }
public static List<VirtualData> GetVirtualData()
{
List<VirtualData> DataCollection = new List<VirtualData>();
for (var i = 1; i <= 1000; i++)
{
VirtualData Parent1 = new VirtualData()
{
TaskID = 1,
FIELD1 = "VINET",
FIELD2 = 1967,
FIELD3 = 395,
FIELD4 = 87,
Children = new List<VirtualData>()
};
VirtualData Child1 = new VirtualData()
{
TaskID = 2,
FIELD1 = "TOMSP",
FIELD2 = 1968,
FIELD3 = 295,
FIELD4 = 44
};
VirtualData Child2 = new VirtualData()
{
TaskID = 3,
FIELD1 = "HANAR",
FIELD2 = 1969,
FIELD3 = 376,
FIELD4 = 22
};
VirtualData Child3 = new VirtualData()
{
TaskID = 4,
FIELD1 = "VICTE",
FIELD2 = 1970,
FIELD3 = 123,
FIELD4 = 35
};
VirtualData Child4 = new VirtualData()
{
TaskID = 5,
FIELD1 = "SUPRD",
FIELD2 = 1971,
FIELD3 = 567,
FIELD4 = 98
};
VirtualData Child5 = new VirtualData()
{
TaskID = 6,
FIELD1 = "RICSU",
FIELD2 = 1972,
FIELD3 = 378,
FIELD4 = 56
};
VirtualData Parent2 = new VirtualData()
{
TaskID = 1,
FIELD1 = "TOMSP",
FIELD2 = 1968,
FIELD3 = 295,
FIELD4 = 44,
Children = new List<VirtualData>()
};
VirtualData Child6 = new VirtualData()
{
TaskID = 2,
FIELD1 = "VINET",
FIELD2 = 1967,
FIELD3 = 395,
FIELD4 = 87
};
VirtualData Child7 = new VirtualData()
{
TaskID = 3,
FIELD1 = "VICTE",
FIELD2 = 1970,
FIELD3 = 123,
FIELD4 = 35
};
VirtualData Child8 = new VirtualData()
{
TaskID = 4,
FIELD1 = "RICSU",
FIELD2 = 1972,
FIELD3 = 378,
FIELD4 = 56
};
VirtualData Child9 = new VirtualData()
{
TaskID = 5,
FIELD1 = "HANAR",
FIELD2 = 1969,
FIELD3 = 376,
FIELD4 = 22
};
VirtualData Child10 = new VirtualData()
{
TaskID = 6,
FIELD1 = "SUPRD",
FIELD2 = 1971,
FIELD3 = 567,
FIELD4 = 98
};
Parent1.Children.Add(Child1);
Parent1.Children.Add(Child2);
Parent1.Children.Add(Child3);
Parent1.Children.Add(Child4);
Parent1.Children.Add(Child5);
Parent2.Children.Add(Child6);
Parent2.Children.Add(Child7);
Parent2.Children.Add(Child8);
Parent2.Children.Add(Child9);
Parent2.Children.Add(Child10);
DataCollection.Add(Parent1);
DataCollection.Add(Parent2);
}
return DataCollection;
}
}
}
Managing records count
By default, the number of records rendered per page will be twice the TreeGrid’s height. You can customize the row rendering count using the PageSize and OverscanCount properties. Here’s an explanation of these properties:
- PageSize:
• ThePageSize
property determines the number of rows rendered per page in the tree grid.
• It allows you to control how many rows are loaded and displayed at initial rendering and also while scrolling, helping to improve performance by reducing the number of DOM elements rendered. - OverscanCount:
• TheOverscanCount
property is used to render additional rows before and after the tree grid’s current page rows.
• During both virtual scrolling and initial rendering, extra rows are rendered to provide a buffer around the current page area. This minimizes the need for frequent rendering during scrolling, providing a smoother user experience.
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.TreeGrid
<SfTreeGrid DataSource="@TreeGridData" OverscanCount="5" IdMapping="TaskID" RowHeight="35" TreeColumnIndex="1" ParentIdMapping="ParentID" Height="410" Width="410" EnableHover="false" EnableVirtualization="true" EnableColumnVirtualization="true">
<TreeGridPageSettings PageSize="40"></TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskID" HeaderText="No" TextAlign="TextAlign.Right" Width="60"></TreeGridColumn>
<TreeGridColumn Field="FIELD1" HeaderText="Name" Width="100"></TreeGridColumn>
<TreeGridColumn Field="FIELD2" HeaderText="Year" TextAlign="TextAlign.Right" Width="80"></TreeGridColumn>
<TreeGridColumn Field="FIELD3" HeaderText="Stint" TextAlign="TextAlign.Right" Width="80"></TreeGridColumn>
<TreeGridColumn Field="FIELD4" HeaderText="TMID" TextAlign="TextAlign.Right" Width="80"></TreeGridColumn>
<TreeGridColumn Field="FIELD5" HeaderText="LGID" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD6" HeaderText="GP" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field7" HeaderText="GS" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field8" HeaderText="Minutes" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field9" HeaderText="Points" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field10" HeaderText="ORebounds" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field11" HeaderText="DRebounds" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field12" HeaderText="Rebounds" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field13" HeaderText="Assists" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field14" HeaderText="Steals" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field15" HeaderText="Blocks" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field16" HeaderText="TurnOvers" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field17" HeaderText="PF" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field18" HeaderText="FgAttempted" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field19" HeaderText="FgMade" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field20" HeaderText="FtAttempted" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
private List<VirtualData> TreeGridData { get; set; } = new List<VirtualData>();
protected override void OnInitialized()
{
TreeGridData = VirtualData.GetTreeVirtualData();
}
public class VirtualData
{
public int TaskID { get; set; }
public string FIELD1 { get; set; }
public int FIELD2 { get; set; }
public int FIELD3 { get; set; }
public int FIELD4 { get; set; }
public int FIELD5 { get; set; }
public int FIELD6 { get; set; }
public int Field7 { get; set; }
public int Field8 { get; set; }
public int Field9 { get; set; }
public int Field10 { get; set; }
public int Field11 { get; set; }
public int Field12 { get; set; }
public int Field13 { get; set; }
public int Field14 { get; set; }
public int Field15 { get; set; }
public int Field16 { get; set; }
public int Field17 { get; set; }
public int Field18 { get; set; }
public int Field19 { get; set; }
public int Field20 { get; set; }
public int? ParentID { get; set; }
public static List<VirtualData> GetTreeVirtualData()
{
string[] Names = new string[] { "VINET", "TOMSP", "HANAR", "VICTE", "SUPRD", "HANAR", "CHOPS", "RICSU", "WELLI", "HILAA", "ERNSH", "CENTC",
"OTTIK", "QUEDE", "RATTC", "ERNSH", "FOLKO", "BLONP", "WARTH", "FRANK", "GROSR", "WHITC", "WARTH", "SPLIR", "RATTC", "QUICK", "VINET",
"MAGAA", "TORTU", "MORGK", "BERGS", "LEHMS", "BERGS", "ROMEY", "ROMEY", "LILAS", "LEHMS", "QUICK", "QUICK", "RICAR", "REGGC", "BSBEV",
"COMMI", "QUEDE", "TRADH", "TORTU", "RATTC", "VINET", "LILAS", "BLONP", "HUNGO", "RICAR", "MAGAA", "WANDK", "SUPRD", "GODOS", "TORTU",
"OLDWO", "ROMEY", "LONEP", "ANATR", "HUNGO", "THEBI", "DUMON", "WANDK", "QUICK", "RATTC", "ISLAT", "RATTC", "LONEP", "ISLAT", "TORTU",
"WARTH", "ISLAT", "PERIC", "KOENE", "SAVEA", "KOENE", "BOLID", "FOLKO", "FURIB", "SPLIR", "LILAS", "BONAP", "MEREP", "WARTH", "VICTE",
"HUNGO", "PRINI", "FRANK", "OLDWO", "MEREP", "BONAP", "SIMOB", "FRANK", "LEHMS", "WHITC", "QUICK", "RATTC", "FAMIA" };
List<VirtualData> DataCollection = new List<VirtualData>();
var RecordID = 0;
for (var i = 1; i <= 2000; i++)
{
var name = (i % 100);
VirtualData Parent = new VirtualData()
{
TaskID = ++RecordID,
FIELD1 = Names[name],
FIELD2 = (i % 2 == 0) ? 1967 + 2 : (i % 5 == 0) ? 1967 + 8 : 1967 + 12,
FIELD3 = (i % 2 == 0) ? 395 + 2 : (i % 5 == 0) ? 395 + 1 : 395 + 25,
FIELD4 = (i % 2 == 0) ? 87 + 2 : (i % 5 == 0) ? 87 + 1 : 87 + 15,
FIELD5 = (i % 2 == 0) ? 410 + 2 : (i % 5 == 0) ? 410 + 1 : 410 + 45,
FIELD6 = (i % 2 == 0) ? 67 + 2 : (i % 5 == 0) ? 67 + 1 : 67 + 6,
Field7 = (i % 2 == 0) ? 35 + 2 : (i % 5 == 0) ? 24 + 1 : 45 + 12,
Field8 = (i % 2 == 0) ? 100 + 2 : (i % 5 == 0) ? 100 + 1 : 100 + 12,
Field9 = (i % 2 == 0) ? 35 + 2 : (i % 5 == 0) ? 24 + 1 : 45 + 12,
Field10 = (i % 2 == 0) ? 46 + 2 : (i % 5 == 0) ? 46 + 1 : 64 + 6,
Field11 = (i % 2 == 0) ? 67 + 2 : (i % 5 == 0) ? 67 + 1 : 67 + 6,
Field12 = (i % 2 == 0) ? 100 + 62 : (i % 5 == 0) ? 100 + 41 : 100 + 112,
Field13 = (i % 2 == 0) ? 2 + 2 : (i % 5 == 0) ? 1 + 1 : 1 + 6,
Field14 = (i % 2 == 0) ? 46 + 2 : (i % 5 == 0) ? 46 + 1 : 64 + 6,
Field15 = (i % 2 == 0) ? 1000 + 112 : (i % 5 == 0) ? 1000 + 153 : 1000 + 412,
Field16 = (i % 2 == 0) ? 210 + 23 : (i % 5 == 0) ? 210 + 12 : 210 + 621,
Field17 = (i % 2 == 0) ? 300 + 533 : (i % 5 == 0) ? 300 + 321 : 300 + 699,
Field18 = (i % 2 == 0) ? 400 + 232 : (i % 5 == 0) ? 400 + 153 : 400 + 342,
Field19 = (i % 2 == 0) ? 40 + 12 : (i % 5 == 0) ? 40 + 24 : 40 + 25,
Field20 = (i % 2 == 0) ? 700 + 423 : (i % 5 == 0) ? 700 + 53 : 700 + 43,
ParentID = null
};
DataCollection.Add(Parent);
for (var j = 1; j <= 4; j++)
{
var childName = ((i + j) % 100);
DataCollection.Add(new VirtualData()
{
TaskID = ++RecordID,
FIELD1 = Names[childName],
FIELD2 = (j % 3 == 0) ? 1967 + (j + 2) : (j % 4 == 0) ? 1967 + (j + 1) : 1967 + j,
FIELD3 = (j % 3 == 0) ? 395 + (j + 2) : (j % 4 == 0) ? 395 + (j + 4) : 395 + (j + 13),
FIELD4 = (j % 3 == 0) ? 87 + (j + 2) : (j % 4 == 0) ? 87 + (j + 1) : 87 + (j + 12),
FIELD5 = (j % 3 == 0) ? 410 + (j + 2) : (j % 4 == 0) ? 410 + (j + 1) : 410 + (j + 14),
FIELD6 = (j % 3 == 0) ? 67 + (j + 2) : (j % 4 == 0) ? 67 + (j + 1) : 67 + (j + 7),
Field7 = (j % 3 == 0) ? 89 + (j + 2) : (j % 4 == 0) ? 94 + (j + 1) : 23 + (j + 7),
Field8 = (j % 3 == 0) ? 76 + (j + 2) : (j % 4 == 0) ? 23 + (j + 1) : 45 + (j + 7),
Field9 = (j % 3 == 0) ? 87 + (j + 2) : (j % 4 == 0) ? 87 + (j + 1) : 87 + (j + 12),
Field10 = (j % 3 == 0) ? 54 + (j + 2) : (j % 4 == 0) ? 54 + (j + 1) : 54 + (j + 12),
Field11 = (j % 3 == 0) ? 280 + (j + 2) : (j % 4 == 0) ? 280 + (j + 1) : 280 + (j + 12),
Field12 = (j % 3 == 0) ? 126 + (j + 2) : (j % 4 == 0) ? 116 + (j + 1) : 156 + (j + 12),
Field13 = (j % 3 == 0) ? 12 + (j + 2) : (j % 4 == 0) ? 12 + (j + 1) : 12 + (j + 12),
Field14 = (j % 3 == 0) ? 54 + (j + 2) : (j % 4 == 0) ? 53 + (j + 1) : 23 + (j + 12),
Field15 = (j % 3 == 0) ? 1003 + (j + 2) : (j % 4 == 0) ? 1100 + (j + 1) : 1000 + (j + 12),
Field16 = (j % 3 == 0) ? 210 + (j + 2) : (j % 4 == 0) ? 237 + (j + 1) : 290 + (j + 12),
Field17 = (j % 3 == 0) ? 300 + (j + 2) : (j % 4 == 0) ? 300 + (j + 1) : 300 + (j + 12),
Field18 = (j % 3 == 0) ? 400 + (j + 2) : (j % 4 == 0) ? 400 + (j + 1) : 400 + (j + 12),
Field19 = (j % 3 == 0) ? 40 + (j + 2) : (j % 4 == 0) ? 40 + (j + 1) : 40 + (j + 12),
Field20 = (j % 3 == 0) ? 700 + (j + 2) : (j % 4 == 0) ? 700 + (j + 1) : 700 + (j + 12),
ParentID = Parent.TaskID
});
}
}
return DataCollection;
}
}
}
NOTE
For example, when the OverscanCount is set to 5, only 5 buffer rows are rendered on the first and last pages. However, on in-between pages, a total of 10 buffer rows are rendered, with 5 rows allocated for both before and after the current page’s visible rows.
Virtualization with hierarchical data binding
Virtualization boosts Tree Grid performance by rendering only the rows visible in the viewport, ensuring smooth scrolling and low memory usage. It provides a fast, responsive experience for users working with large, complex hierarchical datasets.
In a Tree Grid, hierarchical data consists of parent rows with nested child rows. Virtual scrolling depends on knowing the total row count and their combined height to display only the rows in view. However, tree structures complicate this because the number of visible rows changes when users expand or collapse parents. Since child rows remain hidden until their parent is expanded, it’s difficult to accurately determine the total scrollable height in advance. This can result in missing rows, jumpy scrolling, or incomplete data rendering, making it complicated for users to interact with the Tree Grid effectively. To avoid this, use the following solution to use the hierarchy binding with virtualization in Tree Grid.
To convert the hierarchical data into a flat structure that tracks parent-child relationships and expansion states, use recursive method named HierarchyToFlatData at the application level. This method traverses all parent-child relationships and flattens them into a single-level collection. This flat data source can then be efficiently bound to the Tree Grid with virtualization enabled. Here’s how to implement it:
Place the following method in your component (e.g., Index.razor) and call it during component initialization (OnInitialized lifecycle method) as like below:
protected override void OnInitialized()
{
// Call the method to flatten hierarchical data and assign it to Tree Grid Data.
this.TreeGridData = HierarchyToFlatData(VirtualData.GetVirtualData(), "Children").ToArray();
}
/// <summary>
/// Recursively flattens hierarchical data into a single-level list.
/// </summary>
/// <param name="dataSource">The original hierarchical data.</param>
/// <param name="childMapping">The property name that maps to child records.</param>
/// <param name="addedData">An internal list to accumulate the flattened records.</param>
/// <returns>A flat list of all hierarchical records.</returns>
public List<VirtualData> HierarchyToFlatData(List<VirtualData> dataSource, string childMapping, List<VirtualData> addedData = null)
{
// If no list is passed to collect flat data, create a new one.
if (addedData == null)
{
addedData = new List<VirtualData>();
}
// Loop through each item in the current data level.
foreach (var item in dataSource)
{
// Add the current item to the flat list.
addedData.Add(item);
// Get the property info for the child mapping (e.g., "Children").
var propertyInfo = item.GetType().GetProperty(childMapping);
// Get the children using the property name.
var children = propertyInfo?.GetValue(item) as IEnumerable<VirtualData>;
// If there are child records, recursively flatten them too.
if (children != null)
{
HierarchyToFlatData(children.ToList(), childMapping, addedData);
}
}
// Return the final flat list.
return addedData;
}
The following complete code example demonstrates how to bind hierarchical data to the Tree Grid using the ChildMapping property. Enable virtualization by setting EnableVirtualization to true and convert hierarchical data into a flat list using a recursive method (HierarchyToFlatData) before binding it to the Tree Grid:
@using Syncfusion.Blazor.TreeGrid;
@using Syncfusion.Blazor.Grids;
<SfTreeGrid RowHeight="35" OverscanCount="5" @ref="TreeGrid" TValue="VirtualData" DataSource="@TreeGridData" ChildMapping="Children" EnableVirtualization="true" Height="400" TreeColumnIndex="1" EnableVirtualMaskRow="true" Toolbar="@(new List<string>(){"Add","Edit","Delete","Update","Cancel","ExpandAll", "CollapseAll"})">
<TreeGridEditSettings AllowEditing="true" AllowAdding="true" AllowDeleting="true" Mode="Syncfusion.Blazor.TreeGrid.EditMode.Cell" NewRowPosition="RowPosition.Child" />
<TreeGridPageSettings PageSize="30"></TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskID" IsPrimaryKey="true" HeaderText="Player Jersey" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="FIELD1" HeaderText="Player Name" Width="100"></TreeGridColumn>
<TreeGridColumn Field="FIELD2" HeaderText="Year" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="FIELD3" HeaderText="Stint" Width="100" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="FIELD4" HeaderText="TMID" Width="80"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code {
// Reference to Tree Grid instance.
private SfTreeGrid<VirtualData> TreeGrid;
public VirtualData[] TreeGridData { get; set; }
// On component initialization, flatten the hierarchical data and bind to Tree Grid.
protected override void OnInitialized()
{
this.TreeGridData = HierarchyToFlatData(VirtualData.GetVirtualData(), "Children").ToArray();
}
// Recursive method to flatten hierarchical data into a linear list preserving display order.
public List<VirtualData> HierarchyToFlatData(List<VirtualData> dataSource, string childMapping, List<VirtualData> addedData = null)
{
// If no list is passed to collect flat data, create a new one.
if (addedData == null)
{
addedData = new List<VirtualData>();
}
foreach (var item in dataSource)
{
// Add the current item to the flat list.
addedData.Add(item);
// Get the property info for the child mapping (e.g., "Children").
var propertyInfo = item.GetType().GetProperty(childMapping);
// Get the children using the property name.
var children = propertyInfo?.GetValue(item) as IEnumerable<VirtualData>;
if (children != null)
{
// Recursive call to process children.
HierarchyToFlatData(children.ToList(), childMapping, addedData);
}
}
// Return the final flat list.
return addedData;
}
// Sample data model with recursive Children property.
public class VirtualData
{
public int TaskID { get; set; }
public string FIELD1 { get; set; }
public int FIELD2 { get; set; }
public int? FIELD3 { get; set; }
public int? FIELD4 { get; set; }
public List<VirtualData> Children { get; set; }
static string[] Names = new string[] { "VINET", "TOMSP", "HANAR", "VICTE", "SUPRD", "HANAR", "CHOPS", "RICSU", "WELLI", "HILAA", "ERNSH", "CENTC","OTTIK", "QUEDE", "RATTC", "ERNSH", "FOLKO", "BLONP", "WARTH", "FRANK", "GROSR", "WHITC", "WARTH", "SPLIR", "RATTC", "QUICK", "VINET","MAGAA", "TORTU", "MORGK", "BERGS", "LEHMS", "BERGS", "ROMEY", "ROMEY", "LILAS", "LEHMS", "QUICK", "QUICK", "RICAR", "REGGC", "BSBEV","COMMI", "QUEDE", "TRADH", "TORTU", "RATTC", "VINET", "LILAS", "BLONP", "HUNGO", "RICAR", "MAGAA", "WANDK", "SUPRD", "GODOS", "TORTU","OLDWO", "ROMEY", "LONEP", "ANATR", "HUNGO", "THEBI", "DUMON", "WANDK", "QUICK", "RATTC", "ISLAT", "RATTC", "LONEP", "ISLAT", "TORTU","WARTH", "ISLAT", "PERIC", "KOENE", "SAVEA", "KOENE", "BOLID", "FOLKO", "FURIB", "SPLIR", "LILAS", "BONAP", "MEREP", "WARTH", "VICTE","HUNGO", "PRINI", "FRANK", "OLDWO", "MEREP", "BONAP", "SIMOB", "FRANK", "LEHMS", "WHITC", "QUICK", "RATTC", "FAMIA" };
public static List<VirtualData> GetVirtualData()
{
List<VirtualData> DataCollection = new List<VirtualData>();
var j = 0;
for (var i = 1; i <= 10000; i++)
{
var random = new Random();
var name = random.Next(50);
VirtualData Parent1 = new VirtualData()
{
TaskID = ++j,
FIELD1 = VirtualData.Names[name],
FIELD2 = 1967,
FIELD3 = 395,
FIELD4 = 87,
Children = new List<VirtualData>()
};
for (var k = 0; k < 4; k++)
{
name = random.Next(5);
VirtualData Child1 = new VirtualData()
{
TaskID = ++j,
FIELD1 = VirtualData.Names[name],
FIELD2 = 1968,
FIELD3 = 295,
FIELD4 = 44
};
Parent1.Children.Add(Child1);
}
name = random.Next(50);
VirtualData Parent2 = new VirtualData()
{
TaskID = ++j,
FIELD1 = VirtualData.Names[name],
FIELD2 = 1968,
FIELD3 = 295,
FIELD4 = 44,
Children = new List<VirtualData>()
};
for (var m = 0; m < 4; m++)
{
name = random.Next(50);
VirtualData Child2 = new VirtualData()
{
TaskID = ++j,
FIELD1 = VirtualData.Names[name],
FIELD2 = 1968,
FIELD3 = 295,
FIELD4 = 44
};
Parent2.Children.Add(Child2);
}
DataCollection.Add(Parent1);
DataCollection.Add(Parent2);
}
return DataCollection;
}
}
}
By organizing the data in this format, the Tree Grid can efficiently render large hierarchical datasets with virtualization enabled.
Limitations:
-
ExpandCollapse State maintenance is not supported for Hierarchy Data.
-
Batch Editing is not supported for Hierarchy Data.
-
Row Drag and Drop feature is not supported for Hierarchy Data.
-
Additionally, please refer to the virtualization limitations for more details on current constraints when using virtualization with hierarchical data.
Column Virtualization
Column virtualization allows you to virtualize columns. It will render columns which are in the viewport. You can scroll horizontally to view more columns.
To setup the column virtualization, set the EnableVirtualization and EnableColumnVirtualization properties as true.
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid DataSource="@TreeData" IdMapping="TaskID" TreeColumnIndex="1" ParentIdMapping="ParentID" Height="400" Width="600" EnableHover="false" EnableVirtualization="true" EnableColumnVirtualization="true">
<TreeGridPageSettings PageSize="40"></TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskID" HeaderText="Jersey No" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD1" HeaderText="Name" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD2" HeaderText="Year" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD3" HeaderText="Stint" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD4" HeaderText="TMID" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD5" HeaderText="LGID" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD6" HeaderText="GP" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field7" HeaderText="GS" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field8" HeaderText="Minutes" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field9" HeaderText="Points" TextAlign="TextAlign.Right" Width="150"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public List<VirtualData> TreeData { get; set; }
protected override void OnInitialized()
{
this.TreeData = VirtualData.GetTreeVirtualData().ToList();
}
public class VirtualData
{
public int TaskID { get; set; }
public string FIELD1 { get; set; }
public int FIELD2 { get; set; }
public int FIELD3 { get; set; }
public int FIELD4 { get; set; }
public int FIELD5 { get; set; }
public int FIELD6 { get; set; }
public int Field7 { get; set; }
public int Field8 { get; set; }
public int Field9 { get; set; }
public int? ParentID { get; set; }
public static List<VirtualData> GetTreeVirtualData()
{
string[] Names = new string[] { "VINET", "TOMSP", "HANAR", "VICTE", "SUPRD", "HANAR", "CHOPS", "RICSU", "WELLI", "HILAA", "ERNSH", "CENTC",
"OTTIK", "QUEDE", "RATTC", "ERNSH", "FOLKO", "BLONP", "WARTH", "FRANK", "GROSR", "WHITC", "WARTH", "SPLIR", "RATTC", "QUICK", "VINET",
"MAGAA", "TORTU", "MORGK", "BERGS", "LEHMS", "BERGS", "ROMEY", "ROMEY", "LILAS", "LEHMS", "QUICK", "QUICK", "RICAR", "REGGC", "BSBEV",
"COMMI", "QUEDE", "TRADH", "TORTU", "RATTC", "VINET", "LILAS", "BLONP", "HUNGO", "RICAR", "MAGAA", "WANDK", "SUPRD", "GODOS", "TORTU",
"OLDWO", "ROMEY", "LONEP", "ANATR", "HUNGO", "THEBI", "DUMON", "WANDK", "QUICK", "RATTC", "ISLAT", "RATTC", "LONEP", "ISLAT", "TORTU",
"WARTH", "ISLAT", "PERIC", "KOENE", "SAVEA", "KOENE", "BOLID", "FOLKO", "FURIB", "SPLIR", "LILAS", "BONAP", "MEREP", "WARTH", "VICTE",
"HUNGO", "PRINI", "FRANK", "OLDWO", "MEREP", "BONAP", "SIMOB", "FRANK", "LEHMS", "WHITC", "QUICK", "RATTC", "FAMIA" };
List<VirtualData> DataCollection = new List<VirtualData>();
Random random = new Random();
var RecordID = 0;
for (var i = 1; i <= 2000; i++)
{
var name = random.Next(0, 100);
VirtualData Parent = new VirtualData()
{
TaskID = ++RecordID,
FIELD1 = Names[name],
FIELD2 = 1967 + random.Next(0, 10),
FIELD3 = 395 + random.Next(100, 600),
FIELD4 = 87 + random.Next(50, 250),
FIELD5 = 410 + random.Next(100, 600),
FIELD6 = 67 + random.Next(50, 250),
Field7 = (int)Math.Floor(random.NextDouble() * 100),
Field8 = (int)Math.Floor(random.NextDouble() * 10),
Field9 = (int)Math.Floor(random.NextDouble() * 10),
ParentID = null
};
DataCollection.Add(Parent);
for (var j = 1; j <= 4; j++)
{
var childName = random.Next(0, 100);
DataCollection.Add(new VirtualData()
{
TaskID = ++RecordID,
FIELD1 = Names[childName],
FIELD2 = 1967 + random.Next(0, 10),
FIELD3 = 395 + random.Next(100, 600),
FIELD4 = 87 + random.Next(50, 250),
FIELD5 = 410 + random.Next(100, 600),
FIELD6 = 67 + random.Next(50, 250),
Field7 = (int)Math.Floor(random.NextDouble() * 100),
Field8 = (int)Math.Floor(random.NextDouble() * 10),
Field9 = (int)Math.Floor(random.NextDouble() * 10),
ParentID = Parent.TaskID
});
}
}
return DataCollection;
}
}
}
NOTE
Column’s Width is required for column virtualization. If column’s width is not defined then Tree Grid will consider its value as 200px.

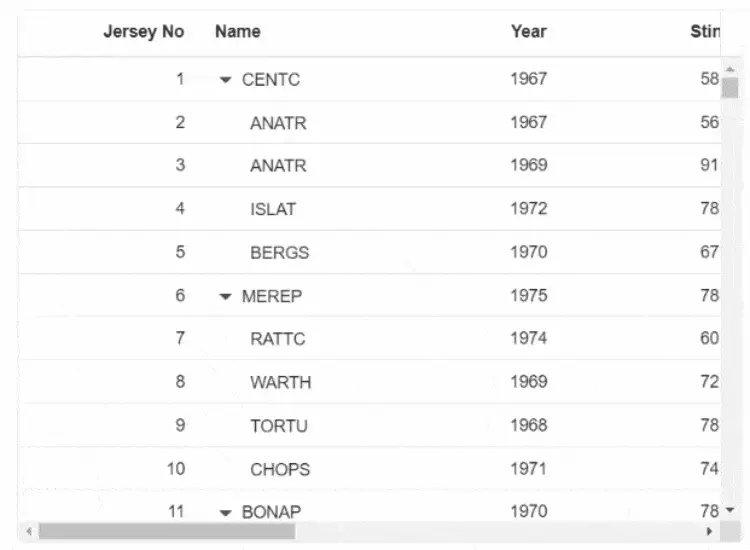

The following GIF represent a Tree Grid with Column virtualization.

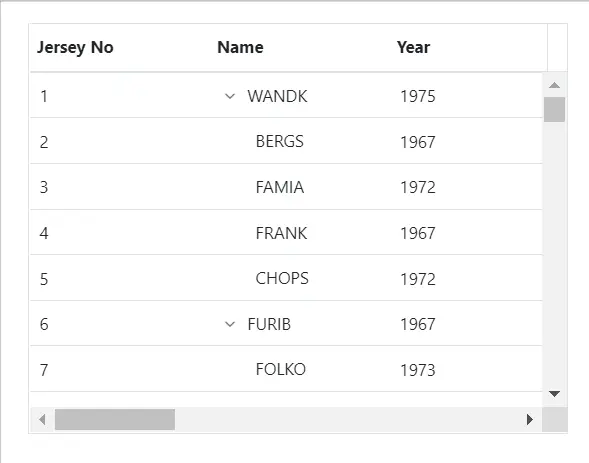

Enable Cell placeholder during Virtualization
Displays placeholder in cells while data is loading in scrolling action. Also, the same set of DOM elements is reused to enhance performance.
To set up the enable cell placeholder during virtualization, define the EnableVirtualMaskRow as true along with the EnableVirtualization/EnableColumnVirtualization property.
@using Syncfusion.Blazor.TreeGrid
@using Syncfusion.Blazor.Grids
<SfTreeGrid Height="300" Width="450" RowHeight="38" EnableVirtualMaskRow="true" DataSource="@TreeGridData" IdMapping="TaskID" TreeColumnIndex="1" ParentIdMapping="ParentID" EnableVirtualization="true" EnableColumnVirtualization="true">
<TreeGridPageSettings PageSize="40"></TreeGridPageSettings>
<TreeGridColumns>
<TreeGridColumn Field="TaskID" HeaderText="Jersey No" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD1" HeaderText="Name" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD2" HeaderText="Year" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD3" HeaderText="Stint" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD4" HeaderText="TMID" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD5" HeaderText="LGID" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="FIELD6" HeaderText="GP" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field7" HeaderText="GS" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field8" HeaderText="Minutes" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field9" HeaderText="Points" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
<TreeGridColumn Field="Field10" HeaderText="ORebounds" TextAlign="TextAlign.Left" Width="150"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code {
private List<VirtualData> TreeGridData { get; set; } = new List<VirtualData>();
protected override void OnInitialized()
{
TreeGridData = VirtualData.GetTreeVirtualData();
}
public class VirtualData
{
public int TaskID { get; set; }
public string? FIELD1 { get; set; }
public int FIELD2 { get; set; }
public int FIELD3 { get; set; }
public int FIELD4 { get; set; }
public int FIELD5 { get; set; }
public int FIELD6 { get; set; }
public int Field7 { get; set; }
public int Field8 { get; set; }
public int Field9 { get; set; }
public int Field10 { get; set; }
public int? ParentID { get; set; }
public static List<VirtualData> GetTreeVirtualData()
{
string[] Names = new string[] { "VINET", "TOMSP", "HANAR", "VICTE", "SUPRD", "HANAR", "CHOPS", "RICSU", "WELLI", "HILAA", "ERNSH", "CENTC",
"OTTIK", "QUEDE", "RATTC", "ERNSH", "FOLKO", "BLONP", "WARTH", "FRANK", "GROSR", "WHITC", "WARTH", "SPLIR", "RATTC", "QUICK", "VINET",
"MAGAA", "TORTU", "MORGK", "BERGS", "LEHMS", "BERGS", "ROMEY", "ROMEY", "LILAS", "LEHMS", "QUICK", "QUICK", "RICAR", "REGGC", "BSBEV",
"COMMI", "QUEDE", "TRADH", "TORTU", "RATTC", "VINET", "LILAS", "BLONP", "HUNGO", "RICAR", "MAGAA", "WANDK", "SUPRD", "GODOS", "TORTU",
"OLDWO", "ROMEY", "LONEP", "ANATR", "HUNGO", "THEBI", "DUMON", "WANDK", "QUICK", "RATTC", "ISLAT", "RATTC", "LONEP", "ISLAT", "TORTU",
"WARTH", "ISLAT", "PERIC", "KOENE", "SAVEA", "KOENE", "BOLID", "FOLKO", "FURIB", "SPLIR", "LILAS", "BONAP", "MEREP", "WARTH", "VICTE",
"HUNGO", "PRINI", "FRANK", "OLDWO", "MEREP", "BONAP", "SIMOB", "FRANK", "LEHMS", "WHITC", "QUICK", "RATTC", "FAMIA" };
List<VirtualData> DataCollection = new List<VirtualData>();
Random random = new Random();
var RecordID = 0;
for (var i = 1; i <= 2000; i++)
{
var name = random.Next(0, 100);
VirtualData Parent = new VirtualData()
{
TaskID = ++RecordID,
FIELD1 = Names[name],
FIELD2 = 1967 + random.Next(0, 10),
FIELD3 = 395 + random.Next(100, 600),
FIELD4 = 87 + random.Next(50, 250),
FIELD5 = 410 + random.Next(100, 600),
FIELD6 = 67 + random.Next(50, 250),
Field7 = (int)Math.Floor(random.NextDouble() * 100),
Field8 = (int)Math.Floor(random.NextDouble() * 10),
Field9 = (int)Math.Floor(random.NextDouble() * 10),
Field10 = (int)Math.Floor(random.NextDouble() * 100),
ParentID = null
};
DataCollection.Add(Parent);
for (var j = 1; j <= 4; j++)
{
var childName = random.Next(0, 100);
DataCollection.Add(new VirtualData()
{
TaskID = ++RecordID,
FIELD1 = Names[childName],
FIELD2 = 1967 + random.Next(0, 10),
FIELD3 = 395 + random.Next(100, 600),
FIELD4 = 87 + random.Next(50, 250),
FIELD5 = 410 + random.Next(100, 600),
FIELD6 = 67 + random.Next(50, 250),
Field7 = (int)Math.Floor(random.NextDouble() * 100),
Field8 = (int)Math.Floor(random.NextDouble() * 10),
Field9 = (int)Math.Floor(random.NextDouble() * 10),
Field10 = (int)Math.Floor(random.NextDouble() * 100),
ParentID = Parent.TaskID
});
}
}
return DataCollection;
}
}
}
The following image represents a tree grid with the mask row virtualization.
For a better experience, the PageSize property of the TreeGridPageSettings class and the RowHeight property should be defined.
Limitations for Virtualization
- While using column virtualization, column width should be in the pixel. Percentage values are not accepted.
- Due to the element height limitation in browsers, the maximum number of records loaded by the tree grid is limited by the browser capability.
- Cell selection will not be persisted in both row and column virtualization.
- Stacked Header is not compatible with detail template.
- Virtual scrolling is not compatible with detail template.
- Row count of the page does not depend on the PageSize property of the TreeGridPageSettings. Row count for the page is determined by the Height given to the Tree Grid.
- The virtual height of the tree grid content is calculated using the row height and total number of records in the data source and hence features which changes row height such as text wrapping are not supported. In order to increase the row height to accommodate the content then the row height can be specified as below to ensure all the table rows are in same height.
- Programmatic selection using the SelectRows method is not supported in virtual scrolling.
- When row virtualization is enabled, reordering rows is limited to only the records currently visible in the viewport.
