Getting Started with Blazor Accordion Component

9 Nov 20218 minutes to read

This section briefly explains about how to include a Accordion in the Blazor server-side application. Refer Getting Started with Syncfusion Blazor for Server-Side in Visual Studio page for the introduction and configuring the common specifications.

To get start quickly with Blazor Accordion, check on the following video:

Importing Syncfusion Blazor component in the application

Any one of the following standards can be used to install the Syncfusion Blazor library in the application.

Using Syncfusion Blazor individual NuGet Packages [New standard]

Starting with Volume 4, 2020 (v18.4.0.30) release, Syncfusion provides individual NuGet packages for the Syncfusion Blazor components. This new standard is highly recommended for the Blazor production applications. Refer to this section to know the benefits of the individual NuGet packages.

  1. Install Syncfusion.Blazor.Navigations NuGet package to the application using the NuGet Package Manager.

  2. Add the client-side style resources through CDN or from the NuGet package in the <head> element of the ~/Pages/_Host.cshtml page.

     <head>
         ....
         ....
         <link href="_content/Syncfusion.Blazor.Themes/bootstrap4.css" rel="stylesheet" />
     </head>

    WARNING

    Syncfusion.Blazor package should not be installed along with the individual NuGet packages. Hence, add the above Syncfusion.Blazor.Themes static web assets (styles) in the application.

Using Syncfusion.Blazor NuGet Package [Old standard]

WARNING

If the above new standard (individual NuGet packages) is preferred , then skip this section. Using both the old and new standards in the same application will throw ambiguous compilation errors.

  1. Install Syncfusion.Blazor NuGet package to the newly created application by using the NuGet Package Manager.

  2. Add the client-side style resources through CDN or from NuGet package in the <head> element of the ~/Pages/_Host.cshtml page.

     <head>
         ....
         ....
         <link href="_content/Syncfusion.Blazor/styles/bootstrap4.css" rel="stylesheet" />
          @*<link href="https://cdn.syncfusion.com/blazor/19.3.43/styles/bootstrap4.css" rel="stylesheet" />*@
     </head>

    For Internet Explorer 11 kindly refer the polyfills. Refer the documentation for more information.

     <head>
         ...
             <link href="https://cdn.syncfusion.com/blazor/19.3.43/styles/bootstrap4.css" rel="stylesheet" />
             <script src="https://github.com/Daddoon/Blazor.Polyfill/releases/download/3.0.1/blazor.polyfill.min.js"></script>
         ...
     </head>

Adding component package to the application

Open the ~/_Imports.razor file and import the Syncfusion.Blazor.Navigations package.

@using Syncfusion.Blazor.Navigations

Add SyncfusionBlazor service in Startup file

Open the Startup.cs file and add services required by the Syncfusion components using the services.AddSyncfusionBlazor() method. Add this method in the ConfigureServices function as follows.

using Syncfusion.Blazor;

namespace BlazorApplication
{
    public class Startup
    {
        ....
        ....
        public void ConfigureServices(IServiceCollection services)
        {
            ....
            ....
            services.AddSyncfusionBlazor();
        }
    }
}

Adding Accordion component to the application

Now, add the Syncfusion Blazor Accordion component in any web page (razor) in the Pages folder. For example, the Accordion component is added in the ~/Pages/Index.razor page.

@using Syncfusion.Blazor.Navigations

<SfAccordion>
    <AccordionItems>
        <AccordionItem Header="Margeret Peacock" Content="Margeret Peacock was born on Saturday , 01 December 1990. Now lives at Coventry House Miner Rd., London,UK. Margeret Peacock holds a position of Sales Coordinator in our WA department, (Seattle USA). Joined our company on Saturday , 01 May 2010"></AccordionItem>
        <AccordionItem Header="Laura Callahan" Content="Laura Callahan was born on Tuesday , 06 November 1990. Now lives at Edgeham Hollow Winchester Way, London,UK. Laura Callahan holds a position of Sales Coordinator in our WA department, (Seattle USA). Joined our company on Saturday , 01 May 2010"></AccordionItem>
        <AccordionItem Header="Albert Dodsworth" Content="Albert Dodsworth was born on Thursday , 19 October 1989. Now lives at 4726 - 11th Ave. N.E., Seattle,USA.Albert Dodsworth holds a position of Sales Representative in our WA department, (Seattle USA). Joined our company on Friday , 01 May 2009"></AccordionItem>
    </AccordionItems>
</SfAccordion>

Run the application

After successful compilation of the application, simply press F5 to run the application.

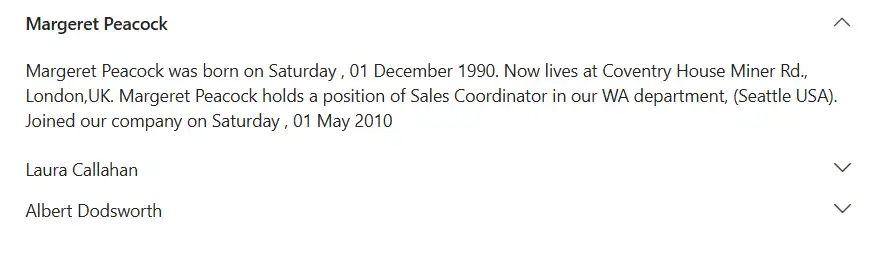

Blazor Accordion Component

Initialize Accordion using Template

The following code explains how to initialize accordion using Template.

  • cshtml
  • @using Syncfusion.Blazor.Navigations

    <SfAccordion>
        <AccordionItems>
            <AccordionItem>
                <HeaderTemplate>
                    <div>Margeret Peacock</div>
                </HeaderTemplate>
                <ContentTemplate>
                    <div class='container'><img src='images/margeret.png' /><div class='content'><b>Margeret Peacock</b> was born on Saturday , 01 December 1990. Now lives at Coventry House Miner Rd., London,UK. Margeret Peacock holds a position of <b>Sales Coordinator</b> in our WA department, (Seattle USA). Joined our company on Saturday , 01 May 2010.</div></div>">
                </ContentTemplate>
            </AccordionItem>
            <AccordionItem>
                <HeaderTemplate>
                    <div>Laura Callahan</div>
                </HeaderTemplate>
                <ContentTemplate>
                    <div class='container'><img src='images/laura.png'/><div class='content'><b>Laura Callahan</b> was born on Tuesday , 06 November 1990. Now lives at Edgeham Hollow Winchester Way, London,UK. Laura Callahan holds a position of <b>Sales Coordinator</b> in our WA department, (Seattle USA). Joined our company on Saturday , 01 May 2010.</div></div>
                </ContentTemplate>
            </AccordionItem>
            <AccordionItem>
                <HeaderTemplate>
                    <div>Albert Dodsworth</div>
                </HeaderTemplate>
                <ContentTemplate>
                    <div class='container'><img src='images/albert.png' /><div class='content'> <b>Albert Dodsworth</b> was born on Thursday , 19 October 1989. Now lives at 4726 - 11th Ave. N.E., Seattle,USA.Albert Dodsworth holds a position of <b>Sales Representative</b> in our WA department, (Seattle USA). Joined our company on Friday , 01 May 2009.</div></div>
                </ContentTemplate>
            </AccordionItem>
        </AccordionItems>
    </SfAccordion>

    <style>
        img {
            height: 40px;
            width: 50px;
            margin-top: 13px;
        }

        .container {
            display: inline-flex;
            width: auto;
            padding: 0;
        }

        .content {
            margin-left: 10px;
        }
    </style>

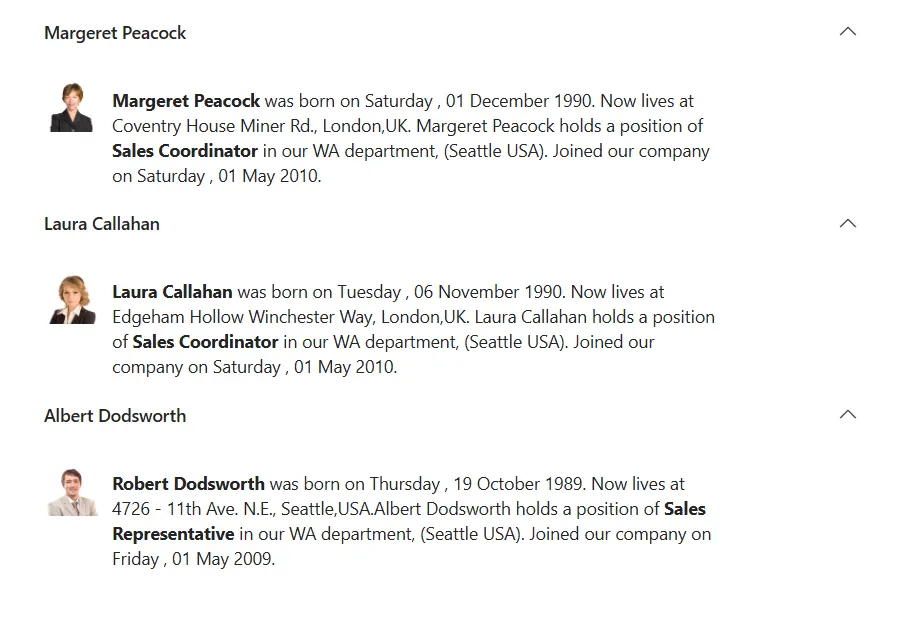

    Blazor Accordion with Header Template
