Annotation in Blazor Accumulation Chart Component

20 Aug 20215 minutes to read

Annotations are texts, shapes, or images that are used to highlight a specific region of interest in a chart. The AccumulationChartAnnotation property allows to add annotations to the chart. Specify the element that needs to be displayed in the accumulation chart area by using the Content property of the annotation.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users" Name="Browser">
            <AccumulationDataLabelSettings Visible="true" Name="Text" Position="AccumulationLabelPosition.Outside"></AccumulationDataLabelSettings>
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartAnnotations>
        <AccumulationChartAnnotation X="Opera" Y="11" CoordinateUnits="@Syncfusion.Blazor.Charts.Units.Point" Region="@Syncfusion.Blazor.Charts.Regions.Series">
            <ContentTemplate>
                <div style='border: 1px solid black;background-color:red;padding: 5px 5px 5px 5px'>19</div>
            </ContentTemplate>
        </AccumulationChartAnnotation>
    </AccumulationChartAnnotations>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

Annotation in Blazor Accumulation Chart

Region

The Region property can be used to insert annotations in relation to a series or a chart. By default, it is positioned with respect to a Accumulation Chart.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users" Name="Browser">
            <AccumulationDataLabelSettings Visible="true" Name="Text" Position="AccumulationLabelPosition.Outside"></AccumulationDataLabelSettings>
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartAnnotations>
        <AccumulationChartAnnotation X=130 Y=180 CoordinateUnits="@Syncfusion.Blazor.Charts.Units.Pixel" Region="@Syncfusion.Blazor.Charts.Regions.Chart">
            <ContentTemplate>
                <div style='border: 1px solid black;background-color:lightblue;padding: 5px 5px 5px 5px'>Opera</div>
            </ContentTemplate>
        </AccumulationChartAnnotation>
    </AccumulationChartAnnotations>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

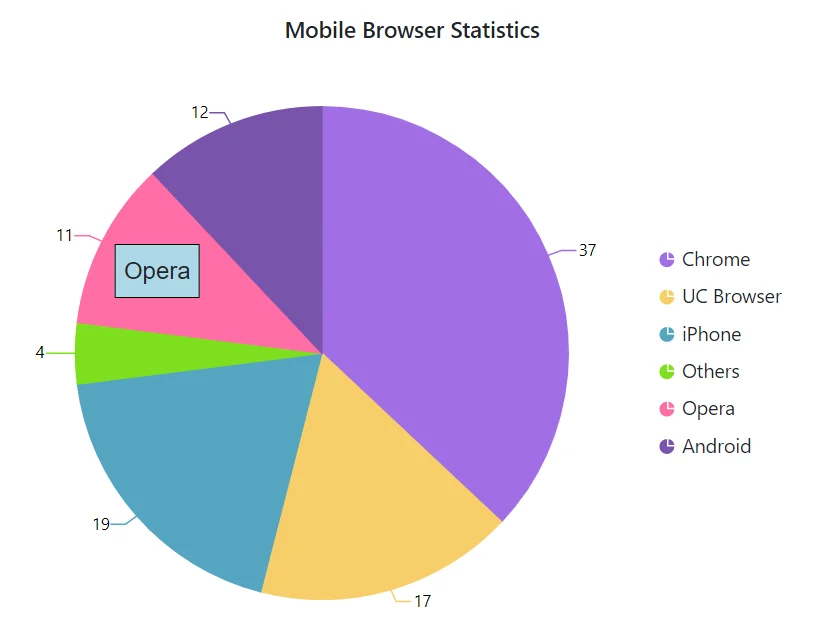

Blazor Accumulation Chart with Region

Co-ordinate Units

The CoordinateUnits property allows to specify the annotation’s coordinate units either in Pixel or Point.

@using Syncfusion.Blazor.Charts

<SfAccumulationChart Title="Mobile Browser Statistics">
    <AccumulationChartSeriesCollection>
        <AccumulationChartSeries DataSource="@StatisticsDetails" XName="Browser" YName="Users" Name="Browser">
            <AccumulationDataLabelSettings Visible="true" Name="Text" Position="AccumulationLabelPosition.Outside"></AccumulationDataLabelSettings>
        </AccumulationChartSeries>
    </AccumulationChartSeriesCollection>

    <AccumulationChartAnnotations>
        <AccumulationChartAnnotation X="Chrome" Y="37" CoordinateUnits="@Syncfusion.Blazor.Charts.Units.Point" Region="@Syncfusion.Blazor.Charts.Regions.Series">
            <ContentTemplate>
                <div style='border: 1px solid black;background-color:red;padding: 5px 5px 5px 5px'>Chrome:37</div>
            </ContentTemplate>
        </AccumulationChartAnnotation>
    </AccumulationChartAnnotations>
</SfAccumulationChart>

@code{
    public class Statistics
    {
        public string Browser { get; set; }
        public double Users { get; set; }
    }

    public List<Statistics> StatisticsDetails = new List<Statistics>
	{
        new Statistics { Browser = "Chrome", Users = 37 },
        new Statistics { Browser = "UC Browser", Users = 17 },
        new Statistics { Browser = "iPhone", Users = 19 },
        new Statistics { Browser = "Others", Users = 4  },
        new Statistics { Browser = "Opera", Users = 11 },
        new Statistics { Browser = "Android", Users = 12 },
    };
}

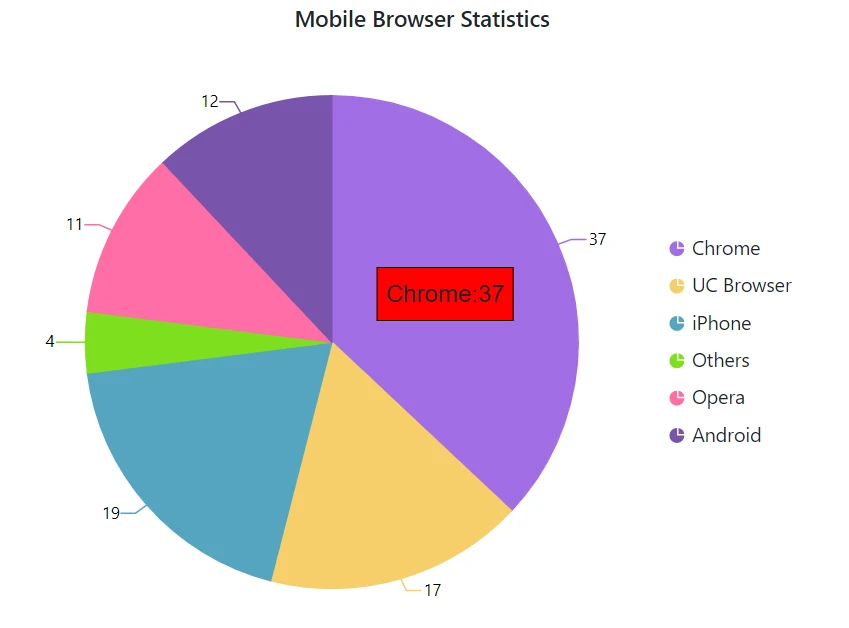

Blazor Accumulation Chart displays Co-ordinate Units

Refer to the Blazor Charts feature tour page for its groundbreaking feature representations and also explore the Blazor Accumulation Chart Example to know about the various features of accumulation charts and how it is used to represent numeric proportional data.
