Getting Started with Blazor Card Component

10 Feb 202310 minutes to read

This section briefly explains about how to include Blazor Card component in your Blazor Server App and Blazor WebAssembly App using Visual Studio.

To get start quickly with Blazor Card component, you can check on this video.

Prerequisites

System requirements for Blazor components

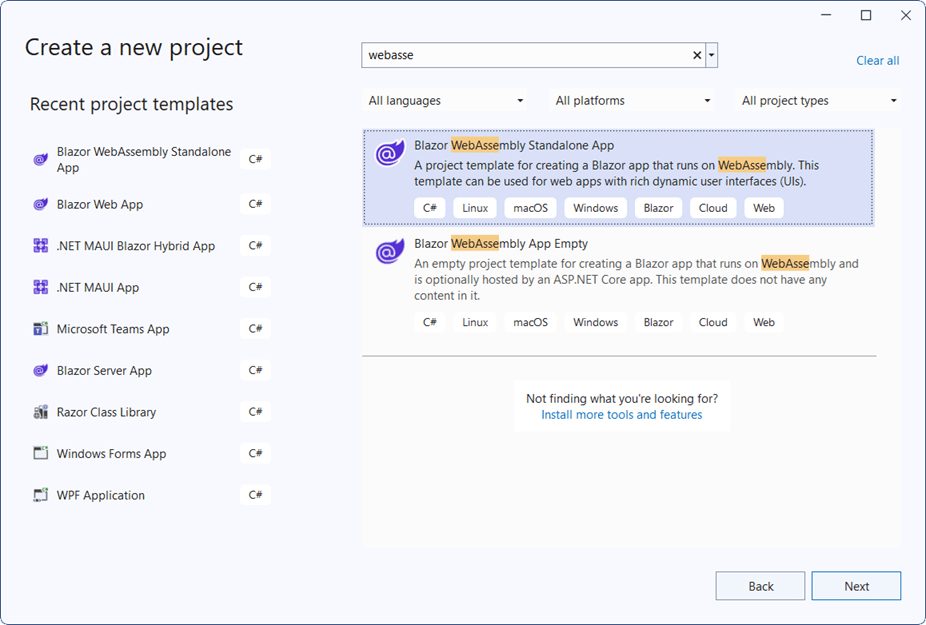

Create a new Blazor App in Visual Studio

You can create Blazor Server App or Blazor WebAssembly App using Visual Studio in one of the following ways,

Install Syncfusion Blazor Card NuGet in the App

Syncfusion Blazor components are available in nuget.org. To use Syncfusion Blazor components in the application, add reference to the corresponding NuGet. Refer to NuGet packages topic for available NuGet packages list with component details and Benefits of using individual NuGet packages.

To add Blazor Card component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.Blazor.Cards and then install it.

Register Syncfusion Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor namespace.

~/_Imports.razor

@using Syncfusion.Blazor

Now, register the Syncfusion Blazor Service in the Blazor Server App or Blazor WebAssembly App. Here, Syncfusion Blazor Service is registered by setting IgnoreScriptIsolation property as true to load the scripts externally in the next steps.

NOTE

From 2022 Vol-1 (20.1) version, the default value of IgnoreScriptIsolation is changed to true. It is not necessary to set the IgnoreScriptIsolation property to refer scripts externally, since the default value has already been changed to true, and this property is obsolete.

Blazor Server App

For .NET 6 and .NET 7 app, open the ~/Program.cs file and register the Syncfusion Blazor Service.
For .NET 5 and .NET 3.X app, open the ~/Startup.cs file and register the Syncfusion Blazor Service.

.NET 6 & .NET 7 (~/Program.cs)
.NET 5 and .NET 3.X (~/Startup.cs)
using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Web;
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorPages();
builder.Services.AddServerSideBlazor();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
using Syncfusion.Blazor;

namespace BlazorApplication
{
    public class Startup
    {
        ...
        public void ConfigureServices(IServiceCollection services)
        {
            services.AddRazorPages();
            services.AddServerSideBlazor();
            services.AddSyncfusionBlazor();
        }
        ...
    }
}

Blazor WebAssembly App

Open ~/Program.cs file and register the Syncfusion Blazor Service in the client web app.

.NET 6 & .NET 7 (~/Program.cs)
.NET 5 & .NET 3.X (~/Program.cs)
using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(serviceProvider => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....
using Syncfusion.Blazor;

namespace WebApplication1
{
    public class Program
    {
        public static async Task Main(string[] args)
        {
            ....
            builder.Services.AddSyncfusionBlazor();
            await builder.Build().RunAsync();
        }
    }
}

Add style sheet

Checkout the Blazor Themes topic to learn different ways (Static Web Assets, CDN and CRG) to refer themes in Blazor application, and to have the expected appearance for Syncfusion Blazor components. Here, the theme is referred using Static Web Assets. Refer to Enable static web assets usage topic to use static assets in your project.

To add theme to the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.Blazor.Themes and then install it. Then, the theme style sheet from NuGet can be referred as follows,

NOTE

If you are using Syncfusion.Blazor single NuGet, you don’t have to refer Syncfusion.Blazor.Themes NuGet. Since style sheets already inside the assets of Syncfusion.Blazor NuGet.

Blazor Server App

For .NET 6 app, add the Syncfusion bootstrap5 theme in the <head> of the ~/Pages/_Layout.cshtml file.
For .NET 3.X, .NET 5 and .NET 7 app, add the Syncfusion bootstrap5 theme in the <head> of the ~/Pages/_Host.cshtml file.

.NET 6 (~/_Layout.cshtml)
.NET 3.X, .NET 5 & .NET 7 (~/_Host.cshtml)
<head>
    ...
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <!--Refer theme style sheet as below if you are using Syncfusion.Blazor Single NuGet-->
    <!--<link href="_content/Syncfusion.Blazor/styles/bootstrap5.css" rel="stylesheet" />-->
</head>
<head>
    ...
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <!--Refer theme style sheet as below if you are using Syncfusion.Blazor Single NuGet-->
    <!--<link href="_content/Syncfusion.Blazor/styles/bootstrap5.css" rel="stylesheet" />-->
</head>

Blazor WebAssembly App

For Blazor WebAssembly App, refer the theme style sheet from NuGet in the <head> of wwwroot/index.html file in the client web app.

~/index.html
<head>
    ...
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <!--Refer theme style sheet as below if you are using Syncfusion.Blazor Single NuGet-->
    <!--<link href="_content/Syncfusion.Blazor/styles/bootstrap5.css" rel="stylesheet" />-->
</head>

Add script reference

Checkout Adding Script Reference topic to learn different ways to add script reference in Blazor Application. In this getting started walk-through, the required scripts are referred using Static Web Assets externally inside the <head> as follows. Refer to Enable static web assets usage topic to use static assets in your project.

Blazor Server App

For .NET 6 app, refer script in the <head> of the ~/Pages/_Layout.cshtml file.
For .NET 3.X, .NET 5 and .NET 7 app, refer script in the <head> of the ~/Pages/_Host.cshtml file.

.NET 6 (~/_Layout.cshtml)
.NET 3.X, .NET 5 & .NET 7 (~/_Host.cshtml)
<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>
<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>

Blazor WebAssembly App

For Blazor WebAssembly App, refer script in the <head> of the ~/index.html file.

~/index.html
<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>

NOTE

Syncfusion recommends to reference scripts using Static Web Assets, CDN and CRG by disabling JavaScript isolation for better loading performance of the Blazor application.

Add Blazor Card component

Open ~/_Imports.razor file or any other page under the ~/Pages folder where the component is to be added and import the Syncfusion.Blazor.Cards namespace.

~/Imports.razor

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Cards

Now, add the Syncfusion Blazor Card component in razor file. Here, the Card component is added in the ~/Pages/Index.razor file under the ~/Pages folder.

CSHTML

<SfCard> Sample Card </SfCard>

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to run the application. Then, the Syncfusion Blazor Card component will be rendered in the default web browser.

Add header and content

You can add the header by using CardHeader tag and add Title and SubTitle in that tag. You can also add the content by using CardContent tag.

CSHTML
<div class="control-section">
    <div class="row">
        <div class="col-xs-6 col-sm-6 col-lg-6 col-md-6">
            <SfCard>
                <CardHeader Title="Debunking Five Data Science Myths" SubTitle="By John Doe | Jan 20, 2018" />
                <CardContent Content="Tech evangelists are currently pounding their pulpits about all things AI, machine learning, analytics—anything that sounds like the future and probably involves lots of numbers. Many of these topics can be grouped under the intimidating term data science." />
            </SfCard>
        </div>
    </div>
</div>

Blazor Card Component

NOTE

View Sample in GitHub.

NOTE

You can also explore our Blazor Card example that shows you how to render and configure the Card.
