Area in Blazor Charts Component

13 Sep 202419 minutes to read

Area

Area Chart is like Line Chart, that represents time-dependent data and shows the trends at equal intervals, but it fills the area below the line. To render an area series, define the series Type as Area in your chart configuration. This indicates that the data should be represented as an area chart, which is ideal for showing trends over time or across categories, with filled areas beneath the lines representing data points and the ValueType of the plot data can be Category, DateTime, DateTimeCategory, Double or Logarithmic.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="ChartSeriesType.Area">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

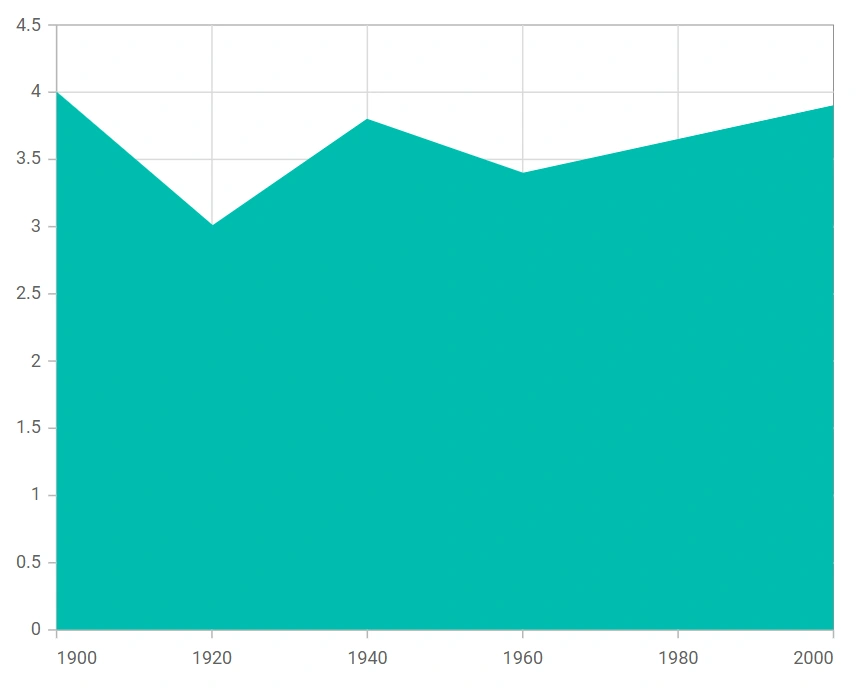

Blazor Area Chart

NOTE

Refer to our Blazor Area Charts feature tour page to know about its other groundbreaking feature representations. Explore our Blazor Area Chart Example to know how to represent time-dependent data, showing trends at equal intervals.

Binding data with series

You can bind data to the chart using the DataSource property within the series configuration. The DataSource value can be set using either SfDataManager property values or a list of business objects. More information on data binding can be found here. To display the data correctly, map the fields from the data to the chart series’ XName and YName properties.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="ChartSeriesType.Area">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Series customization

The following properties can be used to customize the Area series.

Fill

The Fill property determines the color applied to the series.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" Fill="blue" XName="X" YName="Y" Type="ChartSeriesType.Area">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

The Fill property can be used to apply a gradient color to the area series. By configuring this property with gradient values, you can create a visually appealing effect in which the color transitions smoothly from one shade to another.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" Fill="url(#grad1)" XName="X" YName="Y" Type="ChartSeriesType.Area">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

<svg style="height: 0">
    <defs>
        <linearGradient id="grad1" x1="0%" y1="0%" x2="0%" y2="100%">
            <stop offset="20%" style="stop-color:orange;stop-opacity:1" />
            <stop offset="100%" style="stop-color:black;stop-opacity:1" />
        </linearGradient>
    </defs>
</svg>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Opacity

The Opacity property specifies the transparency level of the Fill. Adjusting this property allows you to control how opaque or transparent the fill color of the series appears.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" Opacity="0.3" XName="X" YName="Y" Type="ChartSeriesType.Area">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

DashArray

The DashArray property determines the pattern of dashes and gaps in the series border.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" DashArray="5,5" XName="X" YName="Y" Type="ChartSeriesType.Area">
           <ChartSeriesBorder Width="2" Color="red"></ChartSeriesBorder>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Area Border

The following properties in the ChartSeriesBorder can be used to customize the border of the Area Chart.

  • Width - Specifies the width for the border of the Area Chart.
  • Color - Specifies the Color for the border of the Area Chart.
@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="ChartSeriesType.Area">
            <ChartSeriesBorder Width="2" Color="#962D18"></ChartSeriesBorder>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Multicolored area

To render a multicolored area series in your chart, you need to follow a few steps to configure it correctly. Here’s a concise guide on how to do this:

  • Set the series type: Define the series Type as MultiColoredArea in your chart configuration. This specifies that the series should be rendered as a multicolored area chart, with different segments of the area having distinct colors.

  • Customize the Segments: Define the segments of the series using the ChartSegment property. Each segment can be customized with properties such as Value, Color, and DashArray.

    • Value - Specifies the endpoint of the segment.
    • Color - Defines the color of the segment.
    • DashArray - Defines the dashes or gaps in the segment.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@WeatherReports" XName="X" YName="Y" Type="Syncfusion.Blazor.Charts.ChartSeriesType.MultiColoredArea">
            <ChartSegments>
                <ChartSegment Value="2007" Color="blue" />
                <ChartSegment Value="2009" Color="red" />
                <ChartSegment Color="green"></ChartSegment>
            </ChartSegments>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }

    public List<ChartData> WeatherReports = new List<ChartData>
    {
        new ChartData{ X= 2005, Y= 28 },
        new ChartData{ X= 2006, Y= 25},
        new ChartData{ X= 2007, Y= 26 },
        new ChartData{ X= 2008, Y= 27 },
        new ChartData{ X= 2009, Y= 32},
        new ChartData{ X= 2010, Y= 35 },
        new ChartData{ X= 2011, Y= 25 }
    };
}

Empty points

Data points with null, double.NaN or undefined values are considered empty. Empty data points are ignored and not plotted on the chart.

Mode

Use the Mode property to define how empty or missing data points are handled in the series. The default mode for empty points is Gap.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift" />
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="Syncfusion.Blazor.Charts.ChartSeriesType.Area">
            <ChartEmptyPointSettings Mode="EmptyPointMode.Zero"></ChartEmptyPointSettings>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= double.NaN },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Fill

Use the Fill property to customize the fill color of empty points in the series.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift" />
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="ChartSeriesType.Area">
            <ChartEmptyPointSettings Fill="red" Mode="EmptyPointMode.Zero" />
            <ChartMarker Visible="true" Height="7" Width="7" IsFilled="true"></ChartMarker>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= double.NaN },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Border

Use the Border property to customize the Width and Color of the border for empty points.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift" />
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="Syncfusion.Blazor.Charts.ChartSeriesType.Area">
            <ChartEmptyPointSettings Fill="red" Mode="EmptyPointMode.Zero">
                <ChartEmptyPointBorder Color="green" Width="2"></ChartEmptyPointBorder>
            </ChartEmptyPointSettings>
            <ChartMarker Visible="true" Height="7" Width="7" IsFilled="true"></ChartMarker>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }
    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= double.NaN },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Events

Series render

The OnSeriesRender event allows you to customize series properties, such as Data, Fill, and Series, before they are rendered on the chart.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartEvents OnSeriesRender="SeriesRender"></ChartEvents>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="Syncfusion.Blazor.Charts.ChartSeriesType.Area" />
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }

    public void SeriesRender(SeriesRenderEventArgs args)
    {
        args.Fill = "#FF4081";
    }

    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

Point render

The OnPointRender event allows you to customize each data point before it is rendered on the chart.

@using Syncfusion.Blazor.Charts

<SfChart>
    <ChartPrimaryXAxis Minimum="1900" Maximum="2000" EdgeLabelPlacement="EdgeLabelPlacement.Shift"/>
    <ChartEvents OnPointRender="PointRender"></ChartEvents>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@SalesDetails" XName="X" YName="Y" Type="ChartSeriesType.Area">
            <ChartMarker Visible="true" Width="7" Height="7"></ChartMarker>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

@code {
    public class ChartData
    {
        public double X { get; set; }
        public double Y { get; set; }
    }

    public void PointRender(PointRenderEventArgs args)
    {
        args.Fill = (args.Point.Index % 2 != 0) ? "#ff6347" : "#009cb8";
    }

    public List<ChartData> SalesDetails = new List<ChartData>
    {
        new ChartData { X= 1900, Y= 4 },
        new ChartData { X= 1920, Y= 3.0 },
        new ChartData { X= 1940, Y= 3.8 },
        new ChartData { X= 1960, Y= 3.4 },
        new ChartData { X= 2000, Y= 3.9 }
    };
}

NOTE

Refer to our Blazor Charts feature tour page for its groundbreaking feature representations and also explore our Blazor Chart Example to know various chart types and how to represent time-dependent data, showing trends at equal intervals.
