Getting Started with Blazor Chart Component in Web App

16 Sep 202512 minutes to read

This section briefly explains about how to include Blazor Chart component in your Blazor Web App using Visual Studio, Visual Studio Code and .NET CLI.

Prerequisites

System requirements for Blazor components

Create a new Blazor Web App in Visual Studio

You can create a Blazor Web App using Visual Studio 2022 via Microsoft Templates or the Syncfusion^® Blazor Extension. For detailed instructions, refer to this Blazor Web App Getting Started documentation.

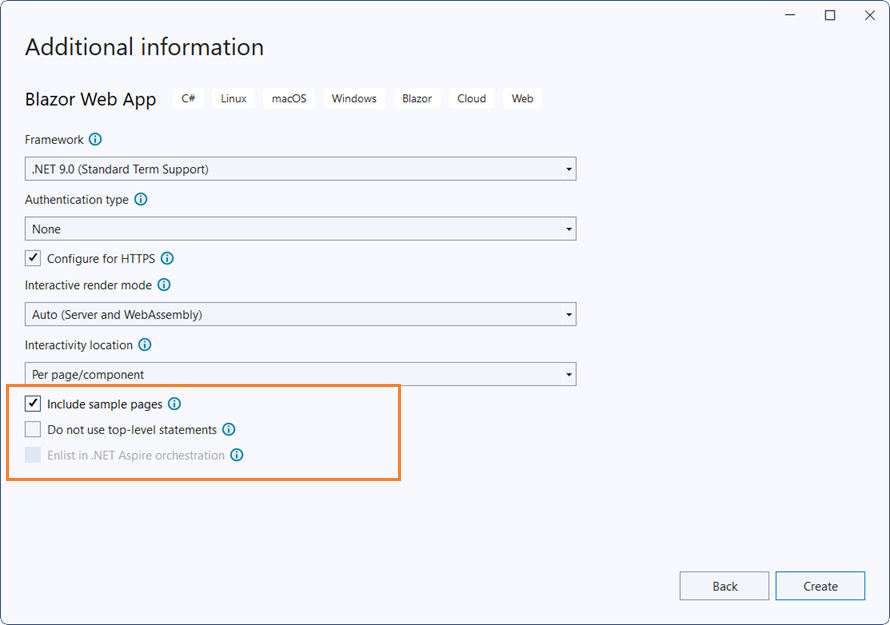

You need to configure the corresponding Interactive render mode and Interactivity location while creating a Blazor Web Application.

Install Syncfusion^® Blazor Charts NuGet in the Blazor Web App

To add Blazor Chart component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.Charts.

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion^® Blazor components NuGet packages within the client project.

Alternatively, you can utilize the following package manager command to achieve the same.

Package Manager
Install-Package Syncfusion.Blazor.Charts -Version 31.1.17

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Prerequisites

System requirements for Blazor components

Create a new Blazor Web App in Visual Studio Code

You can create a Blazor Web App using Visual Studio Code via Microsoft Templates or the Syncfusion^® Blazor Extension. For detailed instructions, refer to this Blazor Web App Getting Started documentation.

Configure the appropriate interactive render mode and interactivity location when setting up a Blazor Web Application. For detailed information, refer to the interactive render mode documentation.

For example, in a Blazor Web App with the Auto interactive render mode, use the following commands.

Blazor Web App
dotnet new blazor -o BlazorWebApp -int Auto
cd BlazorWebApp
cd BlazorWebApp.Client

NOTE

For more information on creating a Blazor Web App with various interactive modes and locations, refer to this link.

Install Syncfusion^® Blazor Charts NuGet in the App

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion^® Blazor components NuGet packages within the client project.

Press Ctrl+` to open the integrated terminal in Visual Studio Code.
Ensure you’re in the project root directory where your .csproj file is located.
Run the following command to install a Syncfusion.Blazor.Charts NuGet package and ensure all dependencies are installed.

Package Manager
dotnet add package Syncfusion.Blazor.Charts -v 31.1.17
dotnet restore

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Prerequisites

Latest version of the .NET Core SDK. If you previously installed the SDK, you can determine the installed version by executing the following command in a command prompt (Windows) or terminal (macOS) or command shell (Linux).

.NET CLI
dotnet --version

Create a Blazor Web project using .NET CLI

Run the following command to create a new Blazor Web App in a command prompt (Windows) or terminal (macOS) or command shell (Linux). For detailed instructions, refer to this Blazor Web App Getting Started documentation.

Configure the appropriate interactive render mode and interactivity location when setting up a Blazor Web Application. For detailed information, refer to the interactive render mode documentation.

For example, in a Blazor Web App with Auto interactive render mode, use the following commands:

.NET CLI
dotnet new blazor -o BlazorApp -int Auto
cd BlazorApp
cd BlazorApp.Client

This command creates new Blazor Web app project and places it in a new directory called BlazorApp inside your current location. See Create Blazor app topic and dotnet new CLI command topics for more details.

Install Syncfusion^® Blazor Charts NuGet in the App

Here’s an example of how to add Blazor Chart component in the application using the following command in the command prompt (Windows) or terminal (Linux and macOS) to install a Syncfusion.Blazor.Charts NuGet package. See Install and manage packages using the dotnet CLI topics for more details.

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion^® Blazor components NuGet packages within the client project.

.NET CLI
dotnet add package Syncfusion.Blazor.Charts --version 31.1.17
dotnet restore

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Add Import Namespaces

Open the ~/_Imports.razor file from the client project and import the Syncfusion.Blazor and Syncfusion.Blazor.Charts namespace.

~/_Imports.razor
@using Syncfusion.Blazor
@using Syncfusion.Blazor.Charts

Register Syncfusion^® Blazor Service

If your Blazor Web App uses WebAssembly or Auto interactive render modes, you must register the Syncfusion^® Blazor service in the ~/Program.cs files of the main server project and associated .Client project.

Server(~/_Program.cs)
Client(~/_Program.cs)
...
...
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents()
    .AddInteractiveWebAssemblyComponents();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
...
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.Services.AddSyncfusionBlazor();

await builder.Build().RunAsync();

Add script resources

The script can be accessed from NuGet through Static Web Assets. Include the script reference at the end of the <body> in the ~/Components/App.razor file as shown below:

<head>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>

    //Blazor Chart Component script reference.
    <!-- <script src="_content/Syncfusion.Blazor.Charts/scripts/sf-chart.min.js" type="text/javascript"></script> -->
</head>

NOTE

Check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Syncfusion^® Blazor Chart component

Add the Syncfusion^® Blazor Chart component to a Razor page located under the Pages folder (e.g., Pages/Home.razor) in either the Server or Client project. If an interactivity location as Per page/component in the web app, define a render mode at top of the component, as follows:

Interactivity location	RenderMode	Code
Per page/component	Auto	@rendermode InteractiveAuto
	WebAssembly	@rendermode InteractiveWebAssembly
	None	—

NOTE

If an Interactivity Location is set to Global and the Render Mode is set to Auto or WebAssembly, the render mode is configured in the App.razor file by default.

RAZOR

@* desired render mode define here *@
@rendermode InteractiveAuto

RAZOR

<SfChart>

</SfChart>

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion^® Blazor Chart component in your default web browser.

Populate Blazor chart with data

To bind data for the chart component, you can assign a IEnumerable object to the DataSource property. It can also be provided as an instance of the DataManager.

RAZOR

public class SalesInfo
{
    public string Month { get; set; }
    public double SalesValue { get; set; }
}

public List<SalesInfo> Sales = new List<SalesInfo>
{
    new SalesInfo { Month = "Jan", SalesValue = 35 },
    new SalesInfo { Month = "Feb", SalesValue = 28 },
    new SalesInfo { Month = "Mar", SalesValue = 34 },
    new SalesInfo { Month = "Apr", SalesValue = 32 },
    new SalesInfo { Month = "May", SalesValue = 40 },
    new SalesInfo { Month = "Jun", SalesValue = 32 },
    new SalesInfo { Month = "Jul", SalesValue = 35 }
};

Now, map the data fields Month and Sales to the series XName and YName properties, then set the data to the DataSource property, and the chart type to Column because we will be viewing the data in a column chart.

Add titles

Using the Title property, you can add a title to the chart and the axes to provide the user with quick information about the data plotted in the chart.

RAZOR
<SfChart Title="Sales Analysis">
    <ChartPrimaryXAxis Title="Month" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"></ChartPrimaryXAxis>
    <ChartPrimaryYAxis Title="Sales in Dollar"></ChartPrimaryYAxis>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

Add data label

You can add data labels to improve the readability of the chart. This can be achieved by setting the Visible property to true in the ChartDataLabel.

RAZOR
<SfChart Title="Sales Analysis">
    <ChartPrimaryXAxis Title="Month" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"></ChartPrimaryXAxis>
    <ChartPrimaryYAxis Title="Sales in Dollar"></ChartPrimaryYAxis>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="ChartSeriesType.Column">
            <ChartMarker>
                <ChartDataLabel Visible="true"></ChartDataLabel>
            </ChartMarker>
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

When space constraints prevent you from displaying information using data labels, the tooltip comes in handy. The tooltip can be enabled by setting the Enable property in ChartTooltipSettings to true.

RAZOR
<SfChart Title="Sales Analysis">
    <ChartPrimaryXAxis Title="Month" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"></ChartPrimaryXAxis>
    <ChartPrimaryYAxis Title="Sales in Dollar"></ChartPrimaryYAxis>
    <ChartTooltipSettings Enable="true"></ChartTooltipSettings>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

Enable legend

You can use legend for the chart by setting the Visible property to true in ChartLegendSettings. The legend name can be changed by using the Name property in the series.

RAZOR
<SfChart Title="Sales Analysis">
    <ChartPrimaryXAxis Title="Month" ValueType="Syncfusion.Blazor.Charts.ValueType.Category"></ChartPrimaryXAxis>
    <ChartPrimaryYAxis Title="Sales in Dollar"></ChartPrimaryYAxis>
    <ChartLegendSettings Visible="true"></ChartLegendSettings>
    <ChartSeriesCollection>
        <ChartSeries DataSource="@Sales" Name="Sales" XName="Month" YName="SalesValue" Type="ChartSeriesType.Column">
        </ChartSeries>
    </ChartSeriesCollection>
</SfChart>

NOTE

View Sample in GitHub.
