Getting Started with Blazor DataForm Component

29 Nov 20244 minutes to read

This section briefly explains about how to include Blazor DataForm component in your Blazor Server App and Blazor WebAssembly App using Visual Studio.

Prerequisites

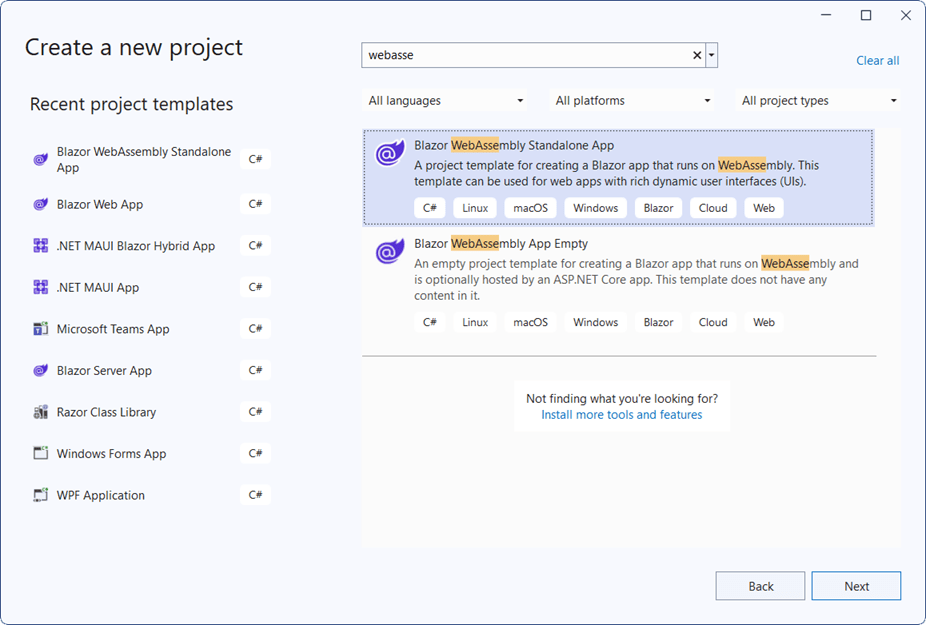

Create a new Blazor App in Visual Studio

You can create a Blazor Server App or Blazor WebAssembly App using Visual Studio via Microsoft Templates or the Syncfusion® Blazor Extension.

Install Syncfusion® Blazor DataForm and Themes NuGet in the App

To add Blazor DataForm component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.DataForm and Syncfusion.Blazor.Themes. Alternatively, you can utilize the following package manager command to achieve the same.

Install-Package Syncfusion.Blazor.DataForm -Version 28.1.33
Install-Package Syncfusion.Blazor.Themes -Version 28.1.33

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion® Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.DataForm namespace.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.DataForm

Now, register the Syncfusion® Blazor Service in the ~/Program.cs file of your Blazor Server App or Blazor WebAssembly App.

using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Web;
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorPages();
builder.Services.AddServerSideBlazor();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Reference the stylesheet and script in the <head> of the main page as follows:

  • For .NET 6 Blazor Server app, include it in ~/Pages/_Layout.cshtml file.

  • For .NET 7 Blazor Server app, include it in the ~/Pages/_Host.cshtml file.

  • For Blazor WebAssembly app, include it in the ~/index.html file.

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</head>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Blazor DataForm component

Add the Syncfusion® Blazor DataForm component in the ~/Pages/Index.razor file.

@using System.ComponentModel.DataAnnotations

<SfDataForm ID="MyForm"
            Model="@EmployeeDetail">
    <FormValidator>
        <DataAnnotationsValidator></DataAnnotationsValidator>
    </FormValidator>
    <FormItems>
        <FormAutoGenerateItems></FormAutoGenerateItems>
    </FormItems>
</SfDataForm>


@code {

    public class EmployeeDetails
    {
        [Required(ErrorMessage = "Please enter your first name.")]
        [Display(Name = "First Name")]
        public string FirstName { get; set; }

        [Required(ErrorMessage = "Please enter your last name.")]
        [Display(Name = "Last Name")]
        public string LastName { get; set; }

        [Required(ErrorMessage = "Please enter your email address.")]
        [EmailAddress(ErrorMessage = "Please enter a valid email address.")]
        [Display(Name = "Email ID")]
        public string Email { get; set; }

        [Required]
        [Display(Name = "Date of Birth")]
        public DateTime? DOB { get; set; }
    }
    private EmployeeDetails EmployeeDetail = new EmployeeDetails()
        {
            FirstName = "Anne",
            LastName = "Lawsen"
        };
}
Blazor DataForm Component

NOTE

View Sample in GitHub.
