Flip in Blazor Diagram Component

2 Feb 202624 minutes to read

The diagram component supports flipping nodes, connectors, and groups. Flipping creates a mirror image of the original element, allowing for versatile visual representations within the diagram.

How to Flip the Node or Group

The Flip command mirrors the content and ports of selected objects across the horizontal axis, vertical axis, or both on the diagram page. This transformation allows for quick and easy reorientation of diagram elements.

Note: The Flip command applies to both individual nodes and node groups, including their selected child nodes.

How to Change the Flip Direction

The FlipDirection enum defines the orientation used by the Flip property to mirror nodes, groups, or connectors horizontally, vertically, or in both directions. This enables symmetrical or reversed representations of diagram elements, enhancing the flexibility and visual appeal of your Blazor diagrams.

FlipDirection Description
Horizontal It is used to flip the node or connector to be mirrored across the horizontal axis.
Vertical It is used to flip the node or connector to be mirrored across the vertical axis.
Both It is used to flip the node or connector to be mirrored across the horizontal and vertical axes.
None It is used to disable all the flip behavior.

How to Change the Flip Mode

The DiagramFlipMode enum, assigned to the FlipMode property, controls the flipping behavior of diagram objects. It determines whether a node is flipped along with its ports, annotations, and annotation text, or whether those elements remain in their original orientation during the flip operation.

DiagramFlipMode Description
Content Flips the node along with annotations and their text.
Port Enables or disables the flip for an object’s port.
All Enables or disables flip operations for annotations, their text, and ports
Text Flips only the text of annotations, excluding the annotation elements.
PortAndLabelOnly Flips the node along with ports and annotations, excluding the annotation text.
PortWithLabelText Flips the node along with ports and annotation text, excluding the annotation elements.
LabelOnly Flips the node along with annotations, excluding their text.

Note: The FlipMode property applies only to nodes. It does not affect connectors or other diagram elements.

The following code example shows how to flip the node.

@using Syncfusion.Blazor.Diagram
@using Syncfusion.Blazor.DropDowns
<SfDropDownList TItem="FlipOption" TValue="string"
                DataSource="@_flipDirections"
                Placeholder="Flip">
    <DropDownListEvents TItem="FlipOption" TValue="string"
                        ValueChange="@FlipDirectionChange" />
    <DropDownListFieldSettings Text="Name" Value="Value"></DropDownListFieldSettings>
</SfDropDownList>

<SfDropDownList TItem="FlipOption" TValue="string"
                DataSource="@_flipModes"
                Placeholder="Flip">
    <DropDownListEvents TItem="FlipOption" TValue="string"
                        ValueChange="@FlipModeChange" />
    <DropDownListFieldSettings Text="Name" Value="Value"></DropDownListFieldSettings>
</SfDropDownList>

<SfDiagramComponent @ref="@_diagram" Width="1000px" Height="1000px" Nodes="@_nodes" Connectors="@_connectors">
</SfDiagramComponent>

@code
{
    // Initialize the diagram connector collection
    private DiagramObjectCollection<Connector> _connectors = new DiagramObjectCollection<Connector>();
    // Reference the diagram
    private SfDiagramComponent _diagram;
    // Define diagram nodes collection
    private DiagramObjectCollection<Node> _nodes;
    private class FlipOption
    {
        public string Name { get; set; }
        public string Value { get; set; } // Bound value
    }

    private List<FlipOption> _flipDirections = new List<FlipOption>()
    {
        new FlipOption { Name = "None", Value = "None" },
        new FlipOption { Name = "Horizontal", Value = "Horizontal" },
        new FlipOption { Name = "Vertical", Value = "Vertical" },
        new FlipOption { Name = "Both", Value = "Both" }
    };

    private List<FlipOption> _flipModes = new List<FlipOption>()
    {
        new FlipOption { Name = "None", Value = "None" },
        new FlipOption { Name = "Content", Value = "Content" },
        new FlipOption { Name = "Port", Value = "Port" },
        new FlipOption { Name = "Text", Value = "Text" },
        new FlipOption { Name = "PortAndLabelOnly", Value = "LabelOnly" },
        new FlipOption { Name = "PortWithLabelText", Value = "PortWithLabelText" },
        new FlipOption { Name = "LabelOnly", Value = "LabelOnly" },
        new FlipOption { Name = "All", Value = "All" }
    };

    protected override void OnInitialized()
    {
        Node node1 = new Node()
        {
            ID = "node1",
            Width = 100,
            Height = 100,
            OffsetX = 200,
            OffsetY = 100,
            Flip = FlipDirection.Horizontal,
            Annotations = new DiagramObjectCollection<ShapeAnnotation>()
            {
                new ShapeAnnotation
                {
                    ID="node1annotation",
                    Content = "Offset(0,0)",
                    Offset = new DiagramPoint() { X = 0, Y = 0 }
                }
            },
            Style = new ShapeStyle()
            {
                Fill = "#6495ED",
            },
            Shape = new FlowShape()
            {
                Type = NodeShapes.Flow,
                Shape = NodeFlowShapes.Card
            },
            Ports = new DiagramObjectCollection<PointPort>()
            {
                new PointPort()
                {
                    ID="ports",
                    Style = new ShapeStyle(){ Fill = "gray" },
                    Offset = new DiagramPoint() { X = 0, Y = 0 },
                    Visibility = PortVisibility.Visible,
                }
            }
        };
        Node node2 = new Node()
        {
            ID = "node2",
            Width = 100,
            Height = 100,
            OffsetX = 400,
            OffsetY = 100,
            Flip = FlipDirection.Horizontal,
            FlipMode = DiagramFlipMode.Port,
            Style = new ShapeStyle()
            {
                Fill = "#6495ED",
            },
            Shape = new FlowShape()
            {
                Type = NodeShapes.Flow,
                Shape = NodeFlowShapes.Card
            },
            Annotations = new DiagramObjectCollection<ShapeAnnotation>()
            {
                new ShapeAnnotation
                {
                    Content = "Offset(0,0)",
                    Offset = new DiagramPoint() { X = 0, Y = 0.5 }
                }
            },
            Ports = new DiagramObjectCollection<PointPort>()
            {
               new PointPort()
               {
                   Style = new ShapeStyle(){ Fill = "gray" },
                   Offset = new DiagramPoint() { X = 0, Y = 0 },
                   Visibility = PortVisibility.Visible
               }
            }
        };
        _nodes = new DiagramObjectCollection<Node>() { node1, node2 };
    }
    // This method applies flipDirection to the selected nodes
    private void FlipDirectionChange(ChangeEventArgs<string, FlipOption> args)
    {
        _diagram.StartGroupAction();

        if (_diagram.SelectionSettings.Nodes.Count > 0)
        {
            for (int i = 0; i < _diagram.SelectionSettings.Nodes.Count; i++)
            {
                _diagram.SelectionSettings.Nodes[i].Flip = (FlipDirection)Enum.Parse(typeof(FlipDirection), args.Value.ToString());
            }
        }
        for (int i = 0; i < _diagram.SelectionSettings.Connectors.Count; i++)
        {
            _diagram.SelectionSettings.Connectors[i].Flip = (FlipDirection)Enum.Parse(typeof(FlipDirection), args.Value.ToString());
        }
        _diagram.EndGroupAction();

    }

    // This method applies DiagramFlipMode to the selected nodes
    private void FlipModeChange(ChangeEventArgs<string, FlipOption> args)
    {
        _diagram.StartGroupAction();

        if (_diagram.SelectionSettings.Nodes.Count > 0)
        {
            for (int i = 0; i < _diagram.SelectionSettings.Nodes.Count; i++)
            {
                _diagram.SelectionSettings.Nodes[i].FlipMode = (DiagramFlipMode)Enum.Parse(typeof(DiagramFlipMode), args.Value.ToString());
            }
        }

        _diagram.EndGroupAction();
    }
}

A complete working sample can be downloaded from GitHub

FlipDirection DiagramFlipMode Output
Horizontal Content HorizontalDirection with Content Mode
Horizontal Port HorizontalDirection with Port Mode
Horizontal Text HorizontalDirection with Text Mode
Horizontal Port And LabelOnly HorizontalDirection with Port And LabelOnly Mode
Horizontal Port With LabelText HorizontalDirection with Port With LabelText Mode
Horizontal LabelOnly HorizontalDirection with LabelOnly Mode
Horizontal All HorizontalDirection with All Mode
Horizontal None HorizontalDirection with None Mode
Vertical Content VerticalDirection with Content Mode
Vertical Port VerticalDirection with Port Mode
Vertical Text VerticalDirection with Text Mode
Vertical Port And LabelOnly VerticalDirection with Port And LabelOnly Mode
Vertical Port With LabelText VerticalDirection with Port With LabelText Mode
Vertical LabelOnly VerticalDirection with LabelOnly Mode
Vertical All VerticalDirection with All Mode
Vertical None VerticalDirection with None Mode
Both Content BothDirection with Content Mode
Both Port BothDirection with Port Mode
Both Text BothDirection with Text Mode
Both Port And LabelOnly BothDirection with Port And LabelOnly Mode
Both Port With LabelText BothDirection with Port With LabelText Mode
Both LabelOnly BothDirection with LabelOnly Mode
Both All BothDirection with All Mode
Both None BothDirection with None Mode

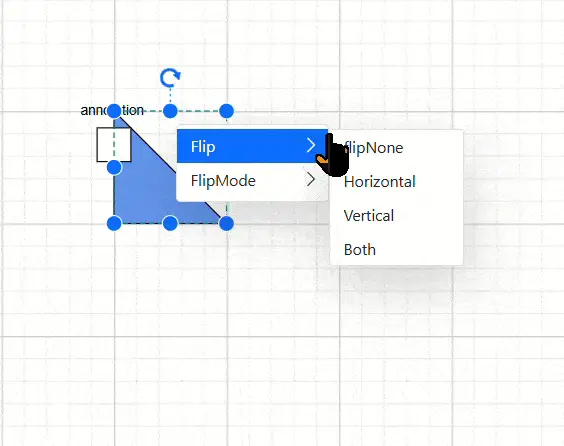

Flip

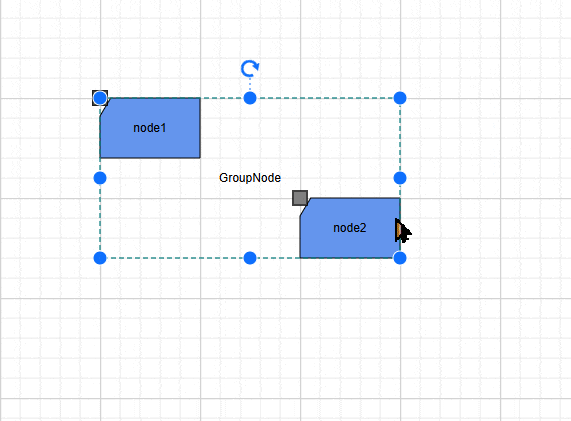

How to flip the Group Node

The flip functionality for a group node is similar to that of normal nodes. However, when flipping a group node, the flip of its child nodes is combined with the group’s flip. This combination ensures that the child nodes inherit the group’s flip while retaining their own individual flips.

Example:

  • If a child node’s flip is set to Vertical and the group node’s flip is set to Horizontal, the resulting flip for the child node will be a combination of Vertical and Horizontal (effectively a “both” flip).
  • This ensures that the child nodes’ orientations adapt dynamically based on the group’s flip while maintaining their unique flip settings.

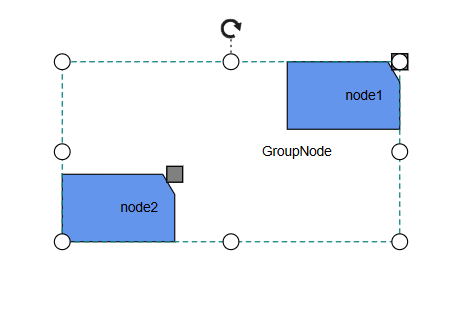

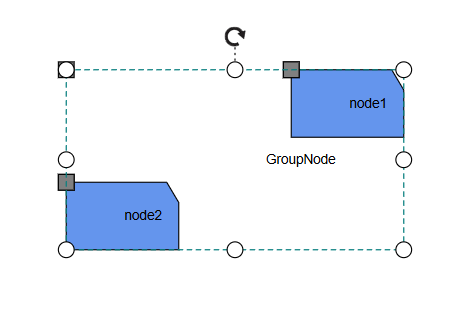

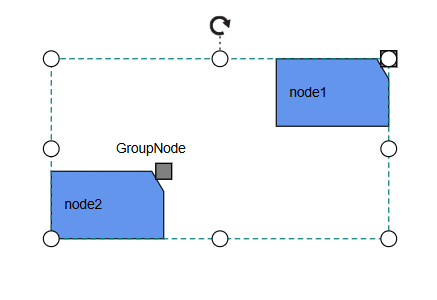

How to Change Group Flip Mode

The FlipMode of a group node behaves similarly to that of normal nodes. However,when a flip mode is applied to a group node, it takes precedence over any flip mode set on its child nodes, overriding their individual settings.

For example, in the below code, the flipMode for the child node is set to Text. The flipMode for the group node is set to Content. As a result, the effective flipMode for both the child node and the group node will be Content,
as the group node’s flipMode overrides the child’s.

The following code example shows how to flip the group.

@using Syncfusion.Blazor.Diagram
@using Syncfusion.Blazor.DropDowns

<SfDropDownList TItem="FlipOption" TValue="string"
                DataSource="@_flipDirections"
                Placeholder="Flip">
    <DropDownListEvents TItem="FlipOption" TValue="string"
                        ValueChange="@FlipDirectionChange" />
    <DropDownListFieldSettings Text="Name" Value="Value"></DropDownListFieldSettings>
</SfDropDownList>

<SfDropDownList TItem="FlipOption" TValue="string"
                DataSource="@_flipModes"
                Placeholder="Flip">
    <DropDownListEvents TItem="FlipOption" TValue="string"
                        ValueChange="@FlipModeChange" />
    <DropDownListFieldSettings Text="Name" Value="Value"></DropDownListFieldSettings>
</SfDropDownList>

<SfDiagramComponent @ref="@_diagram" Width="1000px" Height="1000px" Nodes="@_nodes" Connectors="@_connectors">
    <SnapSettings Constraints="@SnapConstraints.None"></SnapSettings>
</SfDiagramComponent>

@code
{
    // Initialize the diagram's connector collection
    private DiagramObjectCollection<Connector> _connectors = new DiagramObjectCollection<Connector>();
    // Reference the diagram
    private SfDiagramComponent _diagram;
    // Define diagram's nodes collection
    private DiagramObjectCollection<Node> _nodes;
    private class FlipOption
    {
        public string Name { get; set; }
        public string Value { get; set; } // Bound value
    }

    private List<FlipOption> _flipDirections = new List<FlipOption>()
    {
        new FlipOption { Name = "None", Value = "None" },
        new FlipOption { Name = "Horizontal", Value = "Horizontal" },
        new FlipOption { Name = "Vertical", Value = "Vertical" },
        new FlipOption { Name = "Both", Value = "Both" }
    };

    private List<FlipOption> _flipModes = new List<FlipOption>()
    {
        new FlipOption { Name = "None", Value = "None" },
        new FlipOption { Name = "Content", Value = "Content" },
        new FlipOption { Name = "Port", Value = "Port" },
        new FlipOption { Name = "Text", Value = "Text" },
        new FlipOption { Name = "PortAndLabelOnly", Value = "LabelOnly" },
        new FlipOption { Name = "PortWithLabelText", Value = "PortWithLabelText" },
        new FlipOption { Name = "LabelOnly", Value = "LabelOnly" },
        new FlipOption { Name = "All", Value = "All" }
    };

    protected override void OnInitialized()
    {
        Node node3 = new Node()
        {
            ID = "node3",
            Width = 100,
            Height = 60,
            OffsetX = 200,
            OffsetY = 300,
            Annotations = new DiagramObjectCollection<ShapeAnnotation>()
            {
                new ShapeAnnotation
                {
                    ID="ano3",
                    Content = "node1",
                    Offset = new DiagramPoint() { X = 0.5, Y = 0.5 }
                }
            },
            Style = new ShapeStyle()
            {
                Fill = "#6495ED",
            },
            Shape = new FlowShape()
            {
                Type = NodeShapes.Flow,
                Shape = NodeFlowShapes.Card
            },
            Ports = new DiagramObjectCollection<PointPort>()
            {
               new PointPort()
               {   ID="port3",
                   Style = new ShapeStyle(){ Fill = "gray" },
                   Offset = new DiagramPoint() { X = 0, Y = 0 },
                   Width=14,Height=14,
                   Visibility = PortVisibility.Visible
               }
            },
        };
        Node node4 = new Node()
        {
            ID = "node4",
            Width = 100,
            Height = 60,
            OffsetX = 400,
            OffsetY = 400,
            Style = new ShapeStyle()
            {
                Fill = "#6495ED",
            },
            Shape = new FlowShape()
            {
                Type = NodeShapes.Flow,
                Shape = NodeFlowShapes.Card
            },
            Annotations = new DiagramObjectCollection<ShapeAnnotation>()
            {
                new ShapeAnnotation
                {
                    ID="anno4",
                    Content = "node2",
                    Offset = new DiagramPoint() { X = 0.5, Y = 0.5 }
                }
            },
            Ports = new DiagramObjectCollection<PointPort>()
            {
               new PointPort()
               {   ID="port4",
                   Style = new ShapeStyle(){ Fill = "gray" },
                   Offset = new DiagramPoint() { X = 0, Y = 0 },
                   Width=14,Height=14,
                   Visibility = PortVisibility.Visible
               }
            },
        };
        _nodes = new DiagramObjectCollection<Node>() { node3, node4 };
        NodeGroup groupNode = new NodeGroup()
        {
            ID = "group",
            Children = new string[] { "node3", "node4" },
            Annotations = new DiagramObjectCollection<ShapeAnnotation>()
            {
                new ShapeAnnotation
                {
                    ID="anno4",
                    Content = "GroupNode",
                    Offset = new DiagramPoint() { X = 0.5, Y = 0.5 }
                }
            },
            Ports = new DiagramObjectCollection<PointPort>()
            {
               new PointPort()
               {   ID="port4",
                   Style = new ShapeStyle(){ Fill = "gray" },
                   Offset = new DiagramPoint() { X = 0, Y = 0},
                    Width=14,Height=14,
                   Visibility = PortVisibility.Visible
               }
            },
        };
        _nodes.Add(groupNode);
    }

    // This method applies flipDirection to the selected nodes
    private void FlipDirectionChange(ChangeEventArgs<string, FlipOption> args)
    {
        _diagram.StartGroupAction();

        if (_diagram.SelectionSettings.Nodes.Count > 0)
        {
            for (int i = 0; i < _diagram.SelectionSettings.Nodes.Count; i++)
            {
                _diagram.SelectionSettings.Nodes[i].Flip = (FlipDirection)Enum.Parse(typeof(FlipDirection), args.Value.ToString());
            }
        }
        for (int i = 0; i < _diagram.SelectionSettings.Connectors.Count; i++)
        {
            _diagram.SelectionSettings.Connectors[i].Flip = (FlipDirection)Enum.Parse(typeof(FlipDirection), args.Value.ToString());
        }
        _diagram.EndGroupAction();

    }

    // This method applies DiagramFlipMode to the selected nodes
    private void FlipModeChange(ChangeEventArgs<string, FlipOption> args)
    {
        _diagram.StartGroupAction();

        if (_diagram.SelectionSettings.Nodes.Count > 0)
        {
            for (int i = 0; i < _diagram.SelectionSettings.Nodes.Count; i++)
            {
                _diagram.SelectionSettings.Nodes[i].FlipMode = (DiagramFlipMode)Enum.Parse(typeof(DiagramFlipMode), args.Value.ToString());
            }
        }

        _diagram.EndGroupAction();
    }
}

For more information about node interaction, refer to Node Interaction.
A complete working sample can be downloaded from GitHub

FlipDirection DiagramFlipMode Output
Horizontal None HorizontalDirection with NoneMode
Horizontal All HorizontalDirection with AllMode
Horizontal LabelOnly HorizontalDirection with LabelOnly Mode
Horizontal Text HorizontalDirection with Text Mode
Horizontal Port HorizontalDirection with PortMode
Horizontal PortAndLabelOnly HorizontalDirection with Port and LabelOnly Mode
Horizontal PortWithLabelText HorizontalDirection with PortWithLabelText Mode
Horizontal Content HorizontalDirection with ContentMode

GroupFlip

How to Flip the Connector

The Flip command mirrors selected objects across horizontal, vertical, or both directions on the diagram page. This feature allows for quick and easy creation of symmetrical designs or reversed orientations of diagram elements.

Note: The FlipMode property applies only to nodes and does not affect connectors. This limitation ensures that connection logic remains intact while allowing individual node elements to be flipped as needed.

The following code example shows how to flip the connector.

@using Syncfusion.Blazor.Diagram
<input type="button" value="Horizontal" @onclick="@Horizontal" />
<input type="button" value="Vertical" @onclick="@Vertical" />
<input type="button" value="Both" @onclick="@Both" />
<SfDiagramComponent @ref="@_diagram" Width="1000px" Height="1000px"  Nodes="@_nodes" Connectors="@_connectors">
    <SnapSettings Constraints="@SnapConstraints.None"></SnapSettings>
</SfDiagramComponent>
@code
{
    private DiagramObjectCollection<Connector> _connectors = new DiagramObjectCollection<Connector>();
    private SfDiagramComponent _diagram;
    private DiagramObjectCollection<Node> _nodes = new DiagramObjectCollection<Node>();
    protected override void OnInitialized()
    {
        Connector connector = new Connector()
        {
            ID = "connector2",
            Annotations = new DiagramObjectCollection<PathAnnotation>()
            {
                new PathAnnotation
                {
                    Content = "Offset as 0.5",
                    Offset = 0.5
                },
            },
            SourcePoint = new DiagramPoint() { X = 100, Y = 100 },
            TargetPoint = new DiagramPoint() { X = 200, Y = 200 },
            Type = ConnectorSegmentType.Straight
        };
        _connectors.Add(connector);
    }
    private void Horizontal()
    {
        if (_diagram.SelectionSettings.Connectors.Count > 0)
        {
            for(int i = 0; i < _diagram.SelectionSettings.Connectors.Count; i++)
            {
                _diagram.SelectionSettings.Connectors[i].Flip = FlipDirection.Horizontal;
            }
        }
    }
    private void Vertical()
    {
        if (_diagram.SelectionSettings.Connectors.Count > 0)
        {
            for(int i = 0; i < _diagram.SelectionSettings.Connectors.Count; i++)
            {
                _diagram.SelectionSettings.Connectors[i].Flip = FlipDirection.Vertical;
            }
        }
    }
    private void Both()
    {
        if (_diagram.SelectionSettings.Connectors.Count > 0)
        {
            for(int i = 0; i < _diagram.SelectionSettings.Connectors.Count; i++)
            {
               _diagram.SelectionSettings.Connectors[i].Flip = FlipDirection.Both;
            }
        }
    }
}
FlipDirection Output
Horizontal HorizontalDirection
Vertical VerticalDirection
Both BothDirection

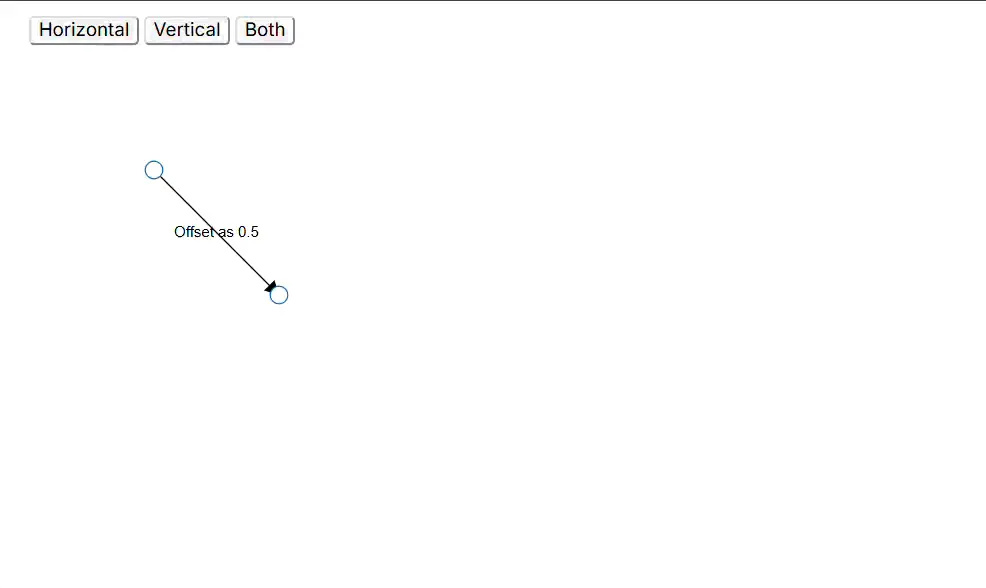

Flip Connector

For more information about node interaction, refer to Connector Interaction.
