Getting Started with Blazor ProgressBar Component

29 Nov 20244 minutes to read

This section briefly explains about how to include Blazor ProgressBar component in your Blazor Server App and Blazor WebAssembly App using Visual Studio. To get start quickly with Bullet Chart Component using Blazor, you can check on this video or GitHub sample.

Prerequisites

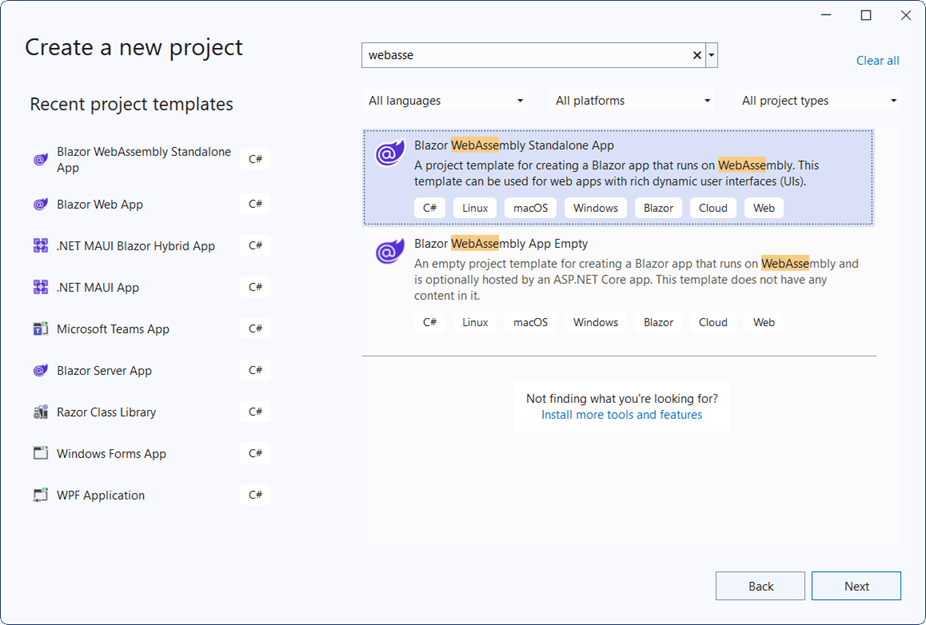

Create a new Blazor App in Visual Studio

You can create a Blazor Server App or Blazor WebAssembly App using Visual Studio via Microsoft Templates or the Syncfusion® Blazor Extension.

Install Syncfusion® Blazor ProgressBar and Themes NuGet in the App

To add Blazor ProgressBar component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.ProgressBar and Syncfusion.Blazor.Themes. Alternatively, you can utilize the following package manager command to achieve the same.

Install-Package Syncfusion.Blazor.ProgressBar -Version 28.1.33
Install-Package Syncfusion.Blazor.Themes -Version 28.1.33

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion® Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.ProgressBar namespace.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.ProgressBar

Now, register the Syncfusion® Blazor Service in the ~/Program.cs file of your Blazor Server App or Blazor WebAssembly App.

using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Web;
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorPages();
builder.Services.AddServerSideBlazor();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Reference the stylesheet and script in the <head> of the main page as follows:

  • For .NET 6 Blazor Server app, include it in ~/Pages/_Layout.cshtml file.

  • For .NET 7 Blazor Server app, include it in the ~/Pages/_Host.cshtml file.

  • For Blazor WebAssembly app, include it in the ~/index.html file.

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</head>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Blazor ProgressBar component

Add the Syncfusion® Blazor ProgressBar component in the ~/Pages/Index.razor file.

<SfProgressBar Value="50" Minimum="0" Maximum="100" TrackThickness="12" ProgressThickness="12">
</SfProgressBar>
  • Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion® Blazor ProgressBar component in your default web browser.
Blazor Linear ProgressBar

Circular Progress Bar Type

Change the type of the ProgressBar by using the Type property. By default, the Linear type of ProgressBar will be rendered. In the following example, view the Circular type.

<SfProgressBar Type="ProgressType.Circular" Value="70" Minimum="0" Maximum="100" TrackThickness="8" ProgressThickness="8">
</SfProgressBar>
Blazor Circular ProgressBar

NOTE

You can also explore our Blazor ProgressBar example that shows you how to render and configure the ProgressBar.
