Getting Started with Blazor Skeleton Component

29 Nov 20244 minutes to read

This section briefly explains about how to include Blazor Skeleton component in your Blazor Server App and Blazor WebAssembly App using Visual Studio.

To get start quickly with Skeleton Component using Blazor, you can check on this video or GitHub sample.

Prerequisites

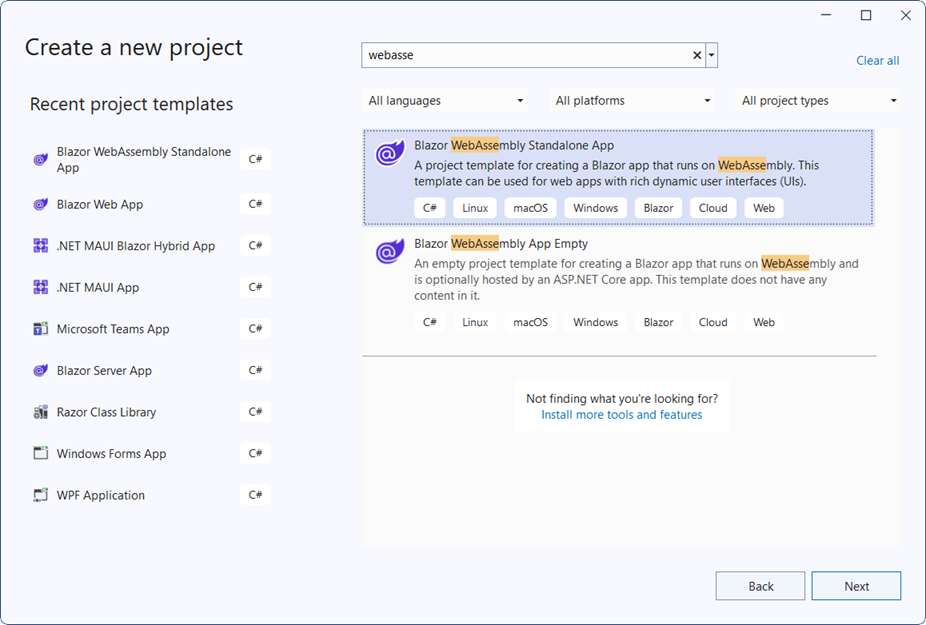

Create a new Blazor App in Visual Studio

You can create a Blazor Server App or Blazor WebAssembly App using Visual Studio via Microsoft Templates or the Syncfusion® Blazor Extension.

Install Syncfusion® Blazor Notifications and Themes NuGet in the App

To add Blazor Skeleton component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.Notifications and Syncfusion.Blazor.Themes. Alternatively, you can utilize the following package manager command to achieve the same.

Install-Package Syncfusion.Blazor.Notifications -Version 28.1.33
Install-Package Syncfusion.Blazor.Themes -Version 28.1.33

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion® Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.Notifications namespace.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Notifications

Now, register the Syncfusion® Blazor Service in the ~/Program.cs file of your Blazor Server App or Blazor WebAssembly App.

using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Web;
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorPages();
builder.Services.AddServerSideBlazor();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....

Add stylesheet

The theme stylesheet can be accessed from NuGet through Static Web Assets. Reference the stylesheet in the <head> of the main page as follows:

  • For .NET 6 Blazor Server app, include it in ~/Pages/_Layout.cshtml file.

  • For .NET 7 Blazor Server app, include it in the ~/Pages/_Host.cshtml file.

  • For Blazor WebAssembly app, include it in the ~/index.html file.

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application.

Add Blazor Skeleton component

Add the Syncfusion® Blazor Skeleton component in the ~/Pages/Index.razor file.

<SfSkeleton Height="15px" Width="200px"></SfSkeleton><br/>
<SfSkeleton Height="15px" Width="100px"></SfSkeleton>
  • Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion® Blazor Skeleton component in your default web browser.
Blazor Skeleton Component

Blazor Skeleton Shapes

The Shape property can be used to display skeleton in different shapes like circle, square, rectangle and text.

<div style="width: 200px">
    <SfSkeleton Shape="SkeletonType.Circle" Width="48px" CssClass="custom-css"></SfSkeleton>
    <SfSkeleton Shape="SkeletonType.Square" Width="48px"></SfSkeleton>
    <br/><br/>
    <SfSkeleton Shape="SkeletonType.Text" Height="15px"></SfSkeleton>
    <br/><br/>
    <SfSkeleton Shape="SkeletonType.Rectangle" Height="50px" Width="100%" ></SfSkeleton>
</div>
<style>
    .custom-css {
        margin-right: 30px;
    }
</style>
Blazor Skeleton Component

NOTE

You can also explore our Blazor Skeleton example that shows how to render and configure the skeleton.
