Templates in Blazor TreeGrid Component
6 Dec 202320 minutes to read
Blazor has templated components which accepts one or more UI segments as input that can be rendered as part of the component during component rendering. Tree Grid is a templated razor component, that allows to customize various part of the UI using template parameters. It allows to render custom components or content based on own logic.
The available template options in tree grid are as follows,
- Column template - Used to customize cell content.
- Header template - Used to customize header cell content.
- Row template - Used to customize row content.
- Detail template - Used to customize the detail cell content.

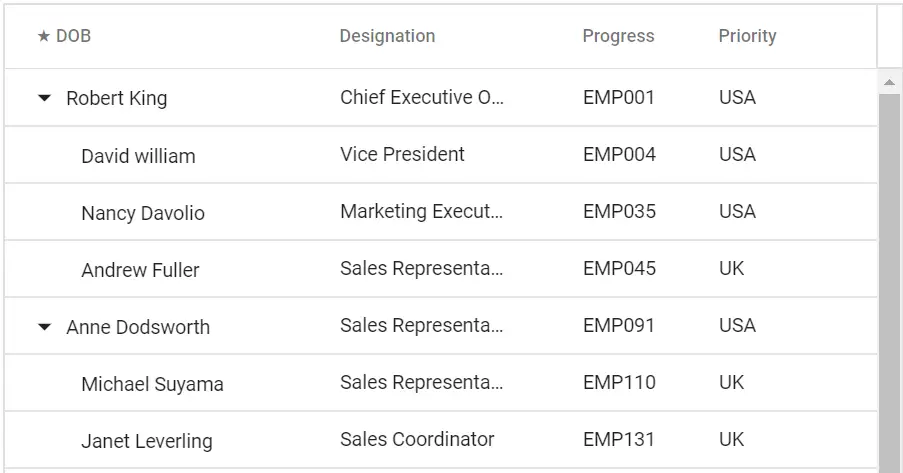

Template ModelType
To use templates, the tree grid must be bound with named model. This can be done by specifying the model type using the ModelType property of the tree grid component as follows.
@using TreeGridComponent.Data
@using Syncfusion.Blazor.TreeGrid;
<SfTreeGrid ModelType="@model" Height="400" DataSource="@TreeData" IdMapping="EmployeeID" ParentIdMapping="ParentId" TreeColumnIndex="0">
<TreeGridColumns>
<TreeGridColumn Field="Name" HeaderText="Name" Width="160">
<HeaderTemplate>
<div class="rating">
<span class="star"></span> DOB
</div>
</HeaderTemplate>
</TreeGridColumn>
<TreeGridColumn Field="Designation" HeaderText="Designation" Width="120"></TreeGridColumn>
<TreeGridColumn Field="EmpID" HeaderText="Progress" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Country" HeaderText="Priority" Width="100"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
<style>
.rating .star:before {
content: '★';
}
</style>
@code{
public Employee model = new Employee();
public IEnumerable<Employee> TreeData { get; set; }
protected override void OnInitialized()
{
this.TreeData = Employee.GetTemplateData();
}
}namespace TreeGridComponent.Data {
public class Employee
{
public string Name { get; set; }
public string FullName { get; set; }
public DateTime? DOB { get; set; }
public string Designation { get; set; }
public string EmpID { get; set; }
public int? EmployeeID { get; set; }
public string Country { get; set; }
public string Address { get; set; }
public string Contact { get; set; }
public int? ParentId { get; set; }
public TreeData Treedata { get; set; }
public static List<Employee> GetTemplateData()
{
List<Employee> DataCollection = new List<Employee>();
DataCollection.Add(new Employee { Name = "Robert King",FullName = "RobertKing",Designation = "Chief Executive Officer",EmployeeID = 1,EmpID = "EMP001",Country = "USA",DOB = new DateTime(1963, 2, 15),ParentId = null,Treedata = new TreeData() { ID = 21}});
DataCollection.Add(new Employee { Name = "David william",FullName = "DavidWilliam",Designation = "Vice President",EmployeeID = 2,EmpID = "EMP004",Country = "USA",DOB = new DateTime(1971, 5, 20),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Nancy Davolio",FullName = "NancyDavolio",Designation = "Marketing Executive",EmployeeID = 3,EmpID = "EMP035",Country = "USA",DOB = new DateTime(1966, 3, 19),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Andrew Fuller",FullName = "AndrewFuller",Designation = "Sales Representative",EmployeeID = 4,EmpID = "EMP045",Country = "UK",DOB = new DateTime(1980, 9, 20),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Anne Dodsworth",FullName = "AnneDodsworth",Designation = "Sales Representative",EmployeeID = 5,EmpID = "EMP091",Country = "USA",ParentId = null,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Michael Suyama",FullName = "MichaelSuyama",Designation = "Sales Representative",EmployeeID = 6,EmpID = "EMP110",Country = "UK",ParentId = 5,Treedata = new TreeData() { ID = 21 }});
return DataCollection;
}
}
}

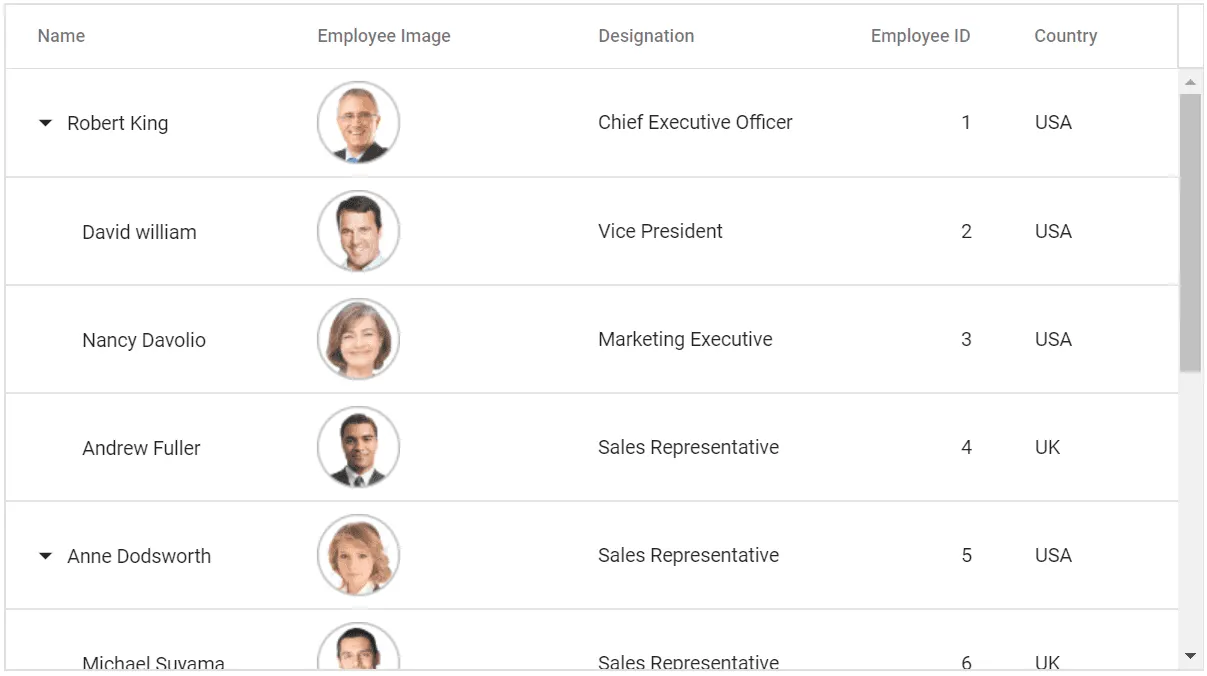

Template Context
Most of the templates used by tree grid are of type RenderFragment<T> and they will be passed with parameters. The parameters passed can be accessed to the templates using implicit parameter named context. This implicit parameter name can also be changed using the Context attribute.
For example, the data of the column template can be accessed using context as follows.
@using TreeGridComponent.Data
@using Syncfusion.Blazor.TreeGrid;
@inject Microsoft.AspNetCore.Components.NavigationManager UriHelper
<SfTreeGrid ModelType="@model" Height="400" DataSource="@TreeData" IdMapping="EmployeeID" ParentIdMapping="ParentId" TreeColumnIndex="0">
<TreeGridColumns>
<TreeGridColumn Field="Name" HeaderText="Name" Width="160"></TreeGridColumn>
<TreeGridColumn HeaderText="Employee Image" Width="80">
<Template>
@{
var employee = (context as Employee);
<div class="image">
<img src="@UriHelper.ToAbsoluteUri($"images/TreeGrid/{employee.Name}.png")" alt="@employee.EmployeeID" />
</div>
}
</Template>
</TreeGridColumn>
<TreeGridColumn Field="DOB" HeaderText="DOB" Width="10" Type="Syncfusion.Blazor.Grids.ColumnType.Date" Format="yMd"></TreeGridColumn>
<TreeGridColumn Field="Designation" HeaderText="Designation" Width="120"></TreeGridColumn>
<TreeGridColumn Field="EmpID" HeaderText="Progress" Width="80" TextAlign="Syncfusion.Blazor.Grids.TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Country" HeaderText="Priority" Width="100"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public Employee model = new Employee();
public IEnumerable<Employee> TreeData { get; set; }
protected override void OnInitialized()
{
this.TreeData = Employee.GetTemplateData();
}
}namespace TreeGridComponent.Data {
public class Employee
{
public string Name { get; set; }
public string FullName { get; set; }
public DateTime? DOB { get; set; }
public string Designation { get; set; }
public string EmpID { get; set; }
public int? EmployeeID { get; set; }
public string Country { get; set; }
public string Address { get; set; }
public string Contact { get; set; }
public int? ParentId { get; set; }
public TreeData Treedata { get; set; }
public static List<Employee> GetTemplateData()
{
List<Employee> DataCollection = new List<Employee>();
DataCollection.Add(new Employee { Name = "Robert King",FullName = "RobertKing",Designation = "Chief Executive Officer",EmployeeID = 1,EmpID = "EMP001",Address = "507 - 20th Ave. E.Apt. 2A, Seattle",Contact = "(206) 555-9857",Country = "USA",DOB = new DateTime(1963, 2, 15),ParentId = null,Treedata = new TreeData() { ID = 21}});
DataCollection.Add(new Employee { Name = "David william",FullName = "DavidWilliam",Designation = "Vice President",EmployeeID = 2,EmpID = "EMP004",Address = "722 Moss Bay Blvd., Kirkland",Contact = "(206) 555-3412",Country = "USA",DOB = new DateTime(1971, 5, 20),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Nancy Davolio",FullName = "NancyDavolio",Designation = "Marketing Executive",EmployeeID = 3,EmpID = "EMP035",Address = "4110 Old Redmond Rd., Redmond",Contact = "(206) 555-8122",Country = "USA",DOB = new DateTime(1966, 3, 19),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Andrew Fuller",FullName = "AndrewFuller",Designation = "Sales Representative",EmployeeID = 4,EmpID = "EMP045",Country = "UK",DOB = new DateTime(1980, 9, 20),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
return DataCollection;
}
}
}

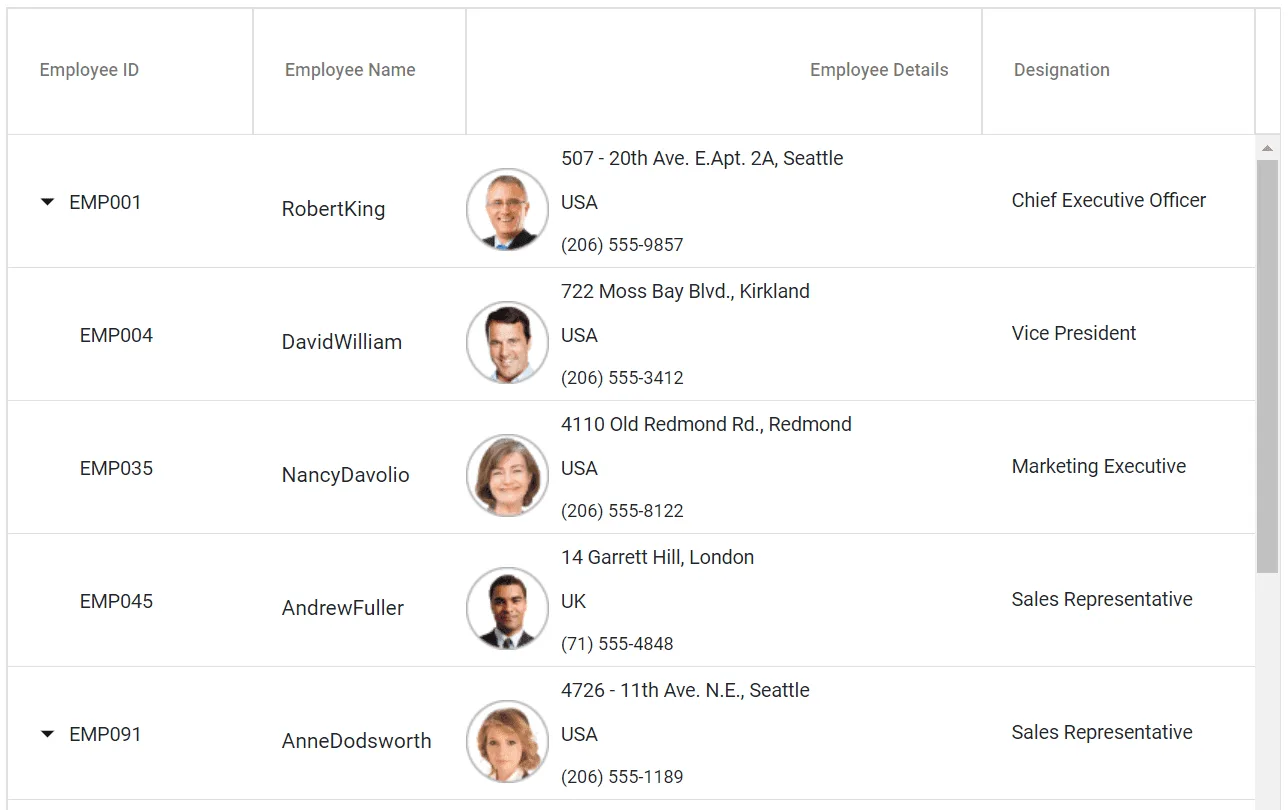

TreeGridTemplates component
If a component contains any RenderFragment type property then it does not allow any child components other than the render fragment property, which is by design in Blazor.
This prevents us from directly specifying templates such as RowTemplate and DetailTemplate as descendant of the Tree Grid component. Hence the templates such as RowTemplate and DetailTemplate should be wrapped around a component named TreeGridTemplates as follows.
@using TreeGridComponent.Data
@using Syncfusion.Blazor.TreeGrid;
@inject Microsoft.AspNetCore.Components.NavigationManager UriHelper
<SfTreeGrid ModelType="@model" Height="335" DataSource="@TreeData" IdMapping="EmployeeID" ParentIdMapping="ParentId" TreeColumnIndex="0" RowHeight="83" GridLines="@GridLine.Vertical">
<TreeGridTemplates>
<RowTemplate>
@{
var employee = (context as Employee);
<td style='padding-left:18px; border-bottom: 0.5px solid #e0e0e0;'>
<div>@employee.EmpID</div>
</td>
<td style='padding: 10px 0px 0px 20px; border-bottom: 0.5px solid #e0e0e0;'>
<div style="font-size:14px;">
@employee.FullName
</div>
</td>
<td style="border-bottom: 0.5px solid #e0e0e0;">
<div>
<div style="position:relative;display:inline-block;">
<img src="@UriHelper.ToAbsoluteUri($"images/" + employee.Name + ".png")" alt="@employee.Name" />
</div>
<div style="display:inline-block;">
<div style="padding:5px;">@employee.Address</div>
<div style="padding:5px;">@employee.Country</div>
<div style="padding:5px;font-size:12px;">@employee.Contact</div>
</div>
</div>
</td>
<td style='padding-left: 20px; border-bottom: 0.5px solid #e0e0e0;'>
<div>@employee.Designation</div>
</td>
}
</RowTemplate>
</TreeGridTemplates>
<TreeGridColumns>
<TreeGridColumn Field="EmpID" HeaderText="Employee ID" Width="160"></TreeGridColumn>
<TreeGridColumn Field="Name" HeaderText="Employee Name"></TreeGridColumn>
<TreeGridColumn Field="Address" HeaderText="Employee Details" Width="340" TextAlign="@TextAlign.Right"></TreeGridColumn>
<TreeGridColumn Field="Designation" HeaderText="Designation"></TreeGridColumn>
</TreeGridColumns>
</SfTreeGrid>
@code{
public Employee model = new Employee();
public IEnumerable<Employee> TreeData { get; set; }
protected override void OnInitialized()
{
this.TreeData = Employee.GetTemplateData();
}
}namespace TreeGridComponent.Data {
public class Employee
{
public string Name { get; set; }
public DateTime? DOB { get; set; }
public string Designation { get; set; }
public string EmpID { get; set; }
public string Country { get; set; }
public int? ParentId { get; set; }
public TreeData Treedata { get; set; }
public static List<Employee> GetTemplateData()
{
List<Employee> DataCollection = new List<Employee>();
DataCollection.Add(new Employee { Name = "Robert King",Designation = "Chief Executive Officer",EmpID = "EMP001",Country = "USA",DOB = new DateTime(1963, 2, 15),ParentId = null,Treedata = new TreeData() { ID = 21}});
DataCollection.Add(new Employee { Name = "David william",Designation = "Vice President",EmpID = "EMP004",Country = "USA",DOB = new DateTime(1971, 5, 20),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Nancy Davolio",Designation = "Marketing Executive",EmpID = "EMP035",Country = "USA",DOB = new DateTime(1966, 3, 19),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
DataCollection.Add(new Employee { Name = "Andrew Fuller",Designation = "Sales Representative",EmpID = "EMP045",Country = "UK",DOB = new DateTime(1980, 9, 20),ParentId = 1,Treedata = new TreeData() { ID = 21 }});
return DataCollection;
}
}
}
