Getting Started with Blazor 3D Chart Component in Blazor WASM App

12 Feb 202611 minutes to read

This section briefly explains about how to include Blazor 3D Chart component in your Blazor WebAssembly App using Visual Studio, Visual Studio Code, and the .NET CLI.

• Visual Studio
• Visual Studio Code
• .NET CLI

Prerequisites

• System requirements for Blazor components

Create a new Blazor App in Visual Studio

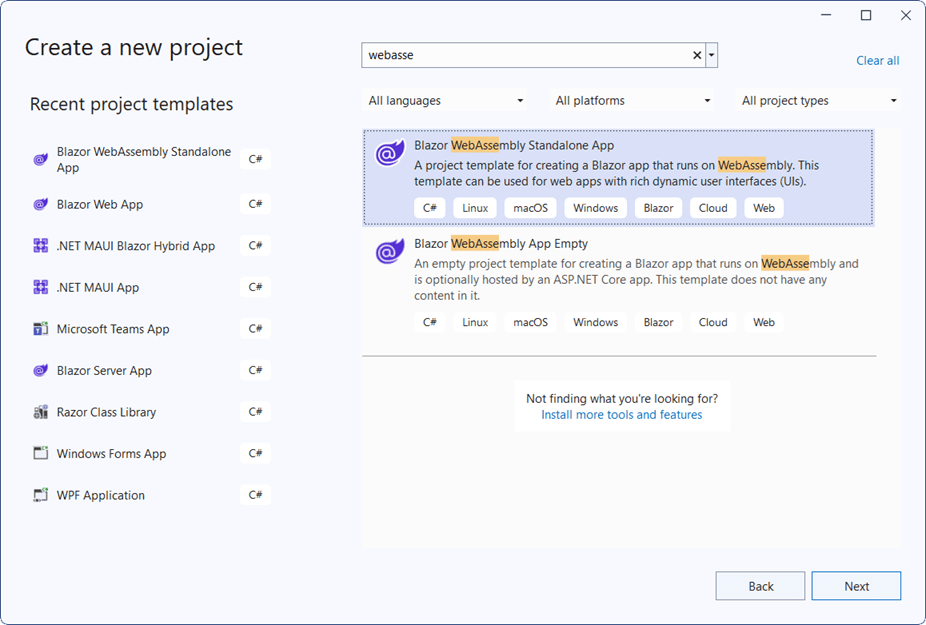

Create a Blazor WebAssembly App using Visual Studio via Microsoft Templates or the Syncfusion^® Blazor Extension. For detailed instructions, refer to the Blazor WASM App Getting Started documentation.

Install Syncfusion^® Blazor 3D Chart NuGet in the App

To add the Blazor 3D Chart component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), then search and install Syncfusion.Blazor.Chart3D. Alternatively, run the following commands in the Package Manager Console to achieve the same.

Package Manager

Install-Package Syncfusion.Blazor.Chart3D -Version 32.2.3

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to the NuGet packages topic for the available NuGet packages list with component details.

Prerequisites

• System requirements for Blazor components

Create a new Blazor App in Visual Studio Code

Create a Blazor WebAssembly App using Visual Studio Code via Microsoft Templates or the Syncfusion^® Blazor Extension. For detailed instructions, refer to the Blazor WASM App Getting Started documentation.

Alternatively, create a WebAssembly application by using the following command in the integrated terminal(Ctrl+`).

Blazor WASM App

dotnet new blazorwasm -o BlazorApp
cd BlazorApp

Install Syncfusion^® Blazor Chart3D NuGet in the App

• Press Ctrl+` to open the integrated terminal in Visual Studio Code.
• Ensure in the project root directory where the .csproj file is located.
• Run the following command to install a Syncfusion.Blazor.Chart3D NuGet package and ensure all dependencies are installed.

Package Manager

dotnet add package Syncfusion.Blazor.Chart3D -v 32.2.3
dotnet restore

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to the NuGet packages topic for the available NuGet packages list with component details.

Prerequisites

Install the latest version of .NET SDK. If the .NET SDK is already installed, determine the installed version by running the following command in a command prompt (Windows), terminal (macOS), or command shell (Linux).

.NET CLI

dotnet --version

Create a Blazor WebAssembly App using .NET CLI

Run the following command to create a new Blazor WebAssembly App in a command prompt (Windows) or terminal (macOS) or command shell (Linux). For detailed instructions, refer to this Blazor WASM App Getting Started documentation.

.NET CLI

dotnet new blazorwasm -o BlazorApp
cd BlazorApp

Install Syncfusion^® Blazor Chart3D NuGet in the App

To add the Blazor 3D Chart component to the application, run the following commands in a command prompt (Windows), command shell (Linux), or terminal (macOS) to install the Syncfusion.Blazor.Chart3D NuGet package. See Install and manage packages using the dotnet CLI topics for more details.

.NET CLI

dotnet add package Syncfusion.Blazor.Chart3D -Version 32.2.3
dotnet restore

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to the NuGet packages topic for the available NuGet packages list with component details.

Add Import Namespaces

Open the ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.Chart3D namespaces.

~/_Imports.razor

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Chart3D

Register Syncfusion^® Blazor Service

Register the Syncfusion^® Blazor Service in the ~/Program.cs file of the Blazor WebAssembly App.

Blazor WebAssembly App

using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....

Add script resources

The script can be accessed from NuGet through Static Web Assets. Reference the script in the <head> of the ~/index.html file.

<head>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</head>

NOTE

Check out the Adding Script Reference topic to learn different approaches for adding script references in Blazor application.

Add Blazor 3D Chart Component

Add the Syncfusion^® Blazor 3D Chart component in the ~/Pages/Index.razor file.

RAZOR

<SfChart3D>

</SfChart3D>

• Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion^® Blazor 3D Chart component in the default web browser.

Populate Blazor 3D Chart with data

To bind data for the 3D chart component, you can assign a IEnumerable object to the DataSource property. It can also be provided as an instance of the DataManager.

RAZOR

public class SalesInfo
{
    public string Month { get; set; }
    public double SalesValue { get; set; }
}

public List<SalesInfo> Sales = new List<SalesInfo>
{
    new SalesInfo { Month = "Jan", SalesValue = 35 },
    new SalesInfo { Month = "Feb", SalesValue = 28 },
    new SalesInfo { Month = "Mar", SalesValue = 34 },
    new SalesInfo { Month = "Apr", SalesValue = 32 },
    new SalesInfo { Month = "May", SalesValue = 40 },
    new SalesInfo { Month = "Jun", SalesValue = 32 },
    new SalesInfo { Month = "Jul", SalesValue = 35 }
};

Now, map the data fields Month and Sales to the series XName and YName properties, then set the data to the DataSource property, and the chart type to Column because we will be viewing the data in a column chart.

RAZOR

<SfChart3D>
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category"></Chart3DPrimaryXAxis>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="Chart3DSeriesType.Column">
        </Chart3DSeries>
    </Chart3DSeriesCollection>
</SfChart3D>

@code {
    public class SalesInfo
    {
        public string Month { get; set;}
        public double SalesValue { get; set;}
    }

    public List<SalesInfo> Sales = new List<SalesInfo>
    {
        new SalesInfo { Month = "Jan", SalesValue = 35 },
        new SalesInfo { Month = "Feb", SalesValue = 28 },
        new SalesInfo { Month = "Mar", SalesValue = 34 },
        new SalesInfo { Month = "Apr", SalesValue = 32 },
        new SalesInfo { Month = "May", SalesValue = 40 },
        new SalesInfo { Month = "Jun", SalesValue = 32 },
        new SalesInfo { Month = "Jul", SalesValue = 35 }
    };
}

Add 3D Chart title

Using the Title property, you can add a title to the chart and the axes to provide the user with quick information about the data plotted in the chart.

RAZOR

<SfChart3D Title="Sales Analysis">
    <Chart3DPrimaryXAxis Title="Month" ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category"></Chart3DPrimaryXAxis>
    <Chart3DPrimaryYAxis Title="Sales in Dollar"></Chart3DPrimaryYAxis>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="Chart3DSeriesType.Column">
        </Chart3DSeries>
    </Chart3DSeriesCollection>
</SfChart3D>

Enable legend

You can use legend for the 3D Chart by setting the Visible property to true in Chart3DLegendSettings. The legend name can be changed by using the Name property in the series.

RAZOR

<SfChart3D Title="Sales Analysis">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category"></Chart3DPrimaryXAxis>
    <Chart3DLegendSettings Visible="true"></Chart3DLegendSettings>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@Sales" Name="Sales" XName="Month" YName="SalesValue" Type="Chart3DSeriesType.Column">
        </Chart3DSeries>
    </Chart3DSeriesCollection>
</SfChart3D>

Add data label

You can add data labels to improve the readability of the 3D Chart. This can be achieved by setting the Visible property to true in the Chart3DDataLabel. Now, the data labels are arranged smartly based on series.

RAZOR

<SfChart3D Title="Sales Analysis">
    <Chart3DPrimaryXAxis ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category"></Chart3DPrimaryXAxis>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="Chart3DSeriesType.Column">
            <Chart3DDataLabel Visible="true"></Chart3DDataLabel>
        </Chart3DSeries>
    </Chart3DSeriesCollection>
</SfChart3D>

Enable tooltip

The tooltip is useful when you cannot display information by using the data labels due to space constraints. You can enable tooltip by setting the Enable property in Chart3DTooltipSettings to true.

RAZOR

<SfChart3D Title="Sales Analysis">
    <Chart3DPrimaryXAxis Title="Month" ValueType="Syncfusion.Blazor.Chart3D.ValueType.Category"></Chart3DPrimaryXAxis>
    <Chart3DPrimaryYAxis Title="Sales in Dollar"></Chart3DPrimaryYAxis>
    <Chart3DTooltipSettings Enable="true"></Chart3DTooltipSettings>
    <Chart3DSeriesCollection>
        <Chart3DSeries DataSource="@Sales" XName="Month" YName="SalesValue" Type="Chart3DSeriesType.Column">
        </Chart3DSeries>
    </Chart3DSeriesCollection>
</SfChart3D>
