Authentication and Authorization in Syncfusion® Blazor Components

20 Apr 202614 minutes to read

This guide shows how to secure Syncfusion Blazor components with authentication and authorization. It covers UI-level security (to control what users see and interact with) and data-level security (to protect backend data access), with examples using the DataGrid and Scheduler for both, and the TreeView for UI-level only.

Authentication verifies a user’s identity. Authorization then determines the access levels and actions the user can perform. Syncfusion Blazor components integrate with Blazor’s built-in authentication and authorization features to enable both UI-level and data-level security.

What is authentication?

Authentication verifies a user’s identity in your Blazor application. Blazor apps often use cookie based authentication where a signed cookie is stored in the browser and validated server-side for each request. For WebAssembly apps, use token based systems like JSON Web Tokens (JWTs). Another option is the Backend-for-Frontend (BFF) pattern, where a server manages authentication on behalf of the client. In this pattern, the BFF acts as an intermediary that handles token exchange and manages sensitive credentials server-side, preventing tokens from being exposed to browser JavaScript.

Syncfusion components access user identity information through Blazor’s AuthenticationStateProvider. This allows secure data loading or feature restriction based on the user’s identity.

What is authorization?

Authorization determines which Syncfusion components or features a user is allowed to access after successful authentication. Blazor supports authorization via:

  • Role checks: Verify user group membership (e.g., ‘Admin’).
  • Policies: Custom rules, such as requiring multiple roles or claims (key-value attributes in the user’s identity, like ‘department=Engineering’).
  • UI filtering: Use the <AuthorizeView> component to show or hide content.

Key differences between authentication and authorization

The following table summarizes the functional and behavioral differences between authentication and authorization in a Blazor and Syncfusion context:

Aspect Authentication Authorization
Purpose Verifies user identity. Grants or denies access to resources and features.
Timing Happens first Happens after authentication
Blazor Tools AuthenticationStateProvider <AuthorizeView>, [Authorize]
Syncfusion Integration Access user identity via AuthenticationStateProvider for data loading. UI-level: Use <AuthorizeView> to conditionally render components. Data-level: Add Bearer tokens to SfDataManager.Headers for secure API calls.

Applying authentication and authorization to Syncfusion® components

Syncfusion components can be secured at two layers:

  • UI-level authorization: Use <AuthorizeView> to conditionally render components based on user roles.
  • Data-level authentication: Use authentication tokens (Bearer tokens) in SfDataManager to enforce access to protected API data.

For full security, combine UI-level and data-level approaches. The following examples demonstrate this with Syncfusion components.

NOTE

This <AuthorizeView> and SfDataManager pattern applies to most data bound Syncfusion components, such as DataGrid, Charts, Scheduler, and TreeView. For non data bound ones (e.g., Button), use only <AuthorizeView>.

Using Syncfusion® components

All examples use <AuthorizeView> for UI-level security. DataGrid and Scheduler also include SfDataManager with Bearer tokens for data-level authentication. TreeView uses local data.

If you already have a Blazor project, proceed to the package installation section. Otherwise, create one using Syncfusion’s Blazor getting started guides.

Prerequisites

Install required packages:

Use NuGet Package Manager (Tools → NuGet Package Manager → Manage NuGet Packages for Solution) and install the following packages:

Microsoft packages:

Syncfusion packages:

Add required namespaces

Open the ~/_Imports.razor file and import the Syncfusion.Blazor, Syncfusion.Blazor.Grids, Syncfusion.Blazor.Schedule, Syncfusion.Blazor.Navigations namespaces.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Navigations

Add stylesheet and script resources

Add the Syncfusion theme CSS and required scripts to the ~/App.razor file.

<head>
     <!-- Syncfusion theme style sheet -->
    <link href="_content/Syncfusion.Blazor.Themes/fluent2.css" rel="stylesheet" />
</head>
<body>
    <!-- Syncfusion Blazor component's script reference -->
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js"></script>
</body>

NOTE

Syncfusion provides multiple theme variants, allowing selection of the theme that best aligns with the application’s UI design. Additional theme options and customization details are available in the theming documentation.

Configuring authentication and authorization

Step 1. Wrap the application’s router in App.razor:

<CascadingAuthenticationState>
    <Router AppAssembly="@typeof(App).Assembly" />
</CascadingAuthenticationState>

Step 2. Inject the authentication provider where needed (eg., in a .razor file):

@inject AuthenticationStateProvider AuthStateProvider

Step 3. Register authentication and syncfusion® services in Program.cs:

using Microsoft.AspNetCore.Identity.UI;
using Microsoft.AspNetCore.Identity;
using Syncfusion.Blazor;
...
builder.Services.AddAuthentication(IdentityConstants.ApplicationScheme)
    .AddCookie(IdentityConstants.ApplicationScheme);
builder.Services.AddAuthorization();
// This class is scaffolded by the Blazor Server Identity template.
// If using a custom provider, replace with your own AuthenticationStateProvider implementation.
builder.Services.AddScoped<AuthenticationStateProvider, RevalidatingIdentityAuthenticationStateProvider<IdentityUser>>();
// Add Syncfusion Blazor services
builder.Services.AddSyncfusionBlazor();

DataGrid

The DataGrid can be secured by using the SfDataManager.Headers property, which allows the grid to load data securely from protected APIs. This ensures that the UI behavior (via <AuthorizeView>) is aligned with the underlying data access rules.

NOTE

  • For testing only, add a Bearer token to appsettings.json under the section ExternalApi:BearerToken. Never commit tokens to source control.
  • For production, retrieve the token dynamically from the authenticated user’s claims using AuthenticationStateProvider instead of static configuration.
{
  "ExternalApi": {
    "BearerToken": "YOUR-TOKEN-HERE"
  }
}
@using Syncfusion.Blazor.Grids
@using Syncfusion.Blazor.Data
@inject IConfiguration Configuration

<h3> DataGrid</h3>

<AuthorizeView>
    <Authorized Context="authContext">
            <SfGrid TValue="Order" AllowPaging="true">
            <!-- Replace with your actual protected API endpoint -->
            <SfDataManager Url="https://your-api.com/api/orders/" Adaptor="Adaptors.WebApiAdaptor" Headers="@HeaderData"></SfDataManager>
                <GridPageSettings PageSize="10"></GridPageSettings>
                <GridColumns>
                    <GridColumn Field="@nameof(Order.OrderID)" HeaderText="Order ID" IsPrimaryKey="true" Width="120"></GridColumn>
                    <GridColumn Field="@nameof(Order.CustomerID)" HeaderText="Customer Name" Width="150"></GridColumn>
                    <GridColumn Field="@nameof(Order.OrderDate)" HeaderText="Order Date" Format="d" Type="ColumnType.Date" Width="130"></GridColumn>
                    <GridColumn Field="@nameof(Order.Freight)" HeaderText="Freight" Format="C2" Width="120"></GridColumn>
                </GridColumns>
            </SfGrid>
            <p>Hello, @authContext.User.Identity?.Name!</p>
    </Authorized>
    <NotAuthorized>
        <p>Please log in to view the DataGrid.</p>
        <a href="Identity/Account/Login">Log in</a>
    </NotAuthorized>
</AuthorizeView>

@code {
    private Dictionary<string, string> HeaderData { get; } = new Dictionary<string, string>();

    protected override async Task OnInitializedAsync()
    {
        // Retrieve Bearer token from configuration (for testing only)
        var token = Configuration["ExternalApi:BearerToken"];
        if (!string.IsNullOrEmpty(token)) HeaderData["Authorization"] = $"Bearer {token}";
        await base.OnInitializedAsync();
    }

    public class Order
    {
        public int? OrderID { get; set; }
        public string? CustomerID { get; set; }
        public DateTime? OrderDate { get; set; }
        public double? Freight { get; set; }
    }
}

Scheduler

The Scheduler uses SfDataManager to fetch events. This ensures only authorized users get protected data from the API.

@using Syncfusion.Blazor.Schedule
@using Syncfusion.Blazor.Data
@inject IConfiguration Configuration

<AuthorizeView>
    <Authorized>
        <SfSchedule TValue="AppointmentData" Height="550px" SelectedDate="@currentDate">
            <ScheduleEventSettings TValue="AppointmentData">
                <!-- Replace with your actual protected API endpoint -->
                <SfDataManager Url="https://your-api.com/api/schedule" Headers="@HeaderData" Adaptor="Adaptors.WebApiAdaptor"></SfDataManager>
            </ScheduleEventSettings>
            <ScheduleViews>
                <ScheduleView Option="View.Month"></ScheduleView>
            </ScheduleViews>
        </SfSchedule>
    </Authorized>
    <NotAuthorized>
        <p>Authentication required to view schedule.</p>
        <a href="Identity/Account/Login">Log in</a>
    </NotAuthorized>
</AuthorizeView>

@code {
    DateTime currentDate = DateTime.Today;
    private Dictionary<string, string> HeaderData { get; } = new Dictionary<string, string>();

    protected override async Task OnInitializedAsync()
    {
        var token = Configuration["ExternalApi:BearerToken"];
        if (!string.IsNullOrEmpty(token)) HeaderData["Authorization"] = $"Bearer {token}";
        await base.OnInitializedAsync();
    }

    public class AppointmentData
    {
        public int Id { get; set; }
        public string? Subject { get; set; }
        public string? Location { get; set; }
        public string? Description { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public bool? IsAllDay { get; set; }
        public string? CategoryColor { get; set; }
        public string? RecurrenceRule { get; set; }
    }
}

TreeView

The following TreeView example demonstrates a Blazor Server app configured with authentication, ensuring that the entire TreeView component is only accessible to authenticated users.

@using Syncfusion.Blazor.Navigations

<AuthorizeView>
    <Authorized Context="context">
        <SfTreeView TValue="MailItem">
            <TreeViewFieldsSettings TValue="MailItem" Id="Id" DataSource="@MyFolder" Text="FolderName" ParentID="ParentId" HasChildren="HasSubFolders" Expanded="Expanded">
            </TreeViewFieldsSettings>
        </SfTreeView>
        <p>Welcome, @context.User.Identity?.Name!</p>
        <form method="post" action="Identity/Account/LogOut">
            <button type="submit">Log out</button>
        </form>
    </Authorized>
    <NotAuthorized>
        <p>Log in to access the TreeView.</p>
        <a href="Identity/Account/Login">Log in</a>
        <a href="Identity/Account/Register">Register</a>
    </NotAuthorized>
</AuthorizeView>

@code {

    public class MailItem
    {
        public string? Id { get; set; }
        public string? ParentId { get; set; }
        public string? FolderName { get; set; }
        public bool Expanded { get; set; }
        public bool HasSubFolders { get; set; }
    }

    List<MailItem> MyFolder = new List<MailItem>();

   protected override void OnInitialized()
   {
        // Load hierarchical folder data
        LoadFolderData();
    }

    private void LoadFolderData()
    {
        MyFolder.Add(new MailItem { Id = "1", FolderName = "Inbox", HasSubFolders = true, Expanded = true });
        MyFolder.Add(new MailItem { Id = "2", ParentId = "1", FolderName = "Categories", Expanded = true, HasSubFolders = true });
        MyFolder.Add(new MailItem { Id = "3", ParentId = "2", FolderName = "Primary" });
        MyFolder.Add(new MailItem { Id = "4", ParentId = "2", FolderName = "Social" });
        MyFolder.Add(new MailItem { Id = "5", ParentId = "2", FolderName = "Promotions" });
    }
}

Run the application

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application.

Expected behavior

  • Syncfusion components should render only for authorized users.
  • If the user is not authenticated, the application should display Register or Login options instead of the Syncfusion components.
  • After a successful login, the user should be able to view the Syncfusion components such as DataGrid, Scheduler, and TreeView while navigating across different pages.

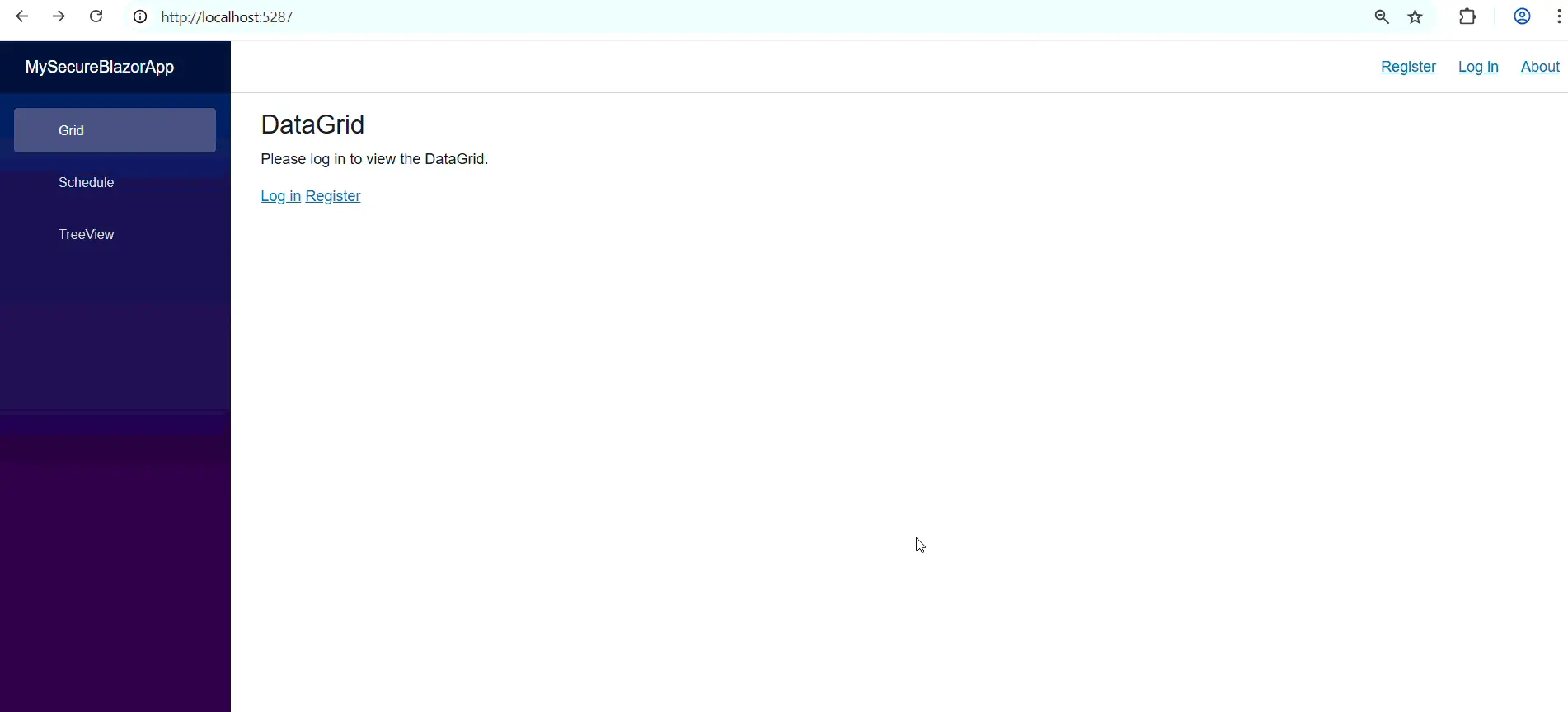

Output:
Blazor Authentication And Authorization
