Getting Started with Blazor DataGrid in Server App

5 Dec 202517 minutes to read

The Syncfusion^® Blazor DataGrid is a feature-rich component designed for displaying and managing data in Blazor applications. It supports essential functionalities such as data binding, sorting, filtering, paging, and grouping, enabling the creation of interactive and responsive data-driven interfaces.

This guide provides detailed instructions for integrating the DataGrid into a Blazor Server application using Visual Studio, Visual Studio Code, or the .NET CLI. It includes setup steps, configuration details, and usage examples to assist in building robust applications.

Ready to streamline your Syncfusion^® Blazor development?
Discover the full potential of Syncfusion^® Blazor components with Syncfusion^® AI Coding Assistants. Effortlessly integrate, configure, and enhance your projects with intelligent, context-aware code suggestions, streamlined setups, and real-time insights—all seamlessly integrated into your preferred AI-powered IDEs like VS Code, Cursor, Syncfusion^® CodeStudio and more. Explore Syncfusion^® AI Coding Assistants

Prerequisites

System requirements for Blazor components

Create a new Blazor app in Visual Studio

A Blazor Web App can be created using Visual Studio with the built-in Microsoft templates or the Syncfusion^® Blazor Extension.

Open Visual Studio 2022 (version 17.8 or later).
Select Create a new project.

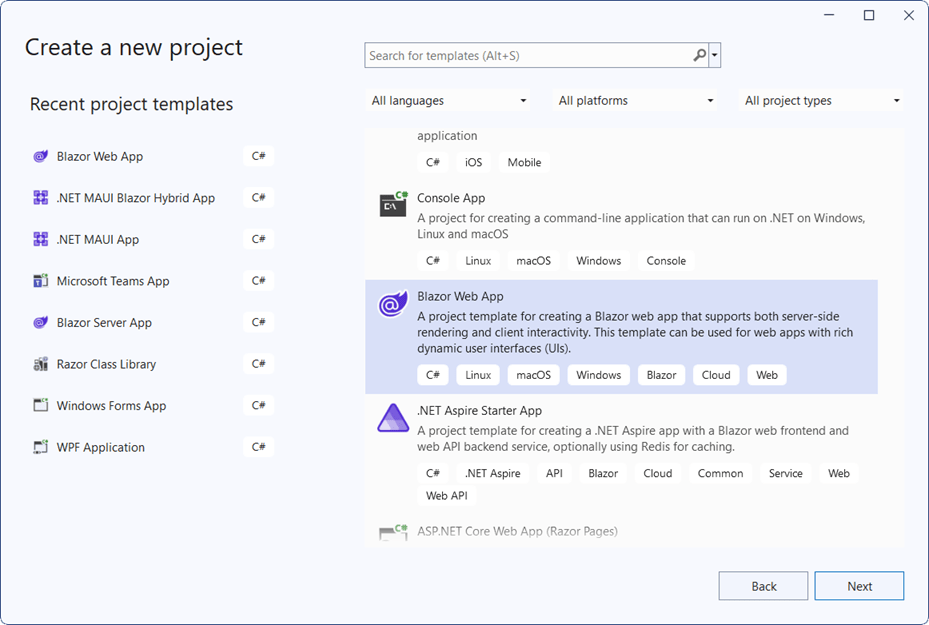

Choose Blazor Web App from the list of templates and click Next.
Specify the project name, location, and solution settings, then click Next.
Select the target framework as .NET 8.0 or later (choose the latest installed version available on the system).
Choose the Interactive render mode (Server) and configure the Interactivity location.
Review the remaining options and click Create to generate the project.

Install Syncfusion^® Blazor DataGrid and Themes in Visual Studio

To integrate the Blazor DataGrid component, install the required Syncfusion^® NuGet packages in the solution:

Open NuGet Package Manager in Visual Studio:

Tools → NuGet Package Manager → Manage NuGet Packages for Solution.
Search and install the following packages:
- Syncfusion.Blazor.Grid
- Syncfusion.Blazor.Themes
For projects using WebAssembly or Auto interactive render modes, ensure these packages are installed in the Client project.
Alternatively, use the Package Manager Console:

Package Manager
Install-Package Syncfusion.Blazor.Grid -Version 32.1.19
Install-Package Syncfusion.Blazor.Themes -Version 32.1.19

NOTE

Syncfusion^® Blazor components are available on nuget.org. For a complete list of packages, refer to NuGet packages.

Prerequisites

System requirements for Blazor components

Create a Blazor server app in Visual Studio code

A Blazor Server App can be created using Microsoft templates or the Syncfusion^® Blazor Extension.

Install the latest .NET SDK that supports .NET 8.0 or later.
Open Visual Studio Code.
Press Ctrl + ` to open the integrated terminal.
Navigate to the desired directory for the project.
Run the following command to create a Blazor Server application:

Blazor Server App
dotnet new blazor -o BlazorApp -int Server
cd BlazorApp

Configure the Interactive render mode as Server and set the Interactivity location appropriately.

NOTE

For other interactive render modes and interactivity locations, refer to Render Modes documentation.

Install Syncfusion^® Blazor DataGrid and Themes in Visual Studio Code

To integrate the Blazor DataGrid component, install the required Syncfusion^® NuGet packages using the integrated terminal:

Press Ctrl + ` to open the integrated terminal in Visual Studio Code.
Navigate to the directory containing the .csproj file.
Run the following commands to install the packages:

Package Manager
Install-Package Syncfusion.Blazor.Grid -Version 32.1.19
Install-Package Syncfusion.Blazor.Themes -Version 32.1.19

NOTE

Syncfusion^® Blazor components are available on nuget.org. For a complete list of packages, refer to NuGet packages.

Prerequisites

Install the latest .NET SDK that supports .NET 8.0 or later.
Verify the installed version by running the following command in a command prompt (Windows), terminal (macOS), or shell (Linux):

.NET CLI
dotnet --version

Create a Blazor Server App using .NET CLI

Open a command prompt, terminal, or shell.
Navigate to the directory where the project should be created.
Run the following command to create a new Blazor Server App with Server interactive render mode:

.NET CLI
dotnet new blazor -o BlazorApp -int Server
cd BlazorApp

Configure the appropriate interactive render mode and interactivity location when setting up the application. For more details, see Render Mode documentation.
This command creates a new Blazor Server App in a directory named BlazorApp inside the current location.

For additional details, refer to:

Blazor Server App Getting Started (.NET CLI)

dotnet new CLI command

Create Blazor App Tutorial

Install Syncfusion^® Blazor DataGrid and Themes using .NET CLI

To integrate the Blazor DataGrid component in a Blazor Server App using the .NET CLI:

Open a command prompt, terminal, or shell.
Navigate to the directory containing the .csproj file.
Run the following commands to install the required NuGet packages:
- Syncfusion.Blazor.Grid
- Syncfusion.Blazor.Themes

.NET CLI
dotnet add package Syncfusion.Blazor.Grid -Version 32.1.19
dotnet add package Syncfusion.Blazor.Themes -Version 32.1.19
dotnet restore

NOTE

For more details, refer to:

Install and manage packages using the dotnet CLI

Syncfusion^® Blazor components are available on nuget.org. For a complete list of packages, refer to NuGet packages.

Add Import Namespaces

Open the ~/_Imports.razor file in the project.
Add the following namespaces to enable Syncfusion^® Blazor components:

~/_Imports.razor

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Grids

NOTE

For Server render mode, update this file in the Components folder.

Register Syncfusion^® Blazor service

Open the ~/Program.cs file and register the Syncfusion^® Blazor service along with interactive server components:

~/Program.cs
using Syncfusion.Blazor;
var builder = WebApplication.CreateBuilder(args);
// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents();
builder.Services.AddSyncfusionBlazor();
var app = builder.Build();
// Remaining configuration...

NOTE

For Server render mode, ensure AddInteractiveServerComponents() is included to enable interactivity.

Add stylesheet and script resources

Syncfusion^® Blazor themes and scripts are available through Static Web Assets. Add the following references in the ~/Components/App.razor file:

In the <head> section:

<head>
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>

At the end of the <body> section:

<body>
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</body>

NOTE

Refer to Blazor Themes for various methods to reference themes in a Blazor application:

Static Web Assets

CDN

Custom Resource Generator (CRG)

For script reference options, see Adding Script References.

Add Syncfusion^® Blazor DataGrid component

The Syncfusion^® Blazor DataGrid can be added to a Razor page in the Pages folder (for example, Pages/Home.razor).

Define Render Mode

Set the render mode at the top of the Razor file to enable server interactivity:

Home.razor

@rendermode InteractiveServer

Interactivity Location

Global: Render mode is configured in App.razor and applies to the entire application by default.
Per page/component: Render mode is set at the top of the specific Razor file (for example, Pages/Index.razor).

Add DataGrid component

Add the DataGrid tag to the Razor page:

RAZOR

<SfGrid></SfGrid>

Defining row data

The DataGrid requires a data source to display records. A collection implementing **IEnumerable** can be assigned to the [DataSource](https://help.syncfusion.com/cr/blazor/Syncfusion.Blazor.Grids.SfGrid-1.html#Syncfusion_Blazor_Grids_SfGrid_1_DataSource) property. Alternatively, data can be provided through a [DataManager](https://blazor.syncfusion.com/documentation/data/getting-started-with-web-app) instance for **remote binding**.

Data binding is typically performed in the OnInitialized lifecycle method of the component.

RAZOR
<SfGrid DataSource="@Orders">
</SfGrid>

@code {
    public List<Order> Orders { get; set; }

    protected override void OnInitialized()
    {
        Orders = Enumerable.Range(1, 75).Select(x => new Order()
        {
            OrderID = 1000 + x,
            CustomerID = (new[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
            Freight = 2.1 * x,
            OrderDate = DateTime.Now.AddDays(-x)
        }).ToList();
    }

    public class Order
    {
        public int? OrderID { get; set; }
        public string CustomerID { get; set; }
        public DateTime? OrderDate { get; set; }
        public double? Freight { get; set; }
    }
}

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to run the application. The DataGrid will render and display the collection.

Defining columns

The DataGrid automatically generates columns when no explicit column definitions are provided. For greater control over column behavior and appearance, use the GridColumns component along with individual GridColumn elements to define columns explicitly.

Common Column Properties

Field: Maps the column to a property in the bound collection.
HeaderText: Specifies the column header title.
TextAlign: Aligns text within the column. Default alignment is Left; set to Right for numeric values.
Format: Applies standard or custom formatting for numeric and date values.
Type: Defines the column type, such as ColumnType.Date for date fields.
Width: Sets the column width in pixels or percentage to control layout consistency.

RAZOR
<SfGrid DataSource="@Orders">
    <GridColumns>
        <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
        <GridColumn Field=@nameof(Order.OrderDate) HeaderText="Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
        <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
    </GridColumns>
</SfGrid>

Enable paging

Paging allows the DataGrid to display records in a paged view, improving performance and readability for large datasets. Enable paging by setting the AllowPaging property to true. Paging behavior can be customized using the GridPageSettings component.

RAZOR
<SfGrid DataSource="@Orders" AllowPaging="true">
    <GridPageSettings PageSize="5"></GridPageSettings>
    <GridColumns>
        <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
        <GridColumn Field=@nameof(Order.OrderDate) HeaderText="Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
        <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
    </GridColumns>
</SfGrid>

Enable sorting

Sorting allows the DataGrid to arrange records based on column values. Enable this feature by setting the AllowSorting property to true. Sorting behavior can be customized using the GridSortSettings component.

RAZOR
<SfGrid DataSource="@Orders" AllowPaging="true" AllowSorting="true">
 <GridPageSettings PageSize="5"></GridPageSettings>
   <GridColumns>
     <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
     <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
     <GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
     <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
   </GridColumns>
</SfGrid>

Enable filtering

Filtering allows the DataGrid to display a subset of records based on specified criteria. Enable filtering by setting the AllowFiltering property to true. Filtering behavior can be customized using the GridFilterSettings component.

RAZOR
<SfGrid DataSource="@Orders" AllowPaging="true" AllowSorting="true" AllowFiltering="true">
 <GridPageSettings PageSize="5"></GridPageSettings>
   <GridColumns>
     <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
     <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
     <GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
     <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
   </GridColumns>
</SfGrid>

Enable grouping

Grouping organizes records into logical groups based on column values. Enable grouping by setting the AllowGrouping property to true. Grouping behavior can be customized using the GridGroupSettings component.

RAZOR
<SfGrid DataSource="@Orders" AllowPaging="true" AllowSorting="true" AllowFiltering="true" AllowGrouping="true">
    <GridPageSettings PageSize="5"></GridPageSettings>
    <GridColumns>
        <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
        <GridColumn Field=@nameof(Order.OrderDate) HeaderText="Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
        <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
    </GridColumns>
</SfGrid>

Handling exceptions

Exceptions that occur during DataGrid operations can be captured without interrupting the application flow. Use the OnActionFailure event to retrieve error details and handle them gracefully.

Key Points:

TValue: Specifies the row data type for the grid (for example, Order). This ensures strong typing for templates and event arguments.
GridEvents: When using GridEvents, set the same TValue on both SfGrid and GridEvents for proper event argument binding.

NOTE

Binding the OnActionFailure event during development helps identify issues early. Exception details can be logged or displayed for troubleshooting.

RAZOR
@using Syncfusion.Blazor.Data

<span class="error">@ErrorDetails</span>

<SfGrid TValue="Order" AllowPaging="true">
    <GridEvents TValue="Order" OnActionFailure="@ActionFailure"></GridEvents>
    <GridPageSettings PageSize="10"></GridPageSettings>
    <SfDataManager Url="https://some.com/invalidUrl" Adaptor="Adaptors.WebApiAdaptor"></SfDataManager>
    <GridColumns>
        <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" IsPrimaryKey="true" TextAlign="TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
        <GridColumn Field=@nameof(Order.OrderDate) HeaderText="Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
        <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
    </GridColumns>
</SfGrid>

<style>
    .error {
        color: red;
    }
</style>

@code {
    public string ErrorDetails = "";

    public class Order {
        public int? OrderID { get; set; }
        public string CustomerID { get; set; }
        public DateTime? OrderDate { get; set; }
        public double? Freight { get; set; }
    }

    public void ActionFailure(FailureEventArgs args) {
        ErrorDetails = "Server exception: 404 Not Found";
        StateHasChanged();
    }
}

Search docs

Ask HelpBot

Search docs

Ask HelpBot

Getting Started with Blazor DataGrid in Server App

Prerequisites

Create a new Blazor app in Visual Studio

Install Syncfusion^® Blazor DataGrid and Themes in Visual Studio

Prerequisites

Create a Blazor server app in Visual Studio code

Install Syncfusion^® Blazor DataGrid and Themes in Visual Studio Code

Prerequisites

Create a Blazor Server App using .NET CLI

Install Syncfusion^® Blazor DataGrid and Themes using .NET CLI

Add Import Namespaces

Register Syncfusion^® Blazor service

Add stylesheet and script resources

Add Syncfusion^® Blazor DataGrid component

Defining row data

Defining columns

Enable paging

Enable sorting

Enable filtering

Enable grouping

Handling exceptions

See Also

Getting Started with Blazor DataGrid in Server App

Prerequisites

Create a new Blazor app in Visual Studio

Install Syncfusion® Blazor DataGrid and Themes in Visual Studio

Prerequisites

Create a Blazor server app in Visual Studio code

Install Syncfusion® Blazor DataGrid and Themes in Visual Studio Code

Prerequisites

Create a Blazor Server App using .NET CLI

Install Syncfusion® Blazor DataGrid and Themes using .NET CLI

Add Import Namespaces

Register Syncfusion® Blazor service

Add stylesheet and script resources

Add Syncfusion® Blazor DataGrid component

Defining row data

Defining columns

Enable paging

Enable sorting

Enable filtering

Enable grouping

Handling exceptions

See Also

Install Syncfusion^® Blazor DataGrid and Themes in Visual Studio

Install Syncfusion^® Blazor DataGrid and Themes in Visual Studio Code

Install Syncfusion^® Blazor DataGrid and Themes using .NET CLI

Register Syncfusion^® Blazor service

Add Syncfusion^® Blazor DataGrid component
