Blazor DataGrid Component in Server Side App using CLI

29 Jan 202410 minutes to read

This article provides a step-by-step instructions for building Blazor Server App with Blazor DataGrid using the .NET CLI.

Prerequisites

Latest version of the .NET Core SDK. If you previously installed the SDK, you can determine the installed version by executing the following command in a command prompt (Windows) or terminal (macOS) or command shell (Linux).

dotnet --version

Create a Blazor Server side project using .NET Core CLI

Run the dotnet new blazorserver command to create a new Blazor Server application in a command prompt (Windows) or terminal (macOS) or command shell (Linux).

dotnet new blazorserver -o BlazorApp
cd BlazorApp

This command creates new Blazor app project and places it in a new directory called BlazorApp inside your current location. See Create Blazor app topic and dotnet new CLI command topics for more details.

NOTE

If you have installed multiple SDK versions and need any specific framework version (net5.0/netcoreapp3.1) project, then add -f flag along with dotnet new blazorserver comment. Refer here for the available options.

Install Syncfusion Blazor packages in the App

Syncfusion Blazor components are available in nuget.org. To use Syncfusion Blazor components in the application, add reference to the corresponding NuGet. Refer to NuGet packages topic for available NuGet packages list with component details.

Add Syncfusion.Blazor.Grid NuGet package to the application using the following command in the command prompt (Windows) or terminal (Linux and macOS) to install a NuGet package. See Install and manage packages using the dotnet CLI topics for more details.

dotnet add package Syncfusion.Blazor.Grid -Version 27.1.48
dotnet restore

NOTE

Syncfusion Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.Grids namespace.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Grids

Now, register the Syncfusion Blazor Service in the ~/Program.cs file of your Blazor Server App.

using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Web;
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorPages();
builder.Services.AddServerSideBlazor();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Reference the stylesheet and script in the <head> of the main page as follows:

  • For .NET 6 Blazor Server app, include it in ~/Pages/_Layout.cshtml file.

  • For .NET 7 Blazor Server app, include it in the ~/Pages/_Host.cshtml file.

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</head>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Blazor DataGrid component

Add the Syncfusion Blazor DataGrid component in the ~/Pages/Index.razor file.

<SfGrid DataSource="@Orders" />

@code{
    public List<Order> Orders { get; set; }

    protected override void OnInitialized()
    {
        Orders = Enumerable.Range(1, 5).Select(x => new Order()
        {
            OrderID = 0 + x,
            CustomerID = (new string[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
        }).ToList();
    }

    public class Order
    {
        public int? OrderID { get; set; }
        public string CustomerID { get; set; }

    }
}
  • In the command prompt (Windows) or terminal (Linux and macOS) to run the following command to build and start the app. The app listening on http://localhost:<port number> and view it in the browser.
dotnet run

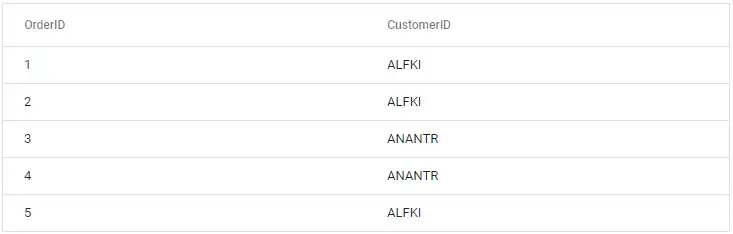

Blazor DataGrid Component

Defining Row Data

To bind data for the DataGrid component, you can assign a IEnumerable object to the DataSource property. The list data source can also be provided as an instance of the DataManager. You can assign the data source through the OnInitialized life cycle of the page.

<SfGrid DataSource="@Orders" />

@code{
    public List<Order> Orders { get; set; }

    protected override void OnInitialized()
    {
        Orders = Enumerable.Range(1, 75).Select(x => new Order()
        {
            OrderID = 1000 + x,
            CustomerID = (new string[] { "ALFKI", "ANANTR", "ANTON", "BLONP", "BOLID" })[new Random().Next(5)],
            Freight = 2.1 * x,
            OrderDate = DateTime.Now.AddDays(-x),
        }).ToList();
    }

    public class Order {
        public int? OrderID { get; set; }
        public string CustomerID { get; set; }
        public DateTime? OrderDate { get; set; }
        public double? Freight { get; set; }
    }
}

Defining columns

The columns are automatically generated when columns declaration is empty or undefined while initializing the datagrid.

The DataGrid has an option to define columns using GridColumns component. In GridColumn component we have properties to customize columns.

Let’s check the properties used here:

  • Field is added to map with a property name an array of JavaScript objects.
  • HeaderText is added to change the title of columns.
  • TextAlign is used to change the alignment of columns. By default, columns will be left aligned. To change columns to right align, define TextAlign as Right.
  • Also, we have used another useful property, Format. Using this, you can format number and date values to standard or custom formats.
<SfGrid DataSource="@Orders">
    <GridColumns>
        <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
        <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
        <GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
        <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
    </GridColumns>
</SfGrid>

Enable paging

The paging feature enables users to view the datagrid record in a paged view. It can be enabled by setting the AllowPaging property to true. Pager can be customized using the GridPageSettings component.

<SfGrid DataSource="@Orders" AllowPaging="true">
 <GridPageSettings PageSize="5"></GridPageSettings>
   <GridColumns>
     <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
     <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
     <GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
     <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
   </GridColumns>
</SfGrid>

Enable sorting

The sorting feature enables you to order the records. It can be enabled by setting the AllowSorting property as true. Sorting feature can be customized using the GridSortSettings component.

<SfGrid DataSource="@Orders" AllowPaging="true" AllowSorting="true">
 <GridPageSettings PageSize="5"></GridPageSettings>
   <GridColumns>
     <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
     <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
     <GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
     <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
   </GridColumns>
</SfGrid>

Enable filtering

The filtering feature enables you to view reduced amount of records based on filter criteria. It can be enabled by setting the AllowFiltering property as true. Filtering feature can be customized using the GridFilterSettings component.

<SfGrid DataSource="@Orders" AllowPaging="true" AllowSorting="true" AllowFiltering="true">
 <GridPageSettings PageSize="5"></GridPageSettings>
   <GridColumns>
     <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
     <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
     <GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
     <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
   </GridColumns>
</SfGrid>

Enable grouping

The grouping feature enables you to view the datagrid record in a grouped view. It can be enabled by setting the AllowGrouping property as true. Grouping feature can be customized using the GridGroupSettings component.

<SfGrid DataSource="@Orders" AllowPaging="true" AllowSorting="true" AllowFiltering="true" AllowGrouping="true">
 <GridPageSettings PageSize="5"></GridPageSettings>
   <GridColumns>
     <GridColumn Field=@nameof(Order.OrderID) HeaderText="Order ID" TextAlign="TextAlign.Right" Width="120"></GridColumn>
     <GridColumn Field=@nameof(Order.CustomerID) HeaderText="Customer Name" Width="150"></GridColumn>
     <GridColumn Field=@nameof(Order.OrderDate) HeaderText=" Order Date" Format="d" Type="ColumnType.Date" TextAlign="TextAlign.Right" Width="130"></GridColumn>
     <GridColumn Field=@nameof(Order.Freight) HeaderText="Freight" Format="C2" TextAlign="TextAlign.Right" Width="120"></GridColumn>
   </GridColumns>
</SfGrid>

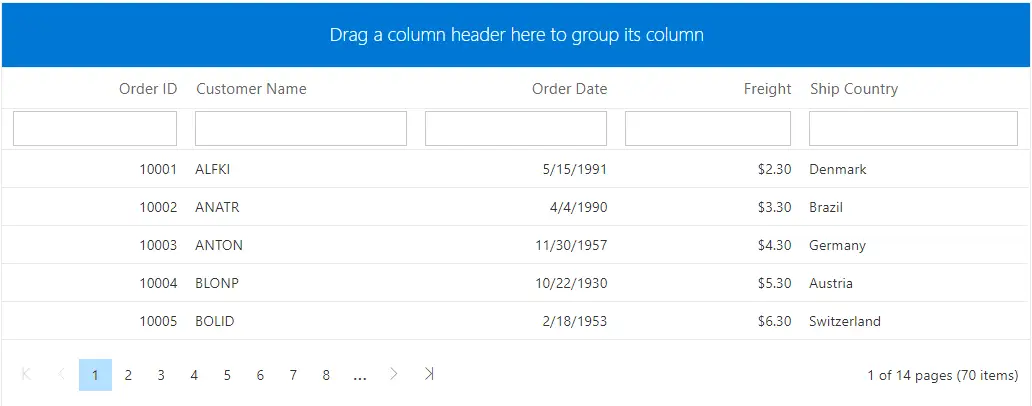

Blazor DataGrid Component
