Getting Started with Blazor Media Query Component

25 Apr 202314 minutes to read

This section briefly explains about how to include Blazor Media Query component in your Blazor Server App and Blazor WebAssembly App using Visual Studio.

To get started quickly with the Blazor Media Query component, you can check out this video.

Prerequisites

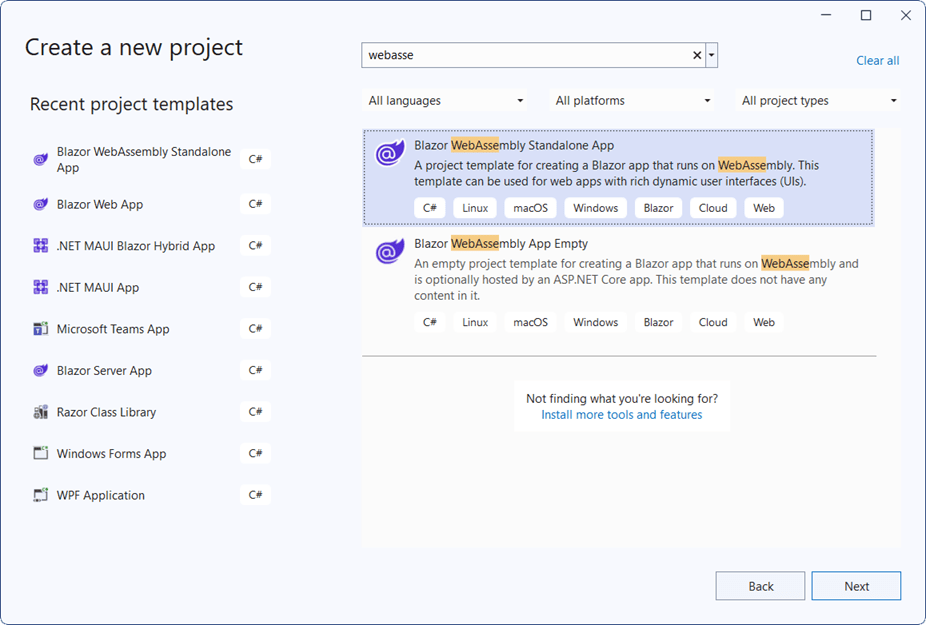

Create a new Blazor App in Visual Studio

You can create Blazor Server App or Blazor WebAssembly App using Visual Studio in one of the following ways,

Install Syncfusion Blazor Core NuGet in the App

Syncfusion Blazor components are available in nuget.org. In order to use Syncfusion Blazor components in the application, add reference to the corresponding NuGet. Refer to NuGet packages topic for available NuGet packages list with component details and Benefits of using individual NuGet packages.

To add Blazor Media Query component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.Blazor.Core and then install it.

Register Syncfusion Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor namespace.

@using Syncfusion.Blazor

Now, register the Syncfusion Blazor Service in the Blazor Server App or Blazor WebAssembly App. Here, Syncfusion Blazor Service is registered by setting IgnoreScriptIsolation property as true to load the scripts externally in the next steps.

From 2022 Vol-1 (20.1) version, the default value of IgnoreScriptIsolation is changed to true. It is not necessary to set the IgnoreScriptIsolation property to refer scripts externally, since the default value has already been changed to true, and this property is obsolete.

Blazor Server App

  • For .NET 6 and .NET 7 app, open the ~/Program.cs file and register the Syncfusion Blazor Service.

  • For .NET 5 and .NET 3.X app, open the ~/Startup.cs file and register the Syncfusion Blazor Service.

using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Web;
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorPages();
builder.Services.AddServerSideBlazor();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
using Syncfusion.Blazor;

namespace BlazorApplication
{
    public class Startup
    {
        ...
        public void ConfigureServices(IServiceCollection services)
        {
            services.AddRazorPages();
            services.AddServerSideBlazor();
            services.AddSyncfusionBlazor();
        }
        ...
    }
}

Blazor WebAssembly App

Open ~/Program.cs file and register the Syncfusion Blazor Service in the client web app.

using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(serviceProvider => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....
using Syncfusion.Blazor;

namespace WebApplication1
{
    public class Program
    {
        public static async Task Main(string[] args)
        {
            ....
            builder.Services.AddSyncfusionBlazor();
            await builder.Build().RunAsync();
        }
    }
}

Add script reference

Checkout Adding Script Reference topic to learn different ways to add script reference in Blazor Application. In this getting started walk-through, the required scripts are referred using Static Web Assets externally inside the <head> as follows. Refer to Enable static web assets usage topic to use static assets in your project.

Blazor Server App

  • For .NET 6 app, refer script in the <head> of the ~/Pages/_Layout.cshtml file.

  • For .NET 3.X, .NET 5 and .NET 7 app, refer script in the <head> of the ~/Pages/_Host.cshtml file.

<head>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>

<head>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>

Blazor WebAssembly App

For Blazor WebAssembly App, refer script in the <head> of the ~/index.html file.

<head>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>

Syncfusion recommends to reference scripts using Static Web Assets, CDN and CRG by disabling JavaScript isolation for better loading performance of the Blazor application.

Add Syncfusion Blazor Media Query component

  • Now, add the Syncfusion Blazor Media Query component in razor file. Here, the Media Query component is added in the ~/Pages/Index.razor page under the ~/Pages folder.
<SfMediaQuery @bind-ActiveBreakPoint="activeBreakpoint"></SfMediaQuery>
<br />
@if (activeBreakpoint == "Small")
{
    deviceSize = "small-device";
}
else if (activeBreakpoint == "Medium")
{
    deviceSize = "medium-device";
}
else
{
    deviceSize = "";
}

<div class="mediaquery-demo @deviceSize">
    <div class="header e-skeleton e-skeleton-text">
        <div class="search-box e-skeleton e-skeleton-text"></div>
    </div>
    <div class="banner e-skeleton e-skeleton-text e-shimmer-pulse"></div>
    <div class="main-container">
        <ul>
            <li>
                <div class="content e-skeleton e-skeleton-text e-shimmer-pulse"></div>
                <div class="title e-skeleton e-skeleton-text e-shimmer-pulse"></div>
                <p class="e-skeleton e-skeleton-text e-shimmer-pulse"></p>
            </li>
            <li>
                <div class="content e-skeleton e-skeleton-text e-shimmer-pulse"></div>
                <div class="title e-skeleton e-skeleton-text e-shimmer-pulse"></div>
                <p class="e-skeleton e-skeleton-text e-shimmer-pulse"></p>
            </li>
        </ul>
    </div>
    <div class="footer e-skeleton e-skeleton-text"></div>
</div>

@code {
    private string deviceSize { get; set; }
    private string activeBreakpoint { get; set; }
}
<style>
    .mediaquery-demo {
        height: 715px;
        margin: 0 10%;
        border: 2px solid #f3f2f1;
        border-top-width: 0px;
        border-radius: 4px;
        overflow: hidden;
    }

    .mediaquery-demo .e-skeleton {
        display: block;
    }

    .mediaquery-demo .header {
        height: 6vh;
        text-align: center;
        overflow: visible;
    }

        .mediaquery-demo .header .search-box {
            width: 25%;
            height: 55%;
            margin-top: 1.5vh;
            display: inline-block;
            border-radius: 7px;
            float: right;
            margin-right: 3%;
            background-color: white;
        }

    .mediaquery-demo .banner {
        height: 35%;
        margin: 1% 8%;
    }

    .mediaquery-demo .main-container {
        margin: 0 8%;
        height: 35%;
    }

    .mediaquery-demo .main-container ul {
        list-style: none;
        display: flex;
        height: 100%;
        padding: 0;
        justify-content: space-between;
        padding-top: 20px;
    }

        .mediaquery-demo .main-container ul li {
            width: 49%;
        }

    .mediaquery-demo .main-container li .content {
        height: 60%;
    }

    .mediaquery-demo .main-container li .title,
    .mediaquery-demo .main-container li p {
        width: 50%;
        height: 7%;
        margin-top: 3%;
    }

    .mediaquery-demo .main-container li p {
        width: 80%;
    }

    .mediaquery-demo .footer {
        height: 20%;
        margin: 0% 8%;
    }

    .mediaquery-demo.medium-device .header .search-box {
        width: 50%;
        float: none;
        margin-right: 0px;
    }

    .mediaquery-demo.medium-device .banner,
    .mediaquery-demo.medium-device .main-container,
    .mediaquery-demo.medium-device .footer {
        margin: 0px;
    }

    .mediaquery-demo.medium-device .banner {
        margin-top: 1%;
    }

    .mediaquery-demo.medium-device .main-container {
        height: 42%;
    }

    .mediaquery-demo.medium-device .main-container ul {
        flex-direction: column;
    }

    .mediaquery-demo.medium-device .main-container ul li {
        height: 50%;
        display: flex;
        margin-bottom: 2%;
        margin-left: 5%;
        width: 100%;
    }

    .mediaquery-demo.medium-device .main-container li .content {
        height: auto;
        width: 30%;
    }

    .mediaquery-demo.medium-device .main-container li .title,
    .mediaquery-demo.medium-device .main-container li p {
        height: 24%;
    }

    .mediaquery-demo.medium-device .main-container li .title {
        margin-left: 5%;
        width: 25%;
        margin-top: 0;
    }

    .mediaquery-demo.medium-device .main-container li p {
        margin-top: 8%;
        margin-left: -25%;
        width: 55%;
    }

    .mediaquery-demo.small-device .header .search-box {
        text-align: center;
        float: none;
        width: 60%;
        height: 65%;
        margin-top: 8vh;
        background-color: inherit;
    }

    .mediaquery-demo.small-device .banner,
    .mediaquery-demo.small-device .main-container,
    .mediaquery-demo.small-device .footer {
        margin: 0px;
        height: 20%;
    }

    .mediaquery-demo.small-device .banner {
        margin: 8vh 0 0;
    }

    .mediaquery-demo.small-device .main-container {
        height: 48%;
    }

    .mediaquery-demo.small-device .main-container ul {
        display: block;
    }

    .mediaquery-demo.small-device .main-container ul li {
        height: 50%;
        display: block;
        width: 90%;
        margin: 0 auto;
    }

    .mediaquery-demo.small-device .main-container li .content {
        height: 40%;
        width: auto;
    }

    .mediaquery-demo.small-device .main-container li .title {
        width: 40%;
        height: 10%;
    }

    .mediaquery-demo.small-device .main-container li p {
        width: auto;
        height: 10%;
    }
</style>
  • Press ctrl+F5 or ⌘+F5 (macOS) to run the application. The Syncfusion Blazor Media Query component will then render the layout based on browser view size, as shown in the large device layout below.

Blazor Media Query Component
