Getting Started with Blazor Pivot Table in Blazor Web App

5 Nov 202524 minutes to read

This section explains how to add a Blazor Pivot Table component to your Blazor Web App using Visual Studio, Visual Studio Code, or .NET CLI. Follow these steps to set up and display data in the Pivot Table with ease.

Ready to streamline your Syncfusion^® Blazor development?
Discover the full potential of Syncfusion^® Blazor components with Syncfusion^® AI Coding Assistants. Effortlessly integrate, configure, and enhance your projects with intelligent, context-aware code suggestions, streamlined setups, and real-time insights—all seamlessly integrated into your preferred AI-powered IDEs like VS Code, Cursor, Syncfusion^® CodeStudio and more. Explore Syncfusion^® AI Coding Assistants

Prerequisites

System requirements for Blazor components

Create a new Blazor Web App in Visual Studio

To create a Blazor Web App in Visual Studio 2022, use Microsoft Templates or the Syncfusion Blazor Extension. For detailed steps, see the Blazor Web App Getting Started guide.

When creating the app, select the appropriate interactive render mode and interactivity location. For more information, refer to the interactive render mode documentation and interactivity location documentation.

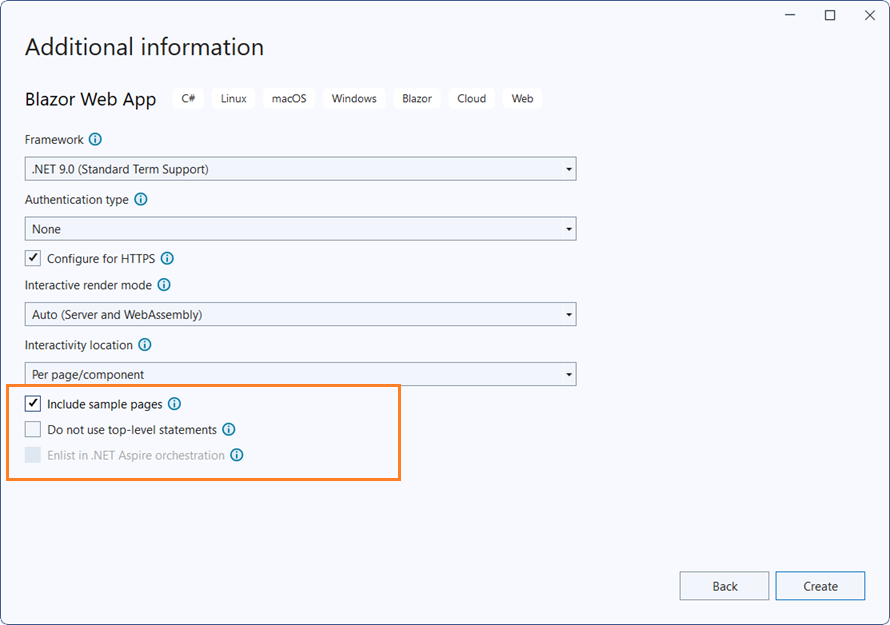

Create Blazor Web App

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

To add the Blazor Pivot Table component, install the required NuGet packages in your project.

Open the NuGet Package Manager in Visual Studio by navigating to Tools > NuGet Package Manager > Manage NuGet Packages for Solution.
Search for and install Syncfusion.Blazor.PivotTable and Syncfusion.Blazor.Themes.
If your Blazor Web App uses WebAssembly or Auto render modes, ensure these packages are installed in the client project.

Alternatively, run the following commands in the Package Manager Console:

Package Manager
Install-Package Syncfusion.Blazor.PivotTable -Version 31.2.2
Install-Package Syncfusion.Blazor.Themes -Version 31.2.2

Note: Syncfusion Blazor components are available on nuget.org. For a complete list of available NuGet packages, see the NuGet packages documentation.

Prerequisites

System requirements for Blazor components

Create a new Blazor Web App in Visual Studio Code

To create a Blazor Web App, use Visual Studio Code with Microsoft Templates or the Syncfusion Blazor Extension. For detailed steps, see the Blazor Web App Getting Started guide.

When creating the app, select the appropriate interactive render mode and interactivity location. For more details, refer to the interactive render mode documentation.

For example, to create a Blazor Web App with the Auto interactive render mode, run these commands in the terminal:

Blazor Web App
dotnet new blazor -o BlazorWebApp -int Auto
cd BlazorWebApp
cd BlazorWebApp.Client

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

If your Blazor Web App uses WebAssembly or Auto render modes, install Syncfusion Blazor NuGet packages in the client project.

Open the integrated terminal in Visual Studio Code by pressing Ctrl+`.
Ensure you are in the project root directory where the .csproj file is located.
Run the following commands to install the Syncfusion.Blazor.PivotTable and Syncfusion.Blazor.Themes NuGet packages:

Package Manager
dotnet add package Syncfusion.Blazor.PivotTable -v 31.2.2
dotnet add package Syncfusion.Blazor.Themes -v 31.2.2
dotnet restore

NOTE

Syncfusion^® Blazor components are available on nuget.org. For a complete list of available NuGet packages, see the NuGet packages documentation.

Prerequisites

Latest version of the .NET Core SDK. To check the installed version, run the following command in a command prompt (Windows), terminal (macOS), or command shell (Linux):

.NET CLI
dotnet --version

Create a Blazor Web App using .NET CLI

To create a new Blazor Web App, run the following commands in a command prompt (Windows), terminal (macOS), or command shell (Linux). For detailed steps, see the Blazor Web App Getting Started guide.

Select the appropriate interactive render mode and interactivity location when setting up the app. For more details, refer to the interactive render mode documentation.

For example, to create a Blazor Web App with the Auto interactive render mode, run these commands:

.NET CLI
dotnet new blazor -o BlazorApp -int Auto
cd BlazorApp
cd BlazorApp.Client

This command creates new Blazor Web App and places it in a new directory called BlazorApp inside your current location. See Create Blazor app topic and dotnet new CLI command topics for more details.

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

Here’s an example of how to add Blazor Pivot Table component in the application using the following command in the command prompt (Windows) or terminal (Linux and macOS) to install a Syncfusion.Blazor.PivotTable and Syncfusion.Blazor.Themes NuGet package. See Install and manage packages using the dotnet CLI topics for more details.

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion^® Blazor components NuGet packages within the client project.

.NET CLI
dotnet add package Syncfusion.Blazor.PivotTable --version 31.2.2
dotnet add package Syncfusion.Blazor.Themes --version 31.2.2
dotnet restore

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Add Import Namespaces

To use the Blazor Pivot Table, add the required namespaces to the ~/_Imports.razor file in your client project. Include Syncfusion.Blazor and Syncfusion.Blazor.PivotView to access the pivot table functionality.

~/_Imports.razor
@using Syncfusion.Blazor
@using Syncfusion.Blazor.PivotView

Register Syncfusion^® Blazor Service

Next, register the Syncfusion^® Blazor service in the ~/Program.cs file. This step enables the pivot table component in your Blazor Web App. If your app uses WebAssembly or Auto interactive render modes, register the service in both the main server project and the associated .Client project.

Server(~/_Program.cs)
Client(~/_Program.cs)
...
...
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents()
    .AddInteractiveWebAssemblyComponents();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
...
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.Services.AddSyncfusionBlazor();

await builder.Build().RunAsync();

Add stylesheet and script resources

Include the Syncfusion theme stylesheet and script in your Blazor Web App to style and enable the pivot table. Add the stylesheet in the <head> section and the script at the end of the <body> in the ~/Components/App.razor file, as shown below:

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>

<body>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>

    //Blazor PivotTable Component script reference.
    <!-- <script src="_content/Syncfusion.Blazor.PivotTable/scripts/sf-pivotview.min.js" type="text/javascript"></script> -->
</body>

NOTE

Explore the Blazor Themes topic to learn about referencing themes using Static Web Assets, CDN, or CRG. Visit the Adding Script Reference topic for different ways to add script references.

Initializing Blazor pivot Table component

To display the Blazor Pivot Table in your app, add the component to a Razor page, such as Pages/Home.razor, in either the Server or Client project. If your app uses per-page or per-component interactivity, specify the render mode at the top of the Razor file. Choose the appropriate render mode based on your app’s setup:

Interactivity Location	Render Mode	Code
Per page/component	Auto	`@rendermode InteractiveAuto`
Per page/component	WebAssembly	`@rendermode InteractiveWebAssembly`
Per page/component	None	—

NOTE

If your app uses global interactivity with Auto or WebAssembly render modes, the render mode is already set in the App.razor file.

Add the following code to your Razor page to include the Pivot Table component:

RAZOR

@* desired render mode define here *@
@rendermode InteractiveAuto

RAZOR
<SfPivotView TValue="ProductDetails"></SfPivotView>

Assigning sample data to the Blazor pivot table

To enable users to perform meaningful analysis and generate actionable insights, the Pivot Table component requires a well-structured data source. This data source contains the information you want to analyze and visualize.

For demonstration purposes, a collection of objects containing sales details for various products across different periods and regions has been prepared. This sample data is assigned to the Pivot Table component through the DataSource property under the PivotViewDataSourceSettings class.

RAZOR
<SfPivotView TValue="ProductDetails">
     <PivotViewDataSourceSettings DataSource="@dataSource">
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
    }

    public class ProductDetails
    {
        public int Sold { get; set; }
        public double Amount { get; set; }
        public string Country { get; set; }
        public string Products { get; set; }
        public string Year { get; set; }
        public string Quarter { get; set; }

        public static List<ProductDetails> GetProductData()
        {
            List<ProductDetails> productData = new List<ProductDetails>();
            productData.Add(new ProductDetails { Sold = 31, Amount = 52824, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 51, Amount = 86904, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 90, Amount = 153360, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 25, Amount = 42600, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 27, Amount = 46008, Country = "France", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 49, Amount = 83496, Country = "France", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 95, Amount = 161880, Country = "France", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 67, Amount = 114168, Country = "France", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 75, Amount = 127800, Country = "France", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 67, Amount = 114168, Country = "France", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 69, Amount = 117576, Country = "France", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 90, Amount = 153360, Country = "France", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 16, Amount = 27264, Country = "France", Products = "Mountain Bikes", Year = "FY 2025", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 83, Amount = 124422, Country = "France", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 57, Amount = 85448, Country = "France", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 20, Amount = 29985, Country = "France", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 67, Amount = 70008, Country = "France", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 89, Amount = 60496, Country = "France", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 75, Amount = 801880, Country = "France", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 57, Amount = 204168, Country = "France", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 75, Amount = 737800, Country = "France", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 87, Amount = 884168, Country = "France", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 39, Amount = 729576, Country = "France", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 90, Amount = 38860, Country = "France", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 93, Amount = 139412, Country = "France", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 51, Amount = 92824, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 61, Amount = 76904, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 70, Amount = 43360, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 85, Amount = 62600, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 97, Amount = 86008, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 69, Amount = 93496, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 45, Amount = 301880, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 77, Amount = 404168, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 15, Amount = 137800, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 37, Amount = 184168, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 49, Amount = 89576, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 40, Amount = 33360, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 96, Amount = 77264, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2025", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 23, Amount = 24422, Country = "Germany", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 67, Amount = 75448, Country = "Germany", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 70, Amount = 52345, Country = "Germany", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 13, Amount = 135612, Country = "Germany", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 57, Amount = 90008, Country = "Germany", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 29, Amount = 90496, Country = "Germany", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 45, Amount = 301880, Country = "Germany", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 77, Amount = 404168, Country = "Germany", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 15, Amount = 137800, Country = "Germany", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 37, Amount = 184168, Country = "Germany", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 99, Amount = 829576, Country = "Germany", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 80, Amount = 38360, Country = "Germany", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 91, Amount = 67824, Country = "United States", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 81, Amount = 99904, Country = "United States", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 70, Amount = 49360, Country = "United States", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 65, Amount = 69600, Country = "United States", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 57, Amount = 90008, Country = "United States", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 29, Amount = 90496, Country = "United States", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 85, Amount = 391880, Country = "United States", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 97, Amount = 904168, Country = "United States", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 85, Amount = 237800, Country = "United States", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 77, Amount = 384168, Country = "United States", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 99, Amount = 829576, Country = "United States", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 80, Amount = 38360, Country = "United States", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 76, Amount = 97264, Country = "United States", Products = "Mountain Bikes", Year = "FY 2025", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 53, Amount = 94422, Country = "United States", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 90, Amount = 45448, Country = "United States", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 29, Amount = 92345, Country = "United States", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 67, Amount = 235612, Country = "United States", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 97, Amount = 90008, Country = "United States", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 79, Amount = 90496, Country = "United States", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 95, Amount = 501880, Country = "United States", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 97, Amount = 104168, Country = "United States", Products = "Road Bikes", Year = "FY 2023", Quarter = "Q4" });
            productData.Add(new ProductDetails { Sold = 95, Amount = 837800, Country = "United States", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q1" });
            productData.Add(new ProductDetails { Sold = 87, Amount = 684168, Country = "United States", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q2" });
            productData.Add(new ProductDetails { Sold = 109, Amount = 29576, Country = "United States", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q3" });
            productData.Add(new ProductDetails { Sold = 99, Amount = 345860, Country = "United States", Products = "Road Bikes", Year = "FY 2024", Quarter = "Q4" });
            return productData;
        }
    }
}

Adding fields to row, column, value, and filter axes

Organizing fields into appropriate axes transforms raw data into a structured, meaningful Pivot Table that enables users to analyze patterns and trends effectively. With the Pivot Table now initialized and populated with sample data, the next logical step involves organizing the appropriate fields into row, column, value, and filter axes to create a functional data analysis tool.

In the PivotViewDataSourceSettings class, four primary axes play a crucial role in defining and organizing fields from the bound data source to render the Pivot Table component in the desired format.

Understanding the four axes:

PivotViewRows – Collection of fields that will be displayed along the row axis of the Pivot Table.
PivotViewColumns – Collection of fields that will be displayed along the column axis of the Pivot Table.
PivotViewValues – Collection of fields that will be displayed as aggregated numeric values within the Pivot Table.
PivotViewFilters – Collection of fields that act as master filters over the data bound to the row, column, and value axes of the Pivot Table.

Essential field properties:

To define each field in its respective axis, configure the following basic properties:

Name: Sets the field name from the bound data source. The casing must match exactly as it appears in the data source, otherwise the Pivot Table will not render correctly.
Caption: Sets the field caption, which serves as the display name for the field in the Pivot Table.
Type: Sets the summary type for the field. By default, the SummaryTypes.Sum aggregation is applied.

RAZOR
<SfPivotView TValue="ProductDetails" Height="300">
     <PivotViewDataSourceSettings DataSource="@dataSource">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
        //Bind the data source collection here. Refer "Assigning sample data to the pivot table" (https://blazor.syncfusion.com/documentation/pivot-table/getting-started-webapp#assigning-sample-data-to-the-blazor-pivot-table) section for more details.
    }
}

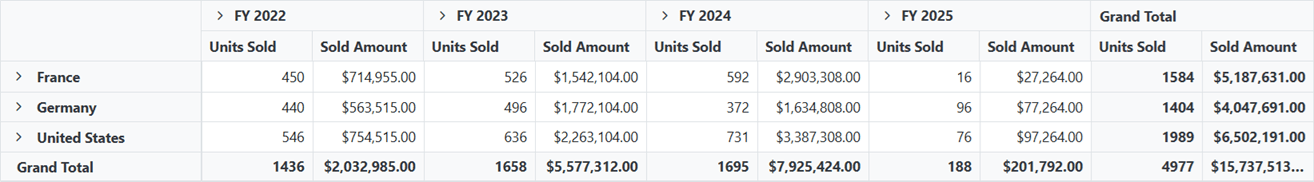

Applying formatting to a value field

Formatting enhances the readability and presentation of numerical data in a Pivot Table, making it more user-friendly and professional. For example, you can display values with currency symbols or adjust the number of decimal places for greater clarity.

To apply formatting to value fields in a Pivot Table, use the PivotViewFormatSettings class. This class accepts a list of PivotViewFormatSetting objects, each defining formatting rules for a specific field in your data.

Within each PivotViewFormatSetting object, set the Name property to match the exact field name from your value section. Then, specify the desired display format using the Format property. In the example below, the Amount field is configured to display values in currency format using the “C” pattern, which includes currency symbols.

NOTE

Formatting can only be applied to numeric fields in the value section of the Pivot Table.

RAZOR
<SfPivotView TValue="ProductDetails" Height="300">
     <PivotViewDataSourceSettings DataSource="@dataSource">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
        //Bind the data source collection here. Refer "Assigning sample data to the pivot table" (https://blazor.syncfusion.com/documentation/pivot-table/getting-started-webapp#assigning-sample-data-to-the-blazor-pivot-table) section for more details.
    }
}

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion^® Blazor Pivot Table component in your default web browser like below.

Enable Field List

The field list enhances user interaction by allowing you to dynamically add, remove, and rearrange fields across different axes, including column, row, value, and filter axes. This user-friendly interface also provides sorting and filtering options that can be applied at runtime without requiring code changes.

To enable the field list, set the ShowFieldList property in the SfPivotView class to true. This activates the field list interface, making it accessible to users to modify Pivot Table report settings. For comprehensive details about field list functionality, refer to the dedicated field list documentation.

RAZOR
<SfPivotView TValue="ProductDetails" ShowFieldList="true" Height="300">
     <PivotViewDataSourceSettings DataSource="@dataSource">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
        //Bind the data source collection here. Refer "Assigning sample data to the pivot table" (https://blazor.syncfusion.com/documentation/pivot-table/getting-started-webapp#assigning-sample-data-to-the-blazor-pivot-table) section for more details.
    }
}

Enable Grouping Bar

The grouping bar allows users to easily manage and modify the report settings of the Pivot Table directly through the user interface. With the grouping bar, users can instantly move fields between columns, rows, values, and filters by dragging them, allowing for quick arrangement and analysis of the data.

Users can also use the grouping bar to sort, filter, or remove fields quickly without needing to write any code. To enable the grouping bar, set the ShowGroupingBar property in the SfPivotView class to true. For more details about using the grouping bar, see the Grouping Bar documentation.

RAZOR
<SfPivotView TValue="ProductDetails" ShowGroupingBar="true" Height="300">
     <PivotViewDataSourceSettings DataSource="@dataSource">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
        //Bind the data source collection here. Refer "Assigning sample data to the pivot table" (https://blazor.syncfusion.com/documentation/pivot-table/getting-started-webapp#assigning-sample-data-to-the-blazor-pivot-table) section for more details.
    }
}

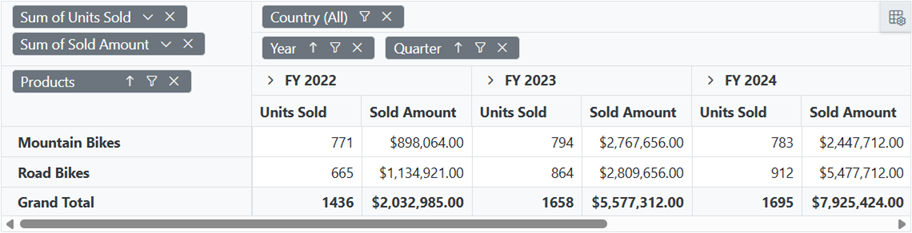

Exploring Filter Axis

The filter axis lets you show only the data you need in the Blazor Pivot Table, making analysis simpler. You can add fields to the filter axis to control what data appears in the PivotViewRows, PivotViewColumns, and PivotViewValues axes. You can set up these fields in two ways: by adding them to the PivotViewFilters collection in your code, or by dragging and dropping fields from other axes to the filter axis using the grouping bar or field list during runtime. This helps you focus on specific data without changing the Pivot Table’s structure.

The following example shows how to add a field to the filter axis in a Blazor Pivot Table:

RAZOR
<SfPivotView TValue="ProductDetails" ShowGroupingBar="true" ShowFieldList="true" Height="300">
     <PivotViewDataSourceSettings DataSource="@dataSource">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewFilters>
            <PivotViewFilter Name="Country"></PivotViewFilter>
        </PivotViewFilters>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
        //Bind the data source collection here. Refer "Assigning sample data to the pivot table" (https://blazor.syncfusion.com/documentation/pivot-table/getting-started-webapp#assigning-sample-data-to-the-blazor-pivot-table) section for more details.
    }
}

Calculated Field

The calculated field feature enables users to create custom value fields using mathematical formulas and existing fields from their data source. Users can perform complex calculations with basic arithmetic operators and seamlessly integrate these custom fields into their Pivot Table for enhanced data visualization and reporting.

Users can add calculated fields in two ways:

Using code: Set up calculated fields through the PivotViewCalculatedFieldSettings class when configuring the Pivot Table.
Using the user interface: Alternatively, calculated fields can be added at runtime through a built-in dialog by setting the AllowCalculatedField property in the SfPivotView class to true. When enabled, a button appears in the Field List UI. Clicking this button opens a dialog that allows users to create, edit, or remove calculated fields at runtime. To learn more about calculated fields, refer here.

NOTE

By default, the calculated fields created through code-behind are only added to the field list and calculated field dialog UI. To display the calculated field in the Pivot Table UI, it must be added to the PivotViewValues class, as shown in the code below. Additionally, calculated fields can only be added to the value axis.

Below is a sample code that shows how to set up calculated fields both through code-behind and using the popup dialog:

RAZOR
<SfPivotView TValue="ProductDetails" ShowFieldList="true" AllowCalculatedField="true" Height="300">
     <PivotViewDataSourceSettings DataSource="@dataSource">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Unit Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
            <PivotViewValue Name="Total" Caption="Total Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
            <PivotViewFormatSetting Name="Total" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
         <PivotViewCalculatedFieldSettings>
            <PivotViewCalculatedFieldSetting Name="Total" Formula="@totalPrice"></PivotViewCalculatedFieldSetting>
        </PivotViewCalculatedFieldSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public string totalPrice = "\"" + "Sum(Amount)" + "\"" + "+" + "\"" + "Sum(Sold)" + "\"";
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
        //Bind the data source collection here. Refer "Assigning sample data to the pivot table" (https://blazor.syncfusion.com/documentation/pivot-table/getting-started-webapp#assigning-sample-data-to-the-blazor-pivot-table) section for more details.
    }
}

Blazor PivotTable with Caluclation Button

Handling exceptions

You can handle errors that occur during Pivot Table actions without stopping your application. Use the OnActionFailure event to capture error messages or details from the server. We recommend binding this event while building your app, as it helps you identify issues early. You can share these error details with our support team to get help quickly.

The following code example shows how to display a server-side error message to the user when a data operation fails:

RAZOR
<span class="error">@ErrorDetails</span>
<SfPivotView TValue="PivotViewData" Width="100%" Height="450" AllowDataCompression="true" EnableVirtualization="true" ShowFieldList="true" ShowGroupingBar="true" MaxNodeLimitInMemberEditor="50">
    <PivotViewDataSourceSettings TValue="PivotViewData" Url="https://some.com/invalidUrl" ExpandAll="false" EnableSorting="true" EnableServerSideAggregation="true" AlwaysShowValueHeader="true">
        <PivotViewColumns>
            <PivotViewColumn Name="Year" Caption="Production Year"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="ProductID" Caption="Product ID"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Unit Sold"></PivotViewValue>
            <PivotViewValue Name="Price" Caption="Unit Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Price" Format="C0"></PivotViewFormatSetting>
            <PivotViewFormatSetting Name="Sold" Format="N0"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
    <PivotViewGridSettings ColumnWidth="120"></PivotViewGridSettings>
    <PivotViewEvents TValue="PivotViewData" OnActionFailure="ActionFailure"></PivotViewEvents>
</SfPivotView>

<style>
    .error {
        color: red;
    }
</style>

@code{
    public string ErrorDetails = "";
    public class PivotViewData
    {
        public string ProductID { get; set; }
        public string Country { get; set; }
        public string Product { get; set; }
        public double Sold { get; set; }
        public double Price { get; set; }
        public string Year { get; set; }
    }
    public void ActionFailure(PivotActionFailureEventArgs args)
    {
        this.ErrorDetails = args.ErrorInfo.Message;
        StateHasChanged();
    }
}

NOTE

View Sample in GitHub.

Search docs

Ask HelpBot

Search docs

Ask HelpBot

Getting Started with Blazor Pivot Table in Blazor Web App

Prerequisites

Create a new Blazor Web App in Visual Studio

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

Prerequisites

Create a new Blazor Web App in Visual Studio Code

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

Prerequisites

Create a Blazor Web App using .NET CLI

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

Add Import Namespaces

Register Syncfusion^® Blazor Service

Add stylesheet and script resources

Initializing Blazor pivot Table component

Assigning sample data to the Blazor pivot table

Adding fields to row, column, value, and filter axes

Applying formatting to a value field

Enable Field List

Enable Grouping Bar

Exploring Filter Axis

Calculated Field

Handling exceptions

See also

Getting Started with Blazor Pivot Table in Blazor Web App

Prerequisites

Create a new Blazor Web App in Visual Studio

Install Syncfusion® Blazor PivotTable and Themes NuGet in the App

Prerequisites

Create a new Blazor Web App in Visual Studio Code

Install Syncfusion® Blazor PivotTable and Themes NuGet in the App

Prerequisites

Create a Blazor Web App using .NET CLI

Install Syncfusion® Blazor PivotTable and Themes NuGet in the App

Add Import Namespaces

Register Syncfusion® Blazor Service

Add stylesheet and script resources

Initializing Blazor pivot Table component

Assigning sample data to the Blazor pivot table

Adding fields to row, column, value, and filter axes

Applying formatting to a value field

Enable Field List

Enable Grouping Bar

Exploring Filter Axis

Calculated Field

Handling exceptions

See also

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

Install Syncfusion^® Blazor PivotTable and Themes NuGet in the App

Register Syncfusion^® Blazor Service
