Getting Started with Blazor Scheduler in Blazor Web App

16 Feb 202411 minutes to read

This section briefly explains about how to include Blazor Scheduler component in your Blazor Web App using Visual Studio.

Prerequisites

Create a new Blazor Web App

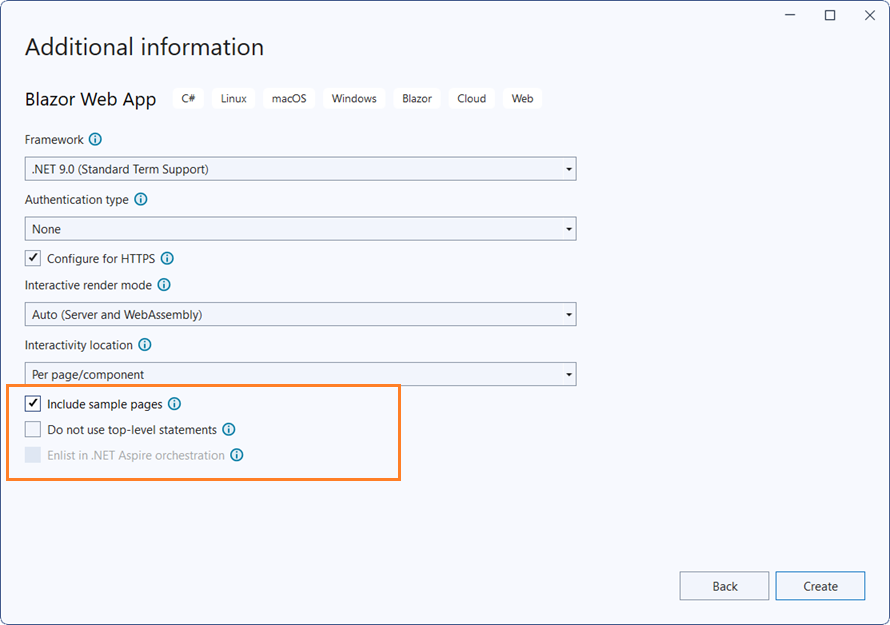

You can create a Blazor Web App using Visual Studio 2022 via Microsoft Templates or the Syncfusion Blazor Extension.

You need to configure the corresponding Interactive render mode and Interactivity location while creating a Blazor Web Application.

Install Syncfusion Blazor Schedule and Themes NuGet in the App

To add Blazor Scheduler component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.Schedule and Syncfusion.Blazor.Themes.

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion Blazor components NuGet packages within the client project.

Alternatively, you can utilize the following package manager command to achieve the same.

Install-Package Syncfusion.Blazor.Schedule -Version 26.1.35
Install-Package Syncfusion.Blazor.Themes -Version 26.1.35

NOTE

Syncfusion Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.Schedule namespace .

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Schedule

Now, register the Syncfusion Blazor Service in the ~/Program.cs file of your Blazor Web App.

If you select an Interactive render mode as WebAssembly or Auto, you need to register the Syncfusion Blazor service in both ~/Program.cs files of your Blazor Web App.

....
using Syncfusion.Blazor;
....
builder.Services.AddSyncfusionBlazor();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Include the stylesheet reference in the <head> section and the script reference at the end of the <body> in the ~/Components/App.razor file as shown below:

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>

<body>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</body>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Syncfusion Blazor Scheduler component

Add the Syncfusion Blazor Scheduler component in the ~Pages/.razor file. If an interactivity location as Per page/component in the web app, define a render mode at the top of the ~Pages/.razor component, as follows:

@* desired render mode define here *@
@rendermode InteractiveAuto
<SfSchedule TValue=AppointmentData>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>
@code {
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}
  • Press Ctrl+F5 (Windows) or +F5 (macOS) to launch the application. This will render the Syncfusion Blazor Scheduler component in your default web browser.
Blazor Scheduler Component

NOTE

View Sample in GitHub.

Populating appointments

To populate the Scheduler with appointments, bind the event data to it by assigning the DataSource property under ScheduleEventSettings.

<SfSchedule TValue="AppointmentData" Height="650px" @bind-SelectedDate="@CurrentDate">
    <ScheduleEventSettings DataSource="@DataSource"></ScheduleEventSettings>
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>

@code{
    DateTime CurrentDate = new DateTime(2020, 2, 14);
    List<AppointmentData> DataSource = new List<AppointmentData>
    {
        new AppointmentData { Id = 1, Subject = "Paris", StartTime = new DateTime(2020, 2, 13, 10, 0, 0) , EndTime = new DateTime(2020, 2, 13, 12, 0, 0) },
        new AppointmentData { Id = 2, Subject = "Germany", StartTime = new DateTime(2020, 2, 15, 10, 0, 0) , EndTime = new DateTime(2020, 2, 15, 12, 0, 0) }
    };
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}
Blazor Scheduler with Appointments

Setting date

The Blazor Scheduler usually displays the system date as its current date. To change the current date of Scheduler with specific date, define the two-way binding for SelectedDate property.

<SfSchedule TValue="AppointmentData" Height="650px" @bind-SelectedDate="@CurrentDate">
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>
@code{
    DateTime CurrentDate = new DateTime(2020, 1, 10);
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

Setting view

The Scheduler displays Week view by default. To change the current view, define the applicable view name to the two-way binding of CurrentView property. The applicable view names are,

  • Day
  • Week
  • WorkWeek
  • Month
  • Agenda
  • MonthAgenda
  • TimelineDay
  • TimelineWeek
  • TimelineWorkWeek
  • TimelineMonth
  • TimelineYear
  • Year
<SfSchedule TValue="AppointmentData" Height="650px" @bind-CurrentView="@CurrentView">
    <ScheduleViews>
        <ScheduleView Option="View.Day"></ScheduleView>
        <ScheduleView Option="View.Week"></ScheduleView>
        <ScheduleView Option="View.WorkWeek"></ScheduleView>
        <ScheduleView Option="View.Month"></ScheduleView>
        <ScheduleView Option="View.Agenda"></ScheduleView>
    </ScheduleViews>
</SfSchedule>
@code{
    View CurrentView = View.Month;
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}

Individual view customization

Each individual Scheduler views can be customized with its own options such as setting different start and end hour on Week and Work Week views, whereas hiding the weekend days on Month view alone which can be achieved by defining the ScheduleView.

<SfSchedule TValue="AppointmentData" Height="650px" @bind-SelectedDate="@CurrentDate">
    <ScheduleViews>
        <ScheduleView Option="View.Week" StartHour="07:00" EndHour="15:00"></ScheduleView>
        <ScheduleView Option="View.WorkWeek" StartHour="10:00" EndHour="18:00"></ScheduleView>
        <ScheduleView Option="View.Month" MaxEventsPerRow="2" ShowWeekend="false"></ScheduleView>
    </ScheduleViews>
</SfSchedule>
@code{
    DateTime CurrentDate = new DateTime(2020, 2, 13);
    public class AppointmentData
    {
        public int Id { get; set; }
        public string Subject { get; set; }
        public string Location { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public string Description { get; set; }
        public bool IsAllDay { get; set; }
        public string RecurrenceRule { get; set; }
        public string RecurrenceException { get; set; }
        public Nullable<int> RecurrenceID { get; set; }
    }
}
