Getting Started with Blazor Smith Chart Component

11 Apr 202320 minutes to read

This section briefly explains about how to include Blazor Smith Chart component in your Blazor Server App and Blazor WebAssembly App using Visual Studio.

Prerequisites

System requirements for Blazor components

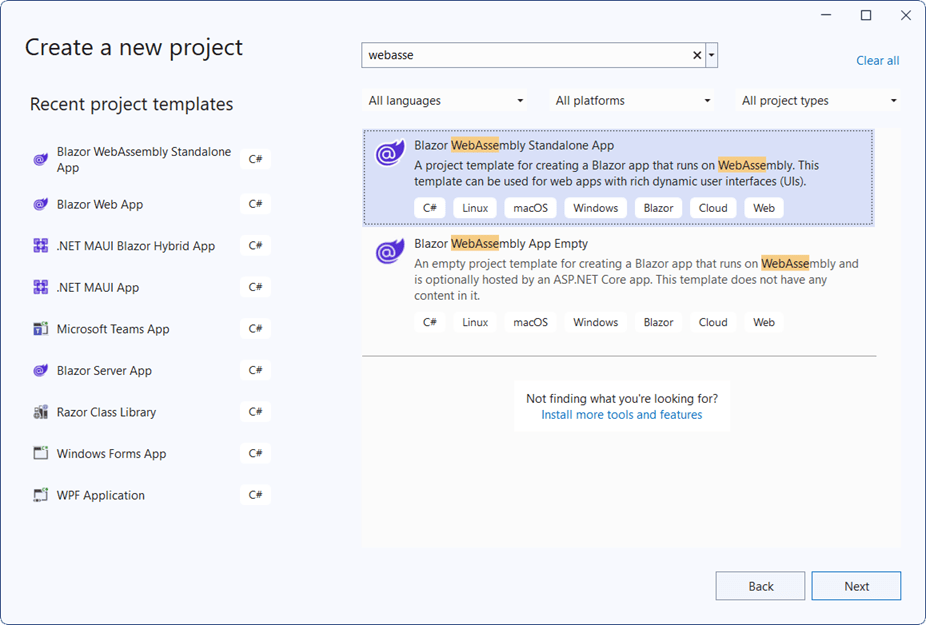

Create a new Blazor App in Visual Studio

You can create Blazor Server App or Blazor WebAssembly App using Visual Studio in one of the following ways,

Install Syncfusion Blazor SmithChart NuGet in the App

Syncfusion Blazor components are available in nuget.org. To use Syncfusion Blazor components in the application, add reference to the corresponding NuGet. Refer to NuGet packages topic for available NuGet packages list with component details and Benefits of using individual NuGet packages.

To add Blazor Smith Chart component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.Blazor.SmithChart and then install it.

Register Syncfusion Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor namespace.

~/_Imports.razor

@using Syncfusion.Blazor

Now, register the Syncfusion Blazor Service in the Blazor Server App or Blazor WebAssembly App. Here, Syncfusion Blazor Service is registered by setting IgnoreScriptIsolation property as true to load the scripts externally in the next steps.

NOTE

From 2022 Vol-1 (20.1) version, the default value of IgnoreScriptIsolation is changed to true. It is not necessary to set the IgnoreScriptIsolation property to refer scripts externally, since the default value has already been changed to true, and this property is obsolete.

Blazor Server App

For .NET 6 and .NET 7 app, open the ~/Program.cs file and register the Syncfusion Blazor Service.
For .NET 5 and .NET 3.X app, open the ~/Startup.cs file and register the Syncfusion Blazor Service.

.NET 6 & .NET 7 (~/Program.cs)
.NET 5 and .NET 3.X (~/Startup.cs)
using Microsoft.AspNetCore.Components;
using Microsoft.AspNetCore.Components.Web;
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorPages();
builder.Services.AddServerSideBlazor();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
using Syncfusion.Blazor;

namespace BlazorApplication
{
    public class Startup
    {
        ...
        public void ConfigureServices(IServiceCollection services)
        {
            services.AddRazorPages();
            services.AddServerSideBlazor();
            services.AddSyncfusionBlazor();
        }
        ...
    }
}

Blazor WebAssembly App

Open ~/Program.cs file and register the Syncfusion Blazor Service in the client web app.

.NET 6 & .NET 7 (~/Program.cs)
.NET 5 & .NET 3.X (~/Program.cs)
using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....
using Syncfusion.Blazor;

namespace WebApplication1
{
    public class Program
    {
        public static async Task Main(string[] args)
        {
            ....
            builder.Services.AddSyncfusionBlazor();
            await builder.Build().RunAsync();
        }
    }
}

Add Style Sheet

Checkout the Blazor Themes topic to learn different ways (Static Web Assets, CDN and CRG) to refer themes in Blazor application, and to have the expected appearance for Syncfusion Blazor components. Here, the theme is referred using Static Web Assets. Refer to Enable static web assets usage topic to use static assets in your project.

To add theme to the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search for Syncfusion.Blazor.Themes and then install it. Then, the theme style sheet from NuGet can be referred as follows,

NOTE

If you are using Syncfusion.Blazor single NuGet, you don’t have to refer Syncfusion.Blazor.Themes NuGet. Since style sheets already inside the assets of Syncfusion.Blazor NuGet.

Blazor Server App

For .NET 6 app, add the Syncfusion bootstrap5 theme in the <head> of the ~/Pages/_Layout.cshtml file.
For .NET 3.X, .NET 5 and .NET 7 app, add the Syncfusion bootstrap5 theme in the <head> of the ~/Pages/_Host.cshtml file.

.NET 6 (~/_Layout.cshtml)
.NET 3.X, .NET 5 & .NET 7 (~/_Host.cshtml)
<head>
    ...
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <!--Refer theme style sheet as below if you are using Syncfusion.Blazor Single NuGet-->
    <!--<link href="_content/Syncfusion.Blazor/styles/bootstrap5.css" rel="stylesheet" />-->
</head>
<head>
    ...
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <!--Refer theme style sheet as below if you are using Syncfusion.Blazor Single NuGet-->
    <!--<link href="_content/Syncfusion.Blazor/styles/bootstrap5.css" rel="stylesheet" />-->
</head>

Blazor WebAssembly App

For Blazor WebAssembly App, Refer the theme style sheet from NuGet in the <head> of wwwroot/index.html file in the client web app.

~/index.html
<head>
    ...
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <!--Refer theme style sheet as below if you are using Syncfusion.Blazor Single NuGet-->
    <!--<link href="_content/Syncfusion.Blazor/styles/bootstrap5.css" rel="stylesheet" />-->
</head>

Add Script Reference

Checkout Adding Script Reference topic to learn different ways to add script reference in Blazor Application. In this getting started walk-through, the required scripts are referred using Static Web Assets externally inside the <head> as follows. Refer to Enable static web assets usage topic to use static assets in your project.

Blazor Server App

For .NET 6 app, Refer script in the <head> of the ~/Pages/_Layout.cshtml file.
For .NET 3.X, .NET 5 and .NET 7 app, Refer script in the <head> of the ~/Pages/_Host.cshtml file.

.NET 6 (~/_Layout.cshtml)
.NET 3.X, .NET 5 & .NET 7 (~/_Host.cshtml)
<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>
<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>

Blazor WebAssembly App

For Blazor WebAssembly App, Refer script in the <head> of the ~/index.html file.

~/index.html
<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!--Use below script reference if you are using Syncfusion.Blazor Single NuGet-->
    <!--<script  src="_content/Syncfusion.Blazor/scripts/syncfusion-blazor.min.js"  type="text/javascript"></script>-->
</head>

NOTE

Syncfusion recommends to reference scripts using Static Web Assets, CDN and CRG by disabling JavaScript isolation for better loading performance of the Blazor application.

Add Blazor Smith Chart component

Open ~/_Imports.razor file or any other page under the ~/Pages folder where the component is to be added and import the Syncfusion.Blazor.Charts namespace.

~/Imports.razor

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Charts

Now, add the Syncfusion Smith Chart component in razor file. Here, the Smith Chart component is added in the ~/Pages/Index.razor file under the ~/Pages folder.

RAZOR

<SfSmithchart>

</SfSmithchart>

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to run the application. Then, the Syncfusion Blazor Smith Chart component will be rendered in the default web browser.

Blazor Smith Chart Component

Adding series to Smith Chart

Smith Chart series can be added in two ways. Use either Points or Datasource in the SmithChartSeries.

If you add using Datasource property, additionally you need to specify data source mapping fields using Reactance and Resistance properties.

If you are using Points, you don’t need to specify mapping fields as like in DataSource. But the Points collection should be SmithChartPoint type and define Resistance and Reactance properties mandatorily.

The following sample demonstrates adding two series to Smith Chart in both ways.

First series Transmission1 shows DataSource bound series.
Second series Transmission2 shows Points bound series.

RAZOR
<SfSmithChart>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission1"
                          Reactance="Reactance"
                          Resistance="Resistance"
                          DataSource="@FirstTransmissionSeries">
        </SmithChartSeries>
        <SmithChartSeries Name="Transmission2"
                          Points="@SecondTransmissionSeries">
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

@code {
    public class SmithDataSource
    {
        public double Resistance { get; set; }
        public double Reactance { get; set; }
    };
    public List<SmithDataSource> FirstTransmissionSeries = new List<SmithDataSource> {
        new SmithDataSource { Resistance= 10, Reactance= 25 },
        new SmithDataSource { Resistance= 8, Reactance= 6 },
        new SmithDataSource { Resistance= 6, Reactance= 4.5 },
        new SmithDataSource { Resistance= 4.5, Reactance= 2 },
        new SmithDataSource { Resistance= 3.5, Reactance= 1.6 },
        new SmithDataSource { Resistance= 2.5, Reactance= 1.3 },
        new SmithDataSource { Resistance= 2, Reactance= 1.2 },
        new SmithDataSource { Resistance= 1.5, Reactance= 1 },
        new SmithDataSource { Resistance= 1, Reactance= 0.8 },
        new SmithDataSource { Resistance= 0.5, Reactance= 0.4 },
        new SmithDataSource { Resistance= 0.3, Reactance= 0.2 },
        new SmithDataSource { Resistance= 0.001, Reactance= 0.15 }
    };
    public List<SmithChartPoint> SecondTransmissionSeries = new List<SmithChartPoint> {
        new SmithChartPoint { Resistance= 20, Reactance= -50 },
        new SmithChartPoint { Resistance= 10, Reactance= -10 },
        new SmithChartPoint { Resistance= 9, Reactance= -4.5 },
        new SmithChartPoint { Resistance= 8, Reactance= -3.5 },
        new SmithChartPoint { Resistance= 7, Reactance= -2.5 },
        new SmithChartPoint { Resistance= 6, Reactance= -1.5 },
        new SmithChartPoint { Resistance= 5, Reactance= -1 },
        new SmithChartPoint { Resistance= 4.5, Reactance= -0.5 },
        new SmithChartPoint { Resistance= 2, Reactance= 0.5 },
        new SmithChartPoint { Resistance= 1.5, Reactance= 0.4 },
        new SmithChartPoint { Resistance= 1, Reactance= 0.4 },
        new SmithChartPoint { Resistance= 0.5, Reactance= 0.2 },
        new SmithChartPoint { Resistance= 0.3, Reactance= 0.1 },
        new SmithChartPoint { Resistance= 0.001, Reactance= 0.05 }
    };
}

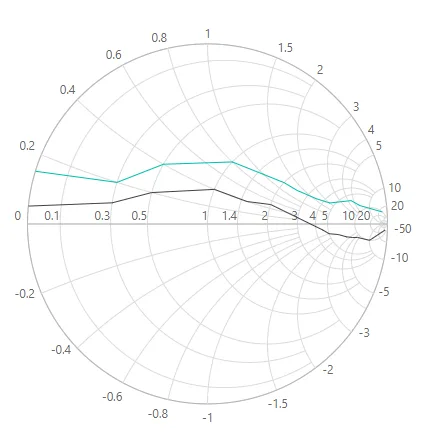

Blazor Smith Chart with Transmission Series

Adding Title

Title can be added to the Smith Chart to provide a quick information to the users about the context of the rendered component. Add a title by using the Text property in the SmithChartTitle.

RAZOR
<SfSmithChart>
    <SmithChartTitle Text="Impedance Transmission">
    </SmithChartTitle>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission1"
                          Reactance="Reactance"
                          Resistance="Resistance"
                          DataSource="@FirstTransmissionSeries">
        </SmithChartSeries>
        <SmithChartSeries Name="Transmission2"
                          Points="@SecondTransmissionSeries">
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

NOTE

Refer to the code block to know about the property value of FirstTransmissionSeries and SecondTransmissionSeries.

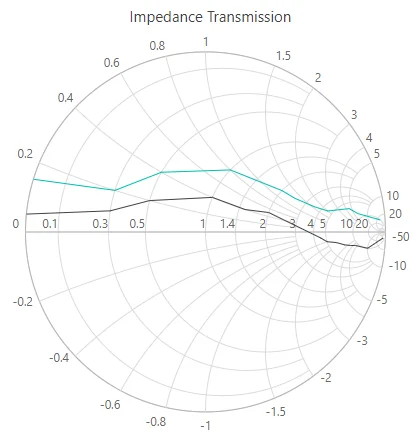

Blazor Smith Chart with Title

Enable Marker

To display marker for particular series, set the Visible property to true in the SmithChartSeriesMarker.

RAZOR
<SfSmithChart>
    <SmithChartTitle Text="Impedance Transmission">
    </SmithChartTitle>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission1"
                          Reactance="Reactance"
                          Resistance="Resistance"
                          DataSource="@FirstTransmissionSeries">
            <SmithChartSeriesMarker Visible="true"></SmithChartSeriesMarker>
        </SmithChartSeries>
        <SmithChartSeries Name="Transmission2"
                          Points="@SecondTransmissionSeries">
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

NOTE

Refer to the code block to know about the property value of FirstTransmissionSeries and SecondTransmissionSeries.

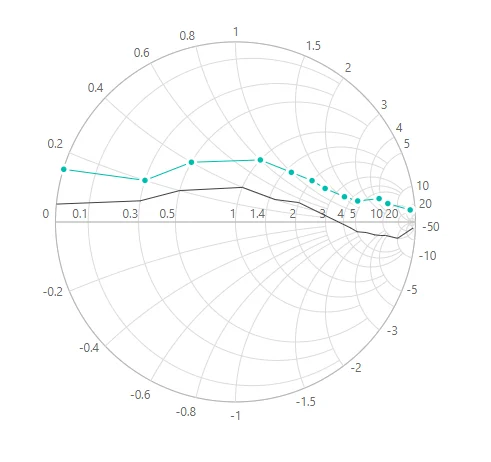

Blazor Smith Chart with Marker

Enable Data Label

To display data label for particular marker series, set the Visible property to true in the SmithChartSeriesDatalabel.

RAZOR
<SfSmithChart>
    <SmithChartTitle Text="Impedance Transmission">
    </SmithChartTitle>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission1"
                          Reactance="Reactance"
                          Resistance="Resistance"
                          DataSource="@FirstTransmissionSeries">
            <SmithChartSeriesMarker Visible="true">
                <SmithChartSeriesDatalabel Visible="true">
                </SmithChartSeriesDatalabel>
            </SmithChartSeriesMarker>
        </SmithChartSeries>
        <SmithChartSeries Name="Transmission2" Points="@SecondTransmissionSeries">
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

NOTE

Refer to the code block to know the property value of FirstTransmissionSeries and SecondTransmissionSeries.

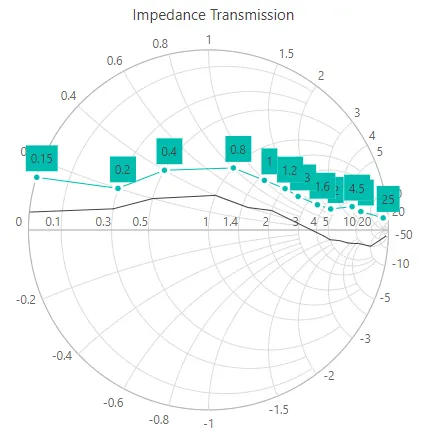

Blazor Smith Chart with Data Label

Enable Legend

Use legend for the Smith Chart by setting the Visible property to true in the SmithChartLegendSettings. The legend name can be changed by using the Name property in the SmithChartSeries.

RAZOR
<SfSmithChart>
    <SmithChartLegendSettings Visible="true"></SmithChartLegendSettings>
    <SmithChartTitle Text="Impedance Transmission"></SmithChartTitle>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission1"
                          Reactance="Reactance"
                          Resistance="Resistance"
                          DataSource="@FirstTransmissionSeries">
            <SmithChartSeriesMarker Visible="true">
                <SmithChartSeriesDatalabel Visible="true">
                </SmithChartSeriesDatalabel>
            </SmithChartSeriesMarker>
        </SmithChartSeries>
        <SmithChartSeries Name="Transmission2" Points="@SecondTransmissionSeries">
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

NOTE

Refer to the code block to know the property value of the FirstTransmissionSeries and the SecondTransmissionSeries.

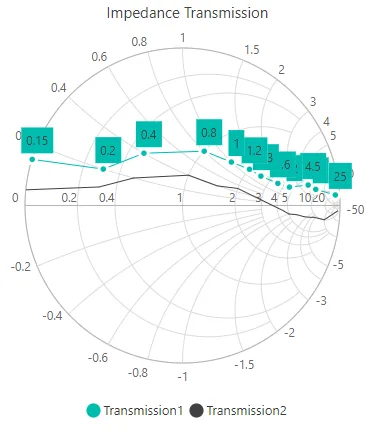

Blazor Smith Chart with Legend

When space constraints prevents from displaying information using data labels, the tooltip comes in handy. The tooltip can be enabled by setting the Visible property to true in the SmithChartSeriesTooltip.

RAZOR
<SfSmithChart>
    <SmithChartLegendSettings Visible="true"></SmithChartLegendSettings>
    <SmithChartTitle Text="Impedance Transmission"></SmithChartTitle>
    <SmithChartSeriesCollection>
        <SmithChartSeries Name="Transmission1"
                          Reactance="Reactance"
                          Resistance="Resistance"
                          DataSource="@FirstTransmissionSeries">
            <SmithChartSeriesMarker Visible="true">
                <SmithChartSeriesDatalabel Visible="true">
                </SmithChartSeriesDatalabel>
            </SmithChartSeriesMarker>
            <SmithChartSeriesTooltip Visible="true">
            </SmithChartSeriesTooltip>
        </SmithChartSeries>
        <SmithChartSeries Name="Transmission2" Points="@SecondTransmissionSeries">
        </SmithChartSeries>
    </SmithChartSeriesCollection>
</SfSmithChart>

NOTE

Refer to the code block to know about the property value of the FirstTransmissionSeries and the SecondTransmissionSeries.

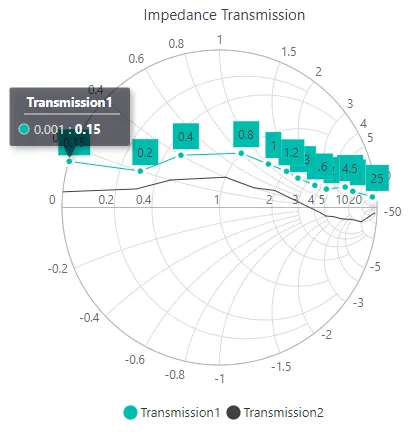

Blazor Smith Chart with Tooltip

NOTE

View Sample in GitHub.

Getting Started with Blazor Smith Chart Component

Prerequisites

Create a new Blazor App in Visual Studio

Install Syncfusion Blazor SmithChart NuGet in the App

Register Syncfusion Blazor Service

Blazor Server App

Blazor WebAssembly App

Add Style Sheet

Blazor Server App

Blazor WebAssembly App

Add Script Reference

Blazor Server App

Blazor WebAssembly App

Add Blazor Smith Chart component

Adding series to Smith Chart

Adding Title

Enable Marker

Enable Data Label

Enable Legend

Enable Tooltip

See also
