Getting Started with Blazor Splitter Component

30 Apr 20256 minutes to read

This section briefly explains about how to include Blazor Splitter component in your Blazor WebAssembly App using Visual Studio and Visual Studio Code.

To get start quickly with Blazor Splitter component, refer to the video below or GitHub sample.

Prerequisites

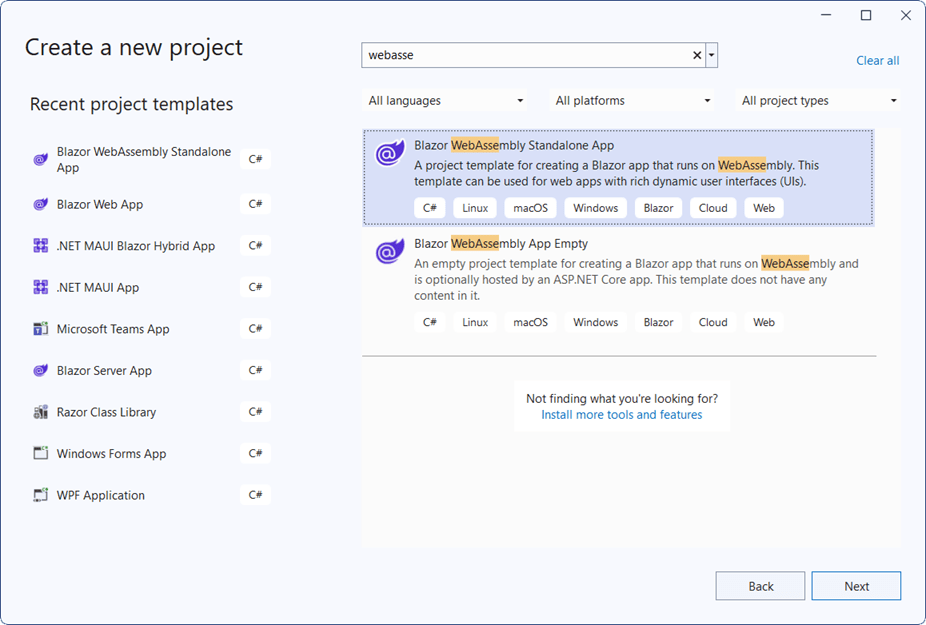

Create a new Blazor App in Visual Studio

You can create a Blazor WebAssembly App using Visual Studio via Microsoft Templates or the Syncfusion® Blazor Extension.

Install Syncfusion® Blazor Layouts and Themes NuGet in the App

To add Blazor Splitter component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.Layouts and Syncfusion.Blazor.Themes. Alternatively, you can utilize the following package manager command to achieve the same.

Install-Package Syncfusion.Blazor.Layouts -Version 29.1.33
Install-Package Syncfusion.Blazor.Themes -Version 29.1.33

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Prerequisites

Create a new Blazor App in Visual Studio Code

You can create a Blazor WebAssembly App using Visual Studio Code via Microsoft Templates or the Syncfusion® Blazor Extension.

Alternatively, you can create a WebAssembly application using the following command in the terminal(Ctrl+`).

dotnet new blazorwasm -o BlazorApp
cd BlazorApp

Install Syncfusion® Blazor Layouts and Themes NuGet in the App

  • Press Ctrl+` to open the integrated terminal in Visual Studio Code.
  • Ensure you’re in the project root directory where your .csproj file is located.
  • Run the following command to install a Syncfusion.Blazor.Layouts and Syncfusion.Blazor.Themes NuGet package and ensure all dependencies are installed.
dotnet add package Syncfusion.Blazor.Layouts -v 29.1.33
dotnet add package Syncfusion.Blazor.Themes -v 29.1.33
dotnet restore

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion® Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.Layouts namespace.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Layouts

Now, register the Syncfusion® Blazor Service in the ~/Program.cs file of your Blazor WebAssembly App.

using Microsoft.AspNetCore.Components.Web;
using Microsoft.AspNetCore.Components.WebAssembly.Hosting;
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.RootComponents.Add<App>("#app");
builder.RootComponents.Add<HeadOutlet>("head::after");

builder.Services.AddScoped(sp => new HttpClient { BaseAddress = new Uri(builder.HostEnvironment.BaseAddress) });

builder.Services.AddSyncfusionBlazor();
await builder.Build().RunAsync();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Include the stylesheet and script references in the <head> section of the ~/index.html file.

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</head>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Blazor Splitter component

Add the Syncfusion® Blazor Splitter component in the ~/Pages/Index.razor file.

<div>Horizontal Splitter</div>

<SfSplitter Height="240px" Width="100%">
    <SplitterPanes>
        <SplitterPane>
            <ContentTemplate>
                <div class="centered-content"> Left Pane </div>
            </ContentTemplate>
        </SplitterPane>
        <SplitterPane>
            <ContentTemplate>
                <div class="centered-content"> Middle Pane </div>
            </ContentTemplate>
        </SplitterPane>
        <SplitterPane>
            <ContentTemplate>
                <div class="centered-content"> Right Pane </div>
            </ContentTemplate>
        </SplitterPane>
    </SplitterPanes>
</SfSplitter>

<style>
    .centered-content {
        display: flex;
        justify-content: center;
        align-items: center;
        height: 100%;
    }
</style>
  • Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion® Blazor Splitter component in your default web browser.

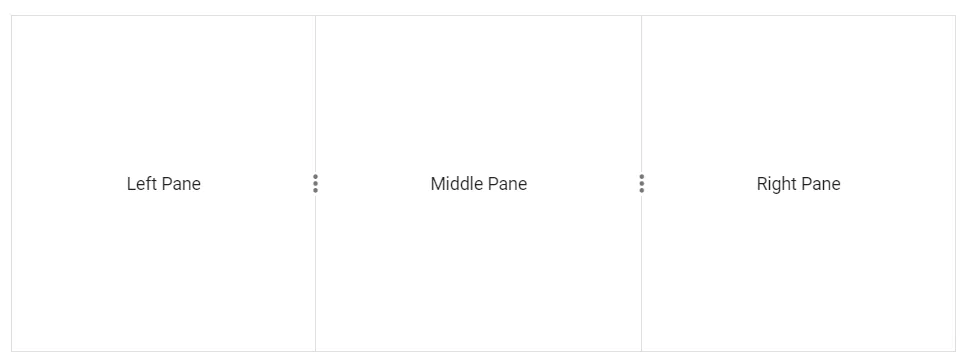

Blazor Splitter Component

See Also

NOTE

You can also explore our Blazor Splitter example that shows you how to render and configure the Splitter.
