Getting Started with Blazor Stepper in Blazor Web App

2 Jan 20257 minutes to read

This section briefly explains about how to include Blazor Stepper component in your Blazor Web App using Visual Studio.

Prerequisites

System requirements for Blazor components

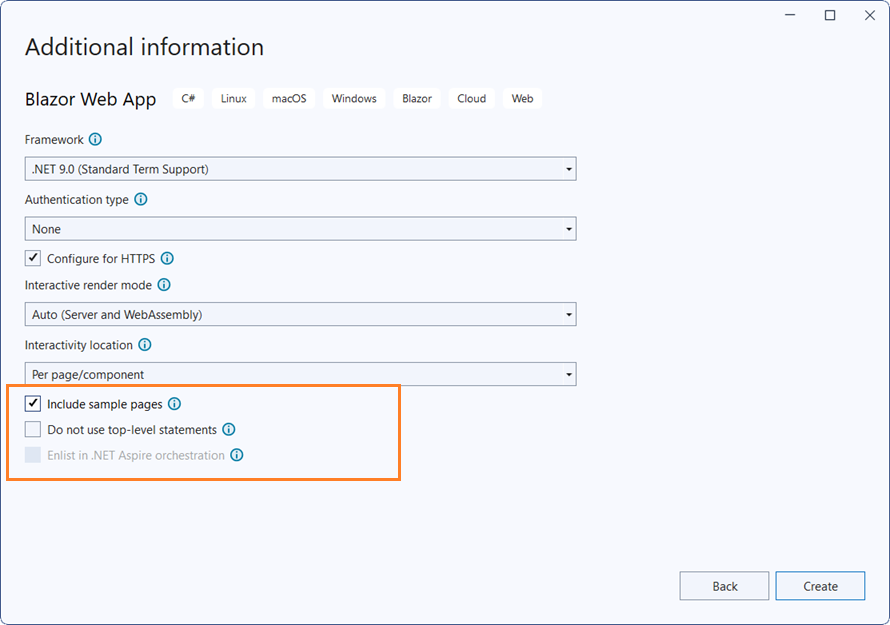

Create a new Blazor Web App

You can create a Blazor Web App using Visual Studio 2022 via Microsoft Templates or the Syncfusion^® Blazor Extension.

You need to configure the corresponding Interactive render mode and Interactivity location while creating a Blazor Web Application.

Install Syncfusion^® Blazor Navigations and Themes NuGet in the App

To add Blazor Stepper component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.Navigations and Syncfusion.Blazor.Themes.

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion^® Blazor components NuGet packages within the client project.

Alternatively, you can utilize the following package manager command to achieve the same.

Package Manager
Install-Package Syncfusion.Blazor.Navigations -Version 28.1.33
Install-Package Syncfusion.Blazor.Themes -Version 28.1.33

NOTE

Syncfusion^® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion^® Blazor Service

Interactive Render Mode	Description
WebAssembly or Auto	Open ~/_Imports.razor file from the client project.
Server	Open ~/_import.razor file, which is located in the `Components` folder.

Import the Syncfusion.Blazor and Syncfusion.Blazor.Navigations namespace.

~/_Imports.razor
@using Syncfusion.Blazor
@using Syncfusion.Blazor.Navigations

Now, register the Syncfusion^® Blazor Service in the ~/Program.cs file of your Blazor Web App.

If the Interactive Render Mode is set to WebAssembly or Auto, you need to register the Syncfusion^® Blazor service in both ~/Program.cs files of your Blazor Web App.

Server(~/_Program.cs)
Client(~/_Program.cs)
...
...
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents()
    .AddInteractiveWebAssemblyComponents();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
...
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.Services.AddSyncfusionBlazor();

await builder.Build().RunAsync();

If the Interactive Render Mode is set to Server, your project will contain a single ~/Program.cs file. So, you should register the Syncfusion^® Blazor Service only in that ~/Program.cs file.

~/_Program.cs
...
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Include the stylesheet reference in the <head> section and the script reference at the end of the <body> in the ~/Components/App.razor file as shown below:

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/material3.css" rel="stylesheet" />
</head>

<body>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</body>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Syncfusion^® Blazor Stepper component

Add the Syncfusion^® Blazor Stepper component in the ~Pages/.razor file. If an interactivity location as Per page/component in the web app, define a render mode at the top of the ~Pages/.razor component, as follows:

Interactivity location	RenderMode	Code
Per page/component	Auto	@rendermode InteractiveAuto
	WebAssembly	@rendermode InteractiveWebAssembly
	Server	@rendermode InteractiveServer
	None	—

NOTE

If an Interactivity Location is set to Global and the Render Mode is set to Auto or WebAssembly or Server, the render mode is configured in the App.razor file by default.

RAZOR

@* desired render mode define here *@
@rendermode InteractiveAuto

RAZOR
<SfStepper>
    <StepperSteps>
        <StepperStep></StepperStep>
        <StepperStep></StepperStep>
        <StepperStep></StepperStep>
        <StepperStep></StepperStep>
        <StepperStep></StepperStep>
    </StepperSteps>
</SfStepper>

Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion^® Blazor Stepper component in your default web browser.

Configure icon and label

You can define the step icon and label by setting the IconCss and Label properties using StepperStep tag directive.

RAZOR
<SfStepper>
    <StepperSteps>
        <StepperStep Label="Cart" IconCss="sf-icon-cart"></StepperStep>
        <StepperStep Label="Address" IconCss="sf-icon-user"></StepperStep>
        <StepperStep Label="Delivery" IconCss="sf-icon-transport"></StepperStep>
        <StepperStep Label="Payment" IconCss="sf-icon-payment"></StepperStep>
        <StepperStep Label="Ordered" IconCss="sf-icon-success"></StepperStep>
    </StepperSteps>
</SfStepper>

<style>

    @@font-face {
        font-family: 'Default';
        src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1vSgcAAAEoAAAAVmNtYXCDeIPaAAABmAAAAF5nbHlmEwr+pwAAAggAAAjQaGVhZCYp2+EAAADQAAAANmhoZWEIUQQHAAAArAAAACRobXR4GAAAAAAAAYAAAAAYbG9jYQhUBlAAAAH4AAAADm1heHABFgErAAABCAAAACBuYW1luF5THQAACtgAAAIlcG9zdJ8LuoMAAA0AAAAAbwABAAAEAAAAAFwEAAAAAAAD9AABAAAAAAAAAAAAAAAAAAAABgABAAAAAQAArxT6wV8PPPUACwQAAAAAAOGLy6UAAAAA4YvLpQAAAAAD9AOaAAAACAACAAAAAAAAAAEAAAAGAR8ABgAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wLnFQQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAAAAAAAgAAAAMAAAAUAAMAAQAAABQABABKAAAADAAIAAIABOcC5wbnCOcQ5xX//wAA5wLnBucI5xDnFf//AAAAAAAAAAAAAAABAAwADAAMAAwADAAAAAEABAACAAMABQAAAAAAAAEQAiwC3AQkBGgAAAAFAAAAAAP0A18APwB/AIkAxgDrAAABHw8/Dy8OKwEPDQUfDz8PLw4rAQ8NAR8FFSM1JxEfBz8OOwEfDjM/BzUnIw8GATM/Dx8PMxEhAq8BAQIEBAUFBwYICAgJCQoKCgkKCAkIBwcHBQUEAwMBAQEBAwMEBQUHBwcICQgKCQoKCgkJCAgIBgcFBQQEAgH+CwEBAgQEBQUHBggICAkJCgoKCQoICQgHBwcFBQQDAwEBAQEDAwQFBQcHBwgJCAoJCgoKCQkICAgGBwUFBAQCAQJ8AwUIWAwD3n0BAwMGBgYICAMEBQYHBwkJCgsLDA0NDQ4ODQ4MDAwLCgkJCAYGBQMDKAgIBwYFBAECvLsICAYHBQMD/beAAwQFBQcHCAkKCgsLDA0MDg0NDQwLCwsJCQkHBwUFAwKE/eMBAQoJCQkJCAcHBgYFBAMDAQEBAQMDBAUGBgcHCAkJCQkKCgoJCQgICAcGBgQFAwICAgIDBAUFBgcHCAkJCQoLCgkJCQkIBwcGBgUEAwMBAQEBAwMEBQYGBwcICQkJCQoKCgkJCAgIBwYGBAUDAgICAgMEBQUGBwcICQkJCgGuAQIGehYJBKYp/l0ICAcGBQQCAQ0NDQwLCgoJCAgGBQUDAgIDBQUGCAgJCgoLDA0NDQECBAUGBwQI1foBAgQFBgcH/iwNDAwLCwoJCQgHBgUEAwEBAQEDBAUGBwgJCQoLCwwMDQJJAAAABgAAAAAD8wOWAAYAQgBaAGwArQDuAAABBzcfAwUhLwIHIy8PNS8CKwIPHQEHLwEjDwE1LwMjNz0BJzcfBTcfAg8BLwY3OwEfAQcVHw8/Dy8PDw4BFR8PPw8vDw8OAxEWBgEDAgb8/wNuBAUEDQsVFBQTEhEPDw0GCwoIBgQCFhITE+wQDw8PDg4ODg0NDQwNCwwKCwoKCQgJBwcHBgYEBQMEA5FrBAQDBAMBAwMDBgIDagIEBgYGBxwCAwIBFQYGBAgFBgIWAgQHCPcBAgQGBggKCgsMDQ4PDxAQEBAPDw4NDAsLCQgGBgQCAQECBAYGCAkLCwwNDg8PEBAQEA8PDg0MCwoKCAYGBAL+KgEEBQgKCw0PEBETFBQWFxcXFhYUFBMREQ4NDAkIBgMBAQMGCAkMDQ4RERMUFBYWFxcXFhQUExEQDw0LCggFBAEXBhcFBAMDrxYWDQEBAwUHCAsMDQ4IERESFBQUFQQDAgECAgMEBAUGBgYIBwgJCQoKCwsLDAwMDQ0ODQ4PDgEZawIBAQIGBQMCAQQDBgZqBgoHBQMDMAMHBwMWAQICBQYKChYCBlwICBAPDw4NDAsLCQgGBgQCAQECBAYGCAkLCwwNDg8PEBAQEA8PDg0MCwoKCAYGAwMBAQMDBgYICgoLDA0ODw8QATMLDBYVFRQSERAPDQsKCAUEAQEEBQgKCw0PEBESFBUVFhcXFxYVFBISEA8NCwoIBQQBAQQFCAoLDQ8QEhIUFRYXAAAAAAQAAAAAA/QDRwA/AH8AhwCRAAABFR8OPw49AS8NKwEPDQUVHw4/Dj0BLw0rAQ8NEwcTIRMnMSMhMxMhNSEDBzUhA0YBAgMEBAQGBQcGBwgICAgICAgIBwYHBQYEBAQDAgEBAgMEBAQGBQcGBwgICAgICAgIBwYHBQYEBAQDAgH+aAICAgQEBAYFBwYIBwgICAgICAgHBgcFBgQEBAMCAQECAwQEBAYFBwYHCAgICAgICAcIBgcFBgQEBAICAsH6jAFKjPpu/Z3NwgJZ/dzDAf8AAQkICAgHBwcGBgUFBAQCAgEBAQECAgQEBQUGBgcHBwgICAkIBwgHBwYGBQUEAwMCAQECAwMEBQUGBgcHCAcICQgICAcHBwYGBQUEBAICAQEBAQICBAQFBQYGBwcHCAgICQgHCAcHBgYFBQQDAwIBAQIDAwQFBQYGBwcIBwgB+wH+vQFABP5dOgGkAQEAAAADAAAAAANkA5oAnQDxAR4AAAEzHwEdAR8HFQ8DIy8HDwYdAR8WDw0dAQ8BKwIvAT0BLwc9AT8COwEfBj8HLxc/DTU/AwEfDjsBPxEvFiMPFR8BEw8CFR8HMz8HNS8GIw8ELwQrAQ8BAgoCAgENDAwKCggHBQEBAikCAgIEAwQFDA0SBwcGAgIBAQICBgcHBxYKCQkJCAcHBgUFBAMCAQEBAQIDAwQFBQYGBwcPEQECAhUCAQINDAsLCQgHBQICKQICAgQDBAULDhIHBwYCAQEBAQEBAgYHBwcWCgkKCAgHBwYFBQQDAgEBAQECAwMEBAYFBgcHEBABAQED/qwUFRUVFRYWFhYWFxYXFhcXFxcWFxYXFhYWFhYVFRUVFAQCAQICBAUGCAgJCgsLDA0MDQ0NDBk2EQYGqgYGCEsZDQ0NDA0MCwsKCQgIBgUEAgIBAqQCAQEBAwkRNRIHBqADChI1DQoFAgEBAgMEBAoMEw8eTw4IVxkXCwkJBwYCOAIBAiIDAwUGBwgJCgICAQENAQEFAwIDAgECAgMFAwMEBAUDBAMFAwIBAQECAwMEBAUGBgYHCAgICQgHBwcGBgYFBQQEBAYDIgICAQECAiICBAUGBwgJCQMBAgEMAQUDAwIDAQICBAQDBAQEBAQEAwQEAgEBAQICBAMFBQUGBwcICAgJBwgHBgcGBgUFBAQEBQQiAgEBAf6RDAsLCQkICAYGBQUDAwIBAQIDAwUFBgYICAkJCwsMKSckIiAeGxoYFhQTERAPDQwLCgkIDxsJBQUFBQQnEAkKCwwNDxARExQWGBobHiAiJCcCoAMDAwQECA8XPRcKCgUPFz0REAkIBAMDAwMCAQICAwcYAwEaBwQBAgIAAAEAAAAAA/MDNAA0AAABDwQvAw8EHwQ/ETUnIw8LAYsEJwwGAgIwXmMXFBIICCsqKaEqRUclJSYnJykpKiosLC4GFgsCAWMhISIiIiIjIkJAPRwB8AQmCQMBARQuNgsMDgcIJCYnmyZOTycmJiYlJSQjIiIgHwULCAMCAQ4RERITFBUVKy0tFgAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABAAcAAQABAAAAAAACAAcACAABAAAAAAADAAcADwABAAAAAAAEAAcAFgABAAAAAAAFAAsAHQABAAAAAAAGAAcAKAABAAAAAAAKACwALwABAAAAAAALABIAWwADAAEECQAAAAIAbQADAAEECQABAA4AbwADAAEECQACAA4AfQADAAEECQADAA4AiwADAAEECQAEAA4AmQADAAEECQAFABYApwADAAEECQAGAA4AvQADAAEECQAKAFgAywADAAEECQALACQBIyBEZWZhdWx0UmVndWxhckRlZmF1bHREZWZhdWx0VmVyc2lvbiAxLjBEZWZhdWx0Rm9udCBnZW5lcmF0ZWQgdXNpbmcgU3luY2Z1c2lvbiBNZXRybyBTdHVkaW93d3cuc3luY2Z1c2lvbi5jb20AIABEAGUAZgBhAHUAbAB0AFIAZQBnAHUAbABhAHIARABlAGYAYQB1AGwAdABEAGUAZgBhAHUAbAB0AFYAZQByAHMAaQBvAG4AIAAxAC4AMABEAGUAZgBhAHUAbAB0AEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAYBAgEDAQQBBQEGAQcADXRyYW5zcG9ydC12YW4LdXNlci1tb2RpZnkRc2hvcHBpbmctY2FydF8wMS0Lc3BlbmQtbW9uZXkFY2hlY2sAAAA=) format('truetype');
        font-weight: normal;
        font-style: normal;
    }

    [class^="sf-icon-"], [class*=" sf-icon-"] {
        font-family: 'Default' !important;
        speak: none;
        font-style: normal;
        font-weight: normal;
        font-variant: normal;
        text-transform: none;
        line-height: inherit;
        -webkit-font-smoothing: antialiased;
        -moz-osx-font-smoothing: grayscale;
    }
    .sf-icon-transport:before {
        content: "\e702";
    }
    .sf-icon-user:before {
        content: "\e708";
    }
    .sf-icon-cart:before {
        content: "\e710";
    }
    .sf-icon-payment:before {
        content: "\e706";
    }
    .sf-icon-success:before {
        content: "\e715";
    }
</style>

NOTE

View Sample in GitHub.
