Getting Started with Blazor Toggle Switch Button in Blazor Web App

2 Jan 20256 minutes to read

This section briefly explains about how to include Blazor Toggle Switch Button component in your Blazor Web App using Visual Studio.

Prerequisites

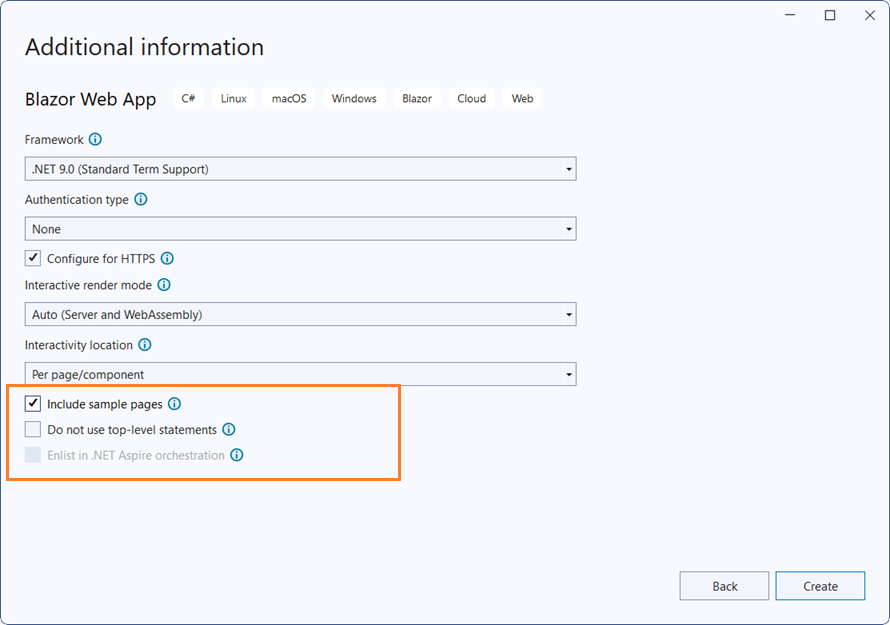

Create a new Blazor Web App

You can create a Blazor Web App using Visual Studio 2022 via Microsoft Templates or the Syncfusion® Blazor Extension.

You need to configure the corresponding Interactive render mode and Interactivity location while creating a Blazor Web Application.

Install Syncfusion® Blazor Buttons and Themes NuGet in the App

To add Blazor Toggle Switch Button component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.Buttons and Syncfusion.Blazor.Themes.

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion® Blazor components NuGet packages within the client project.

Alternatively, you can utilize the following package manager command to achieve the same.

Install-Package Syncfusion.Blazor.Buttons -Version 28.1.33
Install-Package Syncfusion.Blazor.Themes -Version 28.1.33

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion® Blazor Service

Interactive Render Mode Description
WebAssembly or Auto Open ~/_Imports.razor file from the client project.
Server Open ~/_import.razor file, which is located in the Components folder.

Import the Syncfusion.Blazor and Syncfusion.Blazor.Buttons namespace.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Buttons

Now, register the Syncfusion® Blazor Service in the ~/Program.cs file of your Blazor Web App.

If the Interactive Render Mode is set to WebAssembly or Auto, you need to register the Syncfusion® Blazor service in both ~/Program.cs files of your Blazor Web App.

...
...
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents()
    .AddInteractiveWebAssemblyComponents();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....
...
using Syncfusion.Blazor;

var builder = WebAssemblyHostBuilder.CreateDefault(args);
builder.Services.AddSyncfusionBlazor();

await builder.Build().RunAsync();

If the Interactive Render Mode is set to Server, your project will contain a single ~/Program.cs file. So, you should register the Syncfusion® Blazor Service only in that ~/Program.cs file.

...
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
builder.Services.AddRazorComponents()
    .AddInteractiveServerComponents();
builder.Services.AddSyncfusionBlazor();

var app = builder.Build();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Include the stylesheet reference in the <head> section and the script reference at the end of the <body> in the ~/Components/App.razor file as shown below:

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>

<body>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</body>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Syncfusion® Blazor Toggle Switch Button component

Add the Syncfusion® Blazor Toggle Switch Button component in the ~Pages/.razor file. If an interactivity location as Per page/component in the web app, define a render mode at the top of the ~Pages/.razor component, as follows:

Interactivity location RenderMode Code
Per page/component Auto @rendermode InteractiveAuto
  WebAssembly @rendermode InteractiveWebAssembly
  Server @rendermode InteractiveServer
  None —

NOTE

If an Interactivity Location is set to Global and the Render Mode is set to Auto or WebAssembly or Server, the render mode is configured in the App.razor file by default.

@* desired render mode define here *@
@rendermode InteractiveAuto
<label for="checked" style="padding: 10px 10px 10px 0">USB Tethering</label>

<SfSwitch @bind-Checked="isChecked"></SfSwitch>

@code {
    private bool isChecked = true;
}
  • Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion® Blazor Toggle Switch Button component in your default web browser.
Blazor Toggle Switch Button Component

Setting On and Off Text

On and Off text can be set using OnLabel and OffLabel properties of Toggle Switch Button component. In the following example, onLabel is set as ON and offLabel is set as OFF.

<SfSwitch @bind-Checked="isChecked" OnLabel="On" OffLabel="Off"></SfSwitch>

@code {
    private bool isChecked = true;
}

NOTE

Switch does not have text support for material themes, and does not support long custom text.

Blazor Toggle Switch Button With Label Sample

NOTE

View Sample in GitHub.

See also
